1-01 — ACCELERATOR PEDAL AND CONTROL (#175157) — 18 parça

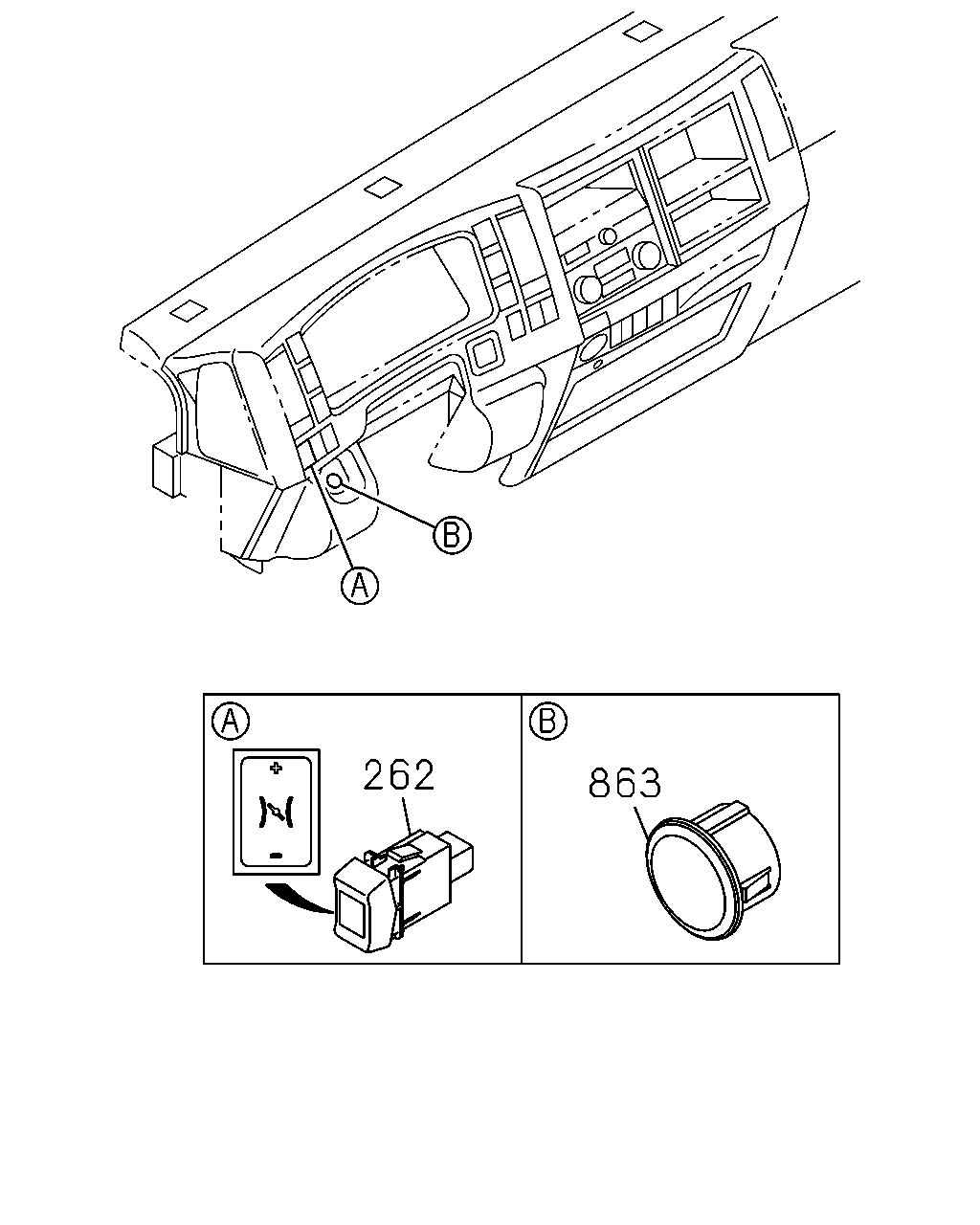

çizim 512356
262 863
BalonParca AdiParca NoAdetTipApplied Date
262 SWITCH; ACCEL,IDLE 8-97620-588-0 01 1 1509-
863 COVER; SENSOR
GRAY 		8-97408-816-0 01 1 1509-

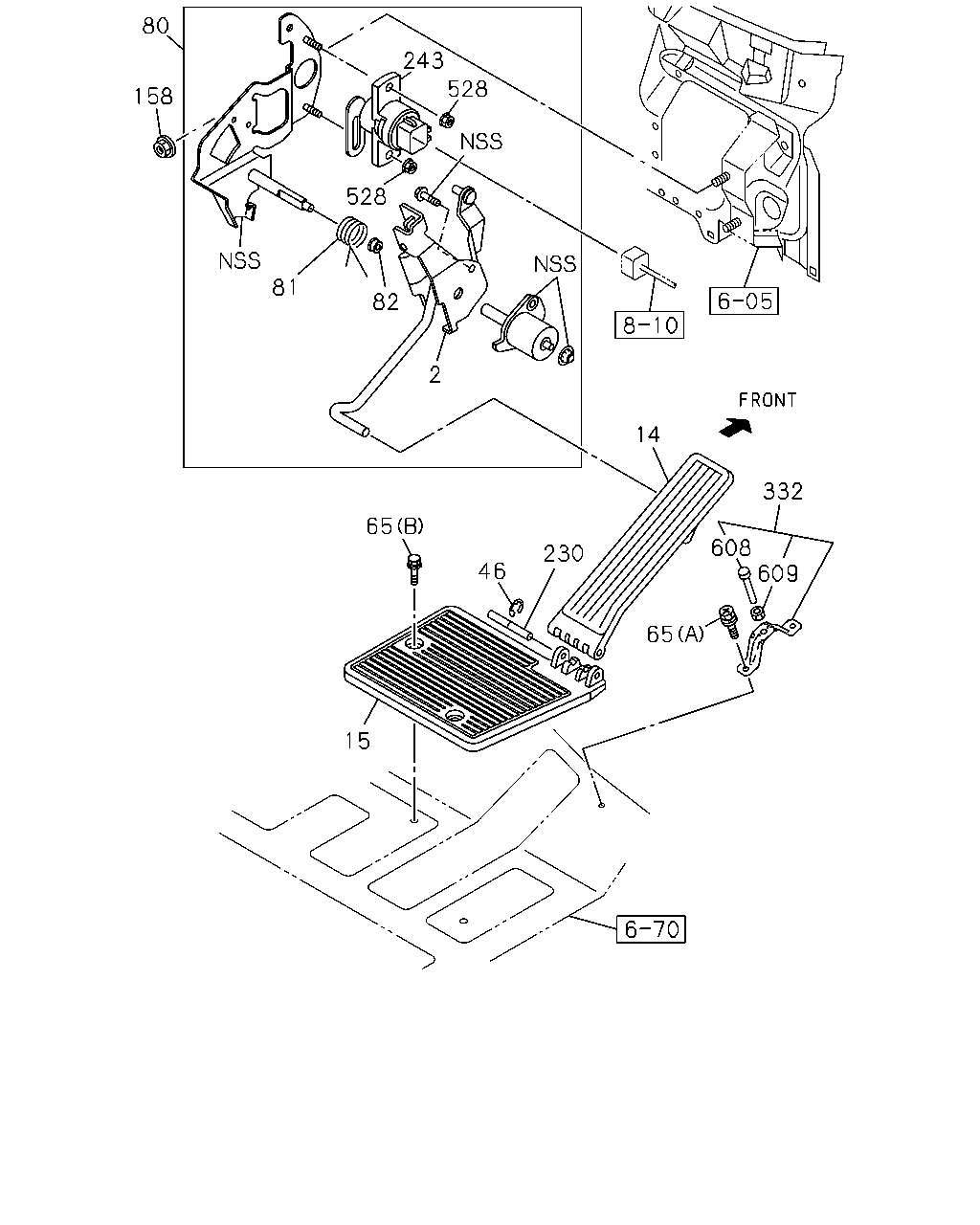

çizim 512438
80 158 81 82 2 528 528 243 65 15 46 230 65 14 332 609 608
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER; ENG CONT 8-97431-076-0 01 1 1509-
14 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 1509-
15 STAND; HEEL,ACCEL PEDAL 8-97431-073-0 01 1 1509-
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 1509-
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1509-
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1509-
80 LINK ASM; ENG CONT 8-97430-083-0 01 1 1509-
81 SPRING; RETURN,ENG CONT LEVER 8-98031-665-0 01 1 1509-
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 1509-
158 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509-
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 1509-
243 SENSOR; ACCEL 8-98131-263-0 01 1 1509-
332 BRACKET; ACCEL PEDAL STOPPER 8-97430-082-0 01 1 1509-
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 1509-
608 BOLT; LEVER TO SHAFT
M8X40 		0-20850-840-0 01 1 1509-
609 NUT; LEVER TO SHAFT
M8 		0-91110-508-0 01 1 1509-
