◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11663 - GXR(LHD)CHINA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#175156) — 20 parça

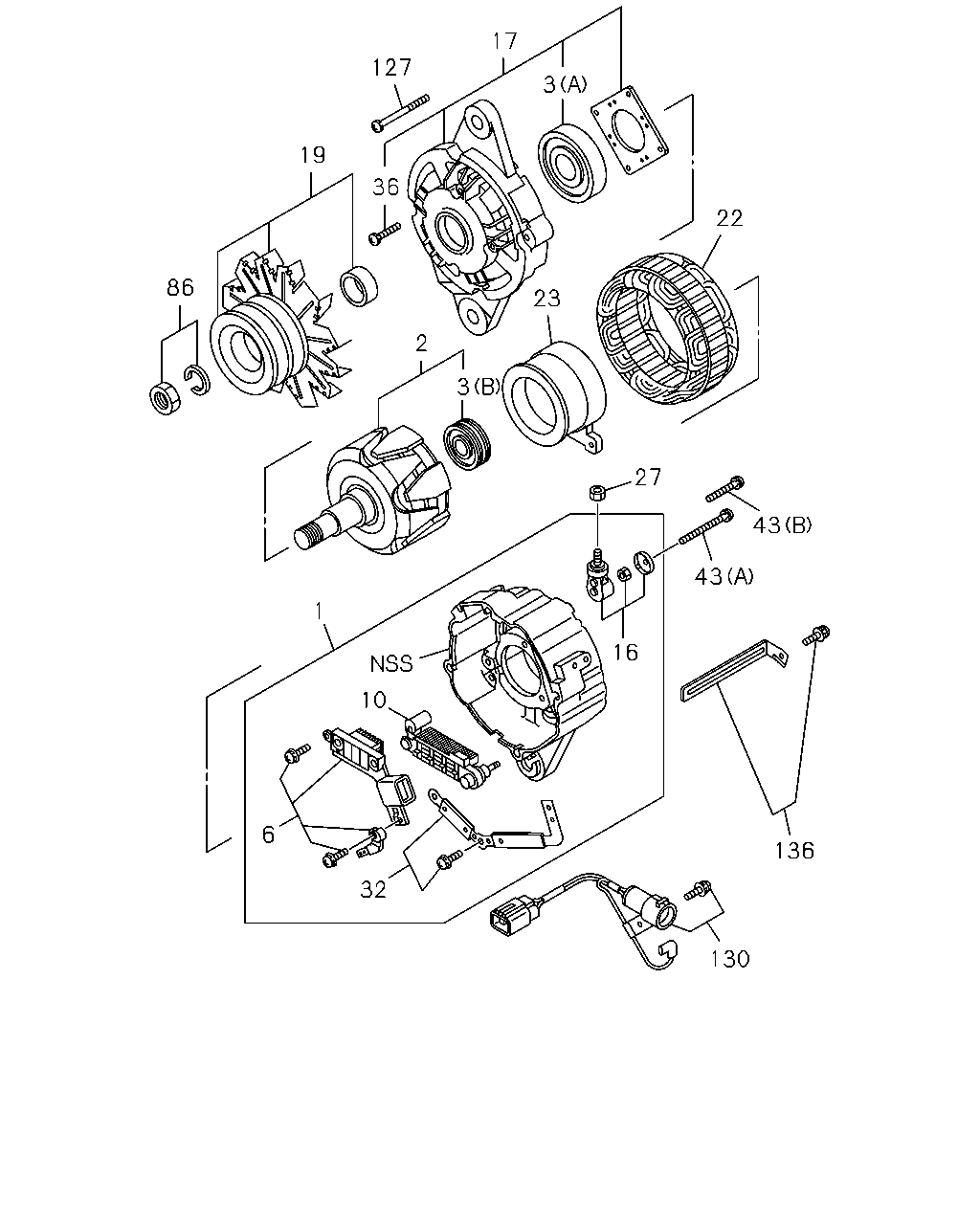

çizim 512421
43 43 27 16 10 1 6 32 130 136 2 3 23 3 17 127 19 86 36 22
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-97431-231-0 		8-98047-075-1 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-97431-231-0 		1-81221-102-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-97431-231-0 		1-81229-769-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-97431-231-0 		1-81229-770-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-97431-231-0 		8-98047-079-1 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-97431-231-0 		8-98047-082-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 8-97431-231-0 		1-81229-771-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-97431-231-0 		1-81213-101-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-97431-231-0 		1-81222-134-1 01 1 -
22 STATOR; GEN
ASM PART: A = 8-97431-231-0 		1-81211-129-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 8-97431-231-0 		8-98200-173-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-97431-231-0 		1-81229-772-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
ASM PART: A = 8-97431-231-0 		8-98047-088-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 8-97431-231-0 		1-81229-768-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 8-97431-231-0 		1-81229-773-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 8-97431-231-0 		1-81229-774-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 8-97431-231-0 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
ASM PART: A = 8-97431-231-0 		1-81229-767-0 01 1 -
130 CONNECTOR; GEN
ASM PART: A = 8-97431-231-0 		1-81229-776-0 01 1 -
136 CLAMP; GENERATOR
ASM PART: A = 8-97431-231-0 		1-81229-775-0 01 1 -
