◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#17515) — 178 parça

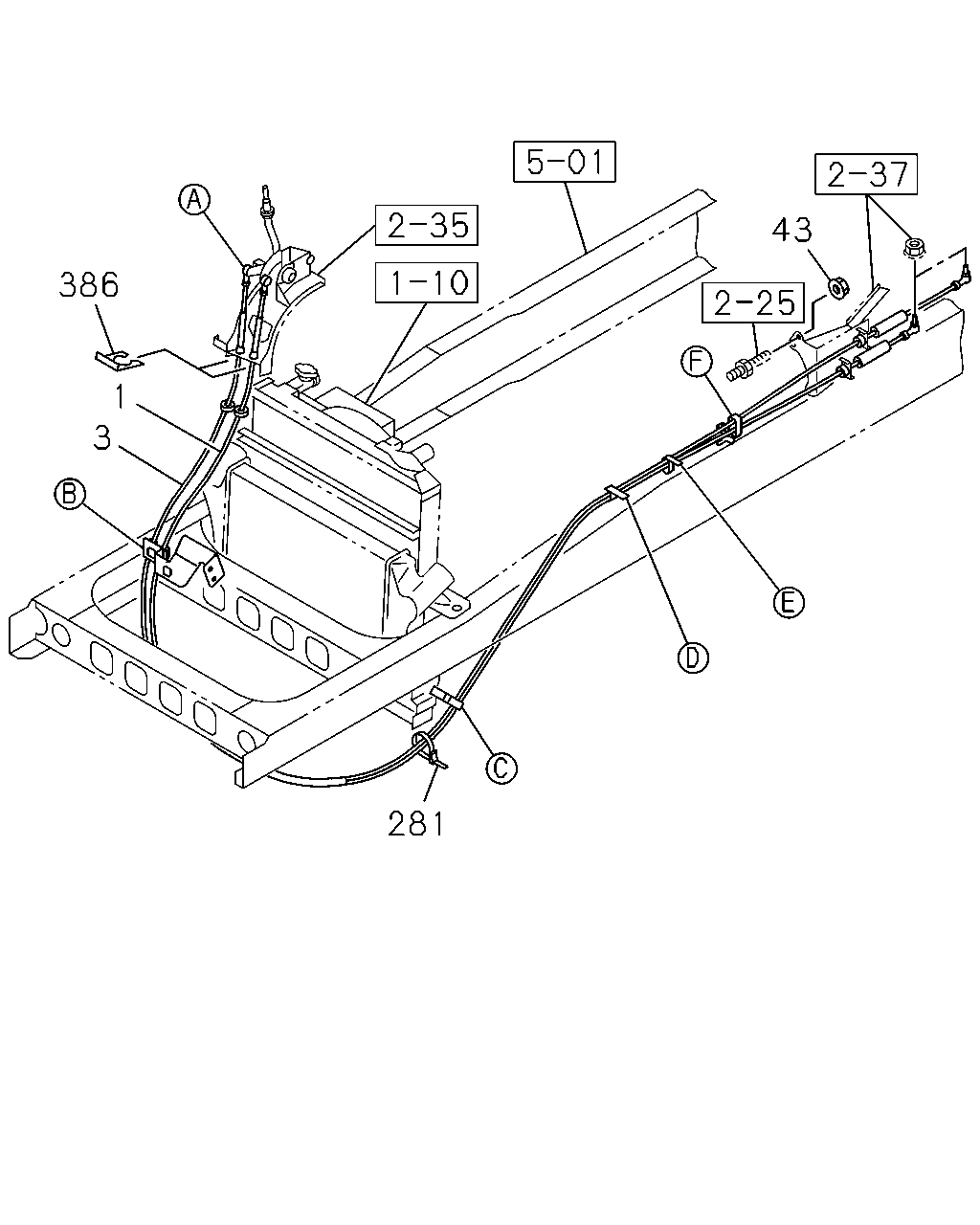

çizim 110053
43 386 1 3 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3455 		8-98178-343-2 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98047-809-5 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3385 		8-98017-471-7 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3430 		8-98017-476-6 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 1206-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 1206-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3630 		8-98178-344-1 01 1 1206-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98047-823-4 01 1 1206-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 1109-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3385 		8-98017-497-5 01 1 1109-1205
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 1206-
43 NUT; BRKT
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1109-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1109-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1109-

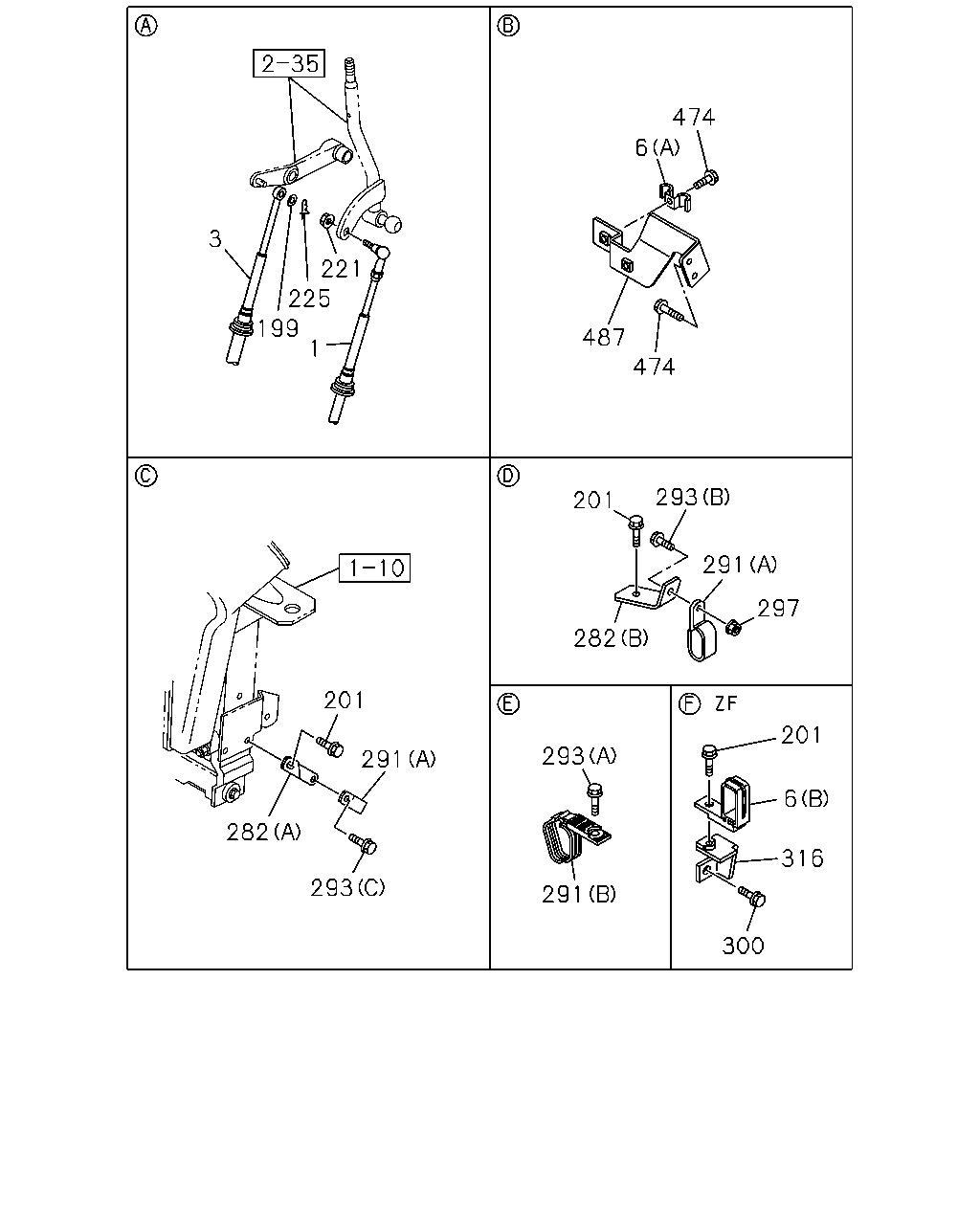

çizim 110054
474 6 3 221 225 199 487 1 474 293 201 291 297 282 201 201 293 291 6 282 316 293 291 300
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3455 		8-98178-343-2 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98047-809-5 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3385 		8-98017-471-7 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3430 		8-98017-476-6 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 1206-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 1206-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3630 		8-98178-344-1 01 1 1206-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98047-823-4 01 1 1206-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 1109-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3385 		8-98017-497-5 01 1 1109-1205
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 1206-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1109-
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1109-1205
6 CLIP; CABLE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1206-
6 CLIP; CABLE
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1206-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1109-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1109-1205
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 1109-1205
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1206-
201 BOLT; BRKT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1206-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8X16 FLANGE 		0-28050-816-0 01 1 1206-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1109-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1109-1205
201 BOLT; BRKT
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M12X35 FLANGE 		0-28151-235-0 01 1 1206-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1109-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1109-
282 BRACKET; TRANS SIDE
(A) 		8-98171-762-0 01 1 1109-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) (B) 		8-98010-418-0 01 1 1109-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 1109-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1109-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1109-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1109-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1109-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1109-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1109-
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 1109-1205
300 BOLT; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1206-
300 BOLT; CLIP
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8X20 FLANGE 		0-28650-820-0 01 1 1206-
316 BRACKET; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1206-
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 1109-1205
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) 		8-98086-439-0 01 1 1206-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1109-
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 1109-

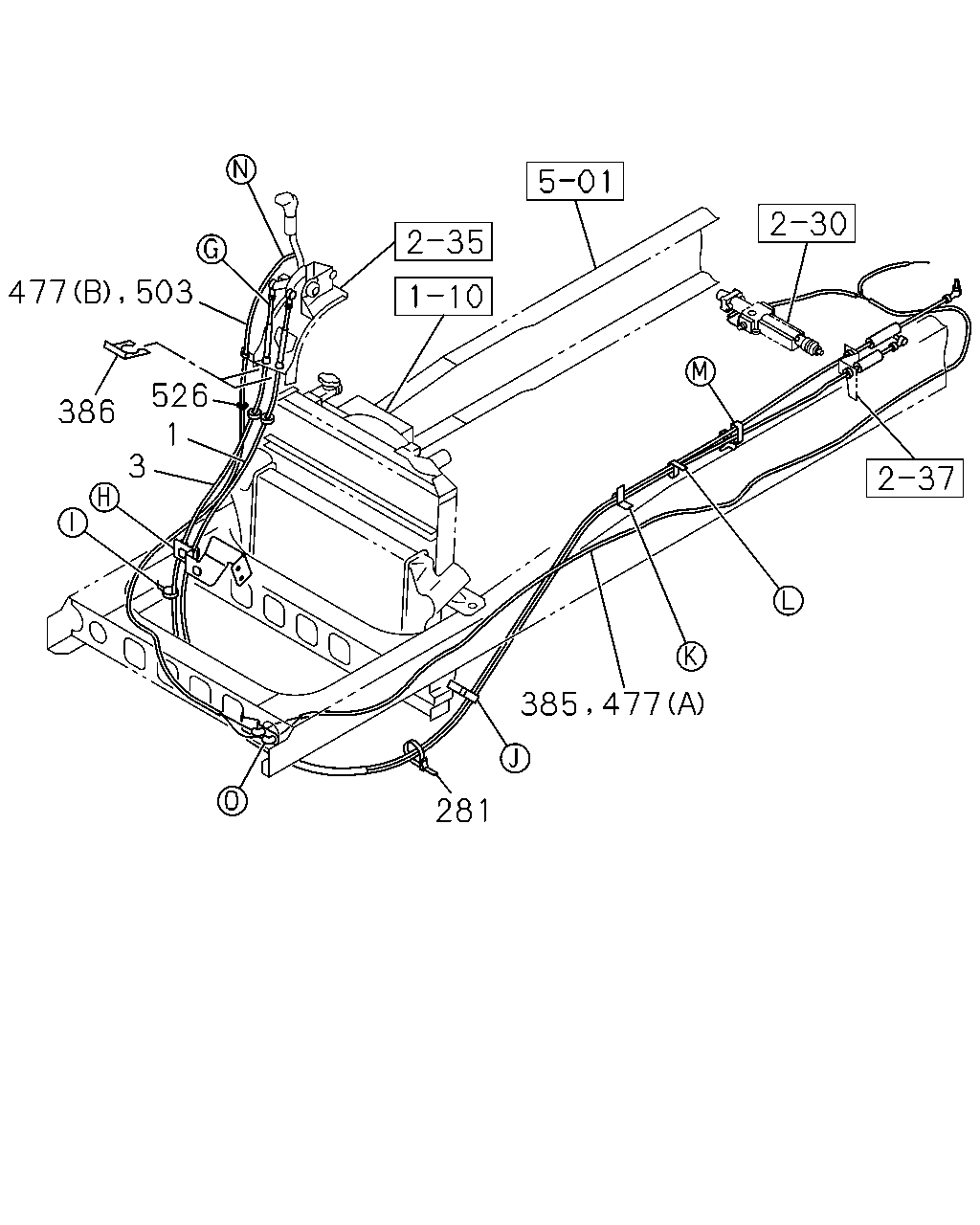

çizim 284102
526 1 386 3 281 477 385 503 477
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3455 		8-98178-343-2 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98047-809-5 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3385 		8-98017-471-7 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3430 		8-98017-476-6 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 1206-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 1206-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3630 		8-98178-344-1 01 1 1206-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98047-823-4 01 1 1206-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 1109-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3385 		8-98017-497-5 01 1 1109-1205
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 1206-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1109-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1206-
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1206-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1109-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1206-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1206-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1206-
477 TUBE; CORRUGATE
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1206-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1206-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1206-
503 TUBE; NYLON
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1206-
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1206-
526 GROMMET
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) 		5-09333-062-0 01 1 1206-

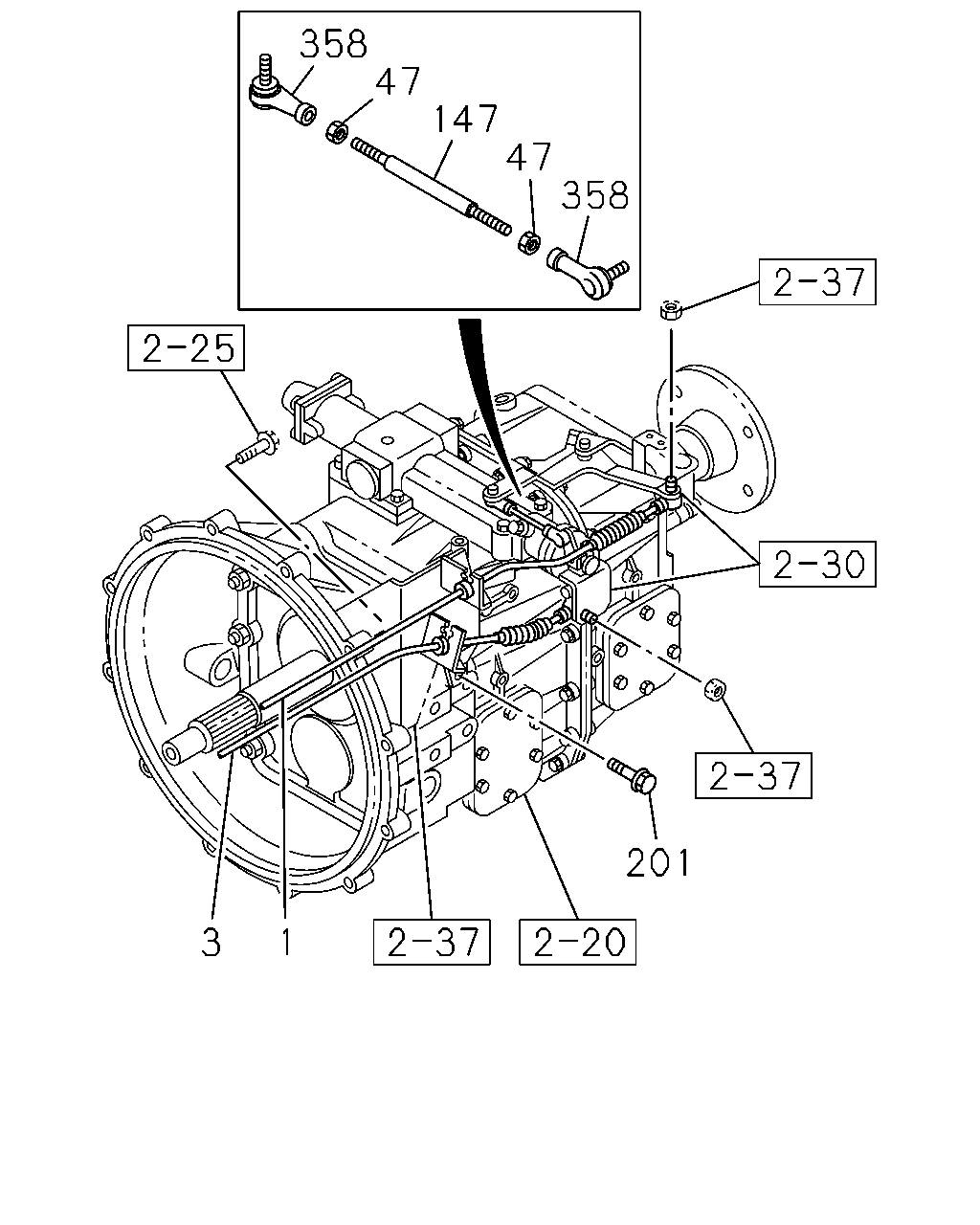

çizim 284103
358 47 147 47 358 201 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3455 		8-98178-343-2 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98047-809-5 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3385 		8-98017-471-7 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3430 		8-98017-476-6 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 1206-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 1206-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3630 		8-98178-344-1 01 1 1206-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98047-823-4 01 1 1206-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 1109-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3385 		8-98017-497-5 01 1 1109-1205
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 1206-
47 NUT; LK,LINK ROD
FULLER ES11109 DD M/T(Y5N) M8 		0-91111-508-0 02 1 1206-
147 ROD; LINK
FULLER ES11109 DD M/T(Y5N) 		0-84000-808-0 01 1 1206-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1109-1205
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 1109-1205
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1206-
201 BOLT; BRKT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1206-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8X16 FLANGE 		0-28050-816-0 01 1 1206-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1109-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1109-1205
201 BOLT; BRKT
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M12X35 FLANGE 		0-28151-235-0 01 1 1206-
358 ROD END; SCREW
FULLER ES11109 DD M/T(Y5N) L=45.5 		1-09760-118-1 02 1 1206-

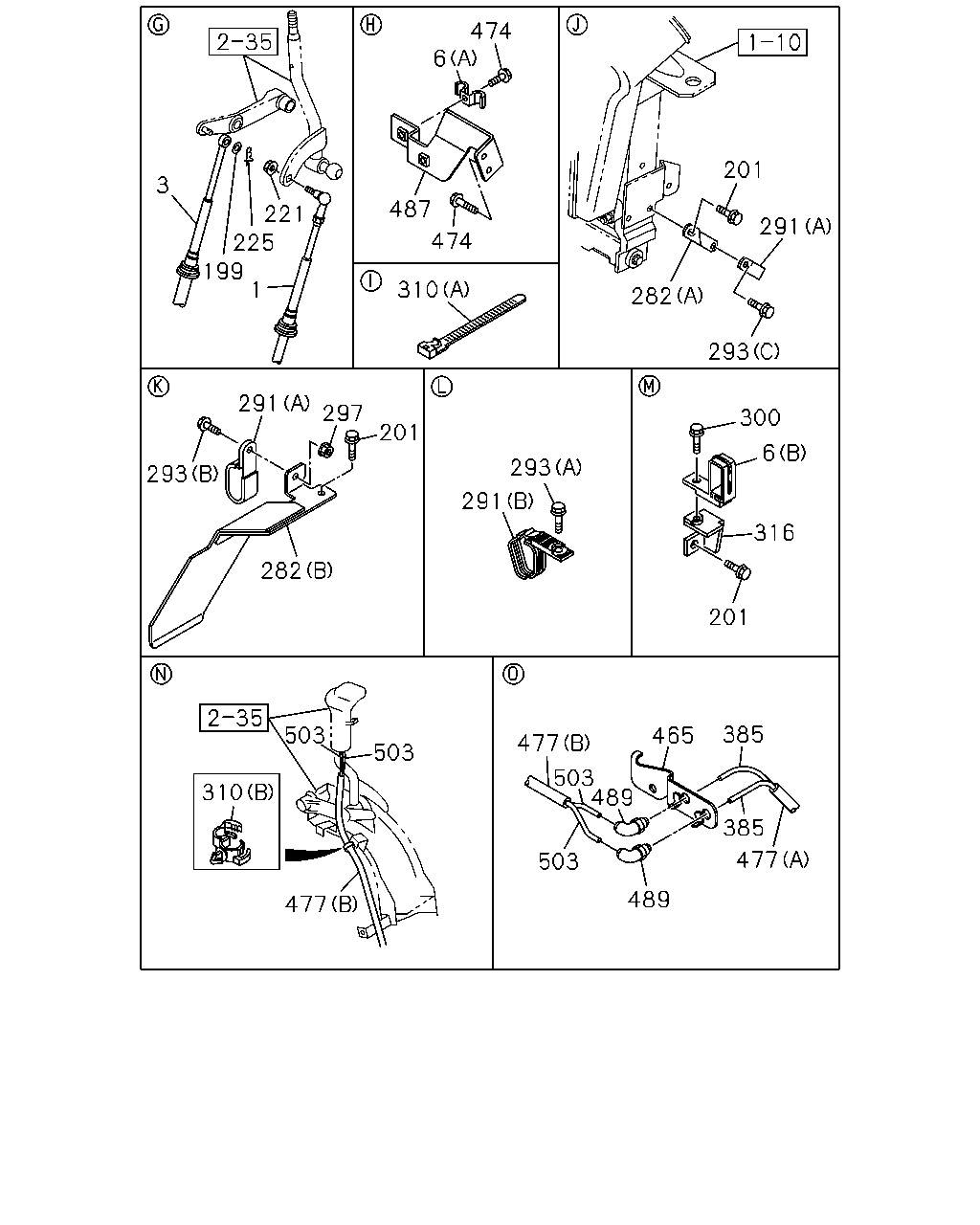

çizim 284321
474 6 201 3 487 221 291 474 225 199 310 1 282 293 291 297 300 201 6 293 293 291 316 282 201 385 503 465 477 503 503 489 310 385 477 503 489 477
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3455 		8-98178-343-2 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98047-809-5 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3385 		8-98017-471-7 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1206-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3430 		8-98017-476-6 01 1 1109-1205
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 1206-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 1206-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3630 		8-98178-344-1 01 1 1206-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98047-823-4 01 1 1206-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 1109-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3385 		8-98017-497-5 01 1 1109-1205
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 1206-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1109-
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1109-1205
6 CLIP; CABLE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1206-
6 CLIP; CABLE
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1206-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1109-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1109-1205
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 1109-1205
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1206-
201 BOLT; BRKT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1206-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8X16 FLANGE 		0-28050-816-0 01 1 1206-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1109-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1109-1205
201 BOLT; BRKT
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M12X35 FLANGE 		0-28151-235-0 01 1 1206-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1109-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1109-
282 BRACKET; TRANS SIDE
(A) 		8-98171-762-0 01 1 1109-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) (B) 		8-98010-418-0 01 1 1109-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 1109-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1109-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1109-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1109-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1109-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1109-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1109-
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 1109-1205
300 BOLT; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1206-
300 BOLT; CLIP
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8X20 FLANGE 		0-28650-820-0 01 1 1206-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 1206-
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (A) L=100 		5-09707-036-1 01 1 1206-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 1206-
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (B) ID=6 & 10-13 		8-97069-515-0 01 1 1206-
316 BRACKET; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1206-
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 1109-1205
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) 		8-98086-439-0 01 1 1206-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1206-
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1206-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98208-198-0 01 1 1206-
465 BRACKET; CONNECTOR
FULLER ES11109 DD M/T(Y5N) 		8-98208-198-0 01 1 1206-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1109-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1206-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1206-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1206-
477 TUBE; CORRUGATE
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1206-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1206-
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 1109-
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 1206-
489 CONNECTOR
FULLER ES11109 DD M/T(Y5N) 		8-98085-747-0 02 1 1206-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1206-
503 TUBE; NYLON
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1206-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
