Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#175144) — 44 parça
◀

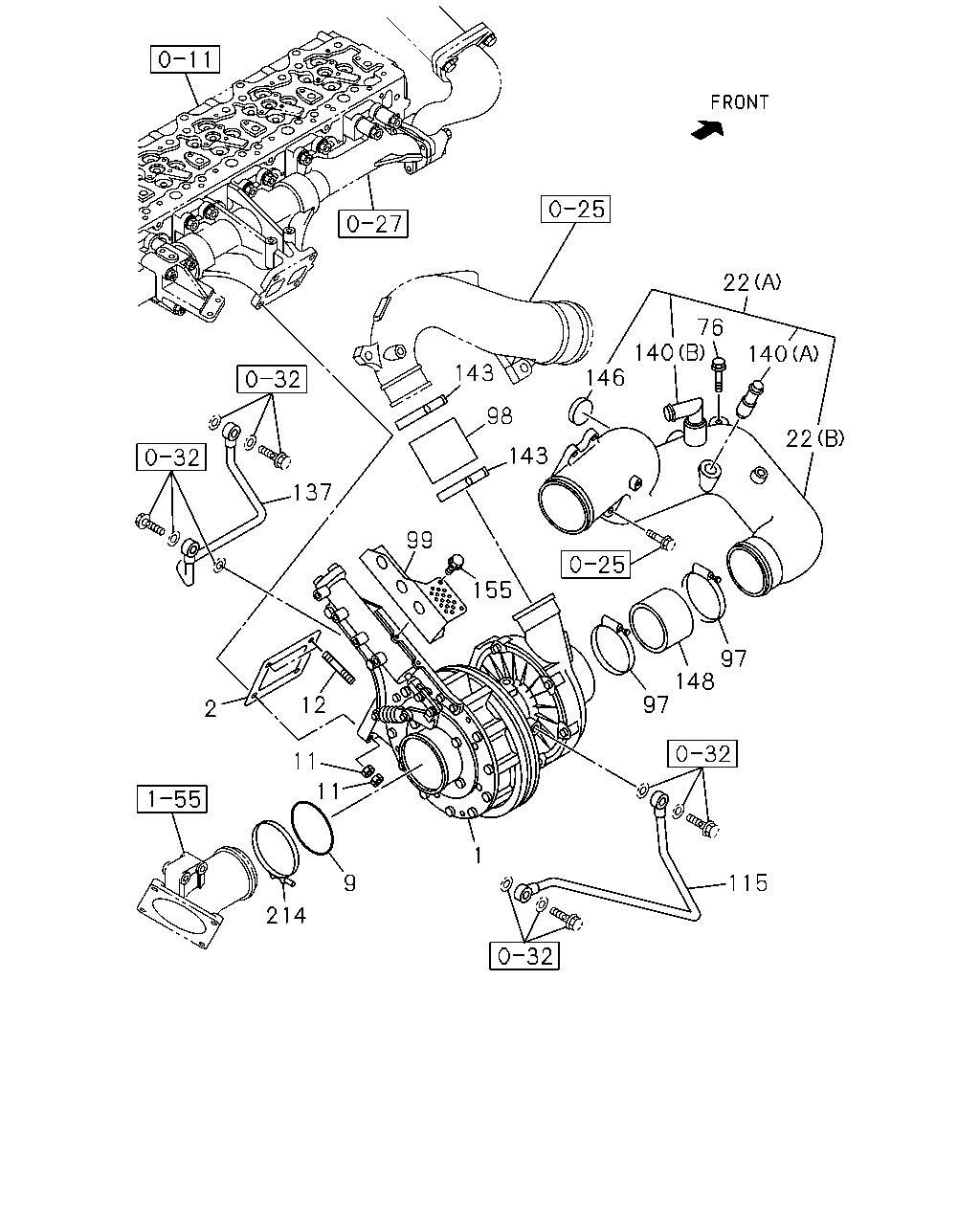

[036A] TURBOCHARGER ASM AND DUCT (20 parça)
[036A] FLEXBLE HOSE AND AIR PIPE (24 parça)
▶
137
143
98
143
146
140
76
22
140
22
97
148
97
115
1
9
214
11
11
12
2
155
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-98176-087-0
01
1
1509-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1509-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84
8-97618-761-1
01
1
1509-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1509-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1509-
22
DUCT; INL,ACL TO TURBOCHARGER
(A)
8-97430-593-2
01
1
1509-
22
DUCT; INL,ACL TO TURBOCHARGER
(B)
8-97431-150-1
01
1
1509-
76
BOLT; AIR DUCT
M10X45 FLANGE
0-28151-045-0
03
1
1509-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1509-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=63.6 L=64
8-98169-677-0
01
1
1509-
99
PROTECTOR; HEAT
1-14181-350-0
01
1
1509-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1509-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1509-
140
PIPE; AIR PIPE
(B)
8-97431-244-0
01
1
1509-
140
PIPE; AIR PIPE
(A)
8-97431-245-0
01
1
1509-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1509-
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
1509-
148
HOSE; TURBOCHARGER,INL
ID=101.6 OD=111.6 L=70
1-09360-913-0
01
1
1509-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28050-610-0
04
1
1509-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1509-
514
479
479
479
272
272
268
268
515
217
217
70
523
523
523
268
272
515
217
514
514
392
241
276
222
113
241
276
222
252
113
241
276
222
113
241
276
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
70
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1509-
70
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1509-
113
BRACKET; CLIP
(A) L=50
1-47475-299-2
03
1
1509-
113
BRACKET; CLIP
(B)
1-47475-427-1
01
1
1509-
113
BRACKET; CLIP
(C)
8-97431-005-0
01
1
1509-
113
BRACKET; CLIP
(D)
8-97431-006-0
01
1
1509-
217
BOLT; BRKT
(C) M14X40
0-20951-440-0
01
1
1509-
217
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
1509-
217
BOLT; BRKT
(B) M8X35 FLANGE
0-28650-835-0
01
1
1509-
222
NUT; CLIP
M8 FLANGE
0-91180-108-0
05
1
1509-
241
BOLT
(B) M8X60 FLANGE
0-28050-860-0
01
1
1509-
241
BOLT
(A) M8X20 FLANGE
0-28650-820-0
05
1
1509-
252
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1509-
268
NUT; FLEX TUBE
M12
9-09840-280-0
03
1
1509-
272
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
03
1
1509-
276
CLIP; PIPE
ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
06
1
1509-
392
CLIP; FLEX HOSE
ID=12 & 12
1-09709-280-1
01
1
1509-
479
UNION; FLEX TUBE
M12 ELBOW
0-92125-206-0
03
1
1509-
514
HOSE; FLEX
8-97431-517-0
03
1
1509-
515
BRACKET; UNION
(B)
8-97608-912-1
01
1
1509-
515
BRACKET; UNION
(A)
8-97430-491-0
01
1
1509-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A)
8-97431-510-0
01
1
1509-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B)
8-97431-511-0
01
1
1509-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C)
8-97431-512-0
01
1
1509-
