Isuzu WW
▶
TRUCKS
▶
GXR
▶
11663 - GXR(LHD)CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶
0-31 — THERMOSTAT AND HOUSING
(#175141) — 39 parça
◀

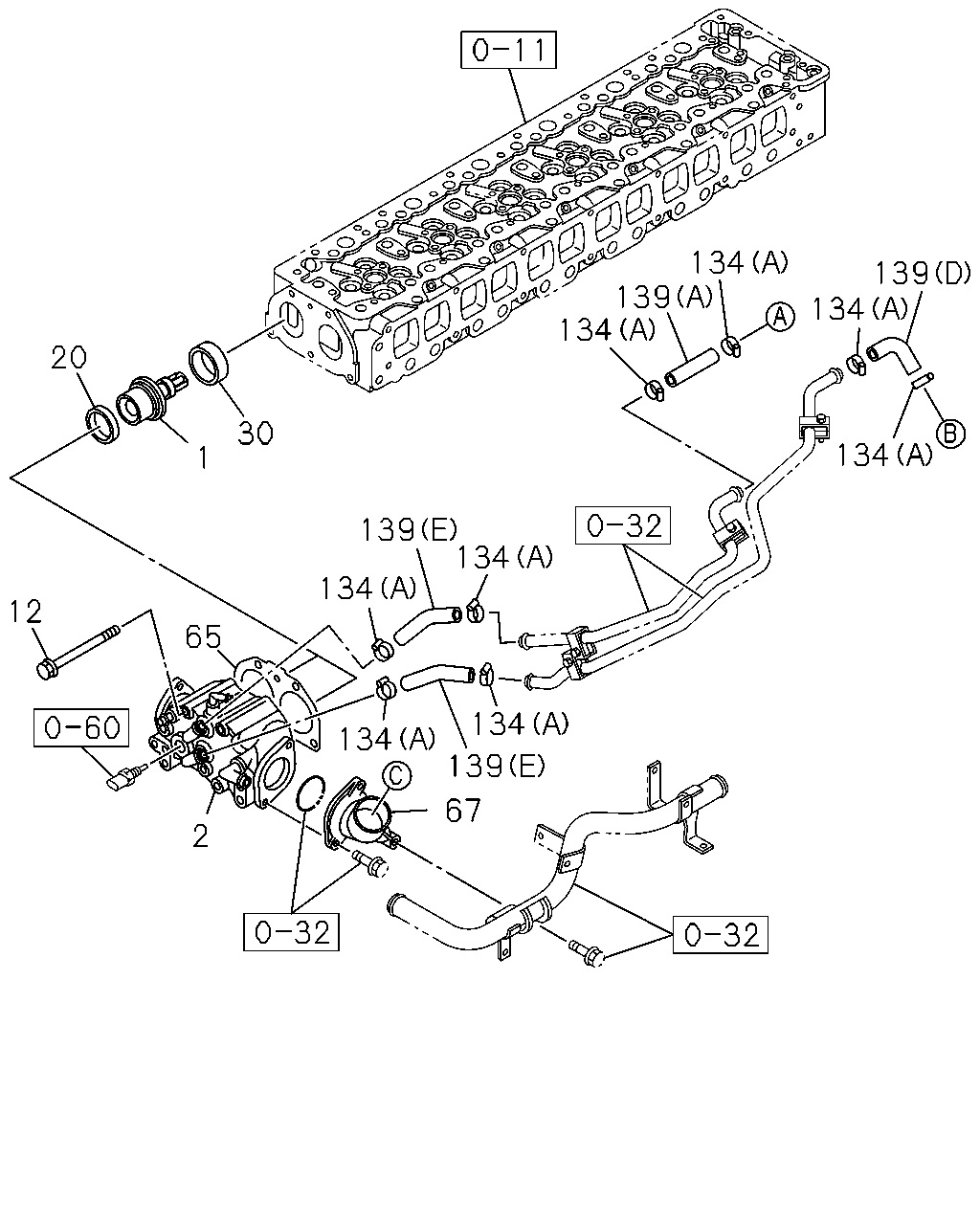

[031A] THERMOSTAT AND HOUSING (15 parça)

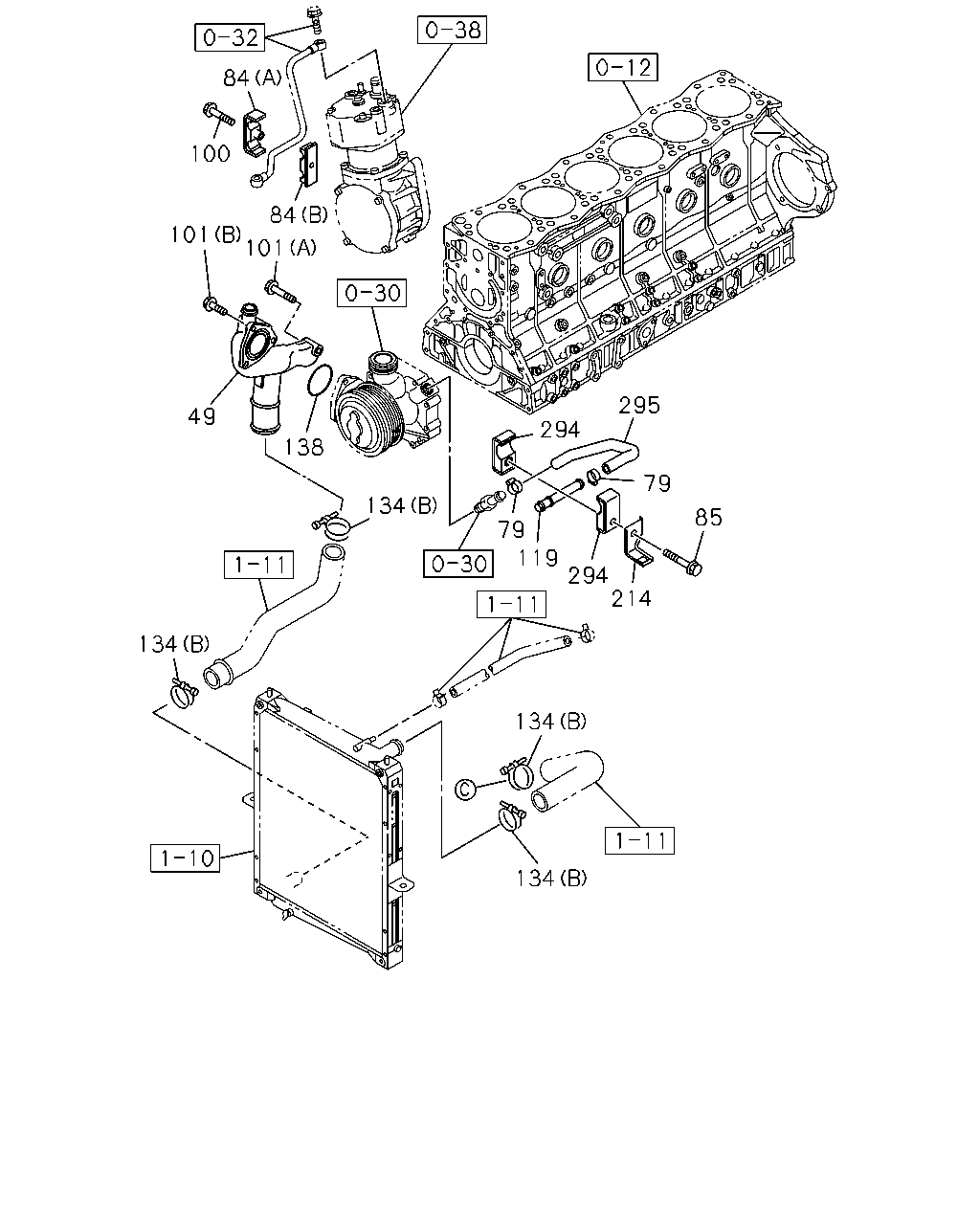

[031A] PIPING NO.2 (16 parça)

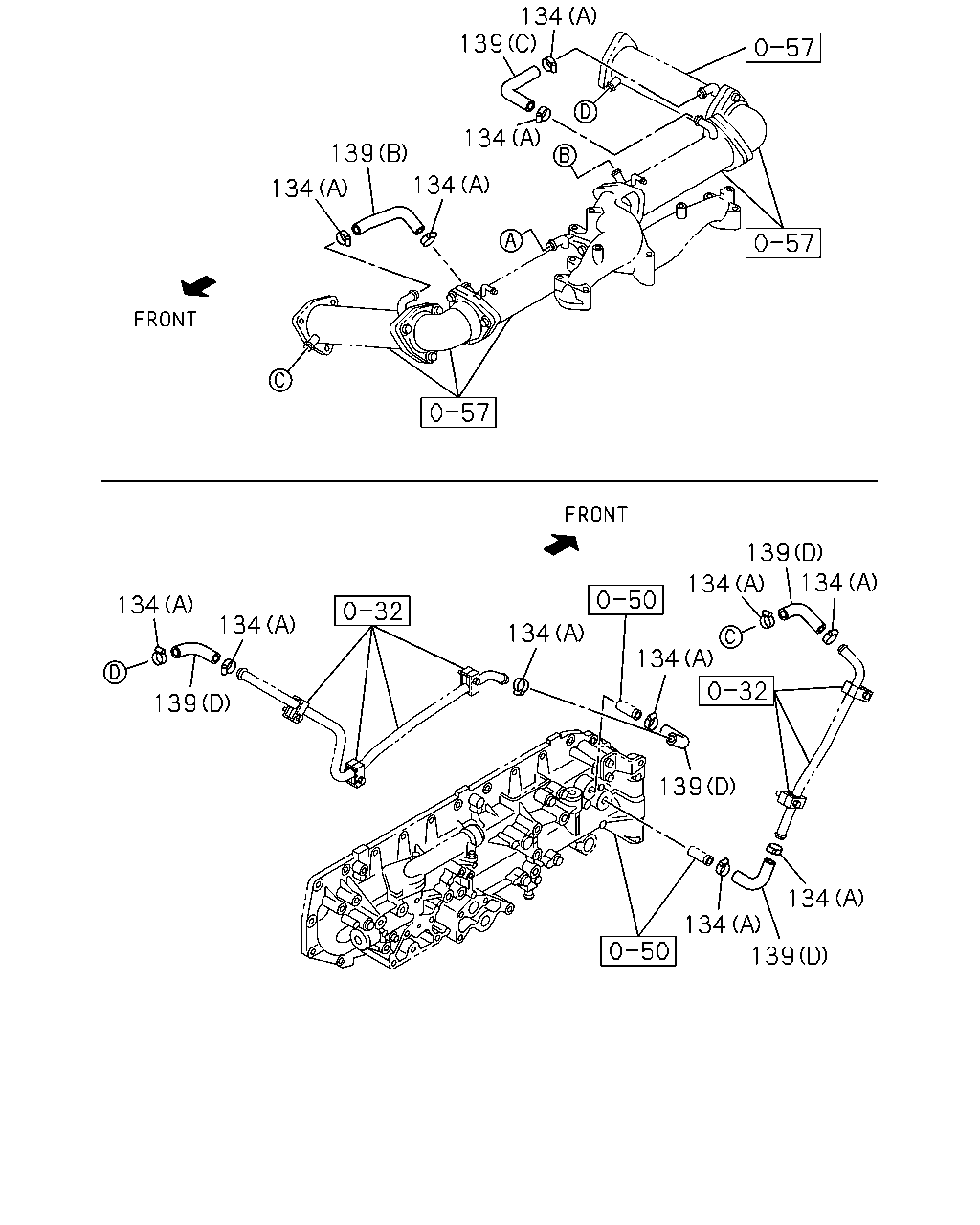

[031A] PIPING NO.1 (8 parça)
▶
20
1
30
12
139
134
134
134
134
139
67
2
65
134
139
134
139
134
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
82 CELSIUS
8-98271-161-0
02
1
1509-
2
HOUSING; THERMOSTAT
8-97430-611-1
01
1
1509-
12
BOLT; HSG
M10X120 FLANGE
0-28156-012-0
05
1
1509-
20
RING; SEAL
ID=59 OD=66.1
1-13779-011-0
02
1
1509-
30
SPACER
8-98158-701-0
02
1
1509-
65
GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98089-091-0
01
1
1509-
67
DUCT; WATER,OUTLET
8-97603-796-0
01
1
1509-
134
CLIP; RUBBER HOSE
(B) ID=72
1-09704-068-0
02
1
1509-
134
CLIP; RUBBER HOSE
(B) ID=72
1-09704-068-0
02
1
1509-
134
CLIP; RUBBER HOSE
(A) ID=25
8-97177-581-0
20
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(A) L=100 SERVICED BY L=3000
0-03566-300-0
01
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(B)
8-97603-981-0
01
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(C)
8-97603-982-0
01
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(D)
8-97604-063-0
05
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(E)
8-97608-473-0
02
1
1509-
84
100
101
84
49
138
134
101
294
295
79
79
119
294
214
85
134
134
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
PIPE; WATER OUTLET
8-97430-596-2
01
1
1509-
79
CLIP; RUBBER HOSE
ID=25
8-97177-581-0
02
1
1509-
84
CLIP; WATER PIPE
(A) ID=8 L=14
8-98060-970-0
01
1
1509-
84
CLIP; WATER PIPE
(B) ID=8 L=14
8-98060-971-0
01
1
1509-
85
BOLT; CLIP
M8X45 FLANGE
0-28050-845-0
01
1
1509-
100
BOLT; WATER PIPE
M6X35 FLANGE
0-28650-635-0
01
1
1509-
101
BOLT; PIPE
(A) M12X60 FLANGE
0-28151-260-0
01
1
1509-
101
BOLT; PIPE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1509-
119
PIPE; HTR
8-98139-599-0
01
1
1509-
134
CLIP; RUBBER HOSE
(B) ID=72
1-09704-068-0
02
1
1509-
134
CLIP; RUBBER HOSE
(B) ID=72
1-09704-068-0
02
1
1509-
134
CLIP; RUBBER HOSE
(A) ID=25
8-97177-581-0
20
1
1509-
138
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6
9-09565-271-0
01
1
1509-
214
BRACKET; HARNESS
8-97304-944-0
01
1
1509-
294
CLIP; HTR PIPE
ID=17 L=17
1-09701-284-0
02
1
1509-
295
HOSE; RUBBER,HTR
8-98139-642-0
01
1
1509-
139
134
134
139
134
134
134
134
139
134
134
134
134
139
139
134
134
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
134
CLIP; RUBBER HOSE
(B) ID=72
1-09704-068-0
02
1
1509-
134
CLIP; RUBBER HOSE
(B) ID=72
1-09704-068-0
02
1
1509-
134
CLIP; RUBBER HOSE
(A) ID=25
8-97177-581-0
20
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(A) L=100 SERVICED BY L=3000
0-03566-300-0
01
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(B)
8-97603-981-0
01
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(C)
8-97603-982-0
01
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(D)
8-97604-063-0
05
1
1509-
139
HOSE; RUBBER,PIPE TO COOLER
(E)
8-97608-473-0
02
1
1509-
