Sayfa 2-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#17514) — 171 parça

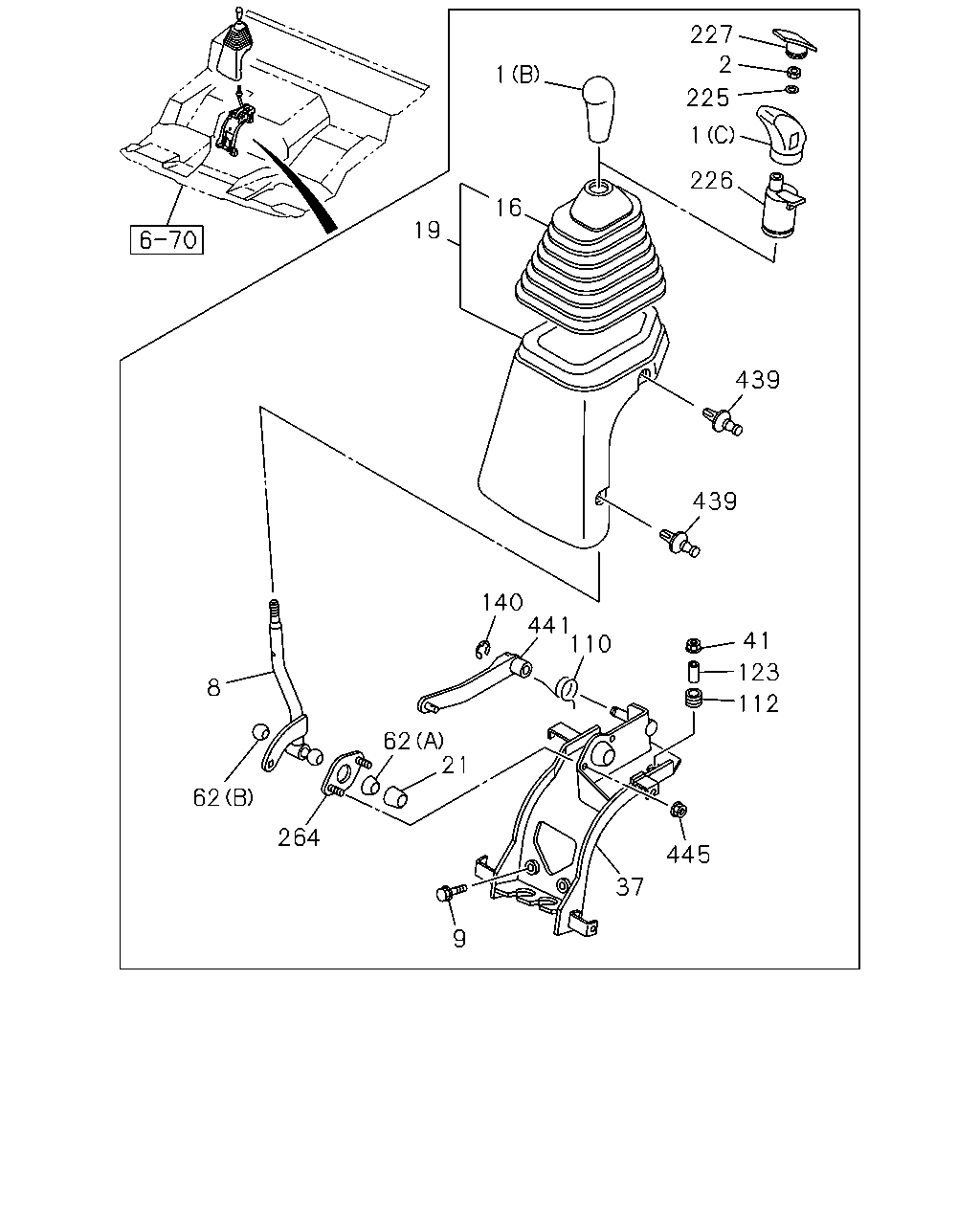

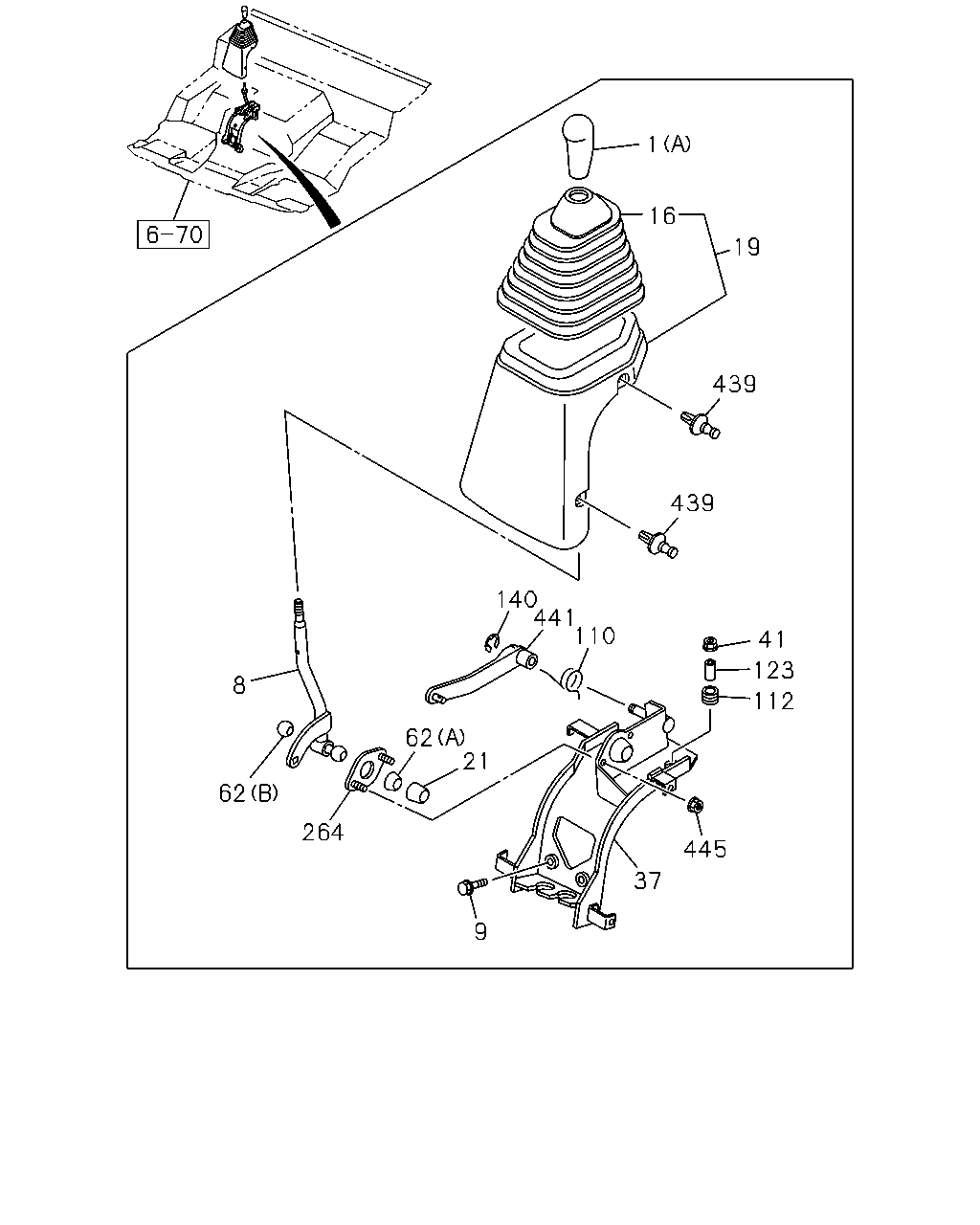

1 16 19 439 439 140 441 110 41 123 8 112 62 21 62 264 445 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33611-038-0	01	1	1206-
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (D)	1-33611-106-0	01	1	1206-1401
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (D)	8-98224-288-0	01	1	1402-
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ) (A)	1-33611-070-1	01	1	1109-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) (B)	1-33611-099-1	01	1	1109-1205
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33611-099-1	01	1	1206-
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1201-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	1206-
8	LEVER; CHANGE FULLER ES11109 DD M/T(Y5N)	8-98149-308-0	01	1	1206-
8	LEVER; CHANGE	8-98093-459-0	01	1	1109-1112
8	LEVER; CHANGE ZF9S1110 M/T(Y5E)	8-98093-459-0	01	1	1201-1205
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1206-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1109-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97893-962-1	01	1	1206-
16	BOOT; CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	8-97893-962-1	01	1	1206-
16	BOOT; CHANGE LEVER	1-79998-913-1	01	1	1109-1205
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ)	1-79998-913-1	01	1	1206-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1206-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97411-671-1	01	1	1206-
19	COVER; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) GRAY	8-97411-671-1	01	1	1206-
19	COVER; CHANGE LEVER GRAY	8-97409-847-0	01	1	1109-1205
19	COVER; CHANGE LEVER MZW6P M/T(RSZ) GRAY	8-97409-847-0	01	1	1206-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1206-
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1109-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1201-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	1206-
37	BRACKET; CHANGE LEVER SUPPORT FULLER ES11109 DD M/T(Y5N)	8-98149-307-0	01	1	1206-
37	BRACKET; CHANGE LEVER SUPPORT	8-98093-447-0	01	1	1109-1112
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E)	8-98093-447-0	01	1	1201-1205
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1206-
41	NUT; CHANGE LEVER MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER	8-97329-625-0	02	1	1109-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1109-
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1109-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1201-1205
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1206-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1206-
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	1109-1112
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E)	1-33619-435-0	01	1	1201-1205
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1206-
110	SPRING; RETURN,CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	1-33619-435-0	01	1	1206-
112	RUBBER; CUSHION	1-33619-442-0	04	1	1109-
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1109-
140	RING; SNAP ID=10	0-91805-510-0	01	1	1109-
264	PLATE; COVER	1-33619-430-0	01	1	1109-
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1109-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1201-1205
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1206-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1206-
441	LEVER; SELECT	8-98093-449-0	01	1	1109-1112
441	LEVER; SELECT ZF9S1110 M/T(Y5E)	8-98093-449-0	01	1	1201-1205
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1206-
441	LEVER; SELECT FULLER ES11109 DD M/T(Y5N)	8-98093-449-0	01	1	1206-
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	1109-

227 2 1 225 1 226 16 19 439 439 140 441 110 41 123 8 112 62 21 62 264 445 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33611-038-0	01	1	1206-
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (D)	1-33611-106-0	01	1	1206-1401
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (D)	8-98224-288-0	01	1	1402-
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ) (A)	1-33611-070-1	01	1	1109-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) (B)	1-33611-099-1	01	1	1109-1205
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33611-099-1	01	1	1206-
2	NUT; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	01	1	1206-
2	NUT; KNOB FULLER ES11109 DD M/T(Y5N) 1/2-13UNC	1-33619-033-0	01	1	1206-
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1201-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	1206-
8	LEVER; CHANGE FULLER ES11109 DD M/T(Y5N)	8-98149-308-0	01	1	1206-
8	LEVER; CHANGE	8-98093-459-0	01	1	1109-1112
8	LEVER; CHANGE ZF9S1110 M/T(Y5E)	8-98093-459-0	01	1	1201-1205
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1206-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1109-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97893-962-1	01	1	1206-
16	BOOT; CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	8-97893-962-1	01	1	1206-
16	BOOT; CHANGE LEVER	1-79998-913-1	01	1	1109-1205
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ)	1-79998-913-1	01	1	1206-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1206-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97411-671-1	01	1	1206-
19	COVER; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) GRAY	8-97411-671-1	01	1	1206-
19	COVER; CHANGE LEVER GRAY	8-97409-847-0	01	1	1109-1205
19	COVER; CHANGE LEVER MZW6P M/T(RSZ) GRAY	8-97409-847-0	01	1	1206-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1206-
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1109-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1201-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	1206-
37	BRACKET; CHANGE LEVER SUPPORT FULLER ES11109 DD M/T(Y5N)	8-98149-307-0	01	1	1206-
37	BRACKET; CHANGE LEVER SUPPORT	8-98093-447-0	01	1	1109-1112
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E)	8-98093-447-0	01	1	1201-1205
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1206-
41	NUT; CHANGE LEVER MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER	8-97329-625-0	02	1	1109-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1109-
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1109-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1201-1205
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1206-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1206-
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	1109-1112
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E)	1-33619-435-0	01	1	1201-1205
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1206-
110	SPRING; RETURN,CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	1-33619-435-0	01	1	1206-
112	RUBBER; CUSHION	1-33619-442-0	04	1	1109-
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1109-
140	RING; SNAP ID=10	0-91805-510-0	01	1	1109-
225	WASHER; PL,KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1206-
226	VALVE; SELECTOR ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33710-008-0	01	1	1206-
227	COVER; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98013-168-0	01	1	1206-
264	PLATE; COVER	1-33619-430-0	01	1	1109-
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1109-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1201-1205
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1206-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1206-
441	LEVER; SELECT	8-98093-449-0	01	1	1109-1112
441	LEVER; SELECT ZF9S1110 M/T(Y5E)	8-98093-449-0	01	1	1201-1205
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1206-
441	LEVER; SELECT FULLER ES11109 DD M/T(Y5N)	8-98093-449-0	01	1	1206-
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	1109-

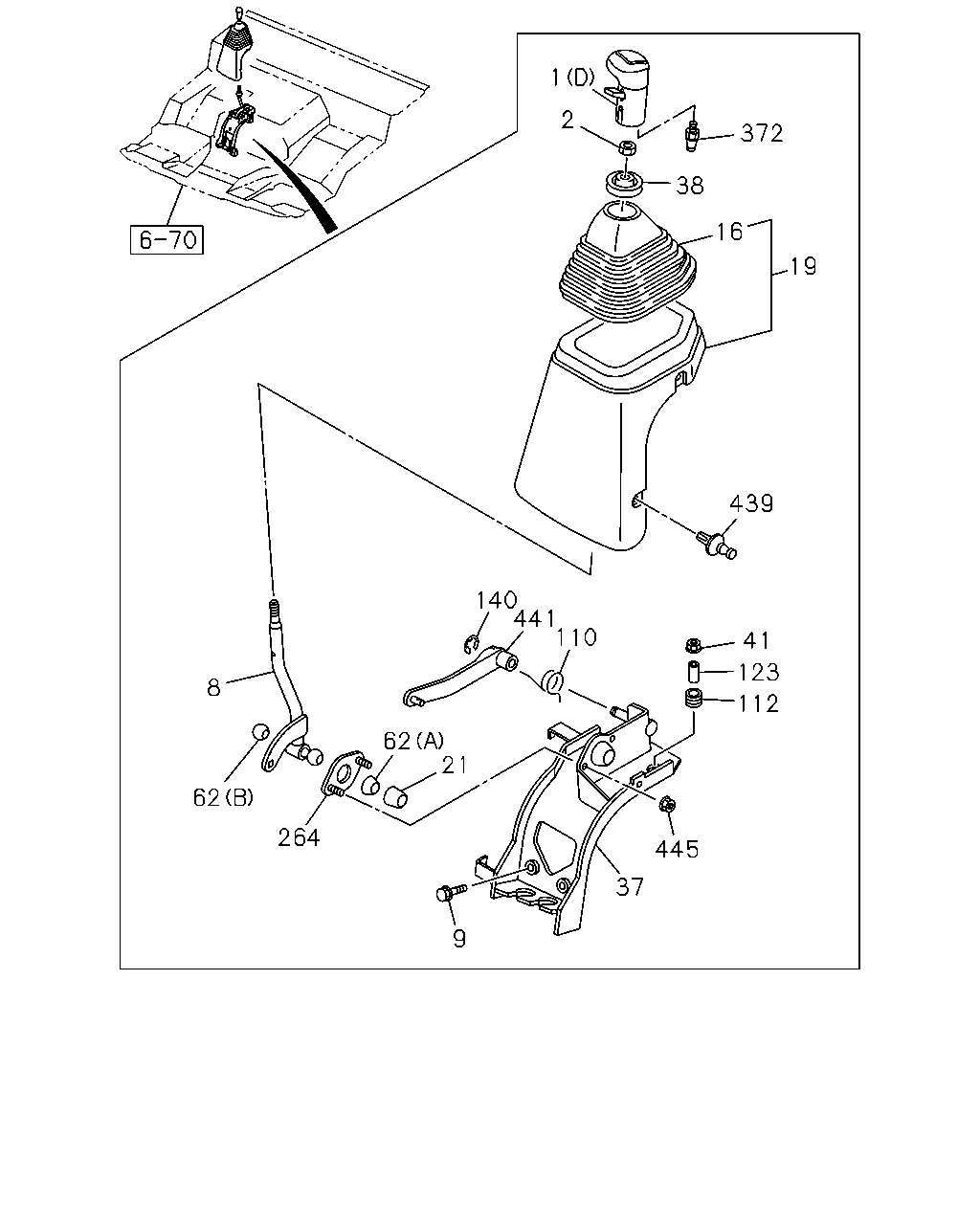

1 2 372 38 16 19 439 140 441 110 41 123 8 112 62 21 62 264 445 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33611-038-0	01	1	1206-
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (D)	1-33611-106-0	01	1	1206-1401
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (D)	8-98224-288-0	01	1	1402-
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ) (A)	1-33611-070-1	01	1	1109-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) (B)	1-33611-099-1	01	1	1109-1205
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33611-099-1	01	1	1206-
2	NUT; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	01	1	1206-
2	NUT; KNOB FULLER ES11109 DD M/T(Y5N) 1/2-13UNC	1-33619-033-0	01	1	1206-
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1201-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	1206-
8	LEVER; CHANGE FULLER ES11109 DD M/T(Y5N)	8-98149-308-0	01	1	1206-
8	LEVER; CHANGE	8-98093-459-0	01	1	1109-1112
8	LEVER; CHANGE ZF9S1110 M/T(Y5E)	8-98093-459-0	01	1	1201-1205
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1206-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1109-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97893-962-1	01	1	1206-
16	BOOT; CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	8-97893-962-1	01	1	1206-
16	BOOT; CHANGE LEVER	1-79998-913-1	01	1	1109-1205
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ)	1-79998-913-1	01	1	1206-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1206-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97411-671-1	01	1	1206-
19	COVER; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) GRAY	8-97411-671-1	01	1	1206-
19	COVER; CHANGE LEVER GRAY	8-97409-847-0	01	1	1109-1205
19	COVER; CHANGE LEVER MZW6P M/T(RSZ) GRAY	8-97409-847-0	01	1	1206-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1206-
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1109-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1201-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	1206-
37	BRACKET; CHANGE LEVER SUPPORT FULLER ES11109 DD M/T(Y5N)	8-98149-307-0	01	1	1206-
37	BRACKET; CHANGE LEVER SUPPORT	8-98093-447-0	01	1	1109-1112
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E)	8-98093-447-0	01	1	1201-1205
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1206-
38	HOLDER; BOOT CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98070-460-1	01	1	1206-
38	HOLDER; BOOT CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	1-79998-915-1	01	1	1206-
41	NUT; CHANGE LEVER MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER	8-97329-625-0	02	1	1109-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1109-
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1109-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1201-1205
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1206-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1206-
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	1109-1112
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E)	1-33619-435-0	01	1	1201-1205
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1206-
110	SPRING; RETURN,CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	1-33619-435-0	01	1	1206-
112	RUBBER; CUSHION	1-33619-442-0	04	1	1109-
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1109-
140	RING; SNAP ID=10	0-91805-510-0	01	1	1109-
264	PLATE; COVER	1-33619-430-0	01	1	1109-
372	CONNECTOR; CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	8-98114-396-0	02	1	1206-
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1109-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1201-1205
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1206-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1206-
441	LEVER; SELECT	8-98093-449-0	01	1	1109-1112
441	LEVER; SELECT ZF9S1110 M/T(Y5E)	8-98093-449-0	01	1	1201-1205
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1206-
441	LEVER; SELECT FULLER ES11109 DD M/T(Y5N)	8-98093-449-0	01	1	1206-
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	1109-

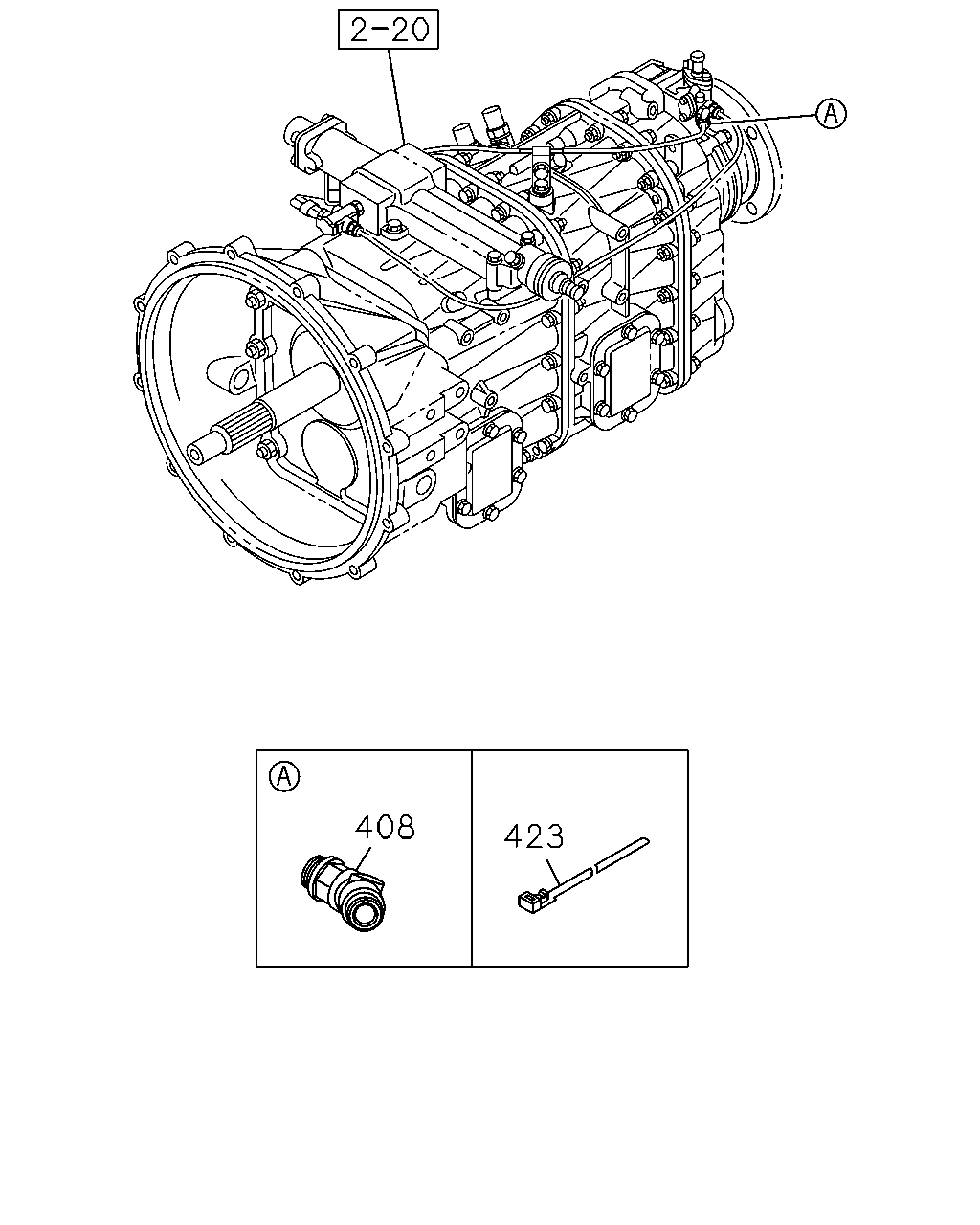

408 423

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	408	CONNECTOR; AIR HOSE FULLER ES11109 DD M/T(Y5N)	1-33119-473-0	01	1	1206-
	423	CLIP; BAND FULLER ES11109 DD M/T(Y5N) L=140	5-09707-031-1	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
