Sayfa 2-30B - Isuzu EPC

2-30B — GEAR SHIFTER AND QUADRANT BOX (#17513) — 762 parça

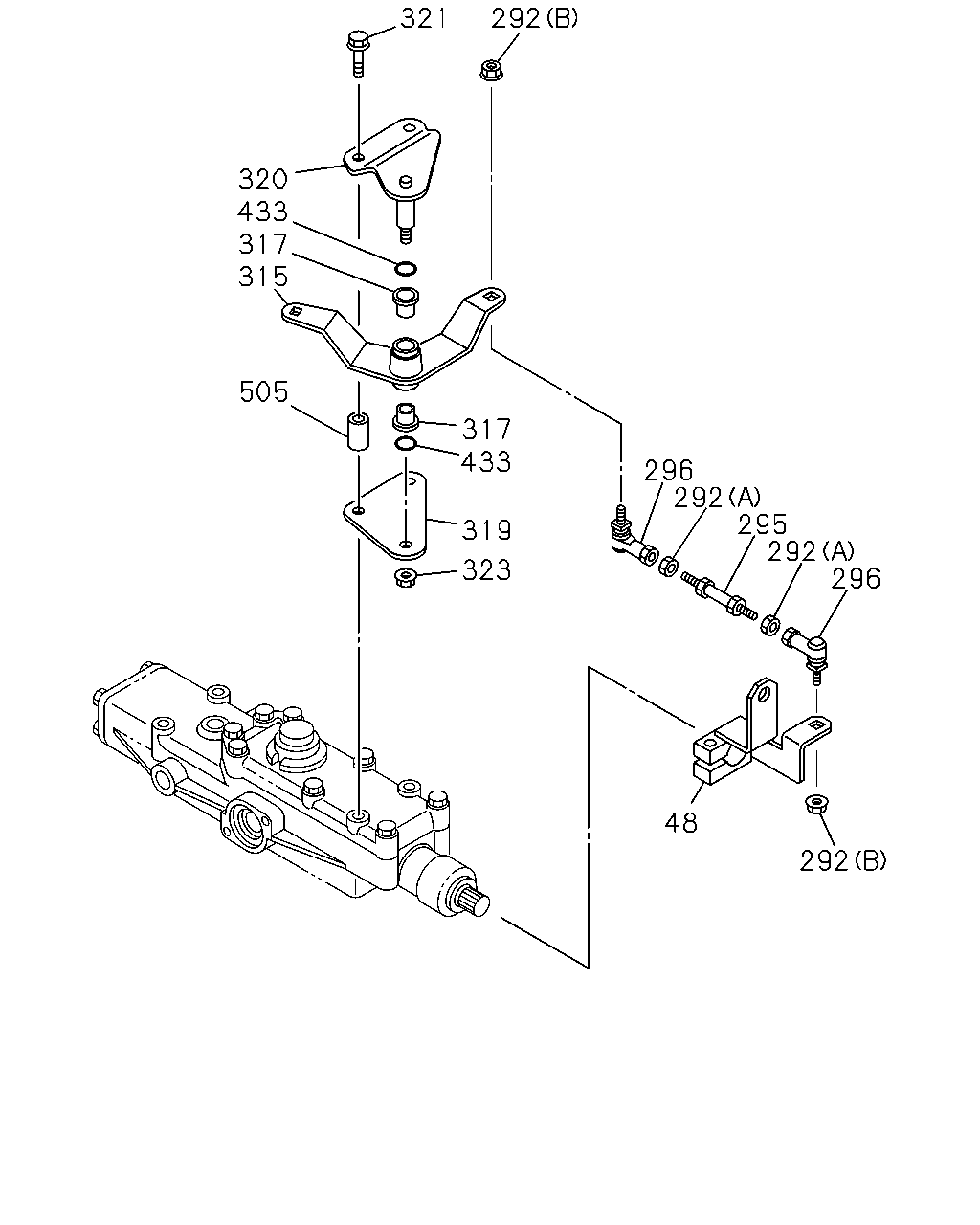

321 292 320 433 317 315 505 317 433 296 292 295 292 296 319 323 48 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1206-
48	LEVER; 4TH,SHIFT	8-98085-725-0	01	1	1109-1205
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1206-
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1109-1205
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8	0-91111-508-0	02	1	1206-
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1109-1205
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	1206-
295	ROD; LINK,RELAY LEVER M8 L=50	9-08400-805-0	01	1	1109-1205
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50	9-08400-805-0	01	1	1206-
296	ROD END	1-09760-108-0	02	1	1109-1205
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09760-108-0	02	1	1206-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-458-0	01	1	1206-
315	LEVER; SELECT	8-98085-738-0	01	1	1109-1205
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-738-0	01	1	1206-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-322-0	01	1	1206-
317	BUSHING; LEVER	1-09330-119-0	02	1	1109-1205
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1206-
319	BRACKET; SELECT LEVER	8-98085-740-0	01	1	1109-1205
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-740-0	01	1	1206-
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1206-
320	SHAFT; LEVER	8-98085-739-0	01	1	1109-1205
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1206-
321	BOLT; BRKT,RELAY LEVER M8X130 FLANGE	0-28065-813-0	02	1	1109-1205
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE	0-28065-813-0	02	1	1206-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91180-110-0	01	1	1109-1205
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1206-
433	GASKET; BUSHING	1-09623-594-0	02	1	1109-1205
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1206-
505	SPACER; BRKT L=24.5	1-33659-186-1	02	1	1109-1205
505	SPACER; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5	1-33659-186-1	02	1	1206-

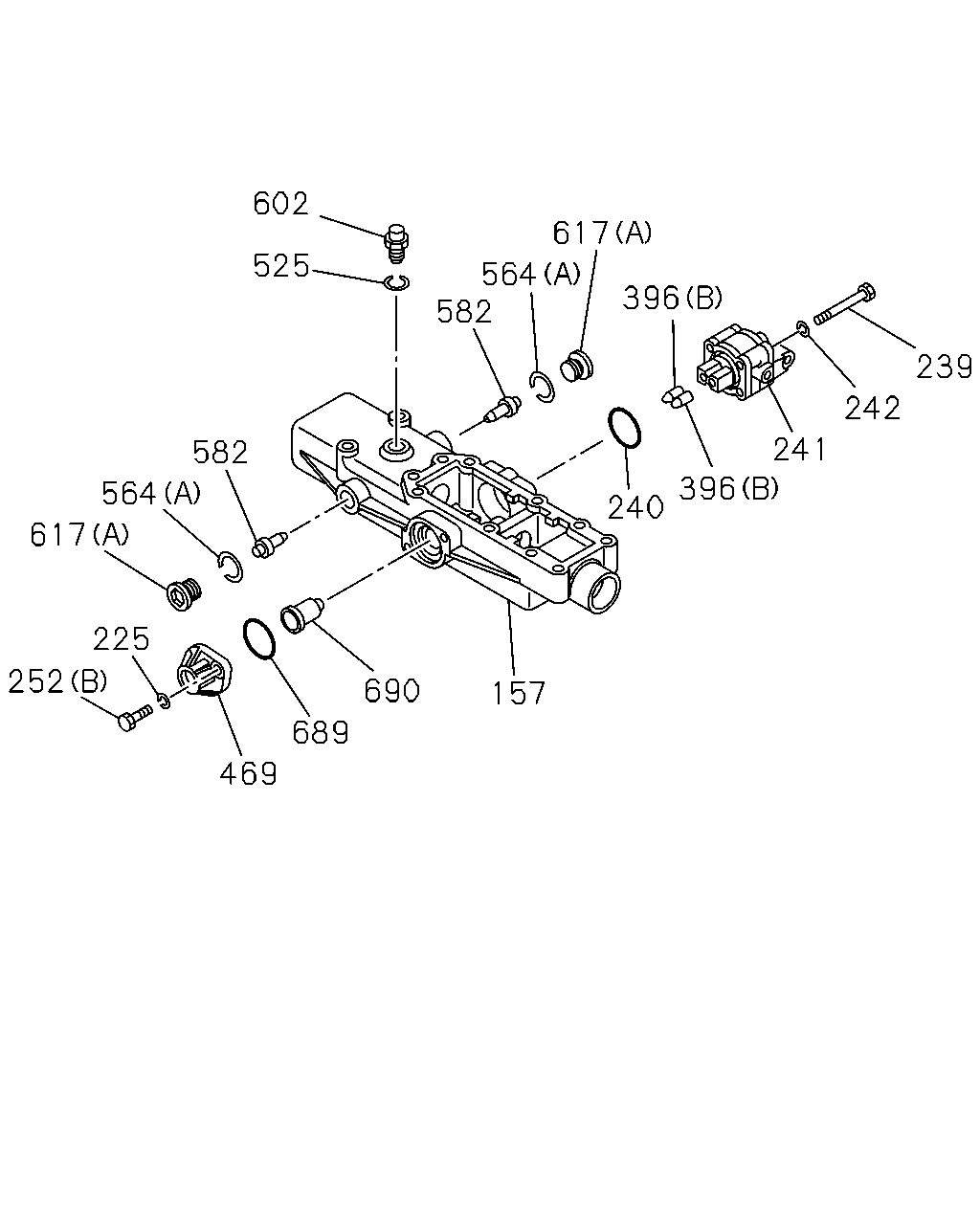

602 617 525 564 582 396 239 242 241 396 582 564 240 617 225 252 690 157 689 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8>	1-33549-445-0	01	1	1206-
157	BOX; QUAD,TRANS	1-33549-570-0	01	1	1109-1205
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-570-0	01	1	1206-
225	WASHER; LK,QUAD BOX	1-33549-159-0	14	1	1109-1205
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1206-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1306-
239	BOLT; CUT OFF VALVE	1-33549-302-0	04	1	1109-1205
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-302-0	04	1	1206-1305
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-585-0	04	1	1306-
240	GASKET; CUT OFF VALVE	1-33549-198-0	01	1	1109-1205
240	GASKET; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-198-0	01	1	1206-
241	VALVE; CUT OFF	1-33549-495-0	01	1	1109-1205
241	VALVE; CUT OFF EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-495-0	01	1	1206-
242	WASHER; CUT OFF VALVE	1-33549-159-0	04	1	1109-1205
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	04	1	1206-1305
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	04	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1109-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER (B) M8X30	1-33549-172-0	02	1	1109-1205
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1206-1305
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1109-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	1109-1205
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1206-
469	COVER; SPRING,QUAD BOX	1-33549-216-0	01	1	1109-1205
469	COVER; SPRING,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-216-0	01	1	1206-
525	RING; DETENT	1-33119-286-0	01	1	1109-1205
525	RING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-286-0	01	1	1206-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1206-
564	SEAL; RING (A)	1-33119-249-0	02	1	1109-1205
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-249-0	02	1	1206-
564	SEAL; RING (B)	1-33549-444-0	01	1	1109-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8>	1-33549-471-0	01	1	1206-
582	BOLT; SPRING GUIDE	1-33549-487-0	02	1	1109-1205
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-487-0	02	1	1206-
602	PLUNGER; DETENT	1-33119-285-0	01	1	1109-1205
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-285-0	01	1	1206-1305
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-618-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1206-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-
617	PLUG (A)	1-33119-171-0	02	1	1109-1205
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1206-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-
617	PLUG (B)	1-34129-061-0	01	1	1109-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
689	GASKET; COVER	1-33542-063-0	01	1	1109-1205
689	GASKET; COVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-063-0	01	1	1206-
690	PIN; STOP	1-33549-496-0	01	1	1109-1205
690	PIN; STOP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-496-0	01	1	1206-

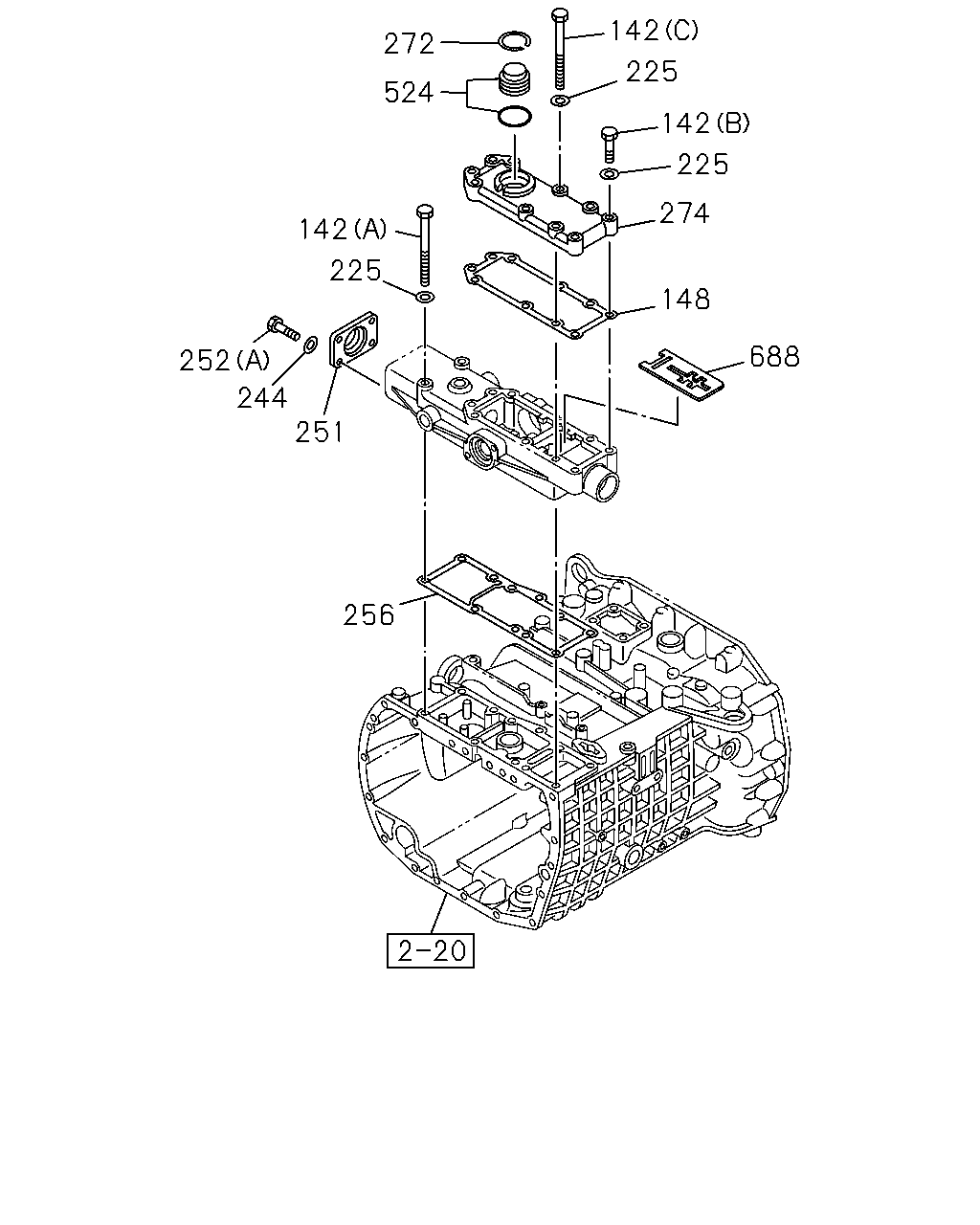

142 272 225 524 142 225 274 142 225 148 688 252 244 251 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1206-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1206-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1206-1305
142	BOLT; QUAD BOX (A) M8X75	1-09089-015-0	02	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X75	1-09089-015-0	02	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX (C)	1-33549-486-0	06	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX (B)	1-34129-116-0	04	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-34129-116-0	04	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X40	1-33549-587-0	04	1	1306-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33544-056-0	01	1	1206-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-33542-064-0	01	1	1109-1205
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-064-0	01	1	1206-
225	WASHER; LK,QUAD BOX	1-33549-159-0	14	1	1109-1205
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1206-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1306-
244	WASHER; LK,COVER	1-33549-159-0	04	1	1109-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-472-0	01	1	1206-1305
251	COVER; SIDE	1-33549-478-0	01	1	1109-1205
251	COVER; SIDE PTO ZF TRANS RR(BDM)	1-33549-478-0	01	1	1206-1305
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33549-478-0	01	1	1206-1305
251	COVER; SIDE	1-33549-590-0	01	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1109-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER (B) M8X30	1-33549-172-0	02	1	1109-1205
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1206-1305
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1206-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-065-0	01	1	1109-1205
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1206-
272	RING; SNAP,QUAD BOX	1-44519-217-0	01	1	1109-1205
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-44519-217-0	01	1	1206-
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33549-477-0	01	1	1206-1305
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-477-0	01	1	1306-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-457-0	01	1	1206-1305
274	COVER; SHAFT,QUAD BOX	1-33549-571-0	01	1	1109-1205
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-571-0	01	1	1206-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-579-0	01	1	1306-
524	DETENT; QUAD BOX	1-33549-501-0	01	1	1109-1205
524	DETENT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-501-0	01	1	1206-
688	SHIFT; INTERLOCK	1-33549-572-0	01	1	1109-1205
688	SHIFT; INTERLOCK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-572-0	01	1	1206-

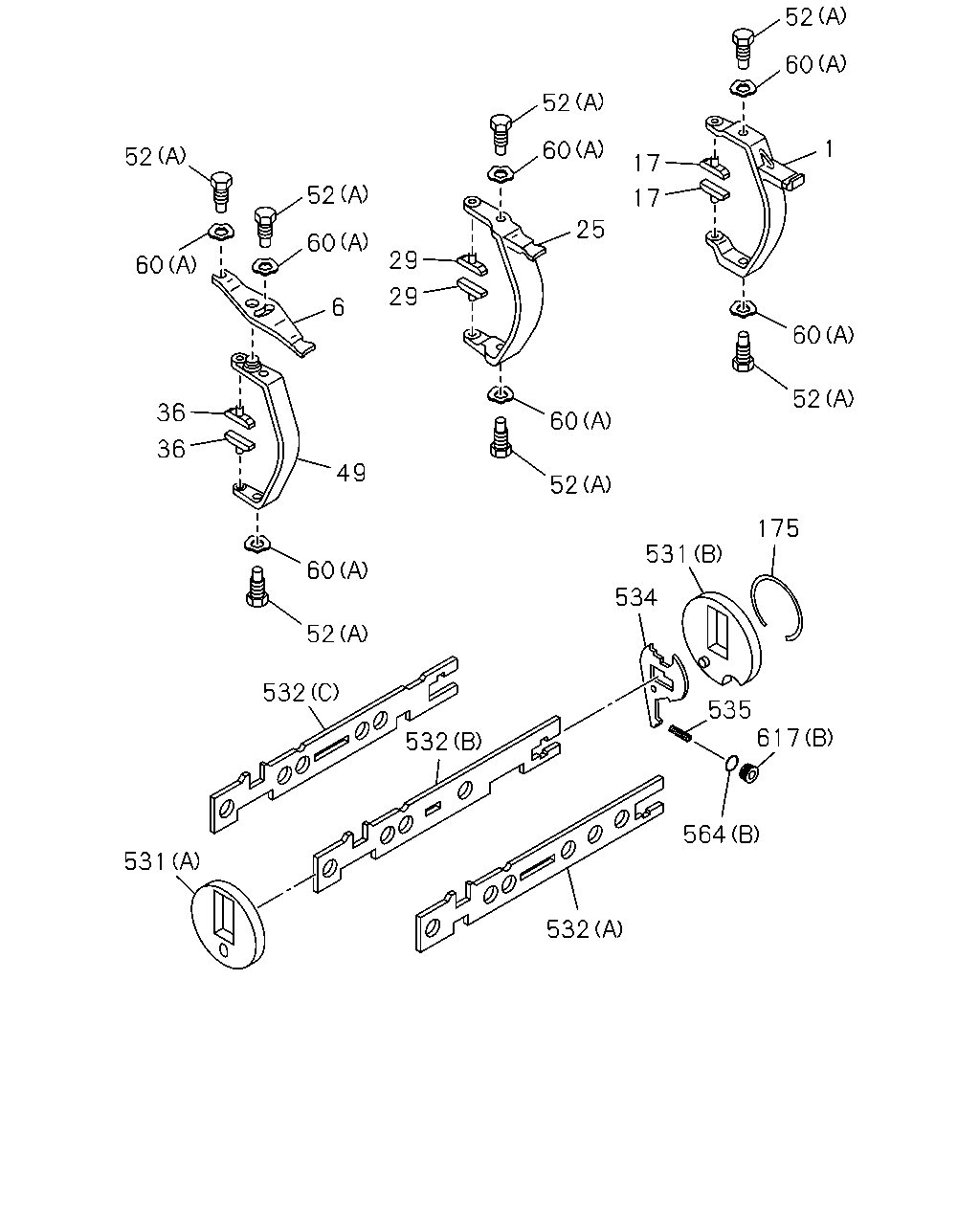

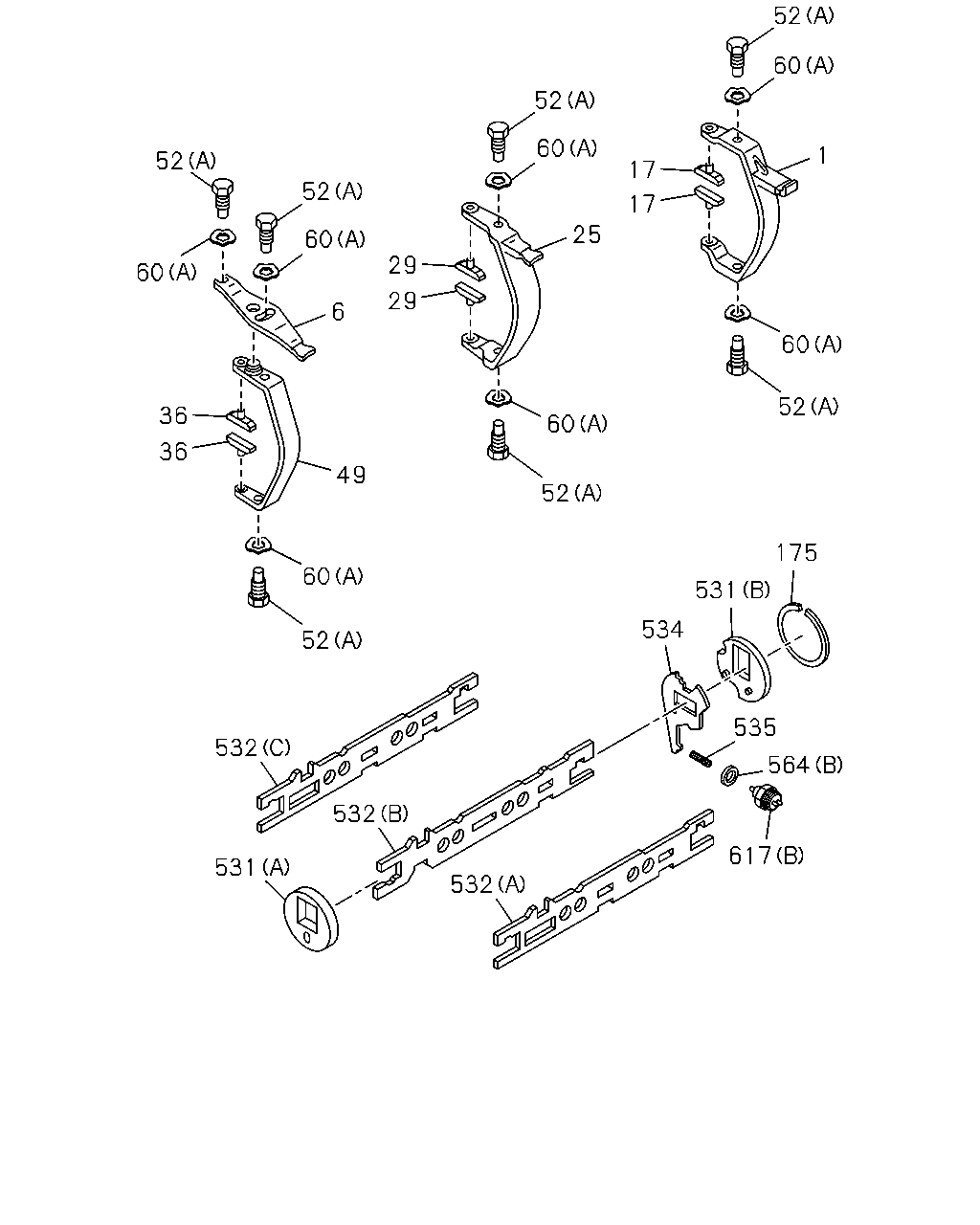

1 17 17 25 29 60 29 6 60 52 36 60 36 49 52 175 531 60 534 52 532 535 617 532 564 531 532 52 52 60 60 52 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1206-1305
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1206-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1109-1205
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1206-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1206-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1109-1205
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1206-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1206-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1109-1205
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1206-1305
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1206-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1109-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1109-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1109-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1109-
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1109-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1109-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1109-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1109-1305
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1206-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1109-1205
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1206-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1109-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1109-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1109-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1109-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1109-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1109-
535	SPRING; LEVER	1-33539-049-0	01	1	1109-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1206-
564	SEAL; RING (A)	1-33119-249-0	02	1	1109-1205
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-249-0	02	1	1206-
564	SEAL; RING (B)	1-33549-444-0	01	1	1109-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1206-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-
617	PLUG (A)	1-33119-171-0	02	1	1109-1205
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1206-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-
617	PLUG (B)	1-34129-061-0	01	1	1109-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-

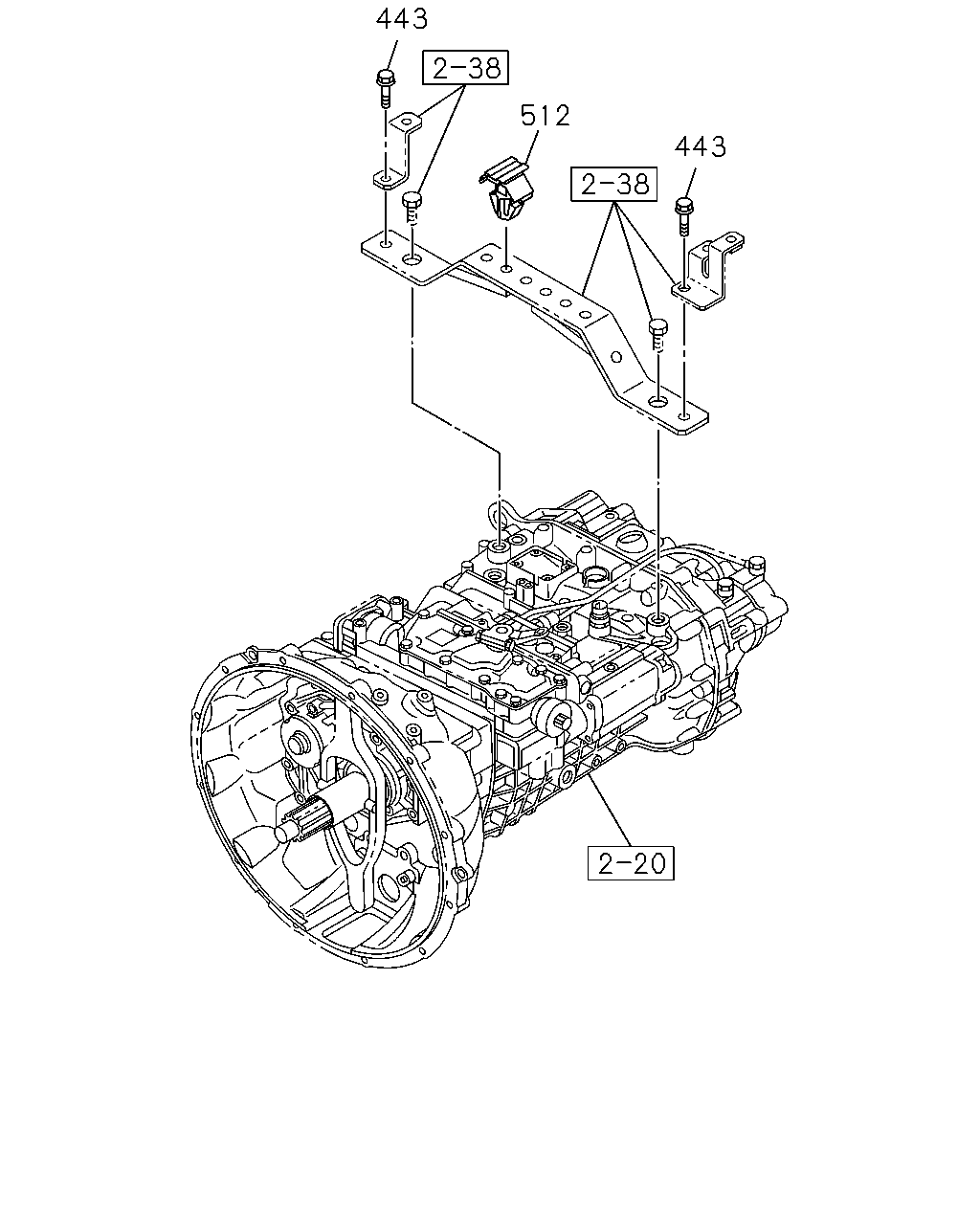

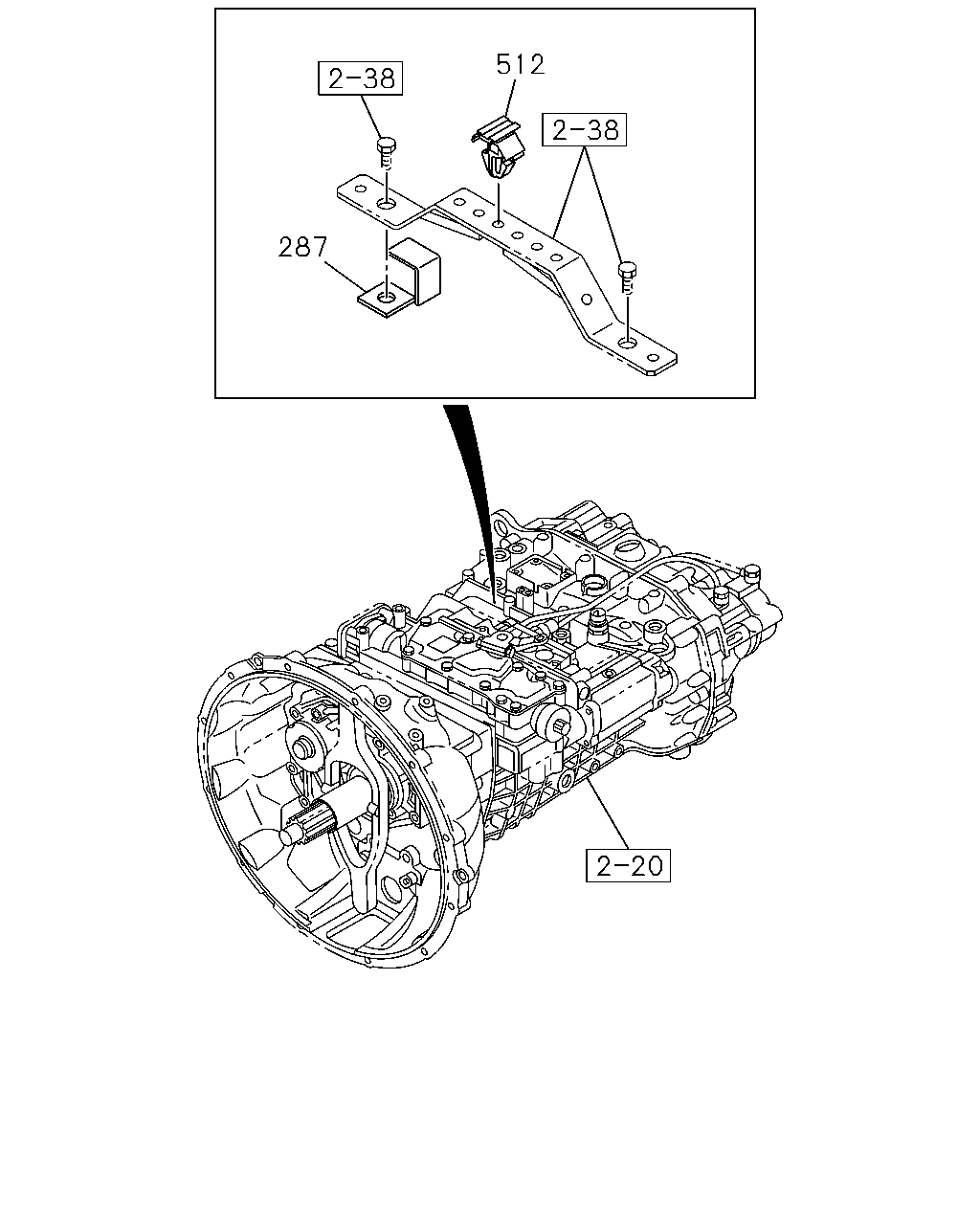

512 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
287	COVER; AIR BREATHER	1-34141-026-0	01	1	1109-1205
287	COVER; AIR BREATHER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34141-026-0	01	1	1206-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1206-
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	04	1	1109-1205
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1206-

165 289 165 165 271 90 430 298 569 304 90 332 265 264 42 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1206-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1206-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX (A)	1-33549-111-0	01	1	1109-1205
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1206-1305
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-589-0	01	1	1306-
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1206-
48	LEVER; 4TH,SHIFT	8-98085-725-0	01	1	1109-1205
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1206-
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1206-
90	RING; SNAP,SHIFT ROD	1-33549-494-0	02	1	1109-1205
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1206-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1206-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1206-
165	LEVER; SHIFT (C)	1-33549-488-0	01	1	1109-1205
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1206-
165	LEVER; SHIFT (A)	1-33549-489-0	01	1	1109-1205
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-489-0	01	1	1206-
165	LEVER; SHIFT (B)	1-33549-490-0	01	1	1109-1205
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-490-0	01	1	1206-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-603-0	01	1	1306-
264	SEAL; DUST,SHAFT	1-33549-119-0	01	1	1109-1205
264	SEAL; DUST,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-119-0	01	1	1206-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33549-446-0	01	1	1206-1305
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-33549-118-0	01	1	1109-1205
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-118-0	01	1	1206-
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-318-0	01	1	1206-
271	BUSHING; QUAD BOX	1-33549-124-0	01	1	1109-1205
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-124-0	01	1	1206-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-33549-491-0	01	1	1109-1205
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1206-
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1206-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1306-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33522-203-0	01	1	1206-1305
298	SHAFT; SHIFT LEVER	1-33522-205-0	01	1	1109-1205
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-205-0	01	1	1206-
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-448-0	01	1	1206-
304	BLOCK; SHIFT SHAFT	1-33549-492-0	01	1	1109-1205
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-492-0	01	1	1206-
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1206-
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28650-840-0	01	1	1109-1205
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1206-
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33549-449-0	01	1	1206-
430	PIN; SPR,SHIFT ROD	1-33549-493-0	01	1	1109-1205
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-493-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1206-
569	PIN; QUADRANT BOX (A)	1-33529-128-0	02	1	1109-1205
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-128-0	02	1	1206-

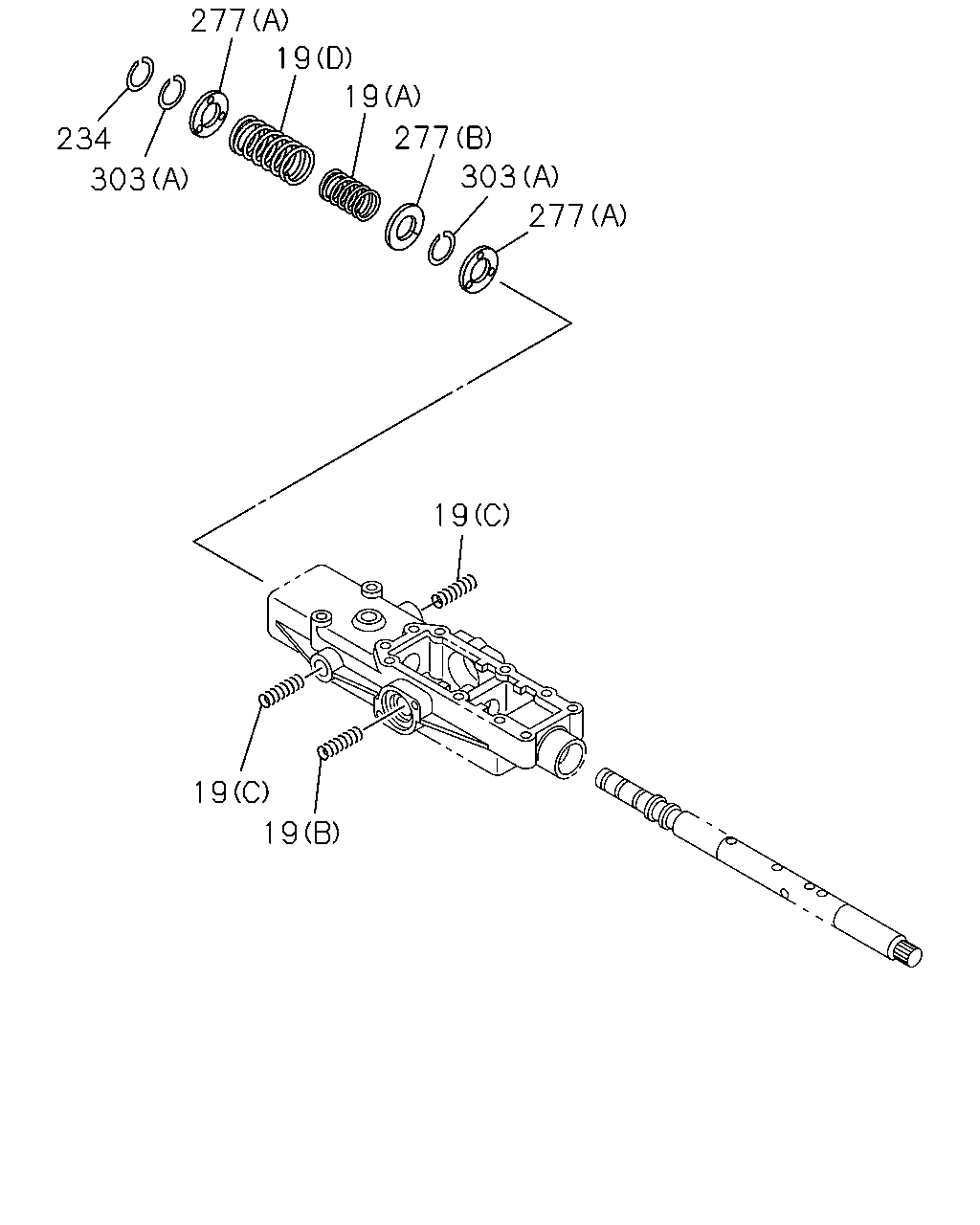

277 19 19 277 234 303 303 277 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1206-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1206-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1206-1305
19	SPRING; COIL COMP (D)	1-33539-027-0	01	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-027-0	01	1	1206-
19	SPRING; COIL COMP (C)	1-33539-030-0	02	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1206-
19	SPRING; COIL COMP (A)	1-33539-104-0	01	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-104-0	01	1	1206-
19	SPRING; COIL COMP (B)	1-33549-221-0	01	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-221-0	01	1	1206-
234	RING; SNAP	1-44519-224-0	01	1	1109-
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	1109-1305
277	PLATE; SPRING SEAT (A)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT (B)	1-33539-042-0	01	1	1109-1205
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-042-0	01	1	1206-1305
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1206-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1206-
303	RING; SNAP,SHAFT (A)	1-33539-040-0	02	1	1109-1205
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1206-

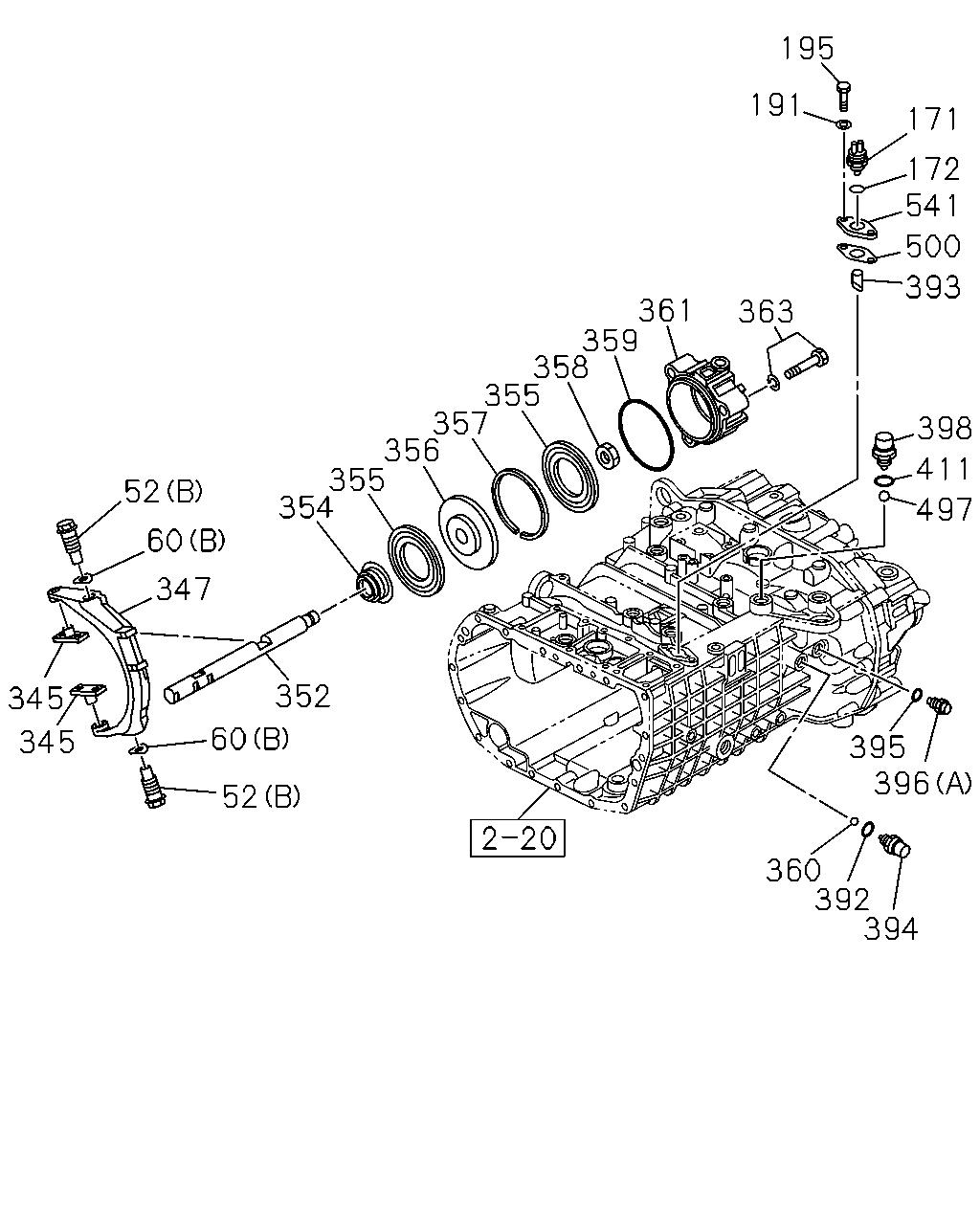

195 191 171 172 541 500 393 361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 352 345 60 345 395 396 52 360 392 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1109-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1109-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1109-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1109-1305
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-338-0	01	1	1206-1305
171	SWITCH; NEUTRAL	1-33119-587-0	01	1	1109-1205
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1206-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1306-
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1109-1205
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1206-
191	WASHER; LK	1-36129-007-0	02	1	1109-1205
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-36129-007-0	02	1	1206-1305
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	02	1	1306-
195	BOLT	1-33119-301-0	02	1	1109-1205
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-301-0	02	1	1206-1305
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-593-0	02	1	1306-
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1109-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1109-
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1109-1305
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1109-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1109-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	1109-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1109-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1109-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1109-
360	BALL; AIR CYL	1-33119-252-0	01	1	1109-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1109-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1206-1305
363	BOLT; AIR CYL M10X70	1-33119-522-0	03	1	1109-1205
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1206-1305
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1206-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1109-
393	PIN; SW	1-33119-298-0	01	1	1109-1205
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1206-
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1206-1305
394	SWITCH; RANGE CHANGE	1-33119-587-0	01	1	1109-1205
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1206-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1306-
395	GASKET; PLUNGER	1-33519-171-0	01	1	1109-1305
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1109-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	1109-1205
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1206-
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1109-
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1109-
497	BALL; SWITCH	1-33119-252-0	01	1	1109-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1206-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-299-0	01	1	1109-1205
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1206-
541	PLATE; SWITCH	1-33119-300-0	01	1	1109-1205
541	PLATE; SWITCH EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-300-0	01	1	1206-

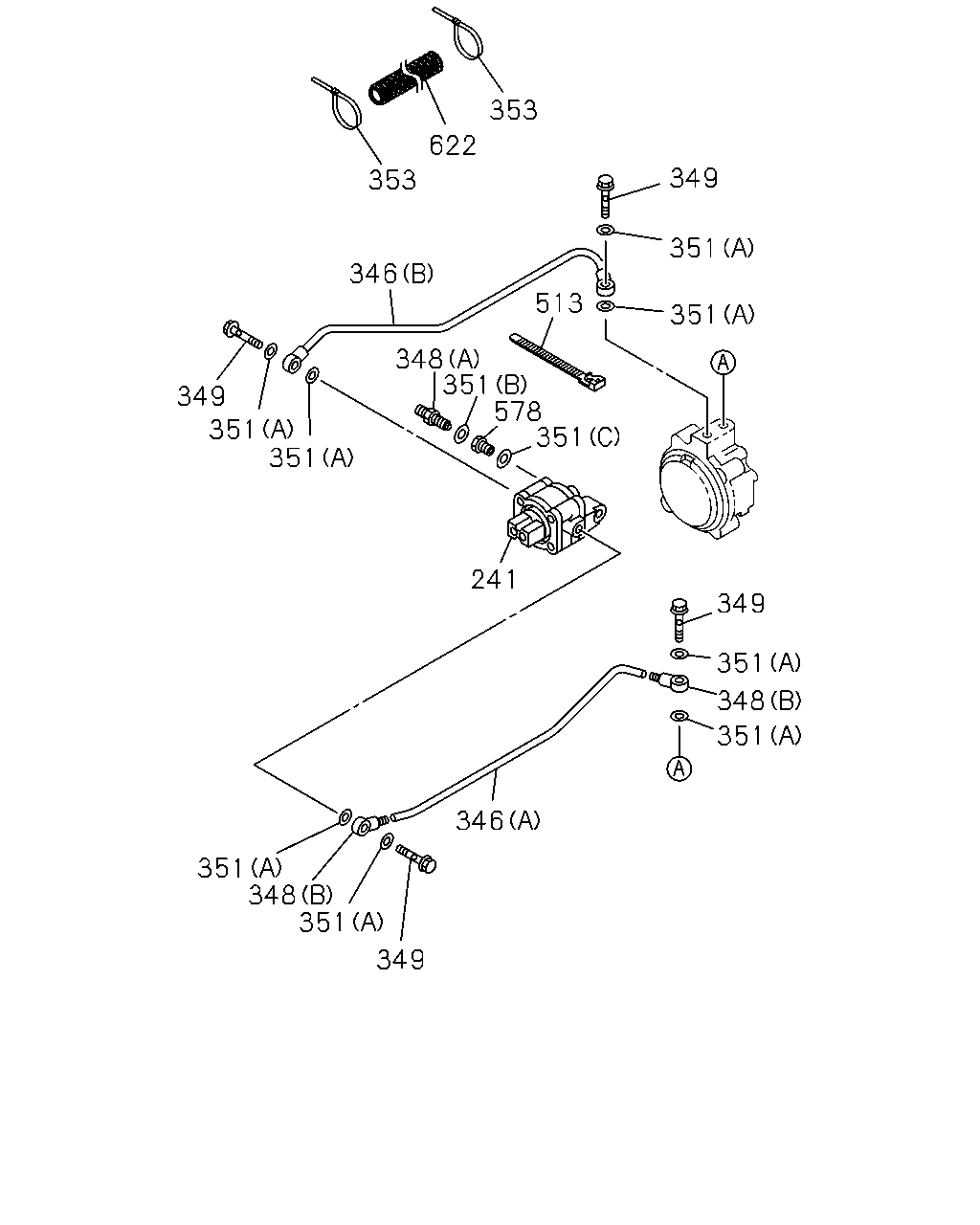

353 622 349 353 351 346 513 351 348 351 578 351 349 351 351 241 349 351 348 351 346 351 348 351 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	VALVE; CUT OFF	1-33549-495-0	01	1	1109-1205
241	VALVE; CUT OFF EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-495-0	01	1	1206-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1206-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1206-
346	HOSE; AIR (A)	1-33549-400-0	01	1	1109-1205
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-400-0	01	1	1206-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-618-0	01	1	1306-
346	HOSE; AIR (B)	1-33549-443-0	01	1	1109-1205
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-443-0	01	1	1206-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-598-0	01	1	1306-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1206-
348	CONNECTOR; AIR HOSE (A) M12 STRAIGHT	1-09654-246-0	01	1	1109-1205
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 STRAIGHT	1-09654-246-0	01	1	1206-
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) (B)	1-33549-139-0	02	1	1109-1205
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-139-0	02	1	1206-1305
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-593-0	04	1	1306-
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-139-0	04	1	1109-1205
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-139-0	04	1	1206-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1206-1305
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1306-
349	BOLT; EYE,AIR HOSE	1-33549-573-0	04	1	1109-1205
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1206-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1306-
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1206-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1206-1312
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1206-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1109-1205
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1206-
351	GASKET; CONNECTOR (A)	1-33549-444-0	08	1	1109-1205
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1206-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR (C)	1-33549-554-0	01	1	1109-1205
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-554-0	01	1	1206-
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1306-
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1109-1305
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1306-
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1206-
513	CLIP; BAND L=250	5-09707-030-1	06	1	1109-1205
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1206-
513	CLIP; BAND L=140	5-09707-031-1	01	1	1109-1205
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1206-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1206-
578	CONNECTOR	1-33549-553-0	01	1	1109-1205
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1206-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1109-

234 303 148 277 157 317 19 570 277 90 430 320 271 304 265 90 570 569 165 571 165 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1206-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1206-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1206-1305
19	SPRING; COIL COMP (D)	1-33539-027-0	01	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-027-0	01	1	1206-
19	SPRING; COIL COMP (C)	1-33539-030-0	02	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1206-
19	SPRING; COIL COMP (A)	1-33539-104-0	01	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-104-0	01	1	1206-
19	SPRING; COIL COMP (B)	1-33549-221-0	01	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-221-0	01	1	1206-
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1206-
90	RING; SNAP,SHIFT ROD	1-33549-494-0	02	1	1109-1205
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1206-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33544-056-0	01	1	1206-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-33542-064-0	01	1	1109-1205
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-064-0	01	1	1206-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8>	1-33549-445-0	01	1	1206-
157	BOX; QUAD,TRANS	1-33549-570-0	01	1	1109-1205
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-570-0	01	1	1206-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1206-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1206-
165	LEVER; SHIFT (C)	1-33549-488-0	01	1	1109-1205
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1206-
165	LEVER; SHIFT (A)	1-33549-489-0	01	1	1109-1205
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-489-0	01	1	1206-
165	LEVER; SHIFT (B)	1-33549-490-0	01	1	1109-1205
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-490-0	01	1	1206-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-603-0	01	1	1306-
234	RING; SNAP	1-44519-224-0	01	1	1109-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33549-446-0	01	1	1206-1305
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-33549-118-0	01	1	1109-1205
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-118-0	01	1	1206-
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-318-0	01	1	1206-
271	BUSHING; QUAD BOX	1-33549-124-0	01	1	1109-1205
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-124-0	01	1	1206-
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	1109-1305
277	PLATE; SPRING SEAT (A)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT (B)	1-33539-042-0	01	1	1109-1205
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-042-0	01	1	1206-1305
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1206-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1306-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33522-203-0	01	1	1206-1305
298	SHAFT; SHIFT LEVER	1-33522-205-0	01	1	1109-1205
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-205-0	01	1	1206-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1206-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1206-
303	RING; SNAP,SHAFT (A)	1-33539-040-0	02	1	1109-1205
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1206-
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-448-0	01	1	1206-
304	BLOCK; SHIFT SHAFT	1-33549-492-0	01	1	1109-1205
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-492-0	01	1	1206-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-322-0	01	1	1206-
317	BUSHING; LEVER	1-09330-119-0	02	1	1109-1205
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1206-
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1206-
320	SHAFT; LEVER	8-98085-739-0	01	1	1109-1205
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1206-
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33549-449-0	01	1	1206-
430	PIN; SPR,SHIFT ROD	1-33549-493-0	01	1	1109-1205
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-493-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1206-
569	PIN; QUADRANT BOX (A)	1-33529-128-0	02	1	1109-1205
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-128-0	02	1	1206-
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-451-0	02	1	1206-1305
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33529-117-0	02	1	1306-
571	ROLLER; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-324-0	01	1	1206-

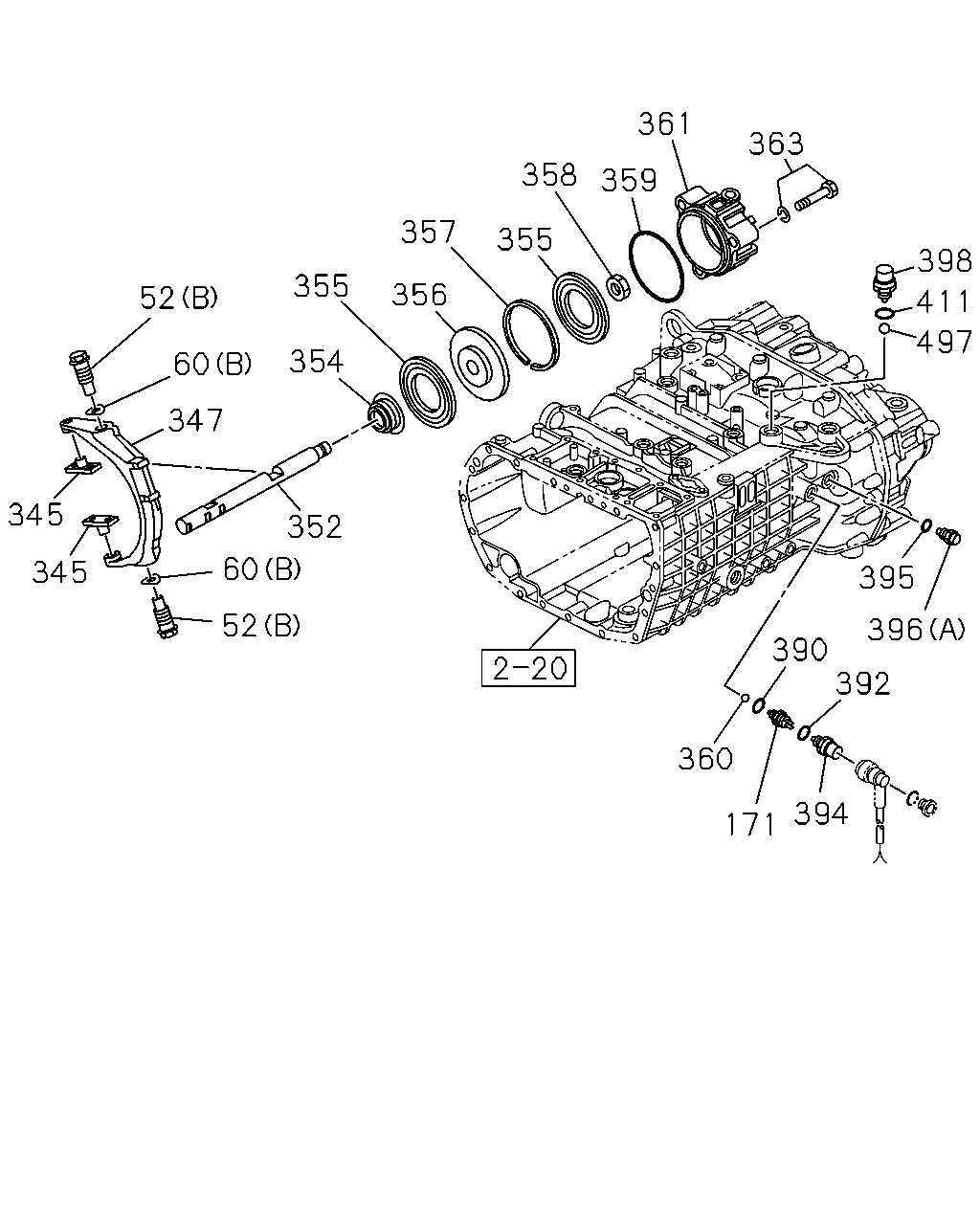

361 363 358 359 357 355 398 355 356 52 411 497 354 60 347 345 352 60 345 395 52 396 390 392 360 394 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1109-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1109-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1109-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1109-1305
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-338-0	01	1	1206-1305
171	SWITCH; NEUTRAL	1-33119-587-0	01	1	1109-1205
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1206-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1306-
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1109-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1109-
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1109-1305
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1109-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1109-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	1109-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1109-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1109-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1109-
360	BALL; AIR CYL	1-33119-252-0	01	1	1109-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1109-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1206-1305
363	BOLT; AIR CYL M10X70	1-33119-522-0	03	1	1109-1205
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1206-1305
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1206-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	1206-1305
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1109-
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1206-1305
394	SWITCH; RANGE CHANGE	1-33119-587-0	01	1	1109-1205
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1206-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1306-
395	GASKET; PLUNGER	1-33519-171-0	01	1	1109-1305
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1109-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	1109-1205
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1206-
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1109-
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1109-
497	BALL; SWITCH	1-33119-252-0	01	1	1109-

443 512 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1206-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1206-
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	04	1	1109-1205
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1206-

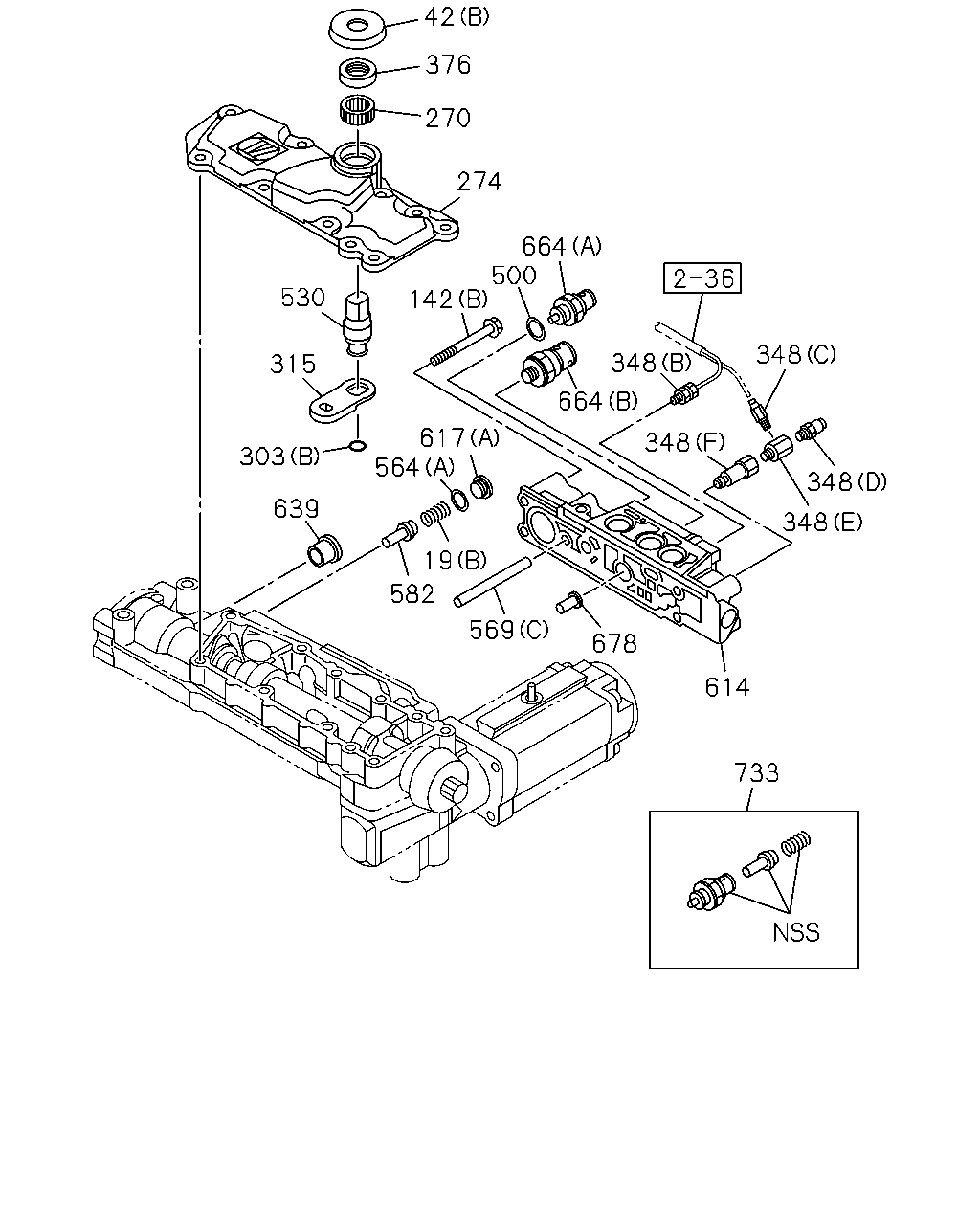

42 270 376 274 530 315 303 639 564 617 142 500 664 348 348 348 348 614 733 569 678 19 664 582 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1206-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1206-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1206-1305
19	SPRING; COIL COMP (D)	1-33539-027-0	01	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-027-0	01	1	1206-
19	SPRING; COIL COMP (C)	1-33539-030-0	02	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1206-
19	SPRING; COIL COMP (A)	1-33539-104-0	01	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-104-0	01	1	1206-
19	SPRING; COIL COMP (B)	1-33549-221-0	01	1	1109-1205
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-221-0	01	1	1206-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1206-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1206-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX (A)	1-33549-111-0	01	1	1109-1205
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1206-1305
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-589-0	01	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1206-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1206-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1206-1305
142	BOLT; QUAD BOX (A) M8X75	1-09089-015-0	02	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X75	1-09089-015-0	02	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX (C)	1-33549-486-0	06	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX (B)	1-34129-116-0	04	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-34129-116-0	04	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X40	1-33549-587-0	04	1	1306-
270	BEARING; NEEDLE,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-459-0	01	1	1206-
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33549-477-0	01	1	1206-1305
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-477-0	01	1	1306-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-457-0	01	1	1206-1305
274	COVER; SHAFT,QUAD BOX	1-33549-571-0	01	1	1109-1205
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-571-0	01	1	1206-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-579-0	01	1	1306-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1206-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1206-
303	RING; SNAP,SHAFT (A)	1-33539-040-0	02	1	1109-1205
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1206-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-458-0	01	1	1206-
315	LEVER; SELECT	8-98085-738-0	01	1	1109-1205
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-738-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1206-
348	CONNECTOR; AIR HOSE (A) M12 STRAIGHT	1-09654-246-0	01	1	1109-1205
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 STRAIGHT	1-09654-246-0	01	1	1206-
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) (B)	1-33549-139-0	02	1	1109-1205
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-139-0	02	1	1206-1305
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-593-0	04	1	1306-
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-139-0	04	1	1109-1205
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-139-0	04	1	1206-1305
376	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33549-462-0	01	1	1206-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1206-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-299-0	01	1	1109-1205
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1206-
530	SHAFT; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-460-0	01	1	1206-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1206-
564	SEAL; RING (A)	1-33119-249-0	02	1	1109-1205
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-249-0	02	1	1206-
564	SEAL; RING (B)	1-33549-444-0	01	1	1109-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1206-
569	PIN; QUADRANT BOX (A)	1-33529-128-0	02	1	1109-1205
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-128-0	02	1	1206-
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8>	1-33549-471-0	01	1	1206-
582	BOLT; SPRING GUIDE	1-33549-487-0	02	1	1109-1205
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-487-0	02	1	1206-
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-464-0	01	1	1206-1305
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-549-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1206-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-
617	PLUG (A)	1-33119-171-0	02	1	1109-1205
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1206-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-
617	PLUG (B)	1-34129-061-0	01	1	1109-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-465-0	01	1	1206-1305
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-576-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-469-0	01	1	1206-1305
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-627-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-470-0	01	1	1206-
678	TAPPET ASSISTOR SHIFT CONTROL<WX8>	1-33549-466-0	01	1	1206-
733	REPAIR KIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-617-0	01	1	1306-

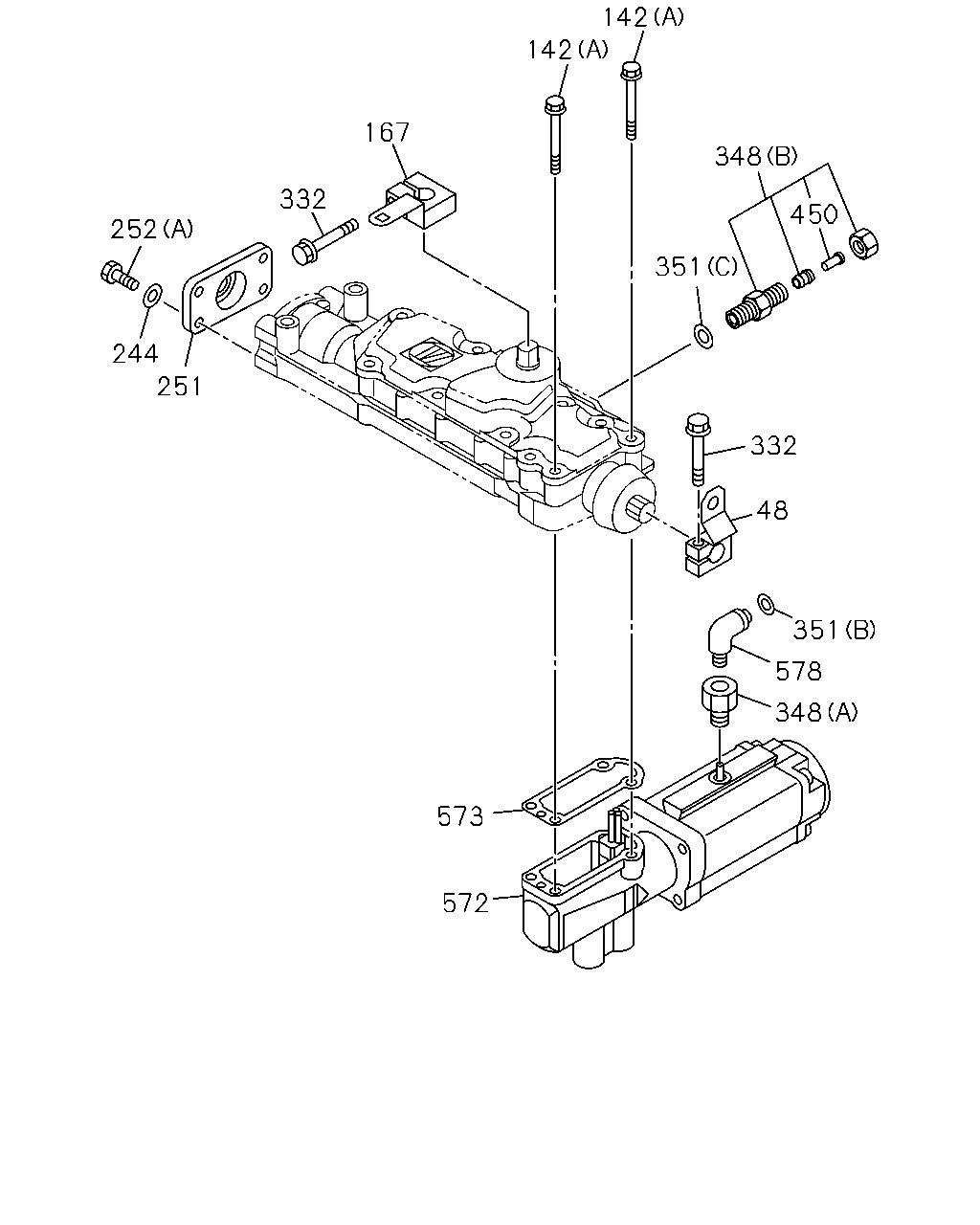

142 142 167 348 332 450 252 351 244 251 332 48 351 578 348 573 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1206-
48	LEVER; 4TH,SHIFT	8-98085-725-0	01	1	1109-1205
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1206-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1206-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1206-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1206-1305
142	BOLT; QUAD BOX (A) M8X75	1-09089-015-0	02	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X75	1-09089-015-0	02	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX (C)	1-33549-486-0	06	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX (B)	1-34129-116-0	04	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-34129-116-0	04	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X40	1-33549-587-0	04	1	1306-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33651-831-1	01	1	1206-
244	WASHER; LK,COVER	1-33549-159-0	04	1	1109-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-472-0	01	1	1206-1305
251	COVER; SIDE	1-33549-478-0	01	1	1109-1205
251	COVER; SIDE PTO ZF TRANS RR(BDM)	1-33549-478-0	01	1	1206-1305
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33549-478-0	01	1	1206-1305
251	COVER; SIDE	1-33549-590-0	01	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1109-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER (B) M8X30	1-33549-172-0	02	1	1109-1205
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1206-1305
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1206-
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28650-840-0	01	1	1109-1205
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1206-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1206-
348	CONNECTOR; AIR HOSE (A) M12 STRAIGHT	1-09654-246-0	01	1	1109-1205
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 STRAIGHT	1-09654-246-0	01	1	1206-
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) (B)	1-33549-139-0	02	1	1109-1205
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-139-0	02	1	1206-1305
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-593-0	04	1	1306-
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-139-0	04	1	1109-1205
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-139-0	04	1	1206-1305
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1206-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1206-1312
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1206-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1109-1205
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1206-
351	GASKET; CONNECTOR (A)	1-33549-444-0	08	1	1109-1205
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1206-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR (C)	1-33549-554-0	01	1	1109-1205
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-554-0	01	1	1206-
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1206-
572	SERVO UNIT; GEAR SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-331-0	01	1	1206-
573	GASKET; SERVO UNIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-332-0	01	1	1206-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1206-
578	CONNECTOR	1-33549-553-0	01	1	1109-1205
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1206-

142 677 310 569 42 256 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1206-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1206-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX (A)	1-33549-111-0	01	1	1109-1205
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1206-1305
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-589-0	01	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1206-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1206-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1206-1305
142	BOLT; QUAD BOX (A) M8X75	1-09089-015-0	02	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X75	1-09089-015-0	02	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX (C)	1-33549-486-0	06	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX (B)	1-34129-116-0	04	1	1109-1205
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-34129-116-0	04	1	1206-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X40	1-33549-587-0	04	1	1306-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1206-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-065-0	01	1	1109-1205
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1206-
310	PLATE; LOCK,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-453-0	01	1	1206-
418	PIECE; DIST,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-454-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1206-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1206-
569	PIN; QUADRANT BOX (A)	1-33529-128-0	02	1	1109-1205
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-128-0	02	1	1206-
677	PIN; PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33549-452-0	01	1	1206-

52 60 52 60 1 52 17 52 17 25 60 29 60 29 6 60 52 36 60 36 49 52 175 60 531 534 52 535 532 564 532 617 531 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1206-1305
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1206-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1109-1205
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1206-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1206-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1109-1205
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1206-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1206-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1109-1205
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1206-1305
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1206-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1109-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1109-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1109-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1109-
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1109-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1109-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1109-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1109-1305
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1206-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1109-1205
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1206-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1109-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1109-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1109-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1109-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1109-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1109-
535	SPRING; LEVER	1-33539-049-0	01	1	1109-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1206-
564	SEAL; RING (A)	1-33119-249-0	02	1	1109-1205
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-249-0	02	1	1206-
564	SEAL; RING (B)	1-33549-444-0	01	1	1109-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1206-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-
617	PLUG (A)	1-33119-171-0	02	1	1109-1205
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1206-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-
617	PLUG (B)	1-34129-061-0	01	1	1109-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-

622 346 349 351 349 513 351 513 351 346 353 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1206-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1206-
346	HOSE; AIR (A)	1-33549-400-0	01	1	1109-1205
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-400-0	01	1	1206-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-618-0	01	1	1306-
346	HOSE; AIR (B)	1-33549-443-0	01	1	1109-1205
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-443-0	01	1	1206-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-598-0	01	1	1306-
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1206-1305
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1306-
349	BOLT; EYE,AIR HOSE	1-33549-573-0	04	1	1109-1205
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1206-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1306-
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1206-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1206-1312
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1206-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1109-1205
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1206-
351	GASKET; CONNECTOR (A)	1-33549-444-0	08	1	1109-1205
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1206-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR (C)	1-33549-554-0	01	1	1109-1205
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-554-0	01	1	1206-
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1306-
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1109-1305
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1306-
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1206-
513	CLIP; BAND L=250	5-09707-030-1	06	1	1109-1205
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1206-
513	CLIP; BAND L=140	5-09707-031-1	01	1	1109-1205
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1206-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
