2-30A — GEAR SHIFTER AND QUADRANT BOX (#17512) — 146 parça

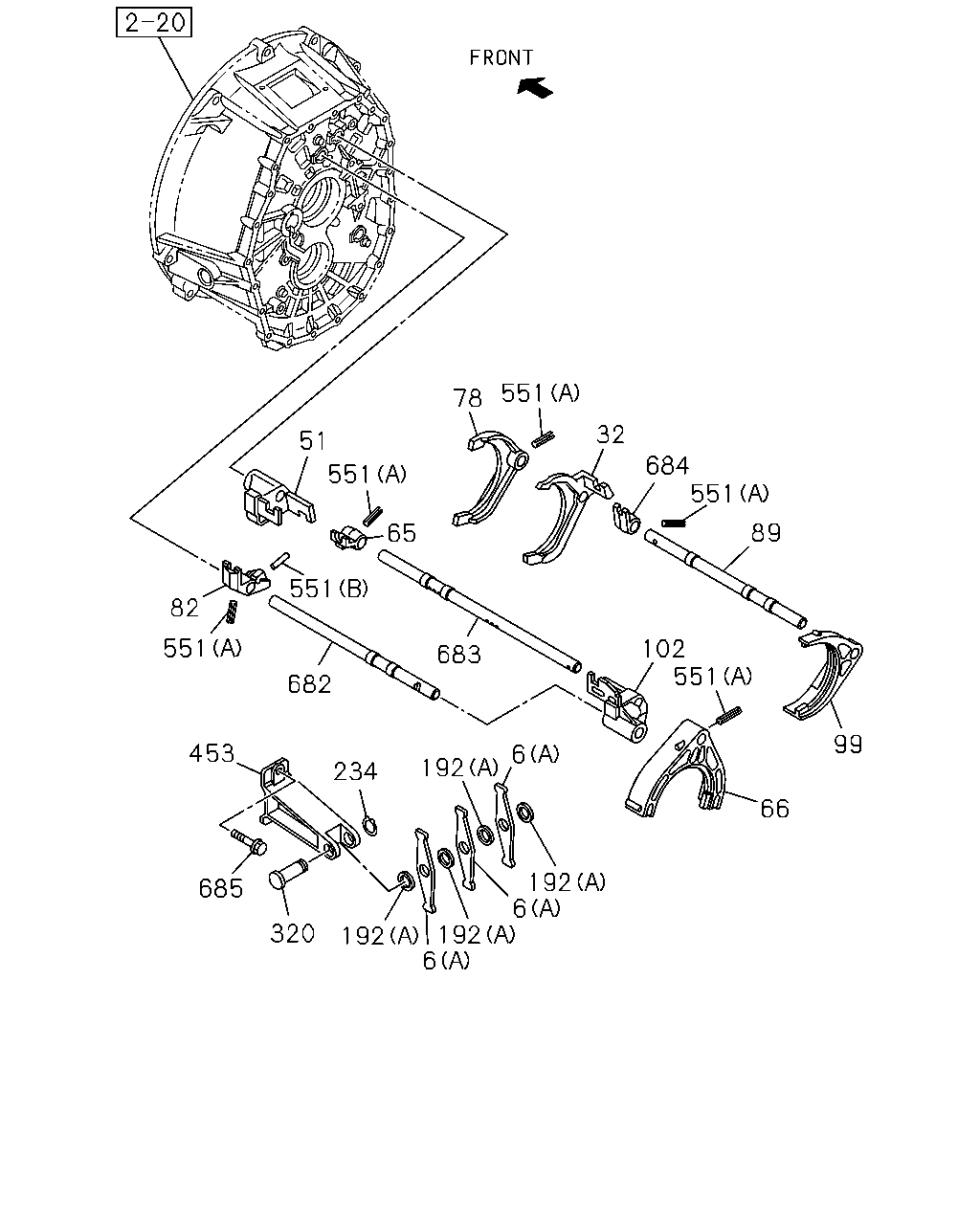

551 78 32 51 684 551 551 89 65 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1109-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1109-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1109-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1109-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1109-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1109-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1109-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1109-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1109-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1109-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1109-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1109-
192	WASHER; PL (B)	8-97305-661-0	02	1	1109-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1109-
320	SHAFT; LEVER	8-97377-928-0	01	1	1109-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1109-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1109-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1109-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1109-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1109-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1109-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1109-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1109-

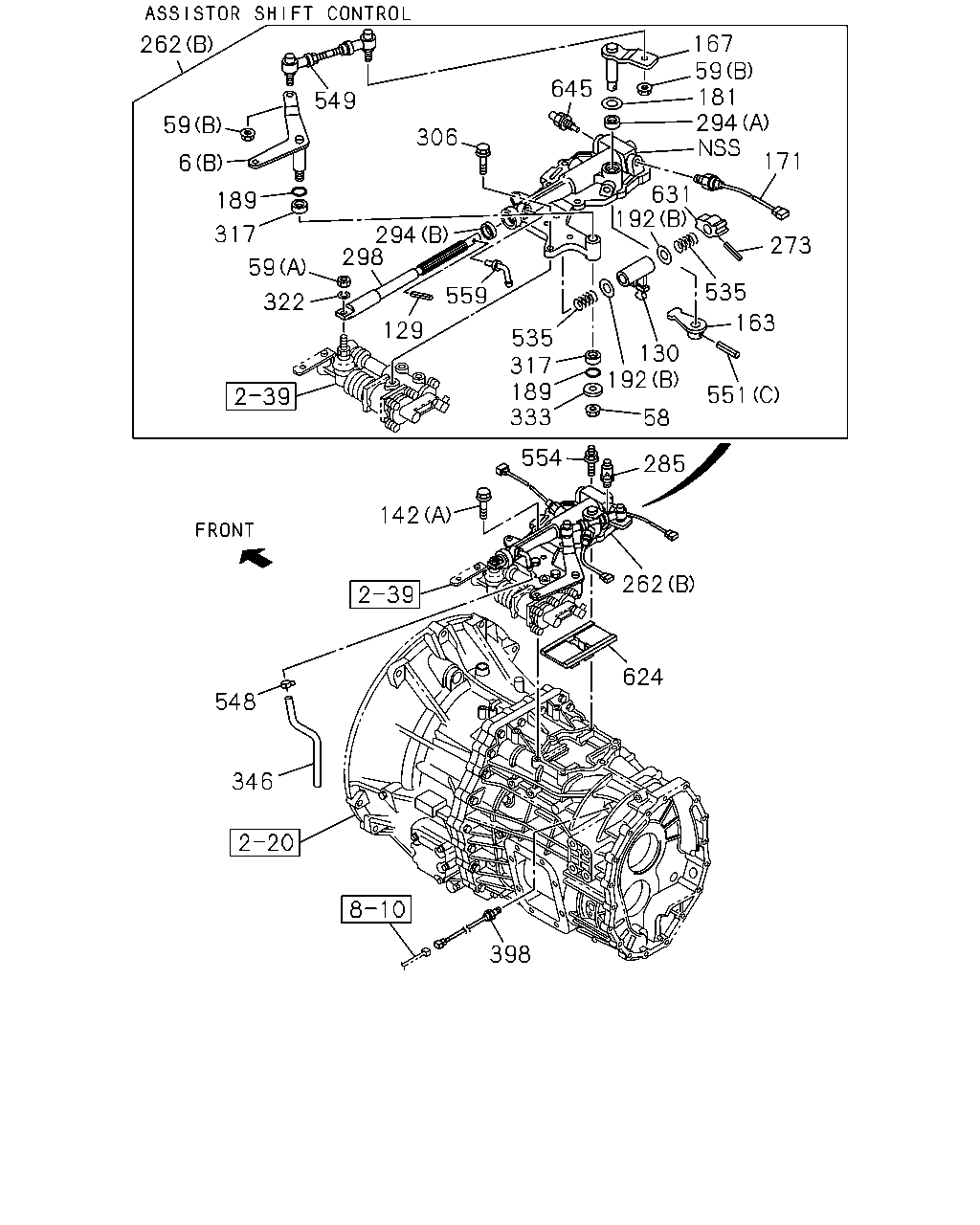

262 59 549 6 189 317 59 322 298 294 306 645 167 59 181 294 171 273 631 192 535 163 551 58 130 192 535 559 129 317 189 333 554 285 262 142 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1109-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1109-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1109-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1206-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1109-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1109-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1109-
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1109-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1109-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1109-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1109-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1109-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1109-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1109-
192	WASHER; PL (B)	8-97305-661-0	02	1	1109-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1206-1306
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT (A)	8-98004-477-0	01	1	1109-1204
262	BOX ASM; SHIFT CONT (A)	8-98207-566-0	01	1	1205-1205
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1206-1306
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1109-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1109-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1109-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1206-1507
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1206-
317	BUSHING; LEVER	1-09330-119-0	02	1	1109-1205
317	BUSHING; LEVER	1-09330-119-0	02	1	1206-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1206-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1109-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
346	HOSE; AIR	8-97309-855-0	01	1	1109-1204
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1109-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1109-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1109-1204
549	ROD; LINK	8-98022-841-0	01	1	1109-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1109-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1109-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1109-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1109-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER	8-97358-318-0	01	1	1109-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1109-
631	STOPPER; SPRING	8-97305-666-0	01	1	1109-
645	DETENT ASM	8-98019-536-0	01	1	1109-

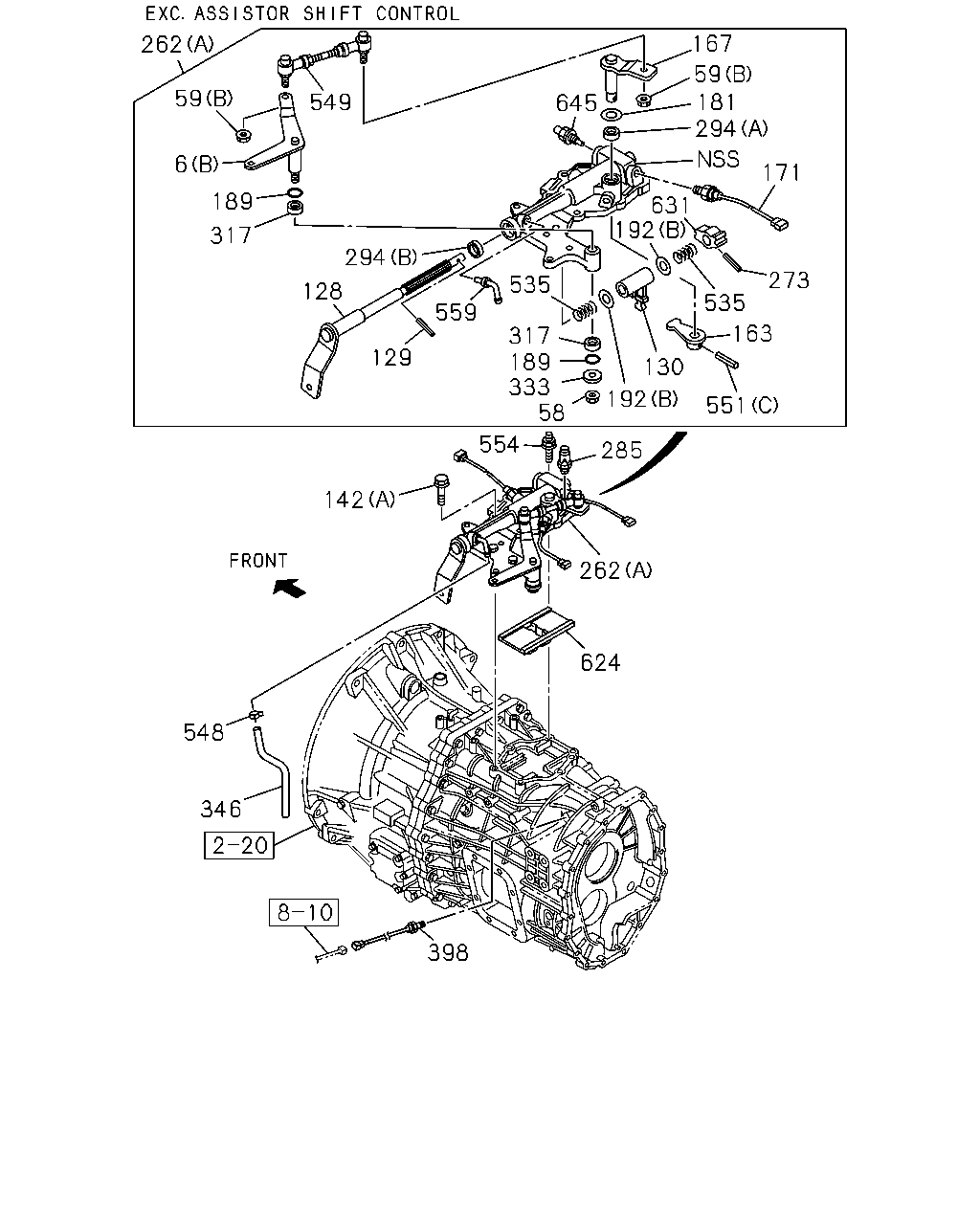

262 59 549 6 189 317 294 128 129 559 535 317 189 333 58 192 551 130 163 535 273 171 294 181 59 167 645 631 192 285 554 142 262 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1109-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1109-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1109-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1206-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1109-
128	LEVER; SHIFT,EXTERNAL	8-97306-927-0	01	1	1109-1205
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1206-1507
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1109-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1109-
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1109-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1109-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1109-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1109-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1109-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1109-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1109-
192	WASHER; PL (B)	8-97305-661-0	02	1	1109-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1206-1306
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT (A)	8-98004-477-0	01	1	1109-1204
262	BOX ASM; SHIFT CONT (A)	8-98207-566-0	01	1	1205-1205
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1206-1306
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1109-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1109-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1109-
317	BUSHING; LEVER	1-09330-119-0	02	1	1109-1205
317	BUSHING; LEVER	1-09330-119-0	02	1	1206-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1109-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
346	HOSE; AIR	8-97309-855-0	01	1	1109-1204
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1109-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1109-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1109-1204
549	ROD; LINK	8-98022-841-0	01	1	1109-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1109-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1109-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1109-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1109-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER	8-97358-318-0	01	1	1109-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1109-
631	STOPPER; SPRING	8-97305-666-0	01	1	1109-
645	DETENT ASM	8-98019-536-0	01	1	1109-

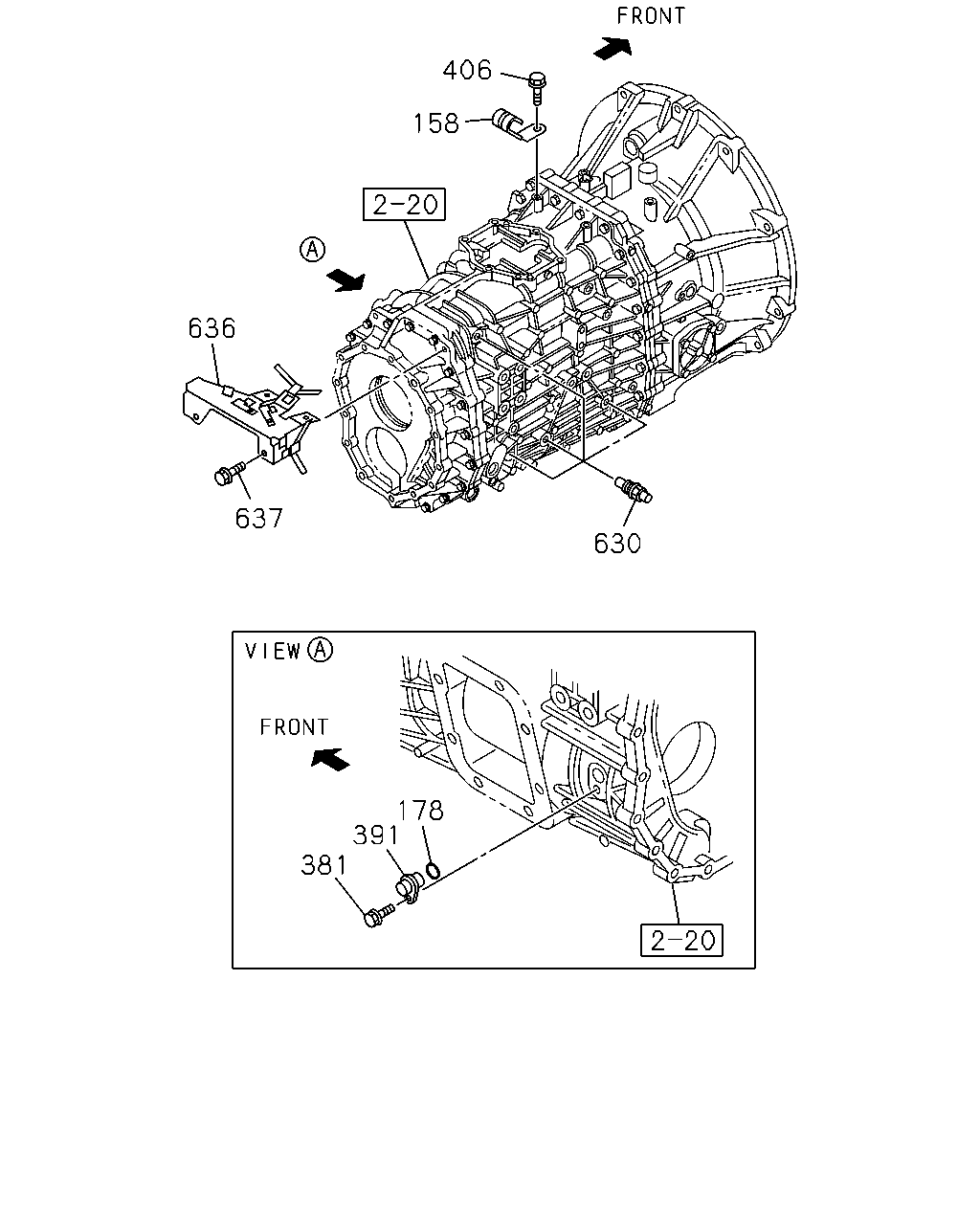

406 158 636 637 630 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1109-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1109-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1109-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1109-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1109-
630	DETENT ASM	8-98019-536-0	04	1	1109-
636	BRACKET; CLIP	8-97610-096-2	01	1	1109-
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1109-
