8-65 — CONTROL LEVER; HEATER AND AIR CON (#175118) — 12 parça

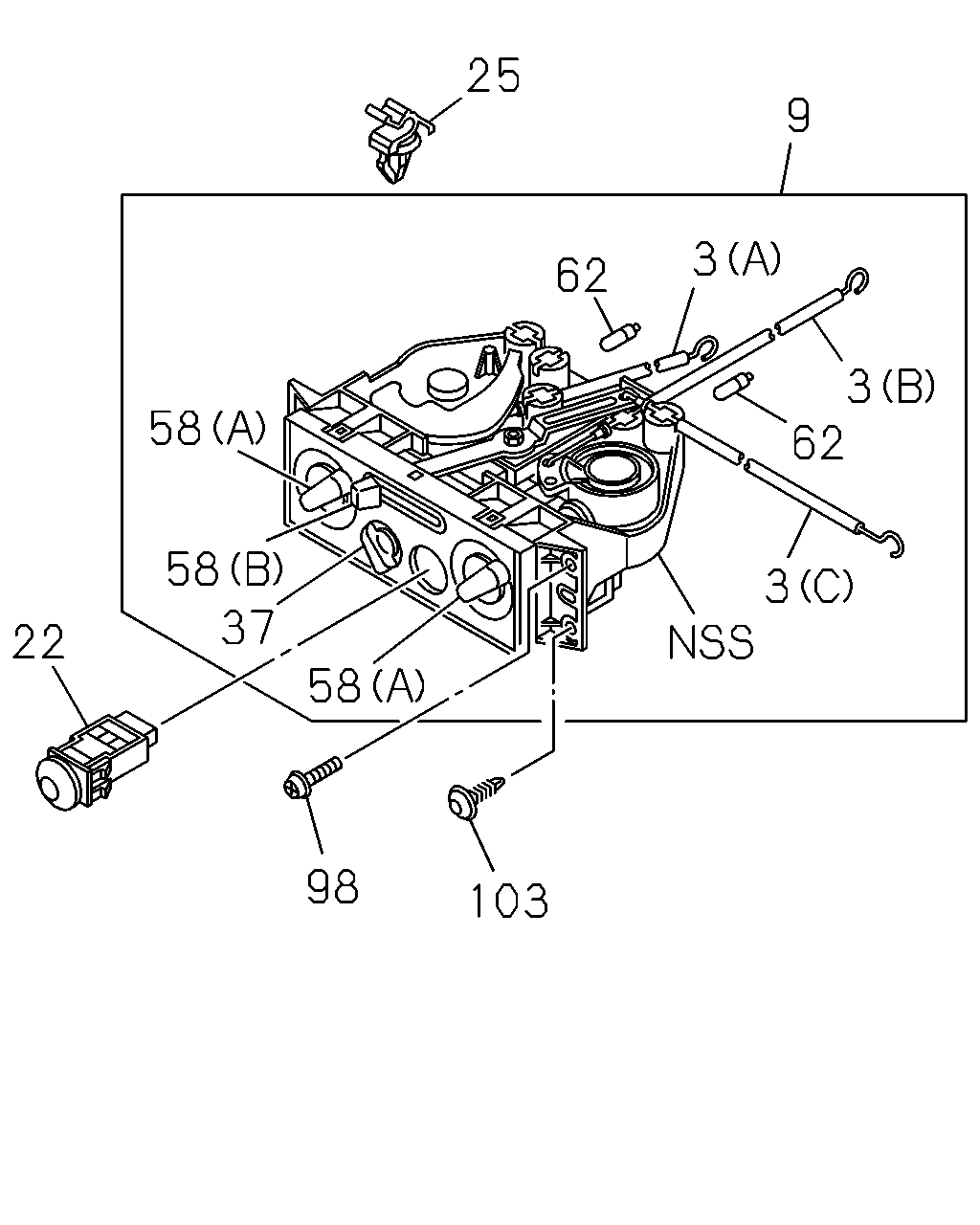

çizim 515027
25 9 3 62 3 62 3 58 58 58 37 98 103 22
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
(C) RECIRC/FRESH 		8-98063-316-2 01 1 1509- ● ●
3 CABLE; HTR CONT LVR
(A) MODE 		8-98065-643-0 01 1 1509- ● ●
3 CABLE; HTR CONT LVR
(B) AIR MIX 		8-98065-644-0 01 1 1509- ● ●
9 LEVER ASM; HTR & A/C CONT 8-97431-268-0 01 1 1509- ● ●
22 SWITCH; A/C,MAIN 8-97431-269-0 01 1 1509- ● ●
25 CLIP; CABLE,CONT LEVER
ID=4.8 		8-94128-483-0 03 1 1509- ● ●
37 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 1509- ● ●
58 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 1509- ● ●
58 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 1509- ● ●
62 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 1509- ● ●
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1509- ● ●
103 CLIP
DARK GRAY 		8-97098-326-0 01 1 1509- ● ●
