8-60 — HEATER UNIT; FRONT (#175117) — 50 parça

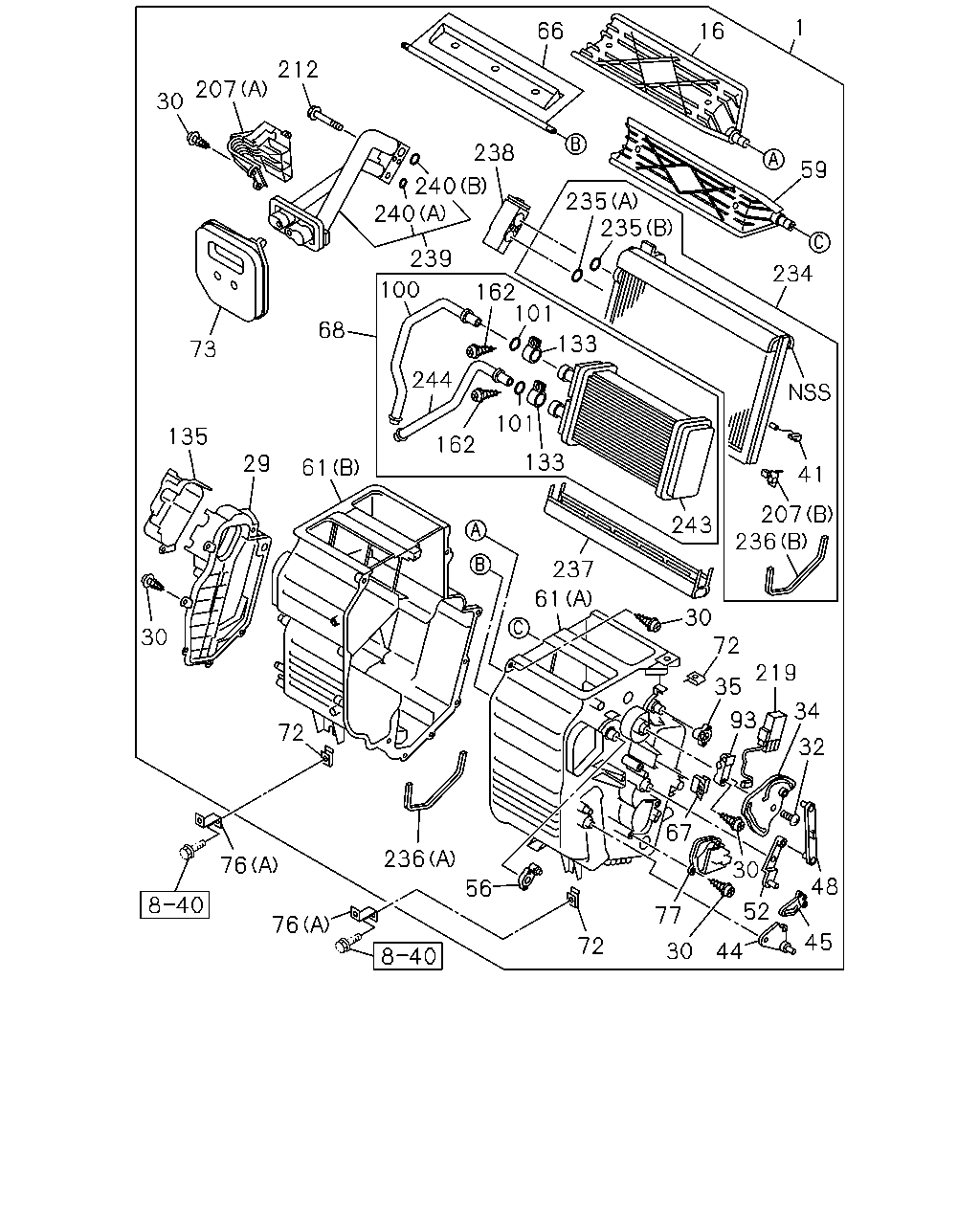

çizim 514097
1 66 16 59 234 30 207 212 238 240 240 239 68 100 162 133 101 244 162 101 73 135 61 29 30 72 236 76 76 56 72 30 44 45 48 52 77 30 67 32 93 35 34 219 72 30 236 41 243 237 61 133 235 235 207
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 8-97431-259-0 01 1 1509- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1509- ● ●
29 COVER; HTR UNIT 8-98047-480-0 01 1 1509- ● ●
30 SCREW; HTR UNIT
M4X16 TAPPING 		8-97957-708-0 27 1 1509- ● ●
32 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 1509- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 1509- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 1509- ● ●
41 THERMOSTAT; HTR UNIT 8-98047-412-0 01 1 1509- ● ●
44 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 1509- ● ●
45 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 1509- ● ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 1509- ● ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 1509- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 1509- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1509- ● ●
61 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 1509- ● ●
61 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 1509- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 1509- ● ●
67 CLIP; HTR UNIT 8-98047-417-0 02 1 1509- ● ●
68 CORE; HTR UNIT 8-98074-122-0 01 1 1509- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1509- ● ●
73 PLATE; HTR UNIT 8-98047-491-0 01 1 1509- ● ●
76 BRACKET; HTR UNIT
(A) 		8-97431-255-0 02 1 1509- ● ●
76 BRACKET; HTR UNIT
(B) 		8-98180-279-1 01 1 1509- ● ●
77 COVER; HTR CASE 8-98047-482-0 01 1 1509- ● ●
93 PLATE; HTR UNIT 8-98047-427-0 01 1 1509- ● ●
100 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 1509- ● ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 1509- ● ●
133 CLIP; PIPE 8-98072-530-0 02 1 1509- ● ●
135 COVER; HTR 8-98047-481-0 01 1 1509- ● ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 1509- ● ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 1509- ● ●
207 CLAMP; HTR UNIT
(B) 		8-98047-413-0 01 1 1509- ● ●
212 BOLT; HTR UNIT
M5X61 		8-98047-415-0 02 1 1509- ● ●
219 AMPLIFIER; HEATER UNIT 8-98047-429-0 01 1 1509- ● ●
234 EVAPORATOR ASM; HEATER 8-98074-120-1 01 1 1509- ● ●
235 GASKET; EVAPORATOR
(A) ID=11.7 		8-97095-907-0 01 1 1509- ● ●
235 GASKET; EVAPORATOR
(B) ID=14.5 		8-97095-908-0 01 1 1509- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1509- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1509- ● ●
237 INSULATOR; EVAPORATOR 8-98047-382-0 01 1 1509- ● ●
238 VALVE; EXPANSION 8-98047-383-0 01 1 1509- ● ●
239 TUBE ASM; HEATER 8-98047-504-0 01 1 1509- ● ●
240 GASKET; HEATER
(A) ID=7.4 		8-97095-906-0 01 1 1509- ● ●
240 GASKET; HEATER
(B) ID=14.5 		8-97095-908-0 01 1 1509- ● ●
243 CORE 8-98048-508-0 01 1 1509- ● ●
244 PIPE; INLET 8-98048-511-0 01 1 1509- ● ●

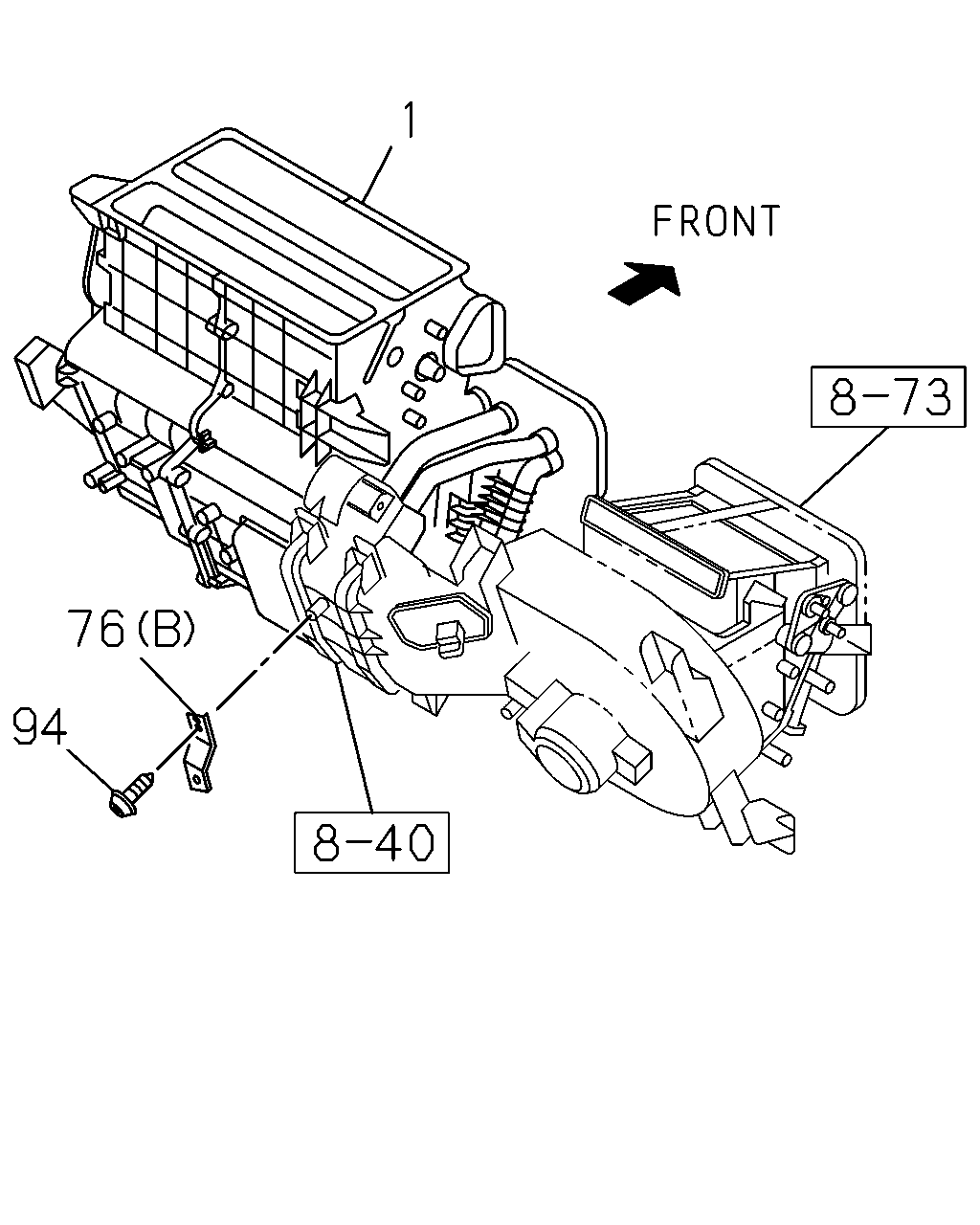

çizim 514999
94 76 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 8-97431-259-0 01 1 1509- ● ●
76 BRACKET; HTR UNIT
(A) 		8-97431-255-0 02 1 1509- ● ●
76 BRACKET; HTR UNIT
(B) 		8-98180-279-1 01 1 1509- ● ●
94 SCREW; TAPPING
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509- ● ●
