8-52 — PIPING; AIR CONDITIONING (#175116) — 25 parça

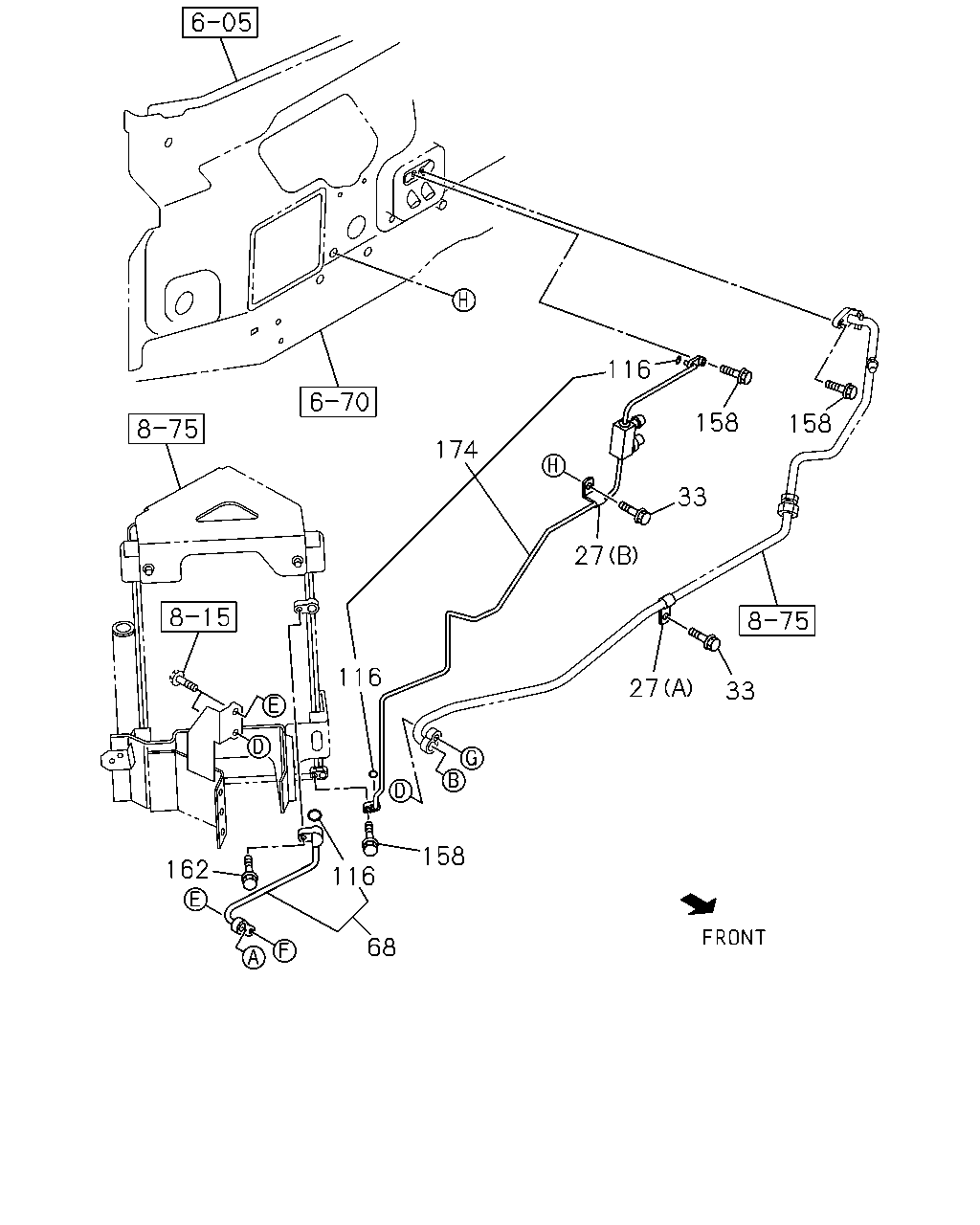

174 116 158 158 33 27 27 33 116 158 116 68 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	CLIP; COOLER PIPE (A)	8-97431-310-0	01	1	1509-	●	●
27	CLIP; COOLER PIPE (B)	8-97431-311-0	01	1	1509-	●	●
27	CLIP; COOLER PIPE (C)	8-97431-312-0	01	1	1509-	●	●
33	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1509-	●	●
68	PIPE; EVAP TO UNION	8-98228-345-0	01	1	1509-	●	●
116	GASKET; PIPE ID=11.7	8-97095-907-0	02	1	1509-	●	●
158	BOLT; PIPE FIX M6X25 FLANGE	0-28050-625-0	02	1	1509-	●	●
158	BOLT; PIPE FIX M6X25 FLANGE	0-28050-625-0	02	1	1509-	●	●
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	02	1	1509-	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE	8-98228-347-0	01	1	1509-	●	●

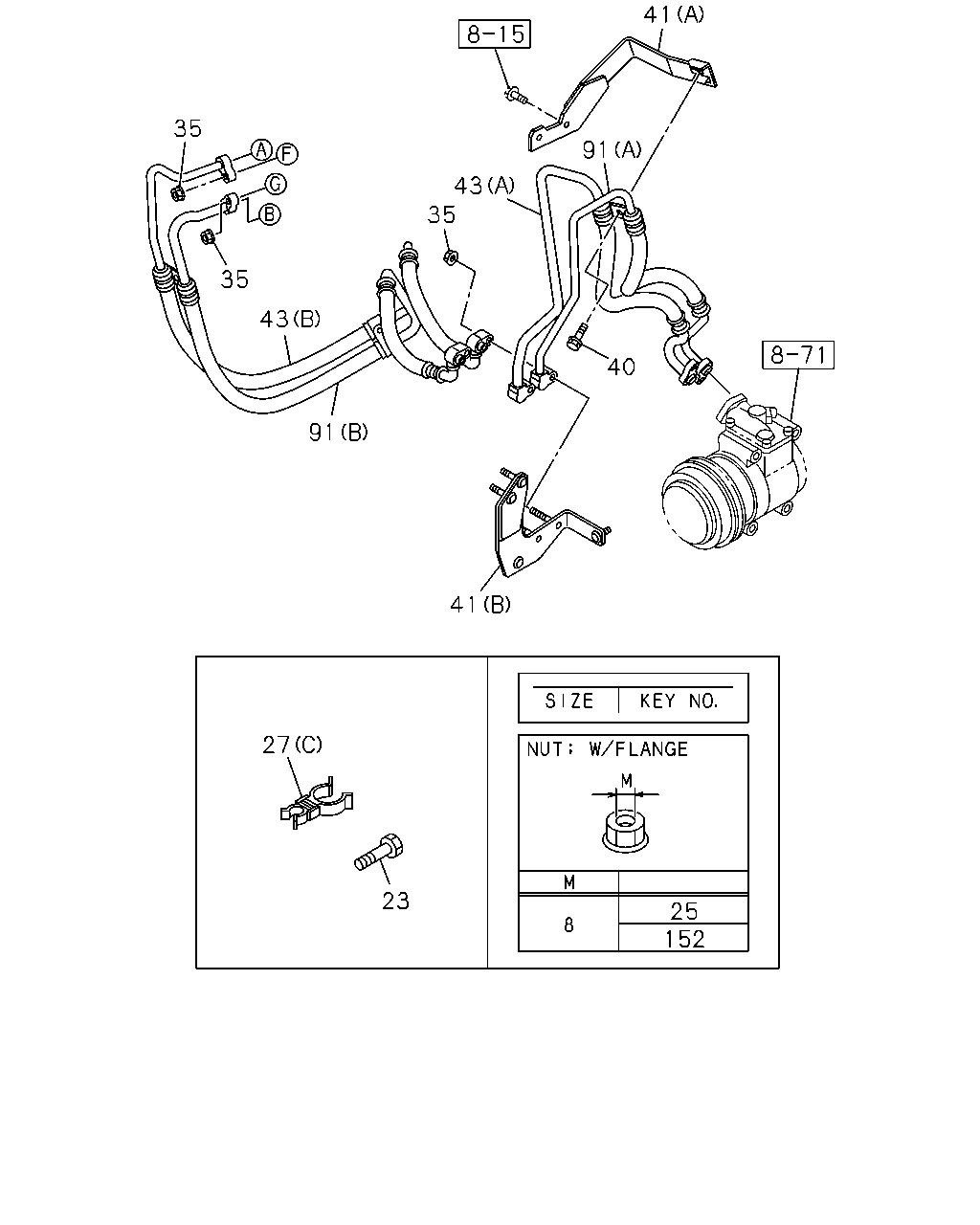

41 91 43 35 35 91 43 35 40 41 27 23 25 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BOLT; BRKT	8-97431-302-0	02	1	1509-	●	●
25	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
27	CLIP; COOLER PIPE (A)	8-97431-310-0	01	1	1509-	●	●
27	CLIP; COOLER PIPE (B)	8-97431-311-0	01	1	1509-	●	●
27	CLIP; COOLER PIPE (C)	8-97431-312-0	01	1	1509-	●	●
35	NUT; FLEX HOSE,A/C	8-97431-309-0	04	1	1509-	●	●
40	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	1509-	●	●
40	BOLT; CLIP BRKT	8-97431-301-0	02	1	1509-	●	●
41	BRACKET; PIPE CLIP (A)	8-98228-385-0	01	1	1509-	●	●
41	BRACKET; PIPE CLIP (B)	8-98228-387-0	01	1	1509-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR (A)	8-98236-299-0	01	1	1509-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR (B)	8-98236-300-0	01	1	1509-	●	●
91	HOSE; FLEX,CMPR (A)	8-98236-301-0	01	1	1509-	●	●
91	HOSE; FLEX,CMPR (B)	8-98236-302-0	01	1	1509-	●	●
152	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
