◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#175114) — 23 parça
çizim 514141
27 63 63 102 102 102 56 56 56 63 56 63
BalonParca AdiParca NoAdetTipApplied Date A B
27 HOSE; WATER,HTR UNIT TO WATER PIPE
(B) 		8-98228-357-1 01 1 1509- ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
(A) 		8-98228-358-0 01 1 1509- ● ●
56 CLAMP; HTR HOSE
ID=22 		8-94382-401-0 04 1 1509- ● ●
63 HOSE; WATER
(D) 		8-97350-954-0 01 1 1509- ● ●
63 HOSE; WATER
(C) 		8-97376-325-0 01 1 1509- ● ●
63 HOSE; WATER
(B) 		8-97350-952-0 01 1 1509- ● ●
63 HOSE; WATER
(A) 		8-97350-951-0 01 1 1509- ● ●
102 COVER; WATER HOSE
(B) 		8-97376-327-0 01 1 1509- ● ●
102 COVER; WATER HOSE
(A) 		8-97376-326-0 01 1 1509- ● ●
102 COVER; WATER HOSE
(C) 		8-97376-328-0 01 1 1509- ● ●

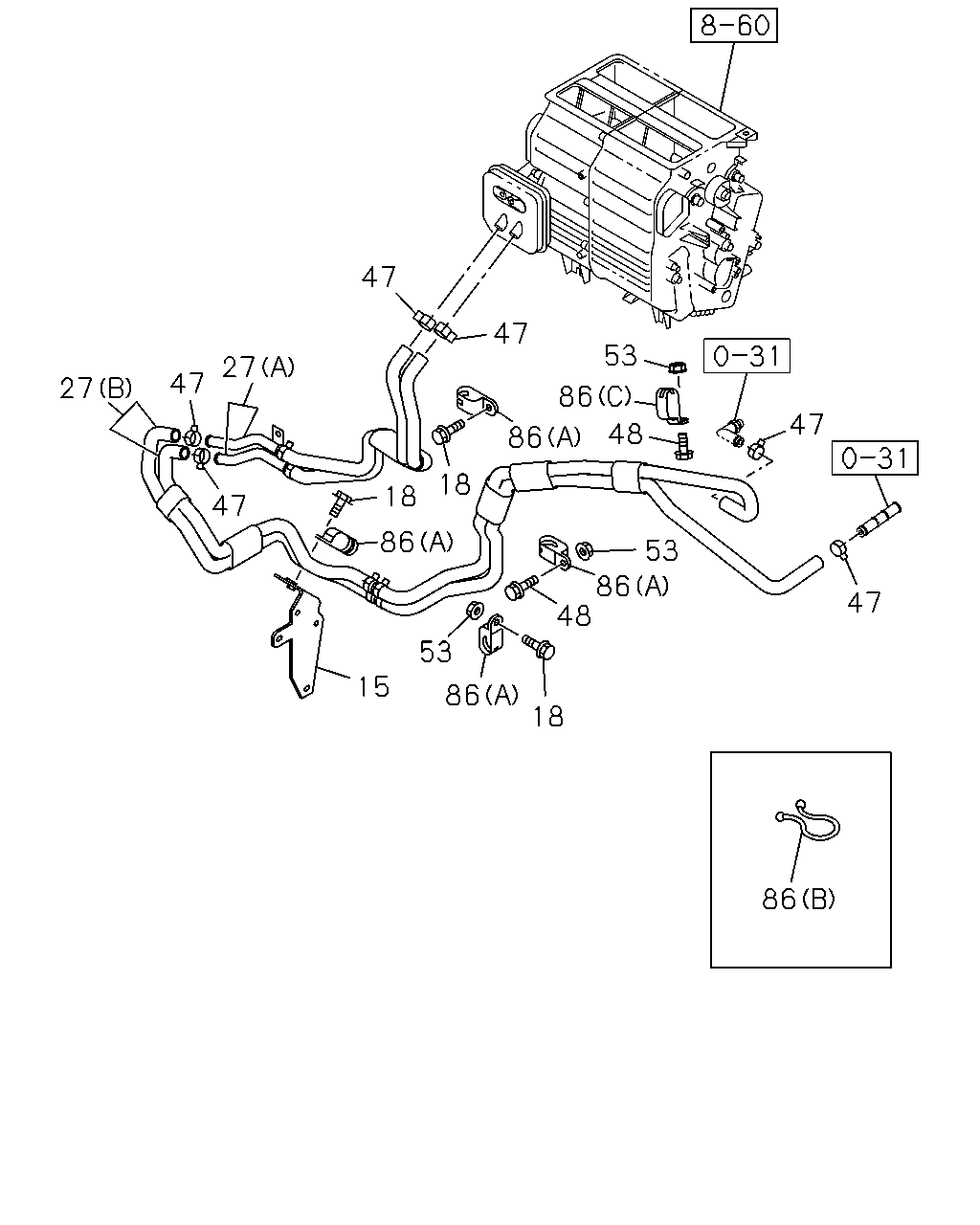

çizim 515026
27 47 47 53 47 86 86 27 47 18 86 15 86 53 18 48 18 86 48 53 47 86 47
BalonParca AdiParca NoAdetTipApplied Date A B
15 BRACKET; WATER HOSE 8-98228-344-0 01 1 1509- ● ●
18 BOLT; WATER HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
(B) 		8-98228-357-1 01 1 1509- ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
(A) 		8-98228-358-0 01 1 1509- ● ●
47 CLAMP; WATER HOSE,HTR 8-97431-317-0 04 1 1509- ● ●
47 CLAMP; WATER HOSE,HTR 8-97431-317-0 02 1 1509- ● ●
48 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
48 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
53 NUT; HOSE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1509- ● ●
86 CLIP; HTR HOSE
(B) ID=44 		8-94463-508-0 01 1 1509- ● ●
86 CLIP; HTR HOSE
(A) ID=24X2 L=25 		1-09700-710-0 03 1 1509- ● ●
86 CLIP; HTR HOSE
(C) 		8-97431-314-0 01 1 1509- ● ●
86 CLIP; HTR HOSE
(A) ID=24X2 L=25 		1-09700-710-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
