◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#175113) — 28 parça
çizim 514077
223 50 476 206
BalonParca AdiParca NoAdetTipApplied Date A B
50 VALVE ASM; HTR 8-98080-998-1 01 1 1509- ● ●
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-97431-263-0 01 1 1509- ● ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1509- ● ●
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1509- ● ●

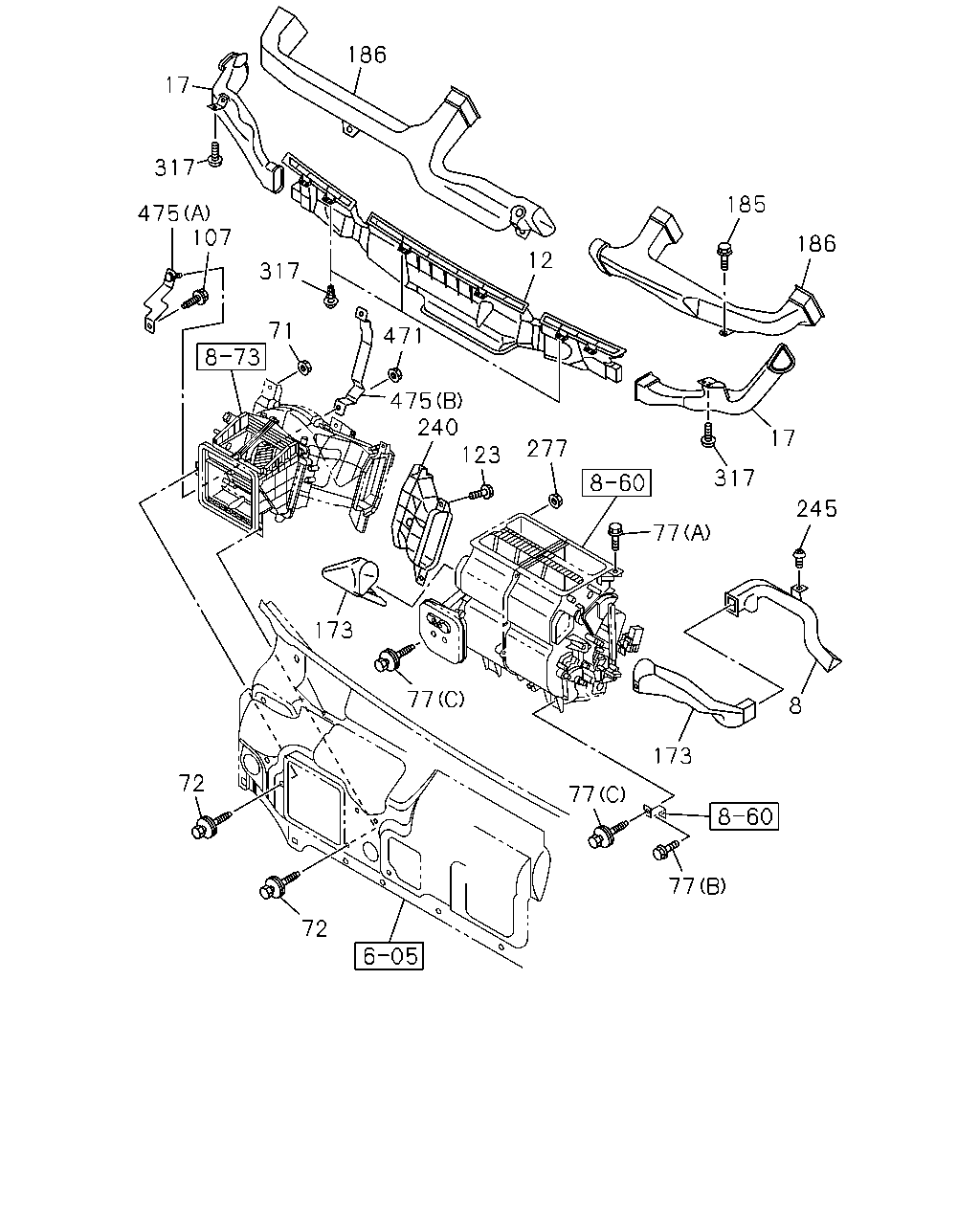

çizim 515025
186 17 317 475 317 471 475 123 277 77 317 17 245 186 185 12 107 71 240 173 77 77 173 77 72 72 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT 8-98011-567-0 01 1 1509- ● ●
12 NOZZLE; DEFROSTER 8-98040-010-2 01 1 1509- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-98040-014-0 01 1 1509- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-98040-019-0 01 1 1509- ● ●
71 NUT; BLOWER UNIT TO DASH 8-97431-309-0 02 1 1509- ● ●
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1509- ● ●
77 BOLT; HTR UNIT
(A) 		8-97431-303-0 01 1 1509- ● ●
77 BOLT; HTR UNIT
(B) 		8-97431-304-0 02 1 1509- ● ●
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1509- ● ●
107 BOLT; STAY,HTR UNIT 8-97431-305-0 01 1 1509- ● ●
123 SCREW; DUCT 8-97431-306-0 04 1 1509- ● ●
173 DUCT; FOOT,HTR 8-97585-508-1 01 1 1509- ● ●
173 DUCT; FOOT,HTR 8-98217-774-1 01 1 1509- ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509- ● ●
186 DUCT; VENTILATOR 8-98174-736-0 01 1 1509- ● ●
186 DUCT; VENTILATOR 8-98011-556-3 01 1 1509- ● ●
240 DUCT; AIR,HTR 8-97431-265-0 01 1 1509- ● ●
245 CLIP; FOOT DUCT 8-98056-059-0 03 1 1509- ● ●
277 NUT; HTR 8-97431-309-0 01 1 1509- ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1509- ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1509- ● ●
471 NUT; BLOWER 8-97431-309-0 01 1 1509- ● ●
475 BRACKET; BLOWER
(A) 		8-98028-309-1 01 1 1509- ● ●
475 BRACKET; BLOWER
(B) 		8-98165-782-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
