8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#175110) — 53 parça
çizim 514055
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
(B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
164 RELAY; A/C COMPRESSOR
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●

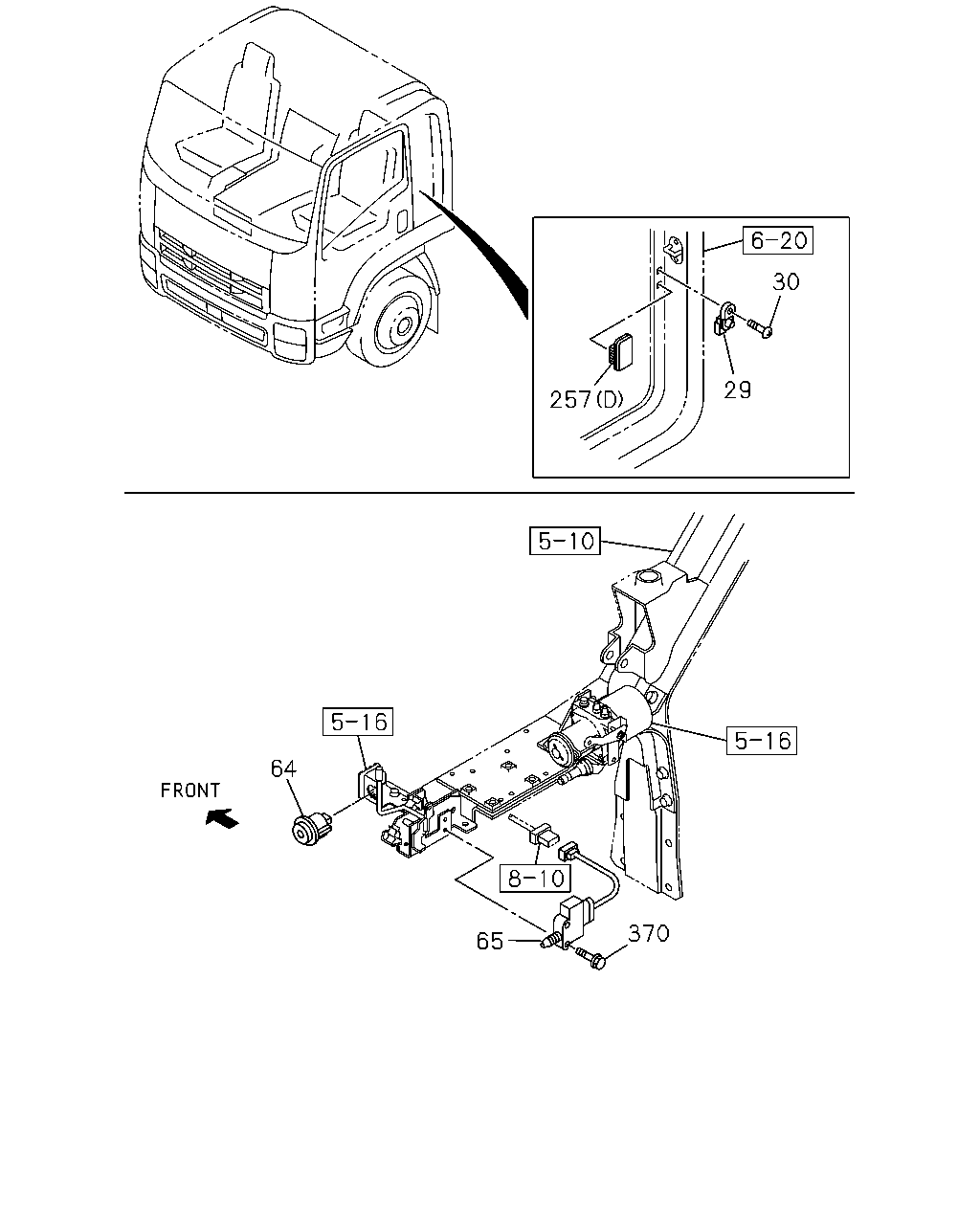

çizim 514163
30 29 257 64 65 370
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1509- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1509- ● ●
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1509- ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(D) 		8-98029-917-0 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1509- ● ●
çizim 514969
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 RELAY; DOOR LK 8-98060-789-0 01 1 1509- ● ●

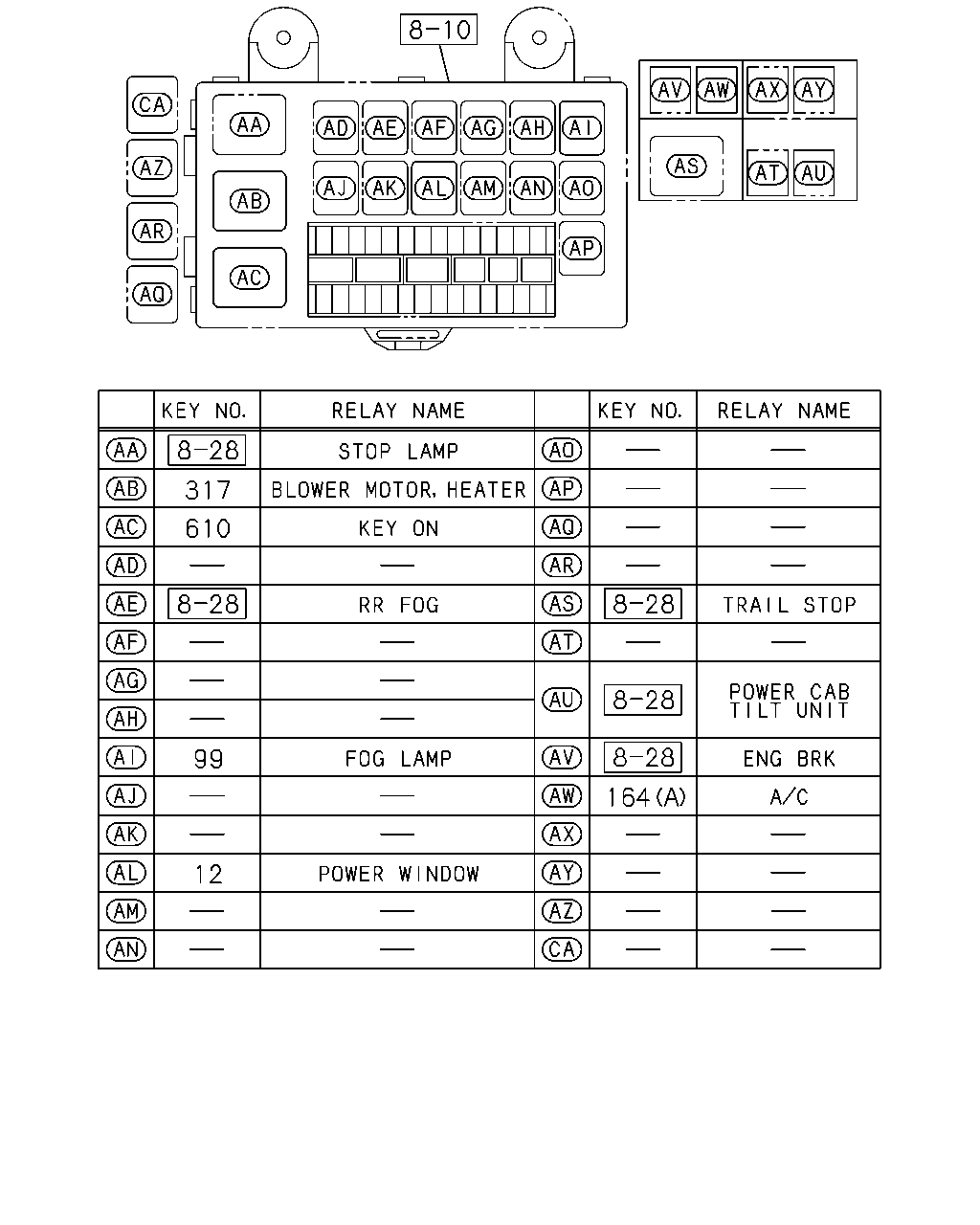

çizim 515015
164 12 99 610 317
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
99 RELAY; FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
164 RELAY; A/C COMPRESSOR
(B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
164 RELAY; A/C COMPRESSOR
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●

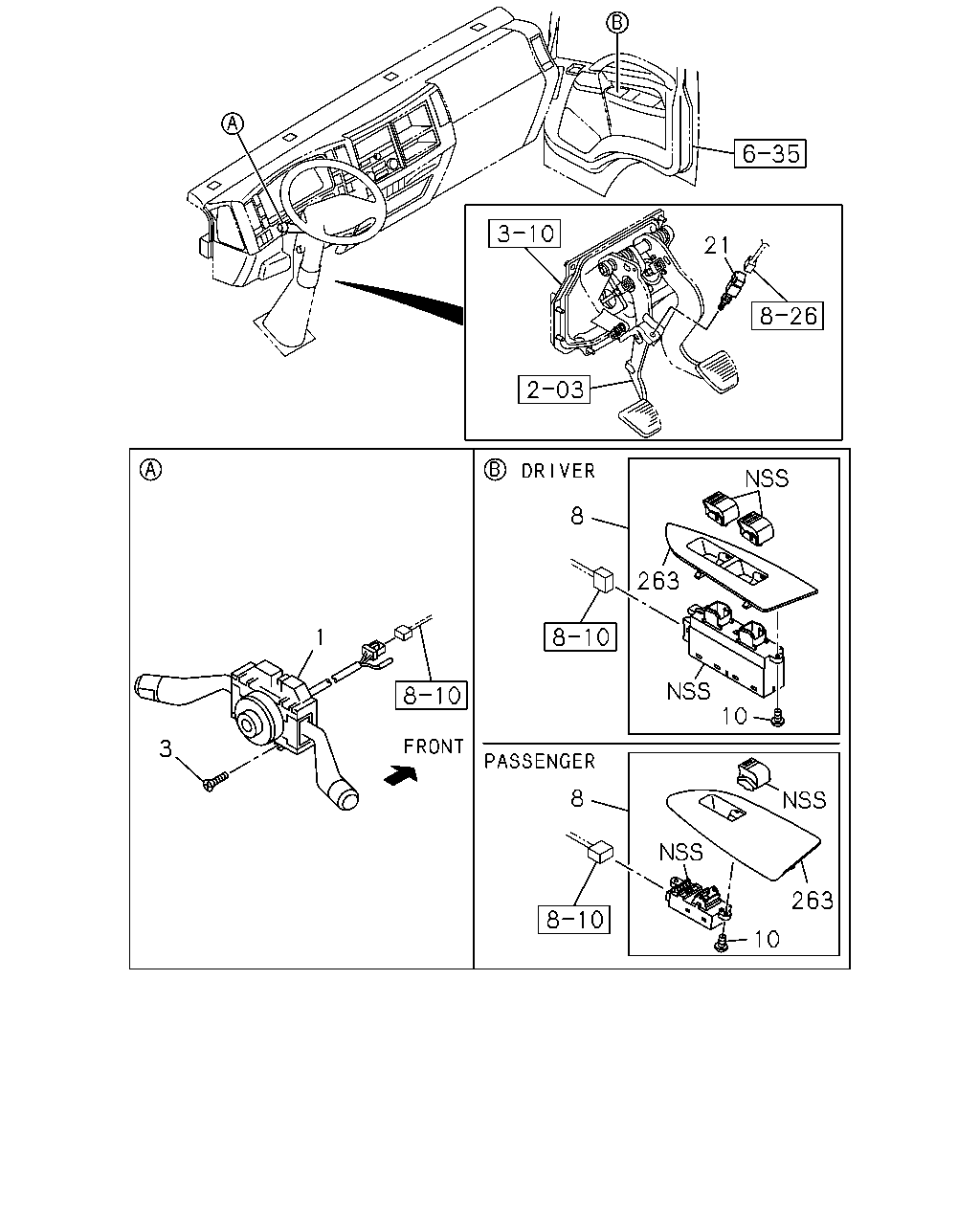

çizim 515062
21 1 3 8 263 10 8 10 263
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 8-98240-592-0 01 1 1509- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1509- ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98001-737-2 01 1 1509- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-544-0 01 1 1509- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 02 1 1509- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 01 1 1509- ● ●
21 SWITCH; CLU 8-97358-248-0 01 1 1509- ● ●
263 COVER; SW
PASSENGER 		8-98153-843-0 01 1 1509- ● ●
263 COVER; SW
DRIVER 		8-98153-838-0 01 1 1509- ● ●

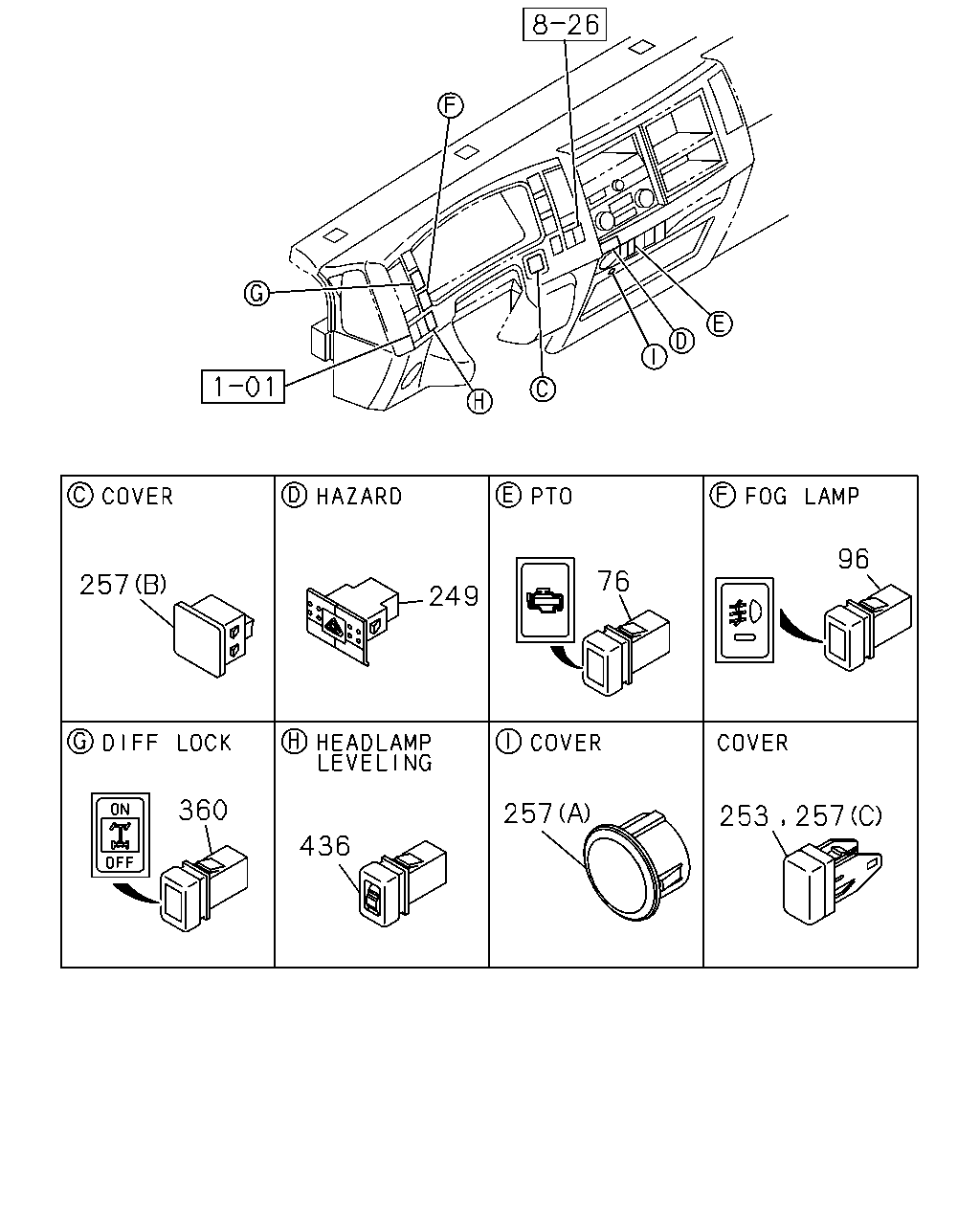

çizim 515155
257 249 76 96 253 257 257 436 360
BalonParca AdiParca NoAdetTipApplied Date A B
76 SWITCH ASM; PTO
WHEEL BASE 5300MM(53W) X8 		8-98114-764-0 01 1 1509- ●
96 SWITCH; FOG LAMP 8-97387-031-3 01 1 1509- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1509- ● ●
253 COVER; SW HOLE
Q8 		8-98025-954-1 01 1 1509- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1509- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(D) 		8-98029-917-0 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1509- ● ●
360 SWITCH ASM; DIFF LK 8-97613-964-0 01 1 1509- ● ●
436 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1509- ● ●
