◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#175103) — 58 parça
çizim 513189
1 4 338 339 408 420 20 5 5 382 457 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98241-315-0 01 1 1509- ● ●
1 LAMP ASM; HEAD 8-98241-314-0 01 1 1509- ● ●
4 HEADLAMP UNIT 8-98199-568-0 01 1 1509- ● ●
4 HEADLAMP UNIT 8-98199-569-0 01 1 1509- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1509- ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1509- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1509- ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1509- ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1509- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1509- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1509- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1509- ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1509- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1509- ● ●

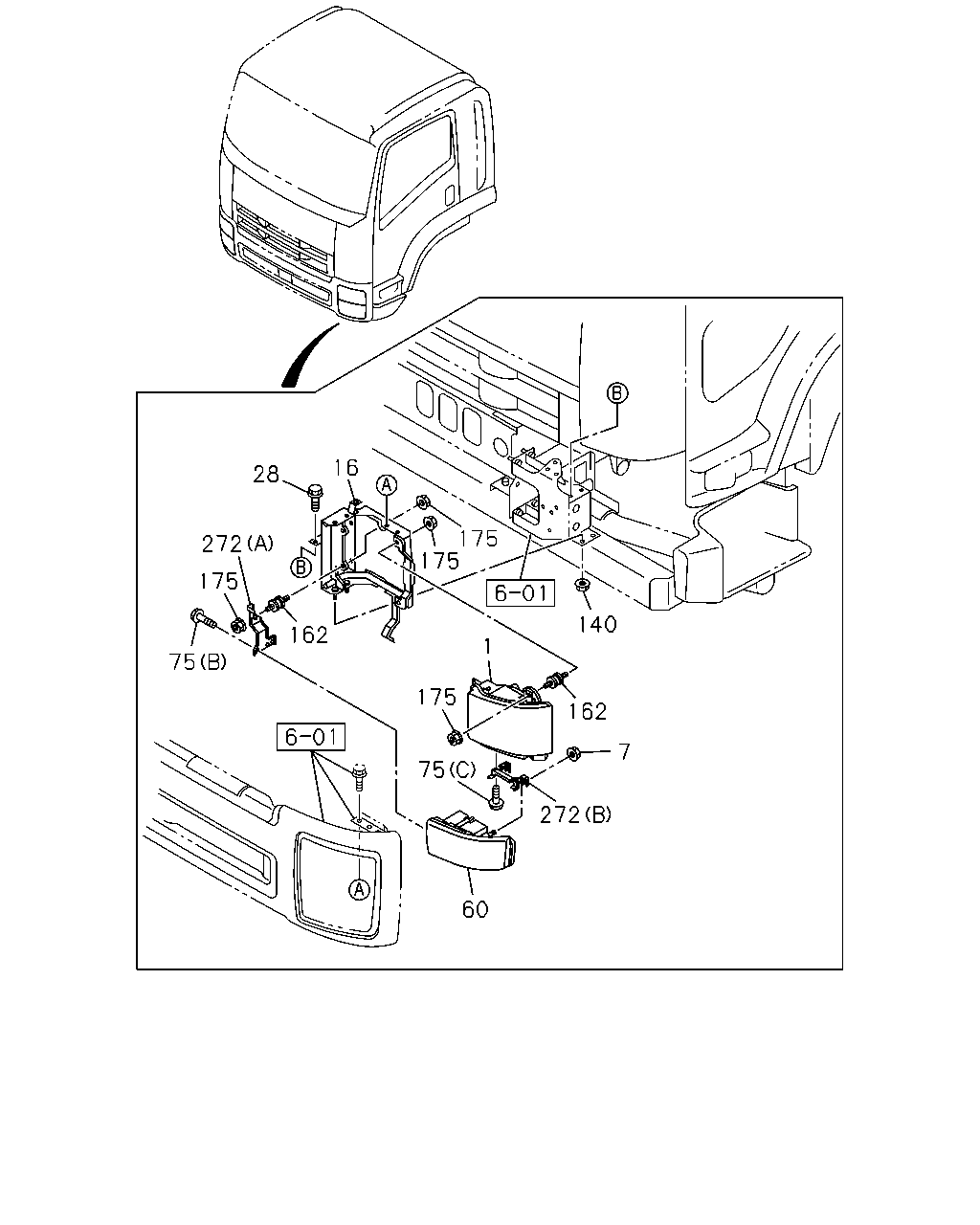

çizim 514686
28 16 272 175 75 162 175 175 140 162 175 75 7 272 60
BalonParca AdiParca NoAdetTipApplied Date A B
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1509- ● ●
16 BRACKET; HEADLAMP 8-97430-089-0 01 1 1509- ● ●
16 BRACKET; HEADLAMP 8-98013-015-2 01 1 1509- ● ●
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 1509- ● ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1509- ● ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1509- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1509- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1509- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 04 1 1509- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1509- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1509- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1509- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1509- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1509- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1509- ● ●

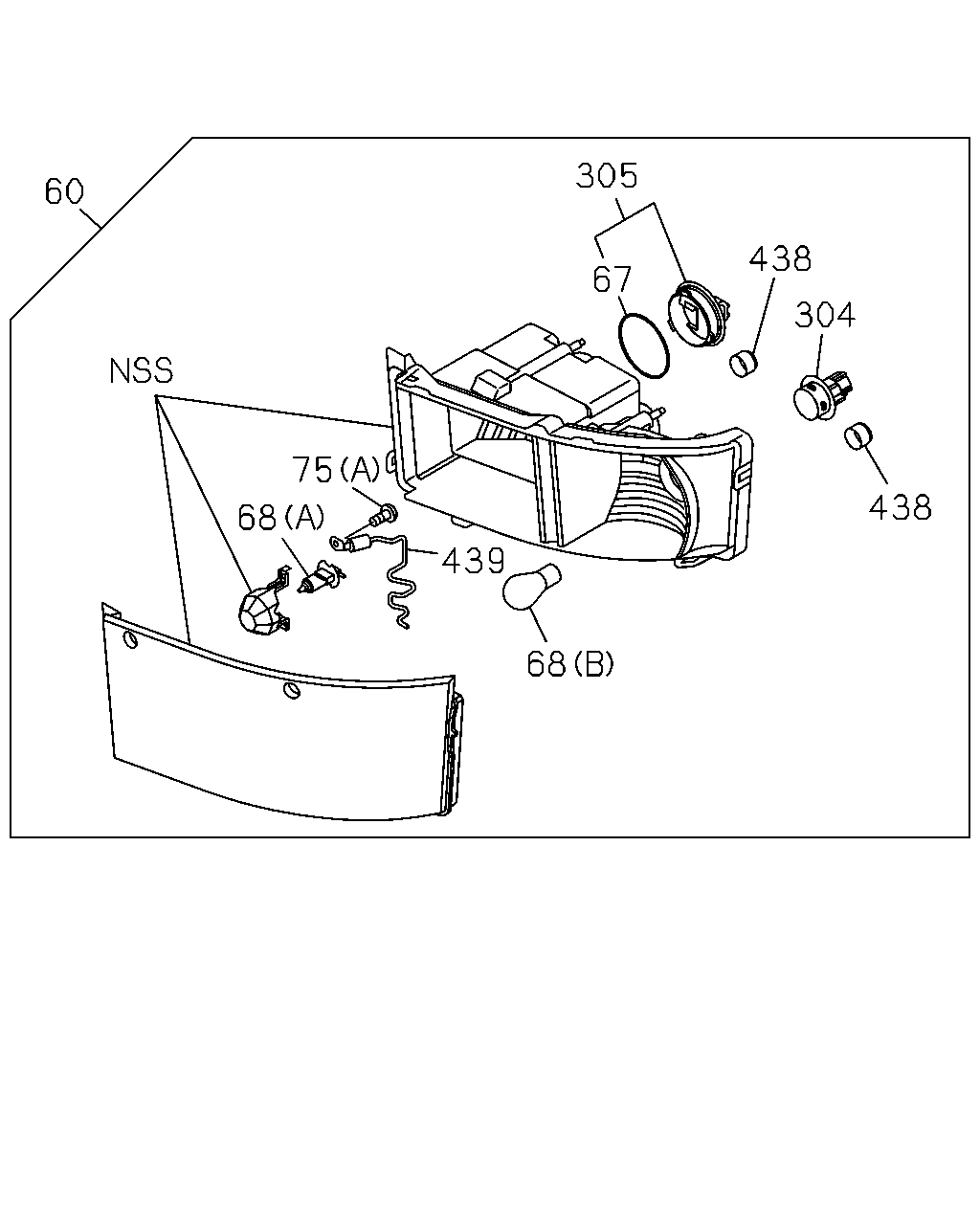

çizim 514842
438 304 438 305 67 439 68 75 68 60
BalonParca AdiParca NoAdetTipApplied Date A B
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1509- ● ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1509- ● ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1509- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1509- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1509- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1509- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1509- ● ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1509- ● ●
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1509- ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1509- ● ●
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1509- ● ●

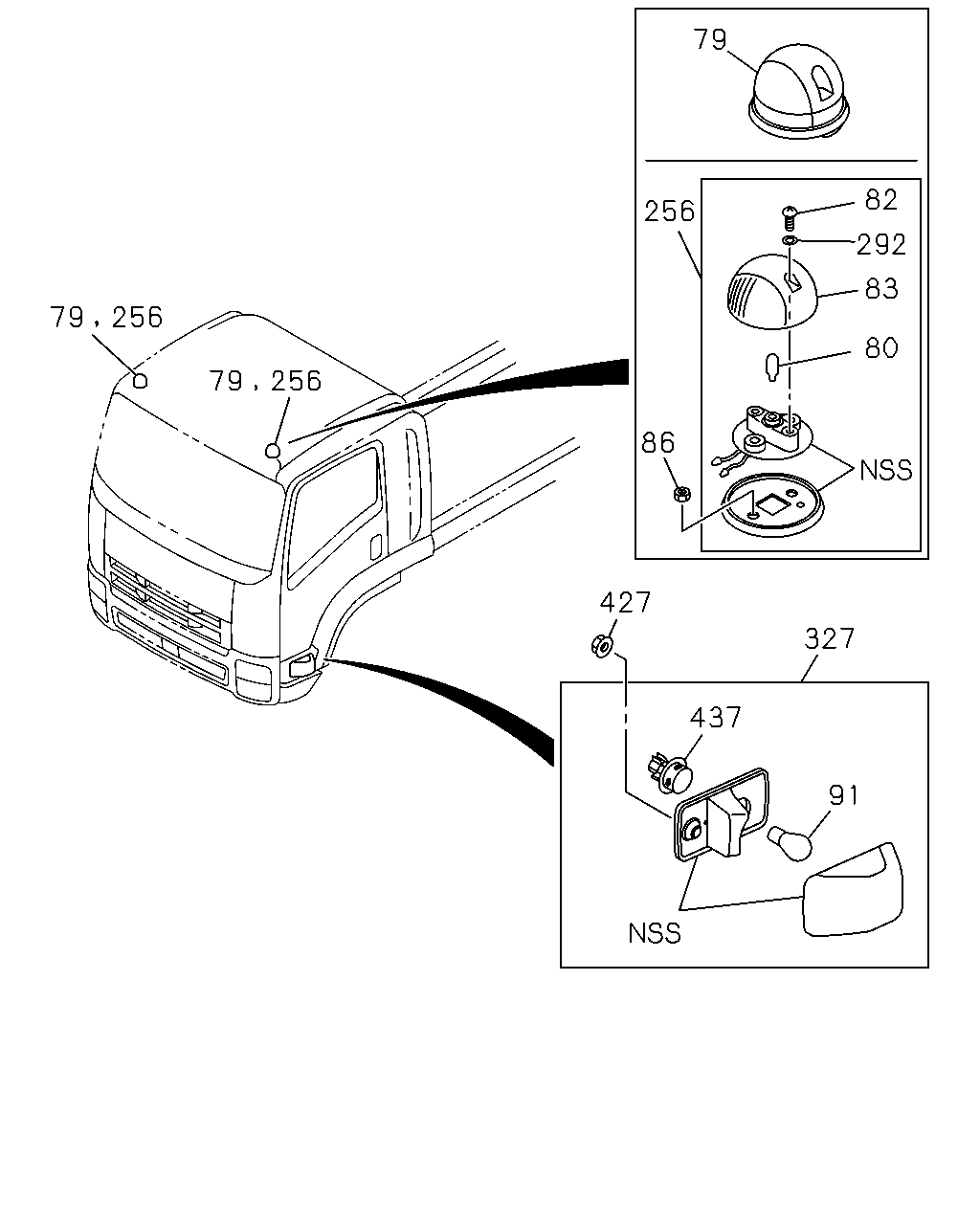

çizim 514897
79 256 79 256 79 256 86 427 437 91 327 80 83 292 82
BalonParca AdiParca NoAdetTipApplied Date A B
79 LAMP; MARKER,ROOF
EXC. WHEEL BASE 5300MM(53W) X5 		1-87223-539-0 01 1 1509- ●
79 LAMP; MARKER,ROOF
X5 		1-87223-539-0 01 1 1509- ●
79 LAMP; MARKER,ROOF
EXC. WHEEL BASE 5300MM(53W) X5 		1-87223-540-0 01 1 1509- ●
79 LAMP; MARKER,ROOF
X5 		1-87223-540-0 01 1 1509- ●
80 BULB; MARKER LAMP
Q5 24V 5W 		8-94135-397-0 02 1 1509- ● ●
82 SCREW; MARKER LAMP
Q5 		1-82219-011-0 04 1 1509- ● ●
83 LENS; MARKER LAMP
Q5 		8-98057-958-0 02 1 1509- ● ●
86 NUT; MARKER LAMP
Q5 M6 FLANGE 		0-91180-106-0 04 1 1509- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1509- ● ●
256 LAMP; MARKER
Q5 		8-98097-467-2 01 1 1509- ● ●
256 LAMP; MARKER
Q5 		8-98097-466-2 01 1 1509- ● ●
292 WASHER; MARKER LAMP
Q5 		1-82219-012-0 04 1 1509- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1509- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1509- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1509- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1509- ● ●
