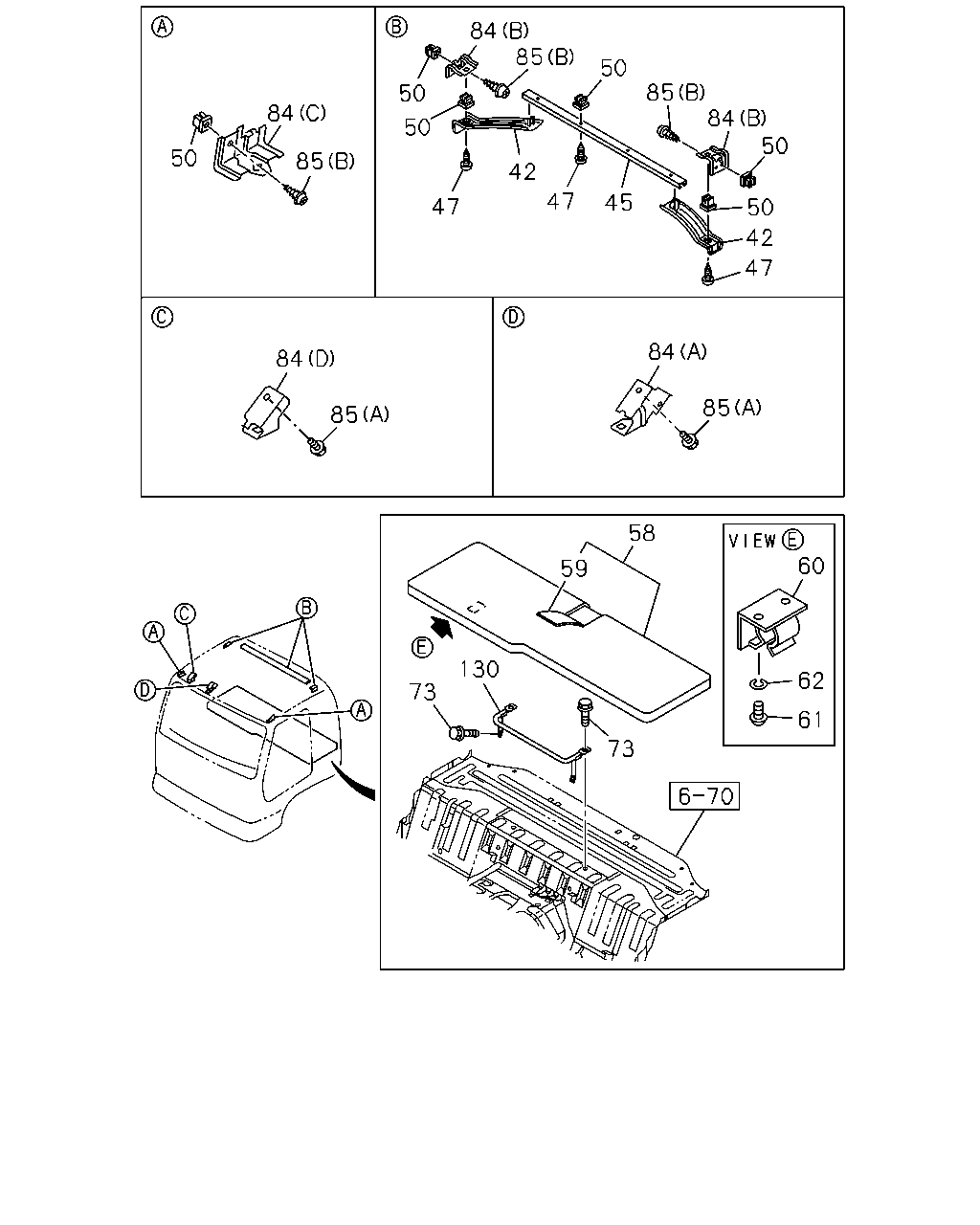

7-70 — SEPARATER AND BED
(#175102) — 19 parça
Tümü
A - FGZ6MX
B - GGZ6MX
50
84
85
84
85
50
84
50
47
42
85
47
50
45
85
50
84
50
42
47
84
85
58
60
62
61
59
130
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1509-
●
●
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1509-
●
●
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
1509-
●
●
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1509-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1509-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1509-
●
●
58
BED; MAT
DARK GRAY
8-97430-953-0
01
1
1509-
●
●
59
COVER ASM; TRIM,BED MAT
1-75118-997-0
01
1
1509-
●
●
60
HOLDER
1-75147-582-0
04
1
1509-
●
●
61
SCREW; ROD HOLDER FIX
M6X16
9-03490-616-0
14
1
1509-
●
●
62
WASHER; LK,ROD HOLDER
ID=8.2
9-09150-508-0
14
1
1509-
●
●
73
BOLT; GUARD PIPE
M8X20 FLANGE
0-28450-820-0
04
1
1509-
●
●
84
BRACKET; CURTAIN RAIL
(C)
8-98028-326-1
02
1
1509-
●
●
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
04
1
1509-
●
●
84
BRACKET; CURTAIN RAIL
(A)
8-98049-289-1
01
1
1509-
●
●
84
BRACKET; CURTAIN RAIL
(D)
8-98074-739-0
01
1
1509-
●
●
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
06
1
1509-
●
●
85
SCREW; BRKT
(A) M6X12 FLANGE
8-97108-669-0
02
1
1509-
●
●
130
PIPE; GUARD,BED
8-97431-405-0
01
1
1509-
●
●
