◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#175100) — 202 parça
çizim 513346
595 632 339 339
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
(C) X1 		8-97431-404-0 01 1 1509- ● ●
339 UNION; DRIVER SEAT
(B) X1 		8-97431-403-0 01 1 1509- ● ●
339 UNION; DRIVER SEAT
(A) X1 		1-75538-131-3 01 1 1509- ● ●
595 TUBE; NYLON
X1 		8-97430-788-1 01 1 1509- ● ●
632 GROMMET
Q1 OD=24 		8-94119-796-0 01 1 1509- ● ●

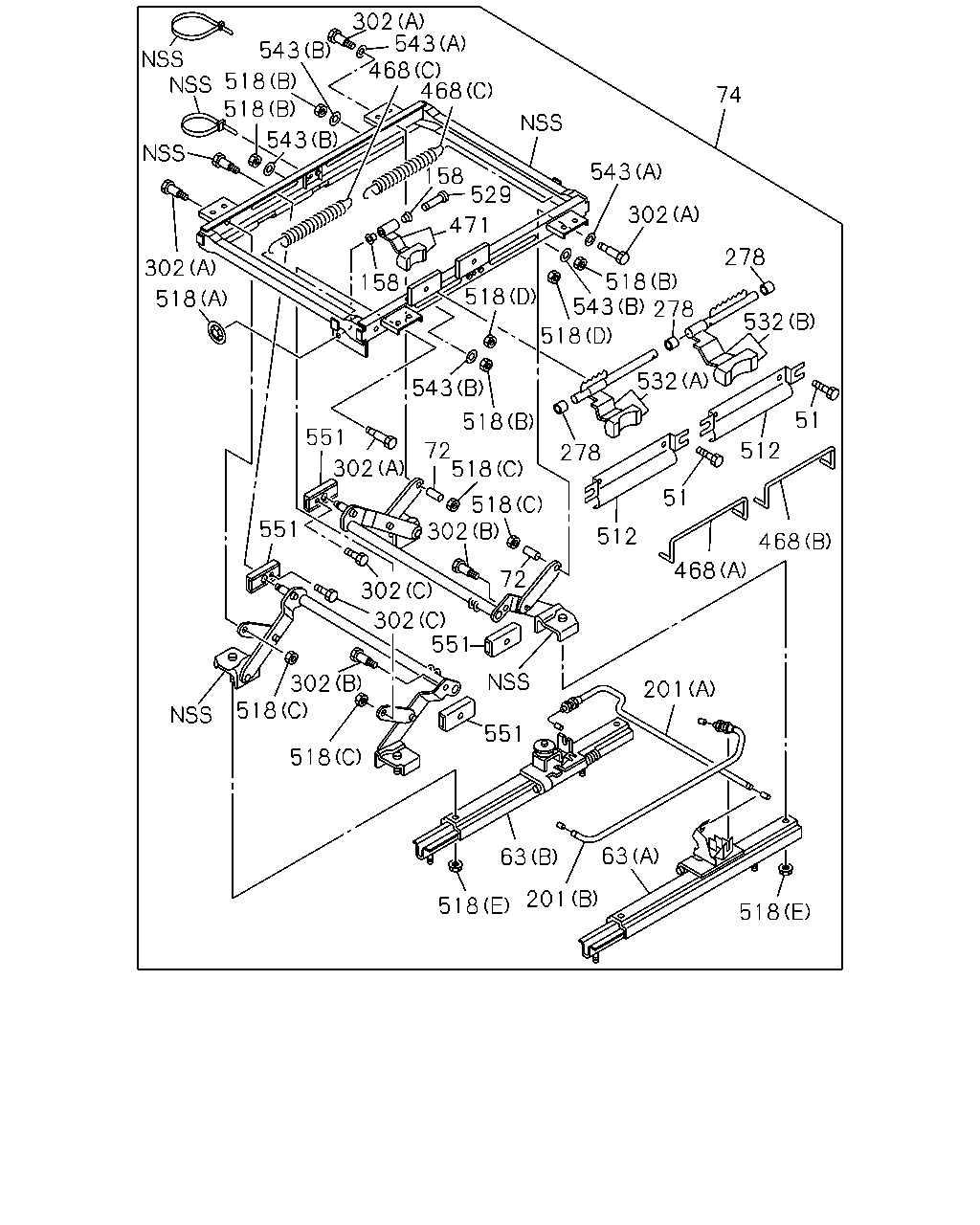

çizim 514030
302 543 468 543 302 278 532 51 512 468 468 512 51 278 532 278 518 543 518 529 471 158 158 518 543 518 518 72 518 302 72 551 551 201 63 518 201 518 518 518 302 302 302 551 302 551 518 302 543 518 518 543 468 74 63
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
X1 		1-75518-325-1 04 1 1509- ● ●
63 ADJUSTER; SEAT SLIDE
(A) X1 		1-75518-324-0 01 1 1509- ● ●
63 ADJUSTER; SEAT SLIDE
(B) X1 		1-75518-227-1 01 1 1509- ● ●
63 ADJUSTER; SEAT SLIDE
(B) Q1 		1-75518-227-1 01 1 1509- ● ●
63 ADJUSTER; SEAT SLIDE
(A) Q1 		1-75518-295-1 01 1 1509- ● ●
72 SPACER; SEAT ADJ
X1 		1-75518-334-1 02 1 1509- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
X1 		8-98093-429-0 01 1 1509- ● ●
158 BUSHING; LINK ARM
X1 		1-75518-209-0 02 1 1509- ● ●
158 BUSHING; LINK ARM
Q1 		1-75518-209-0 02 1 1509- ● ●
201 CABLE; ADJ
(B) X1 L=605 		1-75518-289-1 01 1 1509- ● ●
201 CABLE; ADJ
(A) X1 L=667 		1-75518-288-0 01 1 1509- ● ●
201 CABLE; ADJ
(B) Q1 L=605 		1-75518-289-1 01 1 1509- ● ●
201 CABLE; ADJ
(A) Q1 L=667 		1-75518-288-0 01 1 1509- ● ●
278 COLLAR; FRT SEAT
X1 		1-75518-244-0 03 1 1509- ● ●
302 BOLT; ADJ,HEIGHT CONT
(B) X1 		1-75518-266-2 02 1 1509- ● ●
302 BOLT; ADJ,HEIGHT CONT
(A) X1 		1-75518-270-1 04 1 1509- ● ●
302 BOLT; ADJ,HEIGHT CONT
(C) X1 		1-75518-336-1 02 1 1509- ● ●
468 SPRING; RETURN
(B) X1 		1-75518-207-0 01 1 1509- ● ●
468 SPRING; RETURN
(A) X1 		1-75518-206-0 01 1 1509- ● ●
468 SPRING; RETURN
(C) X1 		1-75518-208-0 02 1 1509- ● ●
468 SPRING; RETURN
(D) X1 		1-75538-132-0 01 1 1509- ● ●
471 LEVER; SEAT ADJ
Q1 		8-98107-870-0 01 1 1509- ● ●
471 LEVER; SEAT ADJ
X1 		8-98107-870-0 01 1 1509- ● ●
512 COVER; LEVER
X1 		1-75518-245-1 02 1 1509- ● ●
518 NUT; TILT ADJ
(E) X1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
518 NUT; TILT ADJ
(A) Q1 		1-75518-263-0 01 1 1509- ● ●
518 NUT; TILT ADJ
(B) X1 M8 FLANGE 		8-94152-886-0 04 1 1509- ● ●
518 NUT; TILT ADJ
(C) X1 M8 		1-75518-264-0 04 1 1509- ● ●
518 NUT; TILT ADJ
(D) X1 M6 LOCK NUT 		5-09984-020-0 02 1 1509- ● ●
518 NUT; TILT ADJ
(A) X1 		1-75518-263-0 01 1 1509- ● ●
518 NUT; TILT ADJ
(E) X1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
529 PIN; LINK
Q1 		1-75518-262-0 01 1 1509- ● ●
529 PIN; LINK
X1 		1-75518-262-0 01 1 1509- ● ●
532 LEVER ASM; TILT
(B) X1 		1-75518-222-1 01 1 1509- ● ●
532 LEVER ASM; TILT
(A) X1 		1-75518-221-0 01 1 1509- ● ●
543 WASHER; HEIGHT ADJUSTER
(A) X1 		1-75518-335-0 02 1 1509- ● ●
543 WASHER; HEIGHT ADJUSTER
(B) X1 ID=8.4 		9-09160-508-0 04 1 1509- ● ●
551 SLIDER; HEIGHT ADJ
X1 		1-75518-265-0 04 1 1509- ● ●

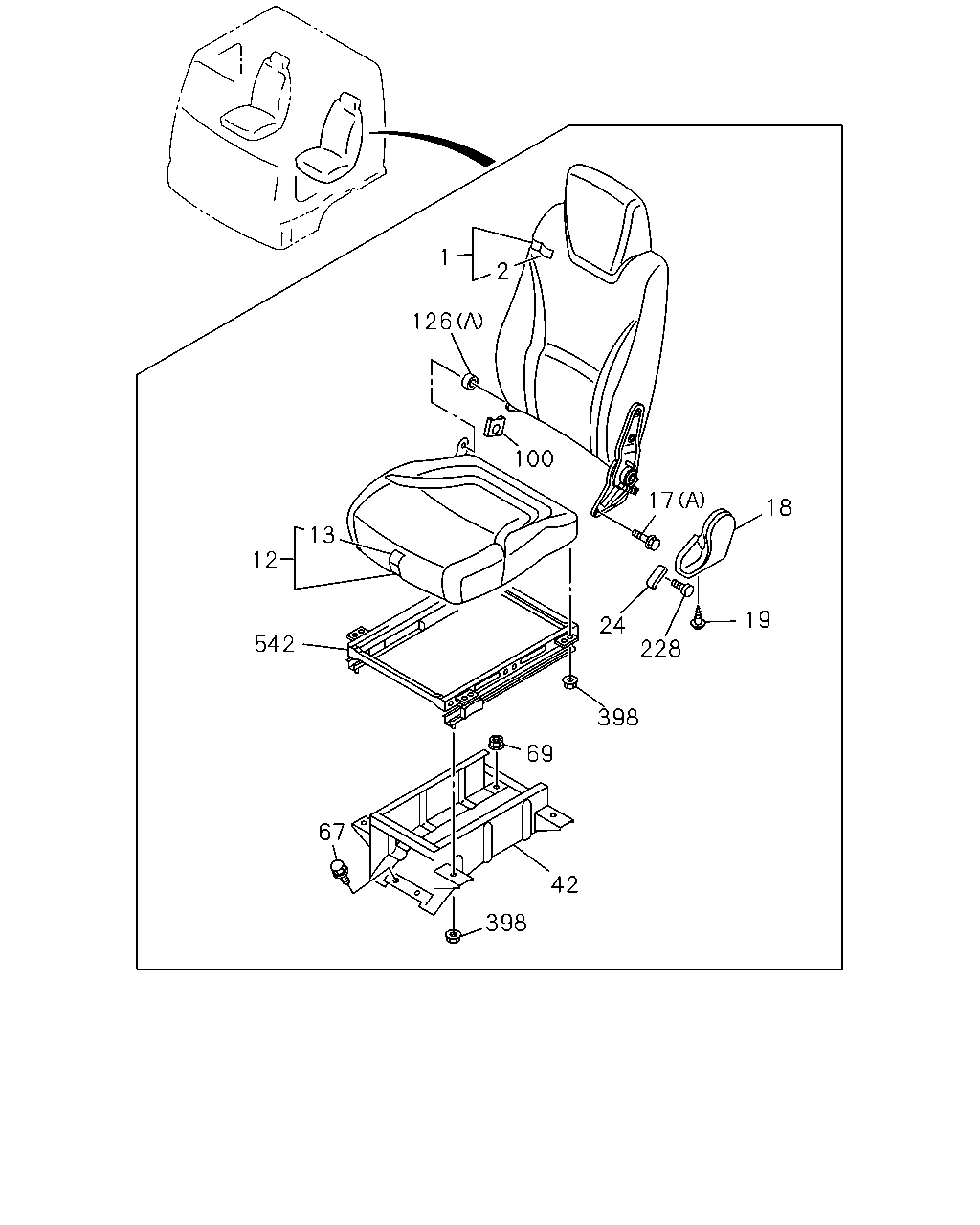

çizim 514587
1 126 100 17 18 19 398 69 24 228 42 398 67 12 542 13 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
X1 DARK GRAY 		8-97421-408-1 01 1 1509- ● ●
1 BACK ASM; SEAT
Q1 DARK GRAY 		8-97421-409-1 01 1 1509- ● ●
2 COVER; TRIM,FRT SEAT,BACK
X1 DARK GRAY 		8-97421-413-0 01 1 1509- ● ●
2 COVER; TRIM,FRT SEAT,BACK
Q1 DARK GRAY 		8-97421-414-0 01 1 1509- ● ●
12 CUSHION; SEAT,FRT
X1 DARK GRAY 		8-97421-399-2 01 1 1509- ● ●
12 CUSHION; SEAT,FRT
Q1 DARK GRAY 		8-97421-399-2 01 1 1509- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
X1 DARK GRAY 		8-97421-403-2 01 1 1509- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
Q1 DARK GRAY 		8-97421-403-2 01 1 1509- ● ●
17 BOLT; RECLINING
(A) X1 M10X20 		8-98062-661-0 02 1 1509- ● ●
17 BOLT; RECLINING
(A) Q1 M10X20 		8-98062-661-0 02 1 1509- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 01 1 1509- ● ●
18 COVER; RECLINING
X1 GRAY 		8-97409-361-0 01 1 1509- ● ●
18 COVER; RECLINING
Q1 GRAY 		8-97409-361-0 01 1 1509- ● ●
19 SCREW; COVER
X1 M5 		8-98062-663-0 01 1 1509- ● ●
19 SCREW; COVER
Q1 M5 		8-98062-663-0 01 1 1509- ● ●
24 KNOB; RECLINING,FRT,SEAT
X1 GRAY 		8-97409-362-0 01 1 1509- ● ●
24 KNOB; RECLINING,FRT,SEAT
Q1 GRAY 		8-97409-362-0 01 1 1509- ● ●
42 STAND; DRIVER SEAT
Q1 		1-75558-604-2 01 1 1509- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1509- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
100 COVER; HINGE
X1 		8-98203-070-0 01 1 1509- ● ●
100 COVER; HINGE
Q1 		8-98203-070-0 01 1 1509- ● ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1509- ● ●
126 BUSHING; HINGE,RECLINING
(A) X1 		8-98063-218-0 01 1 1509- ● ●
126 BUSHING; HINGE,RECLINING
(A) Q1 		8-98063-218-0 01 1 1509- ● ●
228 SCREW; KNOB
X1 M4 		8-98062-662-0 01 1 1509- ● ●
228 SCREW; KNOB
Q1 M4 		8-98062-662-0 01 1 1509- ● ●
398 NUT; STAND
Q1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
398 NUT; STAND
Q1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
542 ADJUSTER ASM; SEAT SLIDE
Q1 		8-98291-654-0 01 1 1509- ● ●

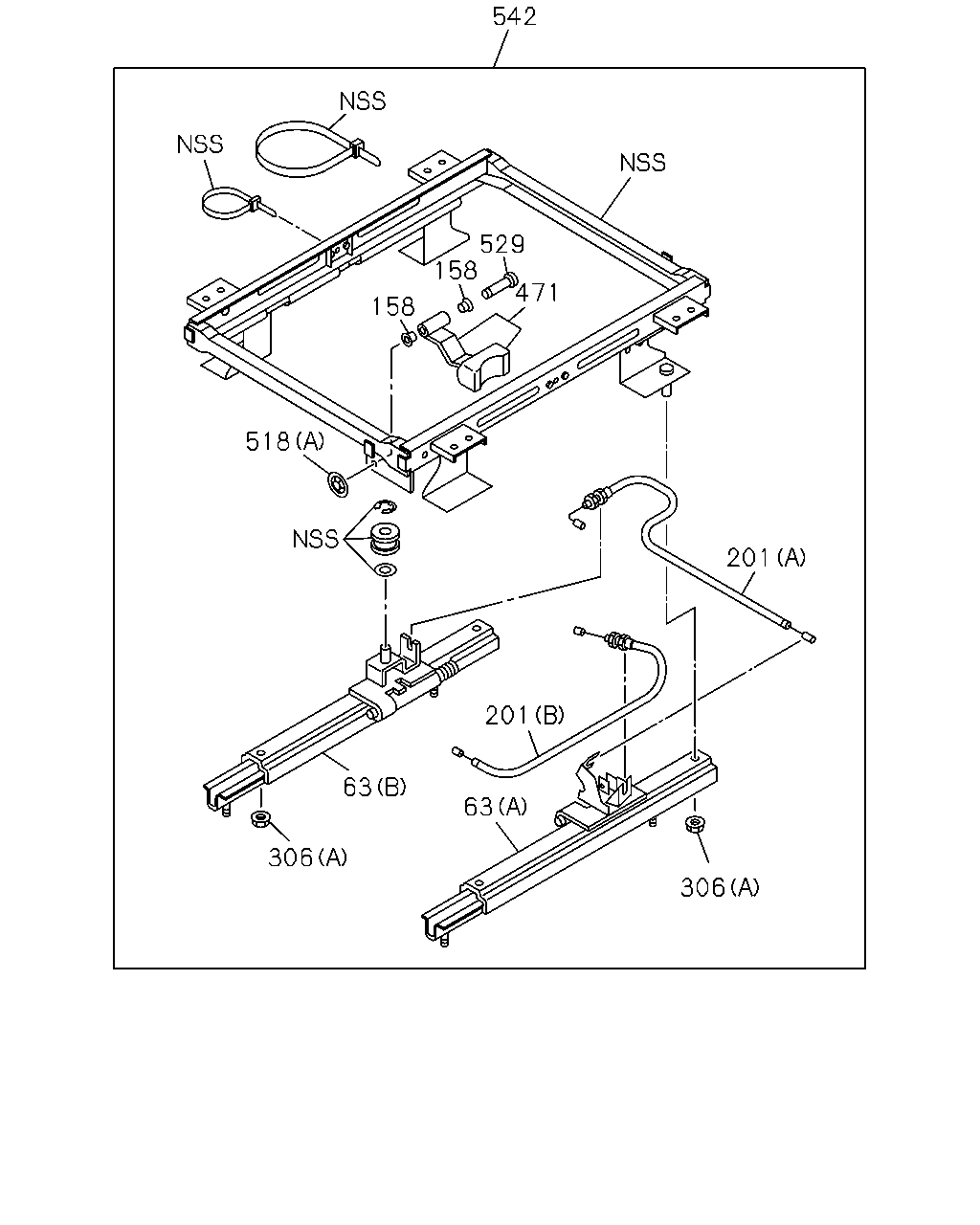

çizim 514673
542 529 158 158 471 518 201 201 63 306 63 306
BalonParca AdiParca NoAdetTipApplied Date A B
63 ADJUSTER; SEAT SLIDE
(A) X1 		1-75518-324-0 01 1 1509- ● ●
63 ADJUSTER; SEAT SLIDE
(B) X1 		1-75518-227-1 01 1 1509- ● ●
63 ADJUSTER; SEAT SLIDE
(B) Q1 		1-75518-227-1 01 1 1509- ● ●
63 ADJUSTER; SEAT SLIDE
(A) Q1 		1-75518-295-1 01 1 1509- ● ●
158 BUSHING; LINK ARM
X1 		1-75518-209-0 02 1 1509- ● ●
158 BUSHING; LINK ARM
Q1 		1-75518-209-0 02 1 1509- ● ●
201 CABLE; ADJ
(B) X1 L=605 		1-75518-289-1 01 1 1509- ● ●
201 CABLE; ADJ
(A) X1 L=667 		1-75518-288-0 01 1 1509- ● ●
201 CABLE; ADJ
(B) Q1 L=605 		1-75518-289-1 01 1 1509- ● ●
201 CABLE; ADJ
(A) Q1 L=667 		1-75518-288-0 01 1 1509- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
306 NUT; SEAT ADJ
(A) X1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
471 LEVER; SEAT ADJ
Q1 		8-98107-870-0 01 1 1509- ● ●
471 LEVER; SEAT ADJ
X1 		8-98107-870-0 01 1 1509- ● ●
518 NUT; TILT ADJ
(E) X1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
518 NUT; TILT ADJ
(A) Q1 		1-75518-263-0 01 1 1509- ● ●
518 NUT; TILT ADJ
(B) X1 M8 FLANGE 		8-94152-886-0 04 1 1509- ● ●
518 NUT; TILT ADJ
(C) X1 M8 		1-75518-264-0 04 1 1509- ● ●
518 NUT; TILT ADJ
(D) X1 M6 LOCK NUT 		5-09984-020-0 02 1 1509- ● ●
518 NUT; TILT ADJ
(A) X1 		1-75518-263-0 01 1 1509- ● ●
518 NUT; TILT ADJ
(E) X1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
529 PIN; LINK
Q1 		1-75518-262-0 01 1 1509- ● ●
529 PIN; LINK
X1 		1-75518-262-0 01 1 1509- ● ●
542 ADJUSTER ASM; SEAT SLIDE
Q1 		8-98291-654-0 01 1 1509- ● ●

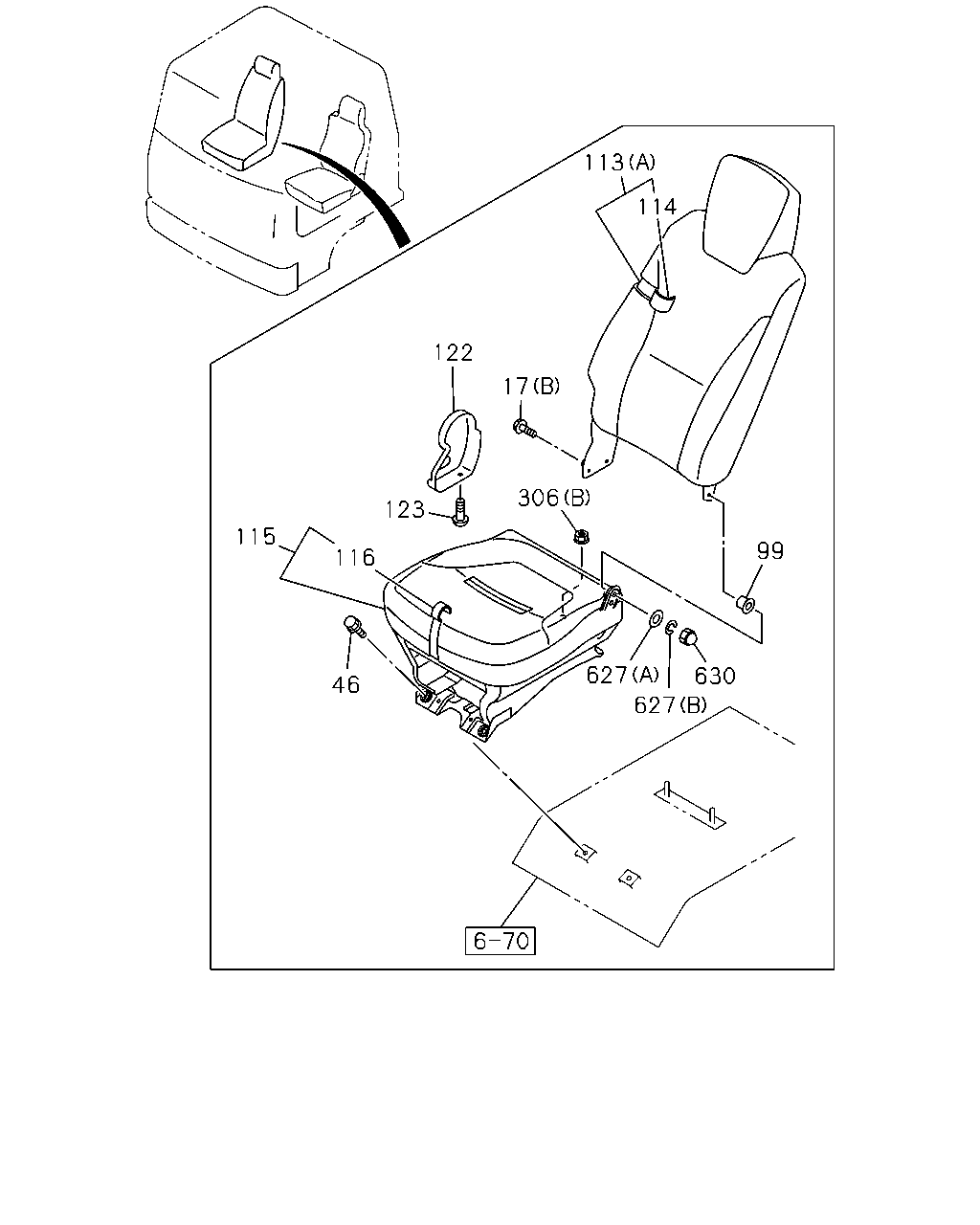

çizim 514750
113 114 122 115 17 306 123 116 46 627 627 99 630
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) X1 M10X20 		8-98062-661-0 02 1 1509- ● ●
17 BOLT; RECLINING
(A) Q1 M10X20 		8-98062-661-0 02 1 1509- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 01 1 1509- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1509- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1509- ● ●
113 BACK ASM; SEAT
(B) 		1-87223-660-0 01 1 1509- ● ●
113 BACK ASM; SEAT
(A) DARK GRAY 		8-97421-423-0 01 1 1509- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-425-0 01 1 1509- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-419-1 01 1 1509- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-421-0 01 1 1509- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 1509- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1509- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
306 NUT; SEAT ADJ
(A) X1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1509- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1509- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1509- ● ●

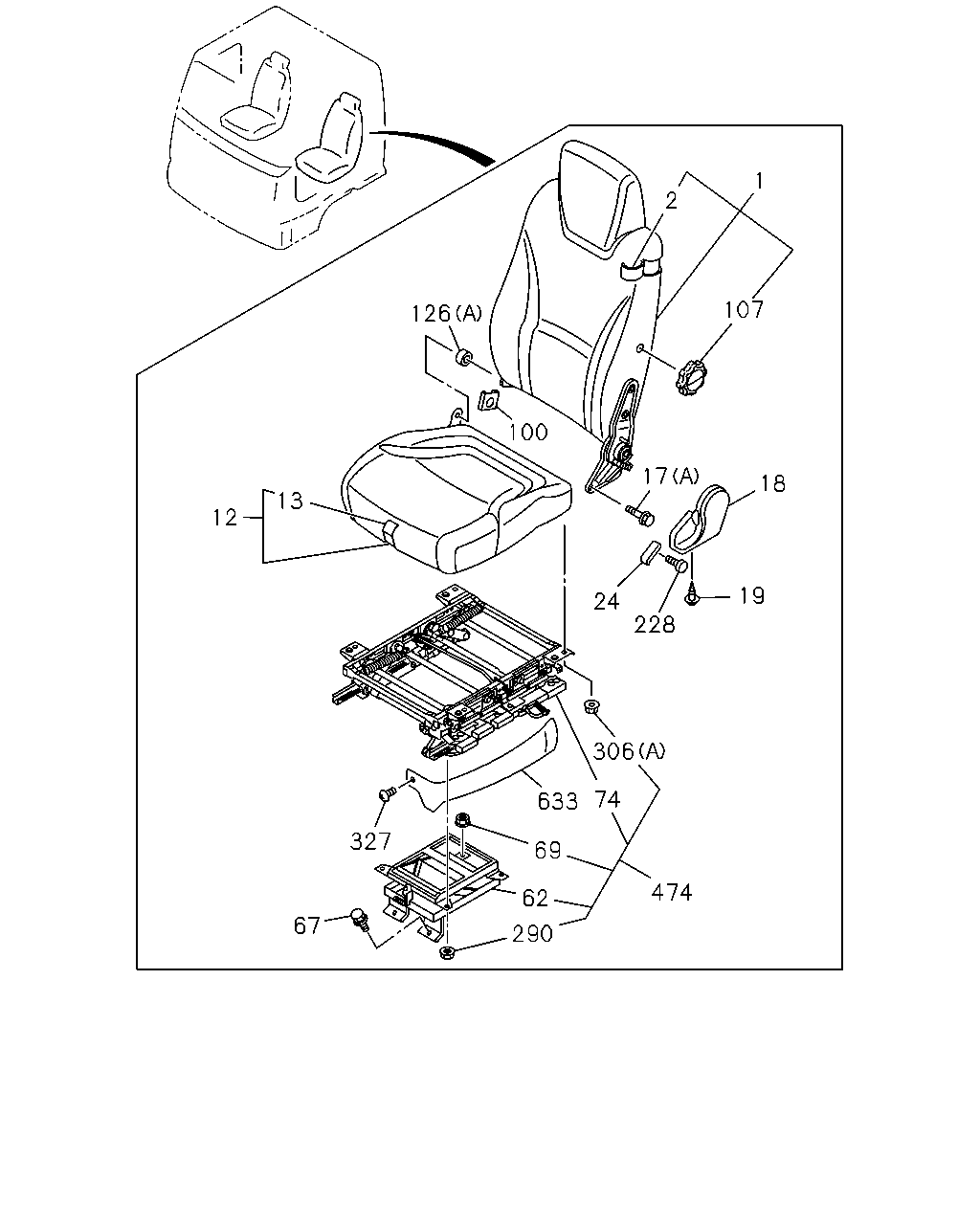

çizim 514783
12 13 126 100 327 67 290 69 62 633 306 74 474 228 24 17 19 18 107 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
X1 DARK GRAY 		8-97421-408-1 01 1 1509- ● ●
1 BACK ASM; SEAT
Q1 DARK GRAY 		8-97421-409-1 01 1 1509- ● ●
2 COVER; TRIM,FRT SEAT,BACK
X1 DARK GRAY 		8-97421-413-0 01 1 1509- ● ●
2 COVER; TRIM,FRT SEAT,BACK
Q1 DARK GRAY 		8-97421-414-0 01 1 1509- ● ●
12 CUSHION; SEAT,FRT
X1 DARK GRAY 		8-97421-399-2 01 1 1509- ● ●
12 CUSHION; SEAT,FRT
Q1 DARK GRAY 		8-97421-399-2 01 1 1509- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
X1 DARK GRAY 		8-97421-403-2 01 1 1509- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
Q1 DARK GRAY 		8-97421-403-2 01 1 1509- ● ●
17 BOLT; RECLINING
(A) X1 M10X20 		8-98062-661-0 02 1 1509- ● ●
17 BOLT; RECLINING
(A) Q1 M10X20 		8-98062-661-0 02 1 1509- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 01 1 1509- ● ●
18 COVER; RECLINING
X1 GRAY 		8-97409-361-0 01 1 1509- ● ●
18 COVER; RECLINING
Q1 GRAY 		8-97409-361-0 01 1 1509- ● ●
19 SCREW; COVER
X1 M5 		8-98062-663-0 01 1 1509- ● ●
19 SCREW; COVER
Q1 M5 		8-98062-663-0 01 1 1509- ● ●
24 KNOB; RECLINING,FRT,SEAT
X1 GRAY 		8-97409-362-0 01 1 1509- ● ●
24 KNOB; RECLINING,FRT,SEAT
Q1 GRAY 		8-97409-362-0 01 1 1509- ● ●
62 DAMPER ASM; SEAT SUSP
X1 		1-75538-185-9 01 1 1509- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1509- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
X1 		8-98093-429-0 01 1 1509- ● ●
100 COVER; HINGE
X1 		8-98203-070-0 01 1 1509- ● ●
100 COVER; HINGE
Q1 		8-98203-070-0 01 1 1509- ● ●
107 DIAL; SEAT RECLINING
X1 		8-98063-174-0 01 1 1509- ● ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1509- ● ●
126 BUSHING; HINGE,RECLINING
(A) X1 		8-98063-218-0 01 1 1509- ● ●
126 BUSHING; HINGE,RECLINING
(A) Q1 		8-98063-218-0 01 1 1509- ● ●
228 SCREW; KNOB
X1 M4 		8-98062-662-0 01 1 1509- ● ●
228 SCREW; KNOB
Q1 M4 		8-98062-662-0 01 1 1509- ● ●
290 NUT; ADJ TO SUSP
X1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
306 NUT; SEAT ADJ
(A) X1 M8 FLANGE 		1-75538-207-0 04 1 1509- ● ●
327 CLIP; COVER
X1 		1-09987-273-0 02 1 1509- ● ●
474 ADJUSTER; HIGHT,SEAT
X1 		1-87223-661-0 01 1 1509- ● ●
633 COVER; ADJ,TILT
X1 GRAY 		8-97414-118-0 01 1 1509- ● ●
çizim 514788
113 175 360 506 188 176 126 359 403 179 182 403 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 1509- ● ●
113 BACK ASM; SEAT
(B) 		1-87223-660-0 01 1 1509- ● ●
113 BACK ASM; SEAT
(A) DARK GRAY 		8-97421-423-0 01 1 1509- ● ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1509- ● ●
126 BUSHING; HINGE,RECLINING
(A) X1 		8-98063-218-0 01 1 1509- ● ●
126 BUSHING; HINGE,RECLINING
(A) Q1 		8-98063-218-0 01 1 1509- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97421-434-1 01 1 1509- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97421-435-1 01 1 1509- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97421-433-0 01 1 1509- ● ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97421-431-2 01 1 1509- ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 02 1 1509- ● ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1509- ● ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1509- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1509- ● ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1509- ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
506 CAP; PARCEL BOX
GRAY 		8-97409-980-1 04 1 1509- ● ●

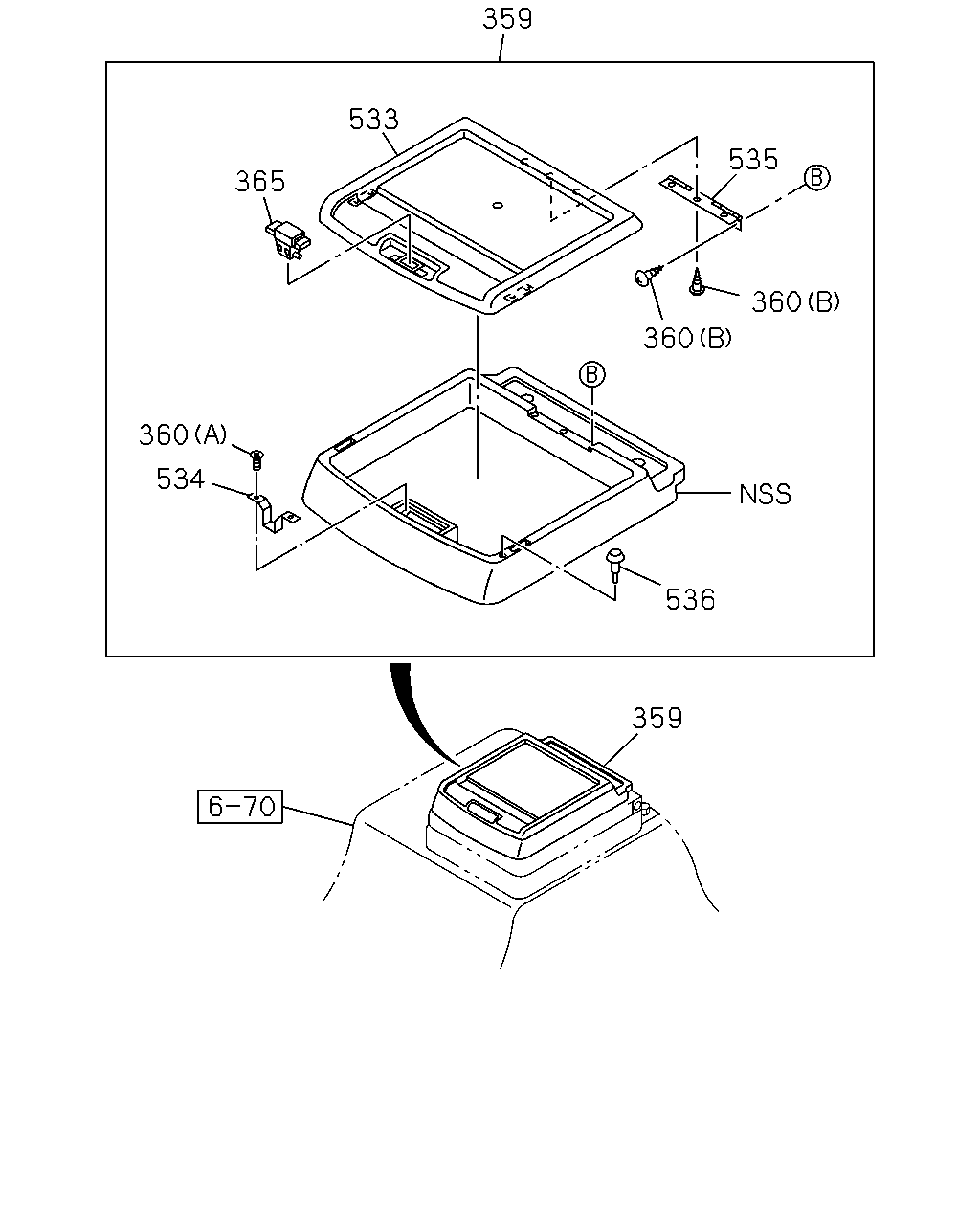

çizim 514805
359 533 365 360 534 536 360 360 535 359
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1509- ● ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1509- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1509- ● ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1509- ● ●
365 LOCK ASM; SEAT 1-72538-312-0 01 1 1509- ● ●
533 LID; PARCEL BOX
GRAY 		8-97417-263-0 01 1 1509- ● ●
534 STRIKER; PARCEL BOX 1-72538-190-0 01 1 1509- ● ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 1509- ● ●
536 RUBBER; CUSHION 1-72538-187-0 02 1 1509- ● ●

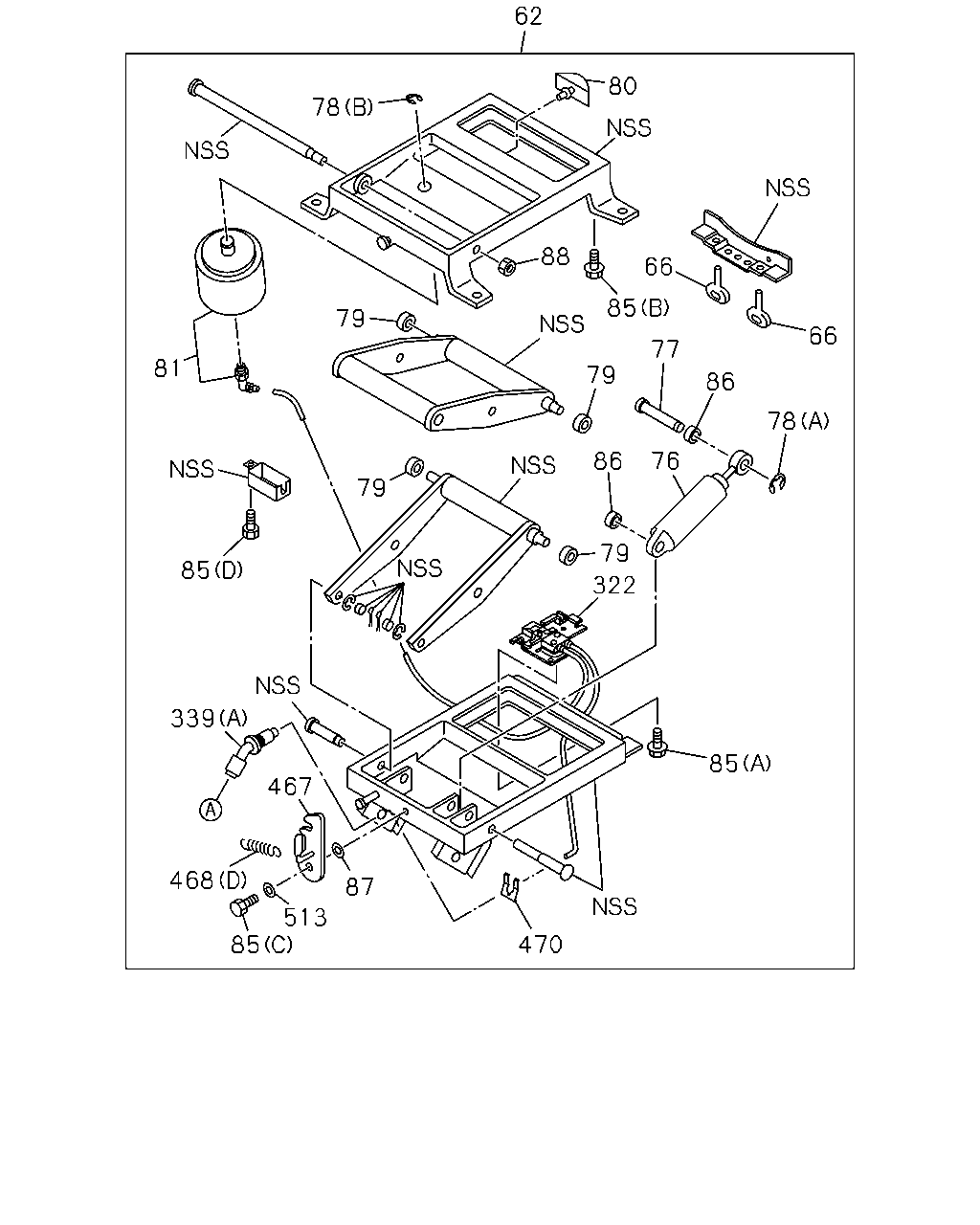

çizim 514887
62 78 80 81 85 339 468 467 513 85 87 79 79 88 66 66 77 79 86 78 76 86 79 322 85 470 85
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
X1 		1-75538-185-9 01 1 1509- ● ●
66 RUBBER; LWR STOPPER
X1 		1-75538-145-0 02 1 1509- ● ●
76 DAMPER; AIR SUSP
X1 		1-75538-139-0 01 1 1509- ● ●
77 PIN; DAMPER
X1 		1-75538-138-2 01 1 1509- ● ●
78 RING; SNAP
(A) X1 ID=8 		9-09185-408-0 01 1 1509- ● ●
78 RING; SNAP
(B) X1 ID=15 		9-09185-415-0 01 1 1509- ● ●
79 ROLLER ASM; AIR SUSP
X1 		1-75538-159-0 04 1 1509- ● ●
80 RUBBER; STOPPER
X1 		1-09987-123-0 01 1 1509- ● ●
81 SPRING; AIR
X1 		8-98242-816-0 01 1 1509- ● ●
85 BOLT; AIR SUSP
(D) X1 M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1509- ● ●
85 BOLT; AIR SUSP
(B) X1 M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1509- ● ●
85 BOLT; AIR SUSP
(C) X1 		1-09980-577-1 01 1 1509- ● ●
85 BOLT; AIR SUSP
(A) X1 M6X12 		1-75538-208-1 02 1 1509- ● ●
86 BUSHING; GUIDE
X1 OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1509- ● ●
87 WASHER; AIR SUSP
X1 ID=8.2 		0-91510-508-0 01 1 1509- ● ●
88 NUT; AIR SUSP
X1 M10 		1-75537-273-1 01 1 1509- ● ●
322 VALVE; AIR SPRING
X1 		1-75538-187-3 01 1 1509- ● ●
339 UNION; DRIVER SEAT
(C) X1 		8-97431-404-0 01 1 1509- ● ●
339 UNION; DRIVER SEAT
(B) X1 		8-97431-403-0 01 1 1509- ● ●
339 UNION; DRIVER SEAT
(A) X1 		1-75538-131-3 01 1 1509- ● ●
467 LEVER; LOCK
X1 		1-75538-134-0 01 1 1509- ● ●
468 SPRING; RETURN
(B) X1 		1-75518-207-0 01 1 1509- ● ●
468 SPRING; RETURN
(A) X1 		1-75518-206-0 01 1 1509- ● ●
468 SPRING; RETURN
(C) X1 		1-75518-208-0 02 1 1509- ● ●
468 SPRING; RETURN
(D) X1 		1-75538-132-0 01 1 1509- ● ●
470 CLIP; HOSE
X1 		1-75538-137-0 01 1 1509- ● ●
513 SPACER; LEVER
X1 		1-75538-133-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
