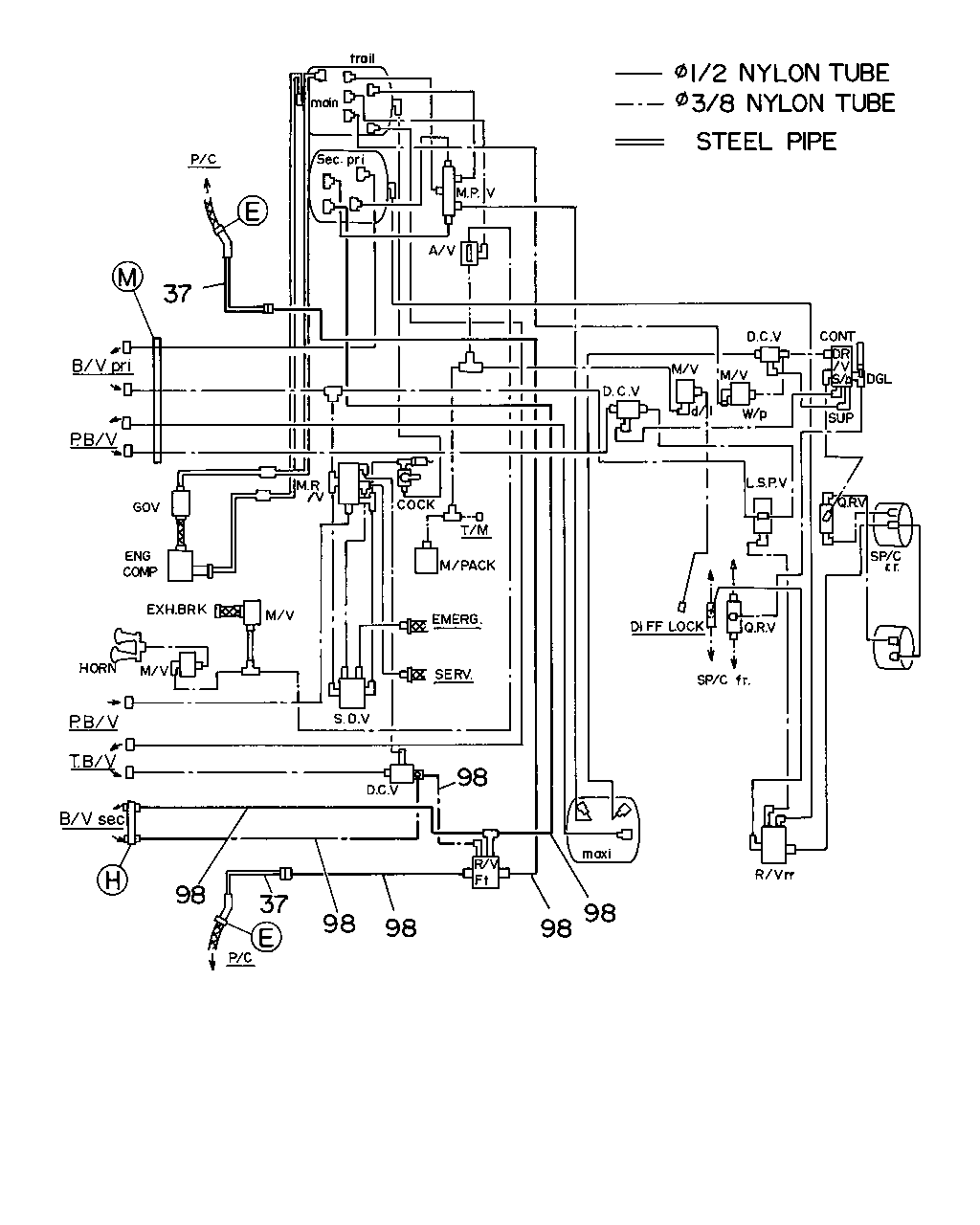

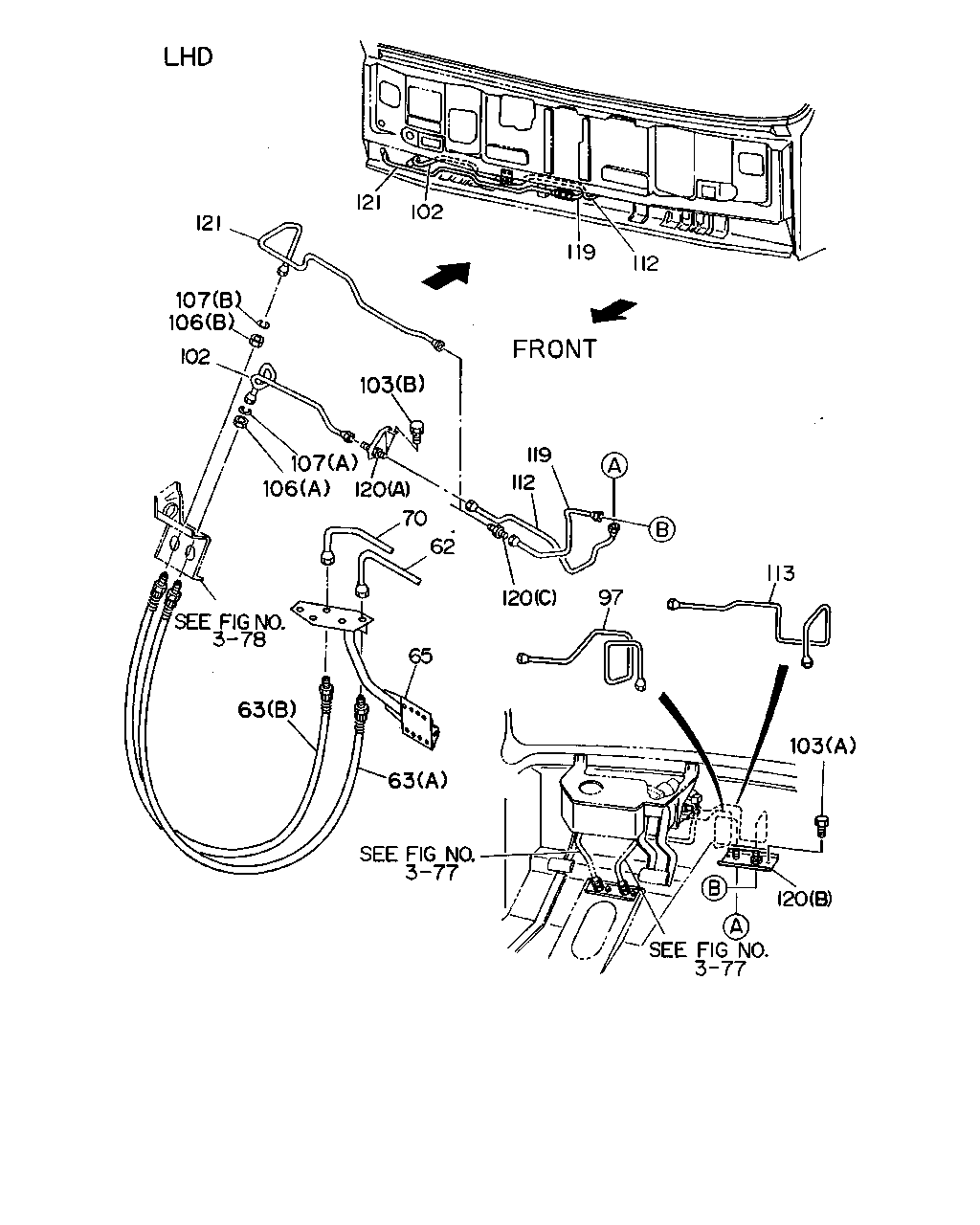

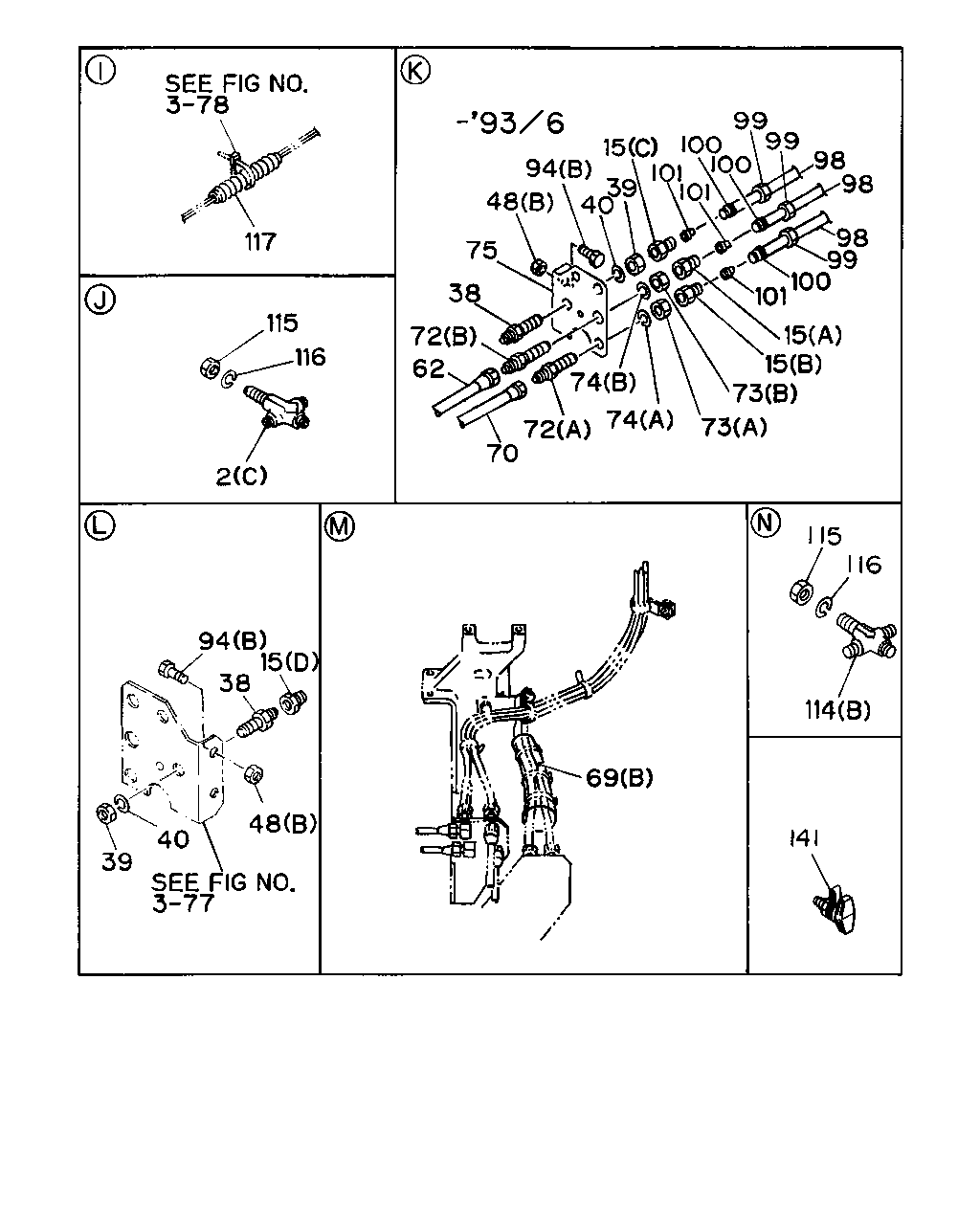

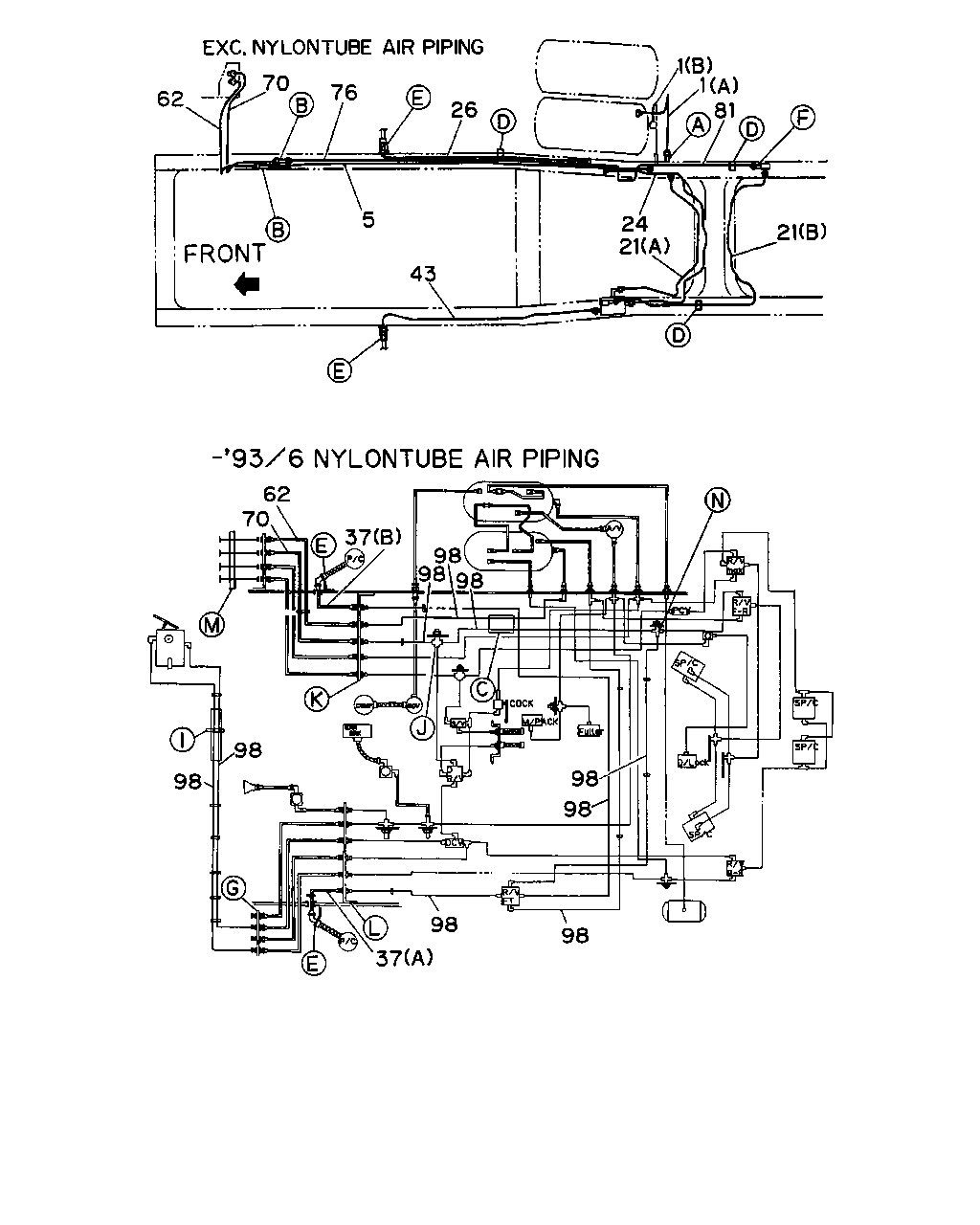

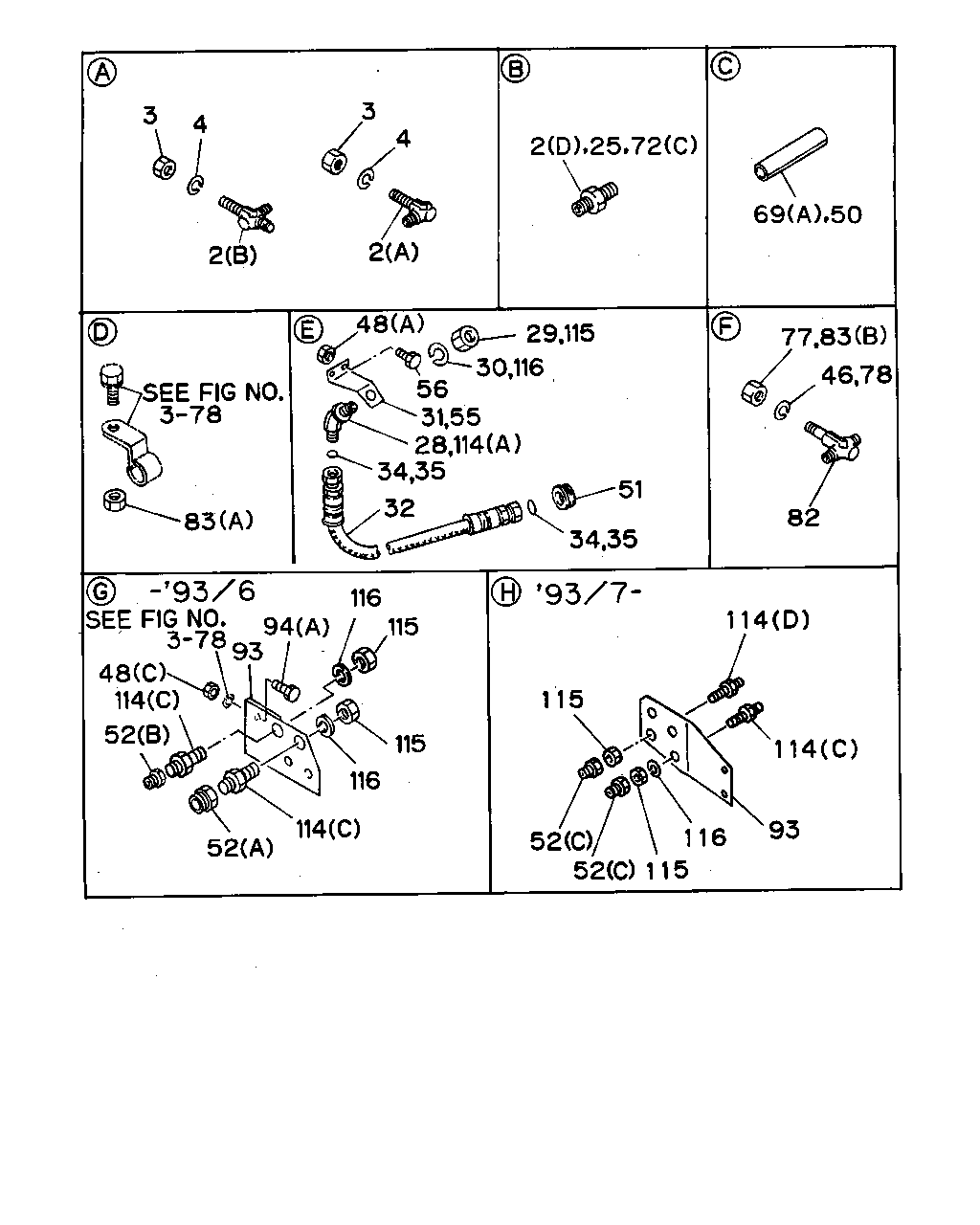

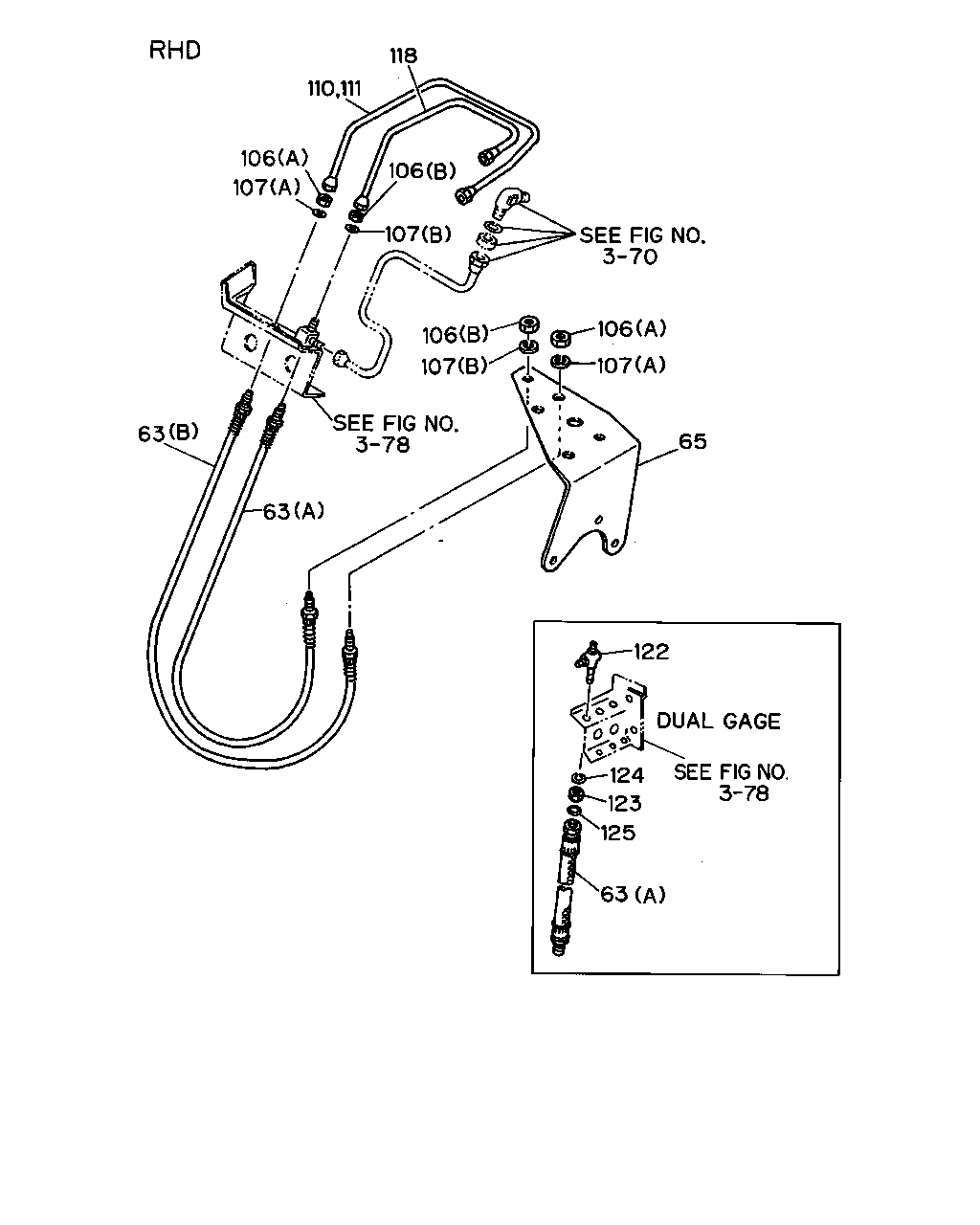

3-75 — BRAKE PIPING; AIR,FRONT (#1751) — 356 parça

117 116 115 2 94 94 15 38 48 40 39 69 115 116 114 141 48 75 38 72 70 62 74 74 72 73 73 15 15 101 100 99 98 98 98 99 99 100 100 101 101 15 39 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	9-09238-310-1	01	1	9002-	●
2	UNION; AIR PIPE (C)	9-09238-310-1	01	1	9002-		●
2	UNION; AIR PIPE (A)	9-09235-212-1	01	1	9002-9404	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	9-09235-212-1	01	1	9405-	●	●
2	UNION; AIR PIPE (B)	9-09238-915-1	01	1	9002-9404	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	9-09238-915-1	01	1	9405-	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (D)	9-09233-012-1	01	1	9002-	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M14 & M16 STRAIGHT	1-09660-220-0	01	1	9002-9306	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M18 & M20 STRAIGHT	1-09660-221-0	01	1	9002-9306	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M18 & M22 STRAIGHT	1-09660-222-0	02	1	9002-9306	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D) M16 & M18 STRAIGHT	1-09660-223-0	02	1	9002-9306	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D) M16X30	1-09660-637-0	02	1	9307-	●
38	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16 L=70 STRAIGHT	9-09233-210-1	02	1	9002-9306	●
38	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16 L=42	9-09233-010-1	02	1	9307-	●
39	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	02	1	9002-9306	●
40	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-9306	●
48	NUT; UNION BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (C) M10	9-09110-410-0	02	1	9002-9306	●
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> (A) M8	9-09110-408-0	04	1	9002-	●
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-412-0	02	1	9002-9304	●
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-512-0	02	1	9305-9306	●
62	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306	●
62	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1091 SERVICED BY L=1100	1-49111-444-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1361 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1417 SERVICED BY L=1450	1-49111-447-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE L=1417 SERVICED BY L=1450	1-49111-447-0	01	1	9307-		●
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=1380 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306		●
69	SLEEVE; RUBBER,FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A)	1-09337-012-0	01	1	9002-	●
69	SLEEVE; RUBBER,FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (B)	1-09369-907-0	01	1	9002-	●
70	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1313 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●
70	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1157 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
70	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1410 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1501 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
70	PIPE; AIR,FLEX HOSE TO UNION L=1501 SERVICED BY L=1550	1-47426-419-0	01	1	9307-		●
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1187 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
70	PIPE; AIR,FLEX HOSE TO UNION 12PD1 STD ENG(42L) L=1454 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306		●
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-9306	●
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	01	1	9002-9306	●
72	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	01	1	9002-	●	●
73	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> (A) M16	9-99110-416-0	01	1	9002-9306	●
73	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> (B) M20	9-99110-420-0	01	1	9002-9306	●
74	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> (A) ID=16.2	9-09150-516-0	01	1	9002-9306	●
74	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> (B) ID=20.2	9-09150-520-0	01	1	9002-9306	●
75	BRACKET; UNION NYLON TUBE AIR PIPING<Z29>	1-47476-073-0	01	1	9002-9306	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M12X35 W/LK WASHER	9-01901-235-0	02	1	9002-9204	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (A) M8X30 W/LK WASHER	9-01900-830-0	03	1	9002-9204	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (A) M8X30 W/LK WASHER	0-50040-830-0	03	1	9205-9302	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (A) M8X30 FLANGE	0-28080-830-0	03	1	9303-9306	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-	●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306	●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306	●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	AR	1	9307-	●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	AR	1	9307-	●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306	●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-	●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-	●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306	●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306	●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	AR	1	9307-	●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	AR	1	9307-	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M16	1-09654-174-1	02	1	9002-	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 3WAY	1-09664-066-0	01	1	9002-9306	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 L=77.5	9-09233-212-1	02	1	9002-9306	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 L=77.5	9-09233-212-1	01	1	9307-	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-	●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	03	1	9002-	●
117	TUBE; CORRUGATE NYLON TUBE AIR PIPING<Z29>	1-71997-792-0	02	1	9002-	●
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-47459-002-0	01	1	9405-9412	●
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47459-002-0	01	1	9501-	●

3 4 3 2 2 4 2 25 72 69 50 83 48 29 115 114 28 55 31 56 30 116 35 34 51 32 34 35 77 83 78 46 82 94 93 48 52 116 114 115 115 116 114 52 115 114 114 93 116 115 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	9-09238-310-1	01	1	9002-	●
2	UNION; AIR PIPE (C)	9-09238-310-1	01	1	9002-		●
2	UNION; AIR PIPE (A)	9-09235-212-1	01	1	9002-9404	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	9-09235-212-1	01	1	9405-	●	●
2	UNION; AIR PIPE (B)	9-09238-915-1	01	1	9002-9404	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	9-09238-915-1	01	1	9405-	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (D)	9-09233-012-1	01	1	9002-	●	●
3	NUT; PIPE UNION M22	9-09111-422-0	01	1	9002-9306	●	●
3	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-9306	●	●
3	NUT; PIPE UNION M22	9-09111-422-0	01	1	9307-9404	●	●
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9405-	●	●
3	NUT; PIPE UNION M20	9-99111-420-0	01	1	9307-9404	●	●
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9405-	●	●
4	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-9404	●	●
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9405-	●	●
4	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9312	●	●
25	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16 L=42	9-09233-010-1	01	1	9002-	●
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	01	1	9002-		●
28	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16	1-09654-174-1	02	1	9002-	●
28	NIPPLE; AIR PIPE M16	1-09654-174-1	02	1	9002-		●
29	NUT; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-	●
29	NUT; NIPPLE M20	9-99111-420-0	02	1	9002-		●
30	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-	●
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	9002-		●
31	BRACKET; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-106-0	02	1	9002-	●
31	BRACKET; NIPPLE	1-47475-106-0	02	1	9002-		●
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-	●	●
34	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	04	1	9002-	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9002-		●
35	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	04	1	9002-	●
46	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●
46	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9002-9312		●
48	NUT; UNION BRKT CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> (C) M10	9-09110-410-0	02	1	9002-9306	●
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> (A) M8	9-09110-408-0	04	1	9002-	●
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-412-0	02	1	9002-9304	●
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-512-0	02	1	9305-9306	●
50	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09369-907-0	01	1	9307-	●
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	02	1	9002-9306	●
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	03	1	9307-9404	●
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=25	1-09332-011-1	01	1	9307-9404	●
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=25	1-09332-011-1	02	1	9405-	●
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M20X42	1-09660-221-0	01	1	9002-9306	●
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M20X41.5	1-09660-255-0	01	1	9002-9306	●
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20X36	1-09660-576-0	02	1	9307-	●
55	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47475-106-0	02	1	9002-	●
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9306	●
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306	●
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	04	1	9307-	●
69	SLEEVE; RUBBER,FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A)	1-09337-012-0	01	1	9002-	●
69	SLEEVE; RUBBER,FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (B)	1-09369-907-0	01	1	9002-	●
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-9306	●
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	01	1	9002-9306	●
72	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	01	1	9002-	●	●
77	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●
77	NUT; PIPE UNION M12	9-99110-412-0	01	1	9002-9304		●
77	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-	●	●
78	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●
78	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9002-9312		●
82	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-09238-310-1	01	1	9002-	●
82	UNION; AIR PIPE M16	9-09238-310-1	01	1	9002-		●
83	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-412-0	01	1	9002-9304	●
83	NUT; PIPE UNION (B) M12	9-99110-412-0	01	1	9002-9304		●
83	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-512-0	01	1	9305-	●	●
83	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) M8	9-09110-408-0	01	1	9104-9306	●
83	NUT; PIPE UNION (A) M8	9-09110-408-0	01	1	9104-9306		●
83	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) M8	9-09110-408-0	01	1	9307-	●	●
93	BRACKET; UNION,TUBE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29>	1-47476-044-0	01	1	9002-9306	●
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29>	1-47476-872-0	01	1	9307-	●
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60)	1-47476-344-0	01	1	9002-9306	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M12X35 W/LK WASHER	9-01901-235-0	02	1	9002-9204	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (A) M8X30 W/LK WASHER	9-01900-830-0	03	1	9002-9204	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (A) M8X30 W/LK WASHER	0-50040-830-0	03	1	9205-9302	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) (A) M8X30 FLANGE	0-28080-830-0	03	1	9303-9306	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M16	1-09654-174-1	02	1	9002-	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 3WAY	1-09664-066-0	01	1	9002-9306	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 L=77.5	9-09233-212-1	02	1	9002-9306	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 L=77.5	9-09233-212-1	01	1	9307-	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-	●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	03	1	9002-	●

118 110 111 106 106 107 107 63 106 106 107 107 63 65 122 124 123 125 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	HOSE; FLEX,BRK LINE,CAB SIDE CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=960	0-07706-960-0	01	1	9002-	●
63	HOSE; FLEX,BRK LINE,CAB SIDE CAB UP 50MM(W60) (A) SUPPLY L=960	0-07706-960-0	01	1	9002-		●
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=880	1-09363-369-2	01	1	9002-	●
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=770	1-09363-329-4	01	1	9002-	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=850	0-07706-850-0	01	1	9002-9408	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 50MM(W60) (A) SUPPLY L=850	0-07706-850-0	01	1	9002-9408		●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=830	0-07706-830-0	01	1	9409-	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 50MM(W60) (A) SUPPLY L=830	0-07706-830-0	01	1	9409-		●
63	HOSE; FLEX,BRK LINE,CAB SIDE CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (B) DELIVERY L=960	0-07424-960-0	01	1	9002-	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (B) DELIVERY L=850	0-07424-850-0	01	1	9002-9408	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (B) DELIVERY L=830	0-07424-830-0	01	1	9409-	●	●
65	BRACKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-473-2	01	1	9002-	●
65	BRACKET; FLEX HOSE	1-47475-603-0	01	1	9002-		●
106	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A) M20	9-99111-420-0	01	1	9002-	●
106	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) M20	9-99111-420-0	02	1	9002-	●
106	NUT; FLEX HOSE (A) M20	9-99111-420-0	02	1	9002-		●
106	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (B) M16	9-99111-416-0	02	1	9002-	●	●
107	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=20.2	9-09150-520-0	01	1	9002-	●
107	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) ID=20.2	9-09150-520-0	02	1	9002-	●
107	WASHER; LK,FLEX HOSE (A) ID=20.2	9-09150-520-0	02	1	9002-		●
107	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=16.2	9-09150-516-0	02	1	9002-	●	●
110	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=521	1-47446-018-1	01	1	9002-9306	●
110	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=522	1-47495-932-0	01	1	9307-	●
111	PIPE; AIR,CONN TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=502	1-47448-021-0	01	1	9002-9306	●
111	PIPE; AIR,CONN TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=502	1-47495-933-0	01	1	9307-	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=446	1-47445-575-1	01	1	9002-9306	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=446	1-47495-944-0	01	1	9307-	●
122	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29>	1-09656-359-1	01	1	9002-	●
123	NUT; HOSE CONNECTOR DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-	●
124	WASHER; LK,CONNECTOR DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-	●
125	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	01	1	9002-	●

62 70 76 26 1 1 81 21 24 43 5 21 62 70 98 98 37 98 98 98 98 37 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47446-490-0	01	1	9307-	●
1	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=667 SERVICED BY L=700	1-49111-439-0	01	1	9307-	●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●
1	PIPE; AIR,AIR TANK TO UNION (A) L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9307-		●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (B) L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-	●
1	PIPE; AIR,AIR TANK TO UNION (B) L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-		●
1	PIPE; AIR,AIR TANK TO UNION (A) L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306	●	●
1	PIPE; AIR,AIR TANK TO UNION (B) L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1860 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1860 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●	●
5	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2157 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> L=2192 SERVICED BY L=2250	1-49111-451-0	01	1	9307-9412	●
5	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=2192 SERVICED BY L=2250	1-49111-451-0	01	1	9501-	●
5	PIPE; AIR,UNION TO UNION 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=2157 SERVICED BY L=2250	1-49111-451-0	01	1	9307-	●	●
21	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1810 SERVICED BY L=1900	1-47426-421-0	01	1	9307-	●
21	PIPE; AIR,UNION TO RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (B) L=1962 SERVICED BY L=2100	1-47426-422-0	01	1	9307-	●
21	PIPE; AIR,UNION TO RELAY VLV (B) L=1962 SERVICED BY L=2100	1-47426-422-0	01	1	9307-		●
21	PIPE; AIR,UNION TO RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=1330 SERVICED BY L=1350	1-47437-995-0	01	1	9307-	●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1330 SERVICED BY L=1350	1-47437-995-0	01	1	9307-		●
21	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1962 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306	●
21	PIPE; AIR,UNION TO RELAY VLV (B) L=1962 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306		●
21	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1330 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306	●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1330 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306		●
21	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (A) L=1320 SERVICED BY L=1350	1-47437-995-0	01	1	9307-	●
24	PIPE; AIR,RELAY VLV TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=1743 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9404	●
24	PIPE; AIR,RELAY VLV TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=1739 SERVICED BY L=1900	1-47426-421-0	01	1	9405-	●
24	PIPE; AIR,RELAY VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1708 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306	●
24	PIPE; AIR,RELAY VLV TO UNION L=1708 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306		●
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1717 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9404	●
24	PIPE; AIR,RELAY VLV TO UNION L=1717 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9404		●
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1715 SERVICED BY L=1900	1-47426-421-0	01	1	9405-	●
24	PIPE; AIR,RELAY VLV TO UNION L=1715 SERVICED BY L=1900	1-47426-421-0	01	1	9405-		●
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1294 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●
26	PIPE; AIR,UNION TO FLEX HOSE L=1294 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306		●
26	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=1297 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●
26	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1295 SERVICED BY L=1300	1-47426-417-0	01	1	9307-	●
26	PIPE; AIR,UNION TO FLEX HOSE L=1295 SERVICED BY L=1300	1-47426-417-0	01	1	9307-		●
26	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1291 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306	●
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (B) L=510 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306	●
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=487 SERVICED BY L=550	1-47426-407-0	02	1	9307-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1394 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9008	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1394 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9008		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1397 SERVICED BY L=1400	1-47437-969-0	01	1	9009-9306	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1397 SERVICED BY L=1400	1-47437-969-0	01	1	9009-9306		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> L=1406 SERVICED BY L=1550	1-47426-419-0	01	1	9307-9308	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1406 SERVICED BY L=1550	1-47426-419-0	01	1	9307-9308		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> L=1406 SERVICED BY L=1550	1-47426-419-0	01	1	9309-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1406 SERVICED BY L=1550	1-47426-419-0	01	1	9309-		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1397 SERVICED BY L=1550	1-47426-419-0	01	1	9309-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1414 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306	●
62	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1091 SERVICED BY L=1100	1-49111-444-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1361 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1417 SERVICED BY L=1450	1-49111-447-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE L=1417 SERVICED BY L=1450	1-49111-447-0	01	1	9307-		●
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=1380 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306		●
70	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1313 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●
70	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1157 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
70	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1410 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1501 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
70	PIPE; AIR,FLEX HOSE TO UNION L=1501 SERVICED BY L=1550	1-47426-419-0	01	1	9307-		●
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1187 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
70	PIPE; AIR,FLEX HOSE TO UNION 12PD1 STD ENG(42L) L=1454 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306		●
76	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=1547 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
76	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1546 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
76	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
76	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1205 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●	●
76	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
76	PIPE; AIR,UNION TO UNION 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1511 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
81	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1229 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●
81	PIPE; AIR,UNION TO UNION L=1229 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306		●
81	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1229 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
81	PIPE; AIR,UNION TO UNION L=1229 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-	●

121 102 119 112 121 107 106 103 102 107 106 120 62 70 112 119 97 120 65 63 63 120 103 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306	●
62	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1091 SERVICED BY L=1100	1-49111-444-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1361 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1417 SERVICED BY L=1450	1-49111-447-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE L=1417 SERVICED BY L=1450	1-49111-447-0	01	1	9307-		●
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-	●
62	PIPE; AIR,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=1380 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306		●
63	HOSE; FLEX,BRK LINE,CAB SIDE CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=960	0-07706-960-0	01	1	9002-	●
63	HOSE; FLEX,BRK LINE,CAB SIDE CAB UP 50MM(W60) (A) SUPPLY L=960	0-07706-960-0	01	1	9002-		●
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=880	1-09363-369-2	01	1	9002-	●
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=770	1-09363-329-4	01	1	9002-	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=850	0-07706-850-0	01	1	9002-9408	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 50MM(W60) (A) SUPPLY L=850	0-07706-850-0	01	1	9002-9408		●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=830	0-07706-830-0	01	1	9409-	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 50MM(W60) (A) SUPPLY L=830	0-07706-830-0	01	1	9409-		●
63	HOSE; FLEX,BRK LINE,CAB SIDE CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (B) DELIVERY L=960	0-07424-960-0	01	1	9002-	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (B) DELIVERY L=850	0-07424-850-0	01	1	9002-9408	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (B) DELIVERY L=830	0-07424-830-0	01	1	9409-	●	●
65	BRACKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-473-2	01	1	9002-	●
65	BRACKET; FLEX HOSE	1-47475-603-0	01	1	9002-		●
70	PIPE; AIR,FLEX HOSE TO UNION CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> L=1313 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●
70	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1157 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
70	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 50MM(W60) L=1410 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1501 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●
70	PIPE; AIR,FLEX HOSE TO UNION L=1501 SERVICED BY L=1550	1-47426-419-0	01	1	9307-		●
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1187 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
70	PIPE; AIR,FLEX HOSE TO UNION 12PD1 STD ENG(42L) L=1454 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306		●
97	PIPE; AIR,BRK VLV TO UNION L=648 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306		●
97	PIPE; AIR,BRK VLV TO UNION L=649 SERVICED BY L=700	1-47426-410-0	01	1	9307-		●
102	PIPE; AIR,FLEX HOSE TO UNION L=843 SERVICED BY L=900	1-47437-981-0	01	1	9002-9306		●
102	PIPE; AIR,FLEX HOSE TO UNION L=843 SERVICED BY L=900	1-49111-442-0	01	1	9307-		●
103	BOLT; PIPE UNION (A) M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204		●
103	BOLT; PIPE UNION (A) M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301		●
103	BOLT; PIPE UNION (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302		●
103	BOLT; PIPE UNION (A) M6X16 FLANGE	0-28080-616-0	02	1	9303-		●
103	BOLT; PIPE UNION (B) M6X16	1-09980-296-0	02	1	9002-		●
106	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A) M20	9-99111-420-0	01	1	9002-	●
106	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) M20	9-99111-420-0	02	1	9002-	●
106	NUT; FLEX HOSE (A) M20	9-99111-420-0	02	1	9002-		●
106	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (B) M16	9-99111-416-0	02	1	9002-	●	●
107	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=20.2	9-09150-520-0	01	1	9002-	●
107	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) ID=20.2	9-09150-520-0	02	1	9002-	●
107	WASHER; LK,FLEX HOSE (A) ID=20.2	9-09150-520-0	02	1	9002-		●
107	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=16.2	9-09150-516-0	02	1	9002-	●	●
112	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> L=644	1-47446-008-1	01	1	9002-9306		●
112	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> L=644	1-47495-936-0	01	1	9307-		●
112	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=675 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306		●
112	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=681	1-47495-935-0	01	1	9307-		●
113	PIPE; AIR,UNION TO BRK VLV L=608 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO BRK VLV L=608 SERVICED BY L=660	1-49111-438-0	01	1	9307-		●
119	PIPE; AIR,UNION TO UNION L=446 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306		●
119	PIPE; AIR,UNION TO UNION L=446 SERVICED BY L=450	1-47426-405-0	01	1	9307-		●
120	UNION; AIR PIPE (B)	1-47470-188-1	01	1	9002-		●
120	UNION; AIR PIPE (C)	9-09233-010-1	01	1	9002-		●
120	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A)	1-47470-175-2	01	1	9002-		●
120	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-47470-189-3	01	1	9002-		●
121	PIPE; AIR,UNION TO FLEX HOSE L=1203 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306		●
121	PIPE; AIR,UNION TO FLEX HOSE L=1203 SERVICED BY L=1300	1-47426-417-0	01	1	9307-		●

37 98 37 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306	●
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (B) L=510 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306	●
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=487 SERVICED BY L=550	1-47426-407-0	02	1	9307-	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
