◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#175096) — 99 parça

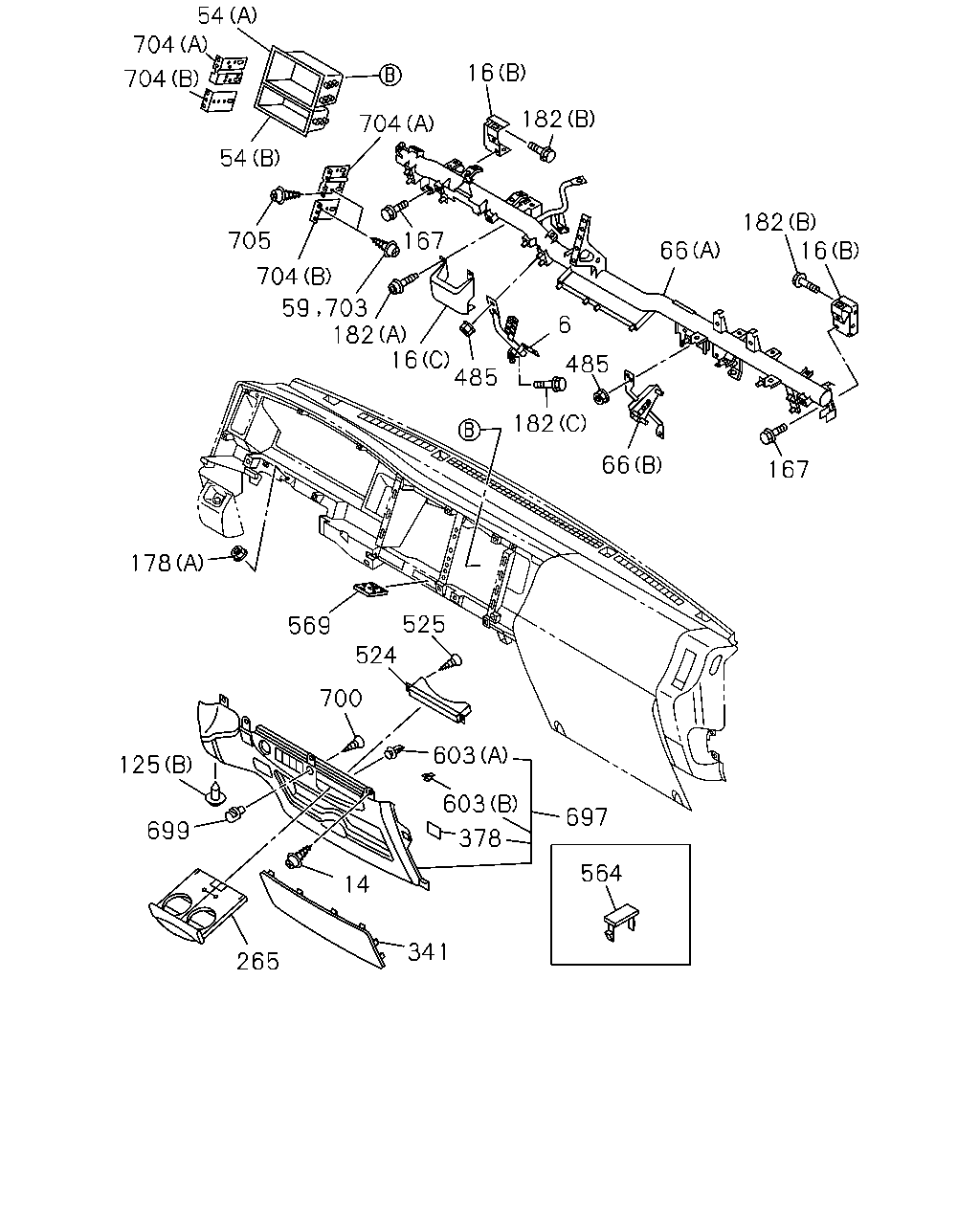

çizim 513151
54 16 704 704 704 54 705 167 704 182 59 703 182 16 6 66 485 485 182 66 167 182 16 525 178 569 524 700 603 603 378 697 564 125 699 265 14 341
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1509- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509- ● ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1509- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1509- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1509- ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1509- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-2 01 1 1509- ● ●
54 POCKET; CENTER CLUSTER
(B) H=69.8 BLACK 		8-97408-865-2 01 1 1509- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97430-064-0 01 1 1509- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98069-419-7 01 1 1509- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1509- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1509- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1509- ● ●
125 CLIP; INST PANEL
(A) 		8-98021-271-0 02 1 1509- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1509- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1509- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1509- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1509- ● ●
182 BOLT; BRKT,INST PANEL
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1509- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1509- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1509- ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1509- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1509- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1509- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1509- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1509- ● ●
564 COVER; SW 8-97043-732-1 04 1 1509- ●
564 COVER; SW 8-97043-732-1 06 1 1509- ●
569 HOLDER; CARD 8-97410-276-0 01 1 1509- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1509- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1509- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1509- ● ●
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1509- ● ●
603 CLIP; COVER
(E) 		8-98152-031-0 03 1 1509- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1509- ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1509- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1509- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1509- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1509- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1509- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509- ● ●

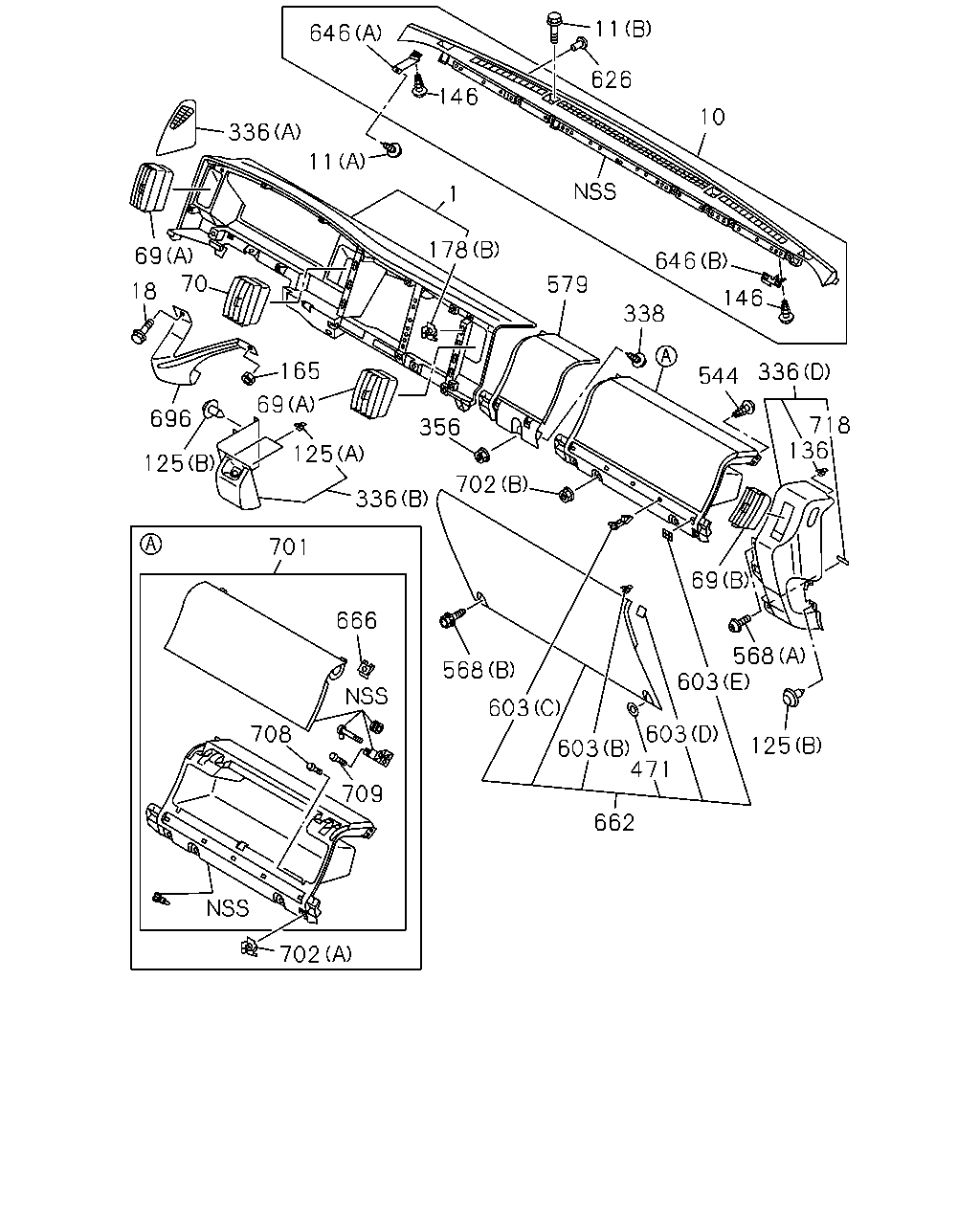

çizim 513762
336 646 146 11 178 11 544 338 579 10 626 646 336 718 136 69 568 603 125 603 603 662 603 568 702 336 125 69 165 696 125 356 70 18 69 666 708 709 471 146 702 701 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1509- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-0 01 1 1509- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1509- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1509- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1509- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1509- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1509- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1509- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1509- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1509- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1509- ● ●
125 CLIP; INST PANEL
(A) 		8-98021-271-0 02 1 1509- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1509- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1509- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1509- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1509- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1509- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1509- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1509- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1509- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1509- ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1509- ● ●
471 WASHER; PL 8-98179-641-0 02 1 1509- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1509- ● ●
568 BOLT; COVER
(B) M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 1509- ● ●
568 BOLT; COVER
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509- ● ●
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 1509- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1509- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1509- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1509- ● ●
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1509- ● ●
603 CLIP; COVER
(E) 		8-98152-031-0 03 1 1509- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1509- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1509- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1509- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1509- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97422-093-2 01 1 1509- ● ●
666 INSERT; INST PANEL 8-98037-629-0 02 1 1509- ● ●
696 BRACKET; KNEE 8-98098-126-1 01 1 1509- ● ●
701 TRAY; INST
GRAY 		8-97431-081-0 01 1 1509- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1509- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1509- ● ●
708 STOPPER; TRAY INST LID
GRAY 		8-97431-096-0 01 1 1509- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1509- ● ●
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1509- ● ●

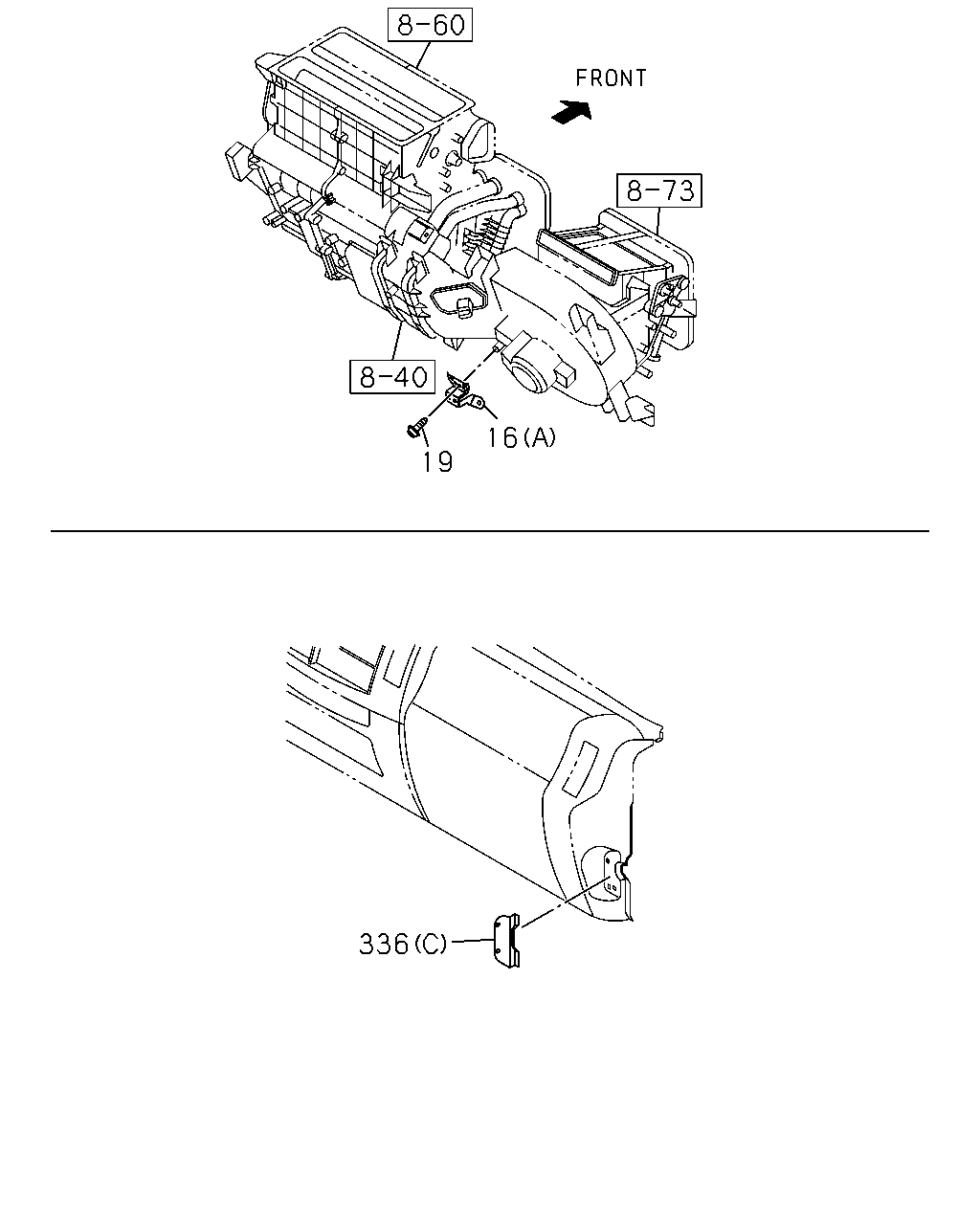

çizim 514613
16 19 336
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1509- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1509- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1509- ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1509- ● ●
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1509- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1509- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1509- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1509- ● ●
