7-20 — MIRROR AND MIRROR STAY (#175094) — 73 parça

66 66 69 105 53 53 30 136 145 32 72 21 68 72 32 71 13 86 89 49 71 72 26 72 66 30 53 136 53 68 68 71 22 68 21 71 145 307 87 96 66 63 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

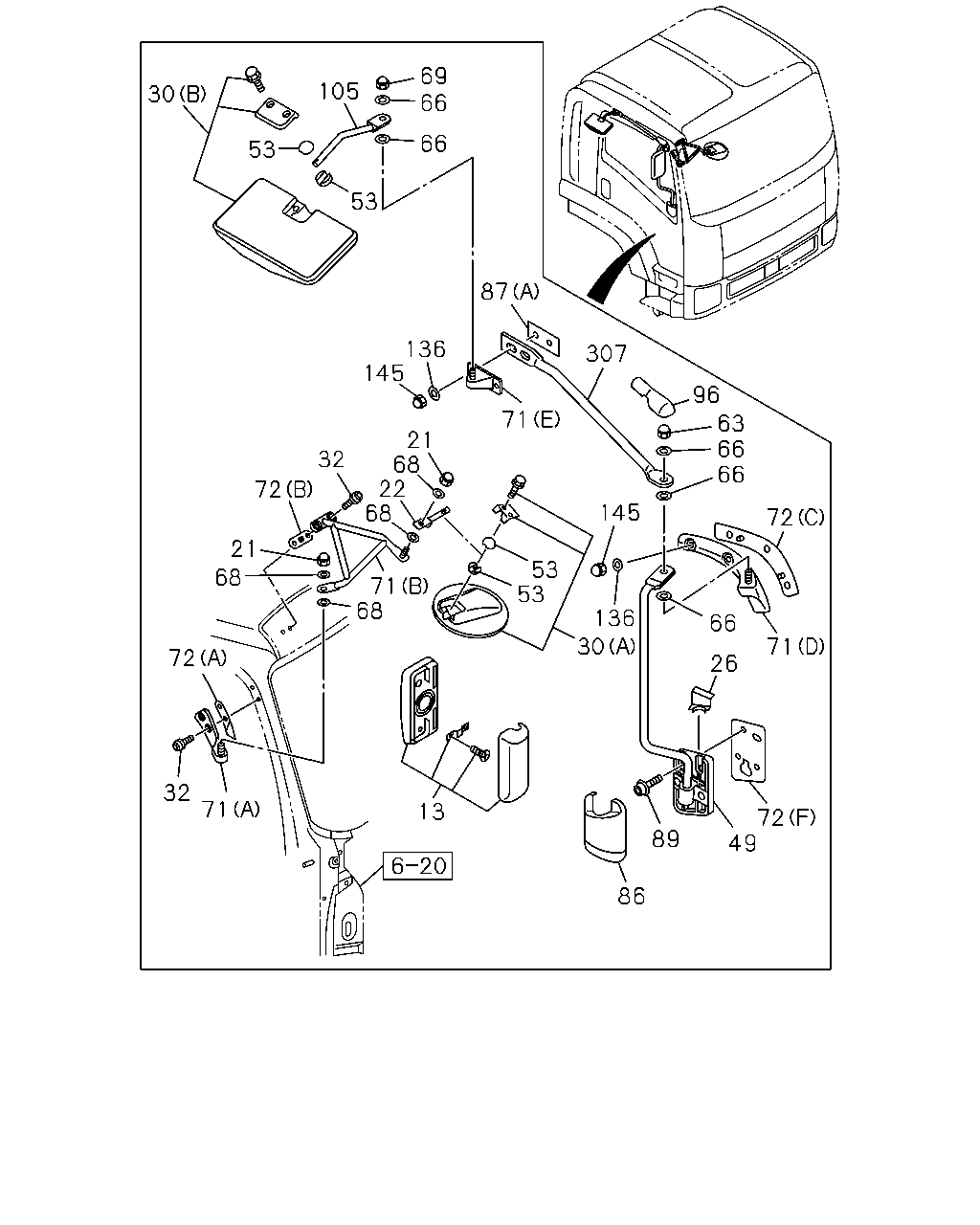

13	MIRROR ASM; OUTSIDE RR VIEW	8-97431-225-0	01	1	1509-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-97431-224-0	01	1	1509-	●	●
21	NUT; MIRROR M10 CAP NUT	1-09984-134-0	02	1	1509-	●	●
22	STAY; OUTSIDE MIRROR	8-98092-493-0	01	1	1509-	●	●
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1509-	●	●
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1509-	●	●
30	MIRROR; UNDER (B)	8-97431-222-0	01	1	1509-	●	●
30	MIRROR; UNDER (A)	8-97431-226-0	01	1	1509-	●	●
32	SCREW; UNDER MIRROR M8X26 W/PL WASHER	8-98067-249-2	04	1	1509-	●	●
49	STAY; MIRROR SIDE	8-97431-069-0	01	1	1509-	●	●
49	STAY; MIRROR SIDE	8-97431-070-0	01	1	1509-	●	●
53	PIVOT; SIDE MIRROR ID=19.1	1-71737-633-2	02	1	1509-	●	●
53	PIVOT; SIDE MIRROR ID=19.1	1-71737-633-2	02	1	1509-	●	●
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1509-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1509-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1509-	●	●
68	WASHER; STAY ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1509-	●	●
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98031-794-2	01	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98031-793-2	01	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98092-491-3	01	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98064-775-0	01	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71798-484-1	01	1	1509-	●	●
72	SHEET (E)	8-97431-072-0	01	1	1509-	●	●
72	SHEET (F)	8-97431-071-0	01	1	1509-	●	●
72	SHEET (D)	8-98031-797-0	01	1	1509-	●	●
72	SHEET (C)	8-98031-796-0	01	1	1509-	●	●
72	SHEET (B)	8-98060-225-1	01	1	1509-	●	●
72	SHEET (A)	8-98064-773-0	01	1	1509-	●	●
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1509-	●	●
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1509-	●	●
87	SPACER (B)	8-98063-789-0	01	1	1509-	●	●
87	SPACER (A)	8-98063-786-0	02	1	1509-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1509-	●	●
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1509-	●	●
105	STAY; SUB UNDER MIRROR	8-98080-109-2	01	1	1509-	●	●
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1509-	●	●
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1509-	●	●
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1509-	●	●
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1509-	●	●

181 181 92 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

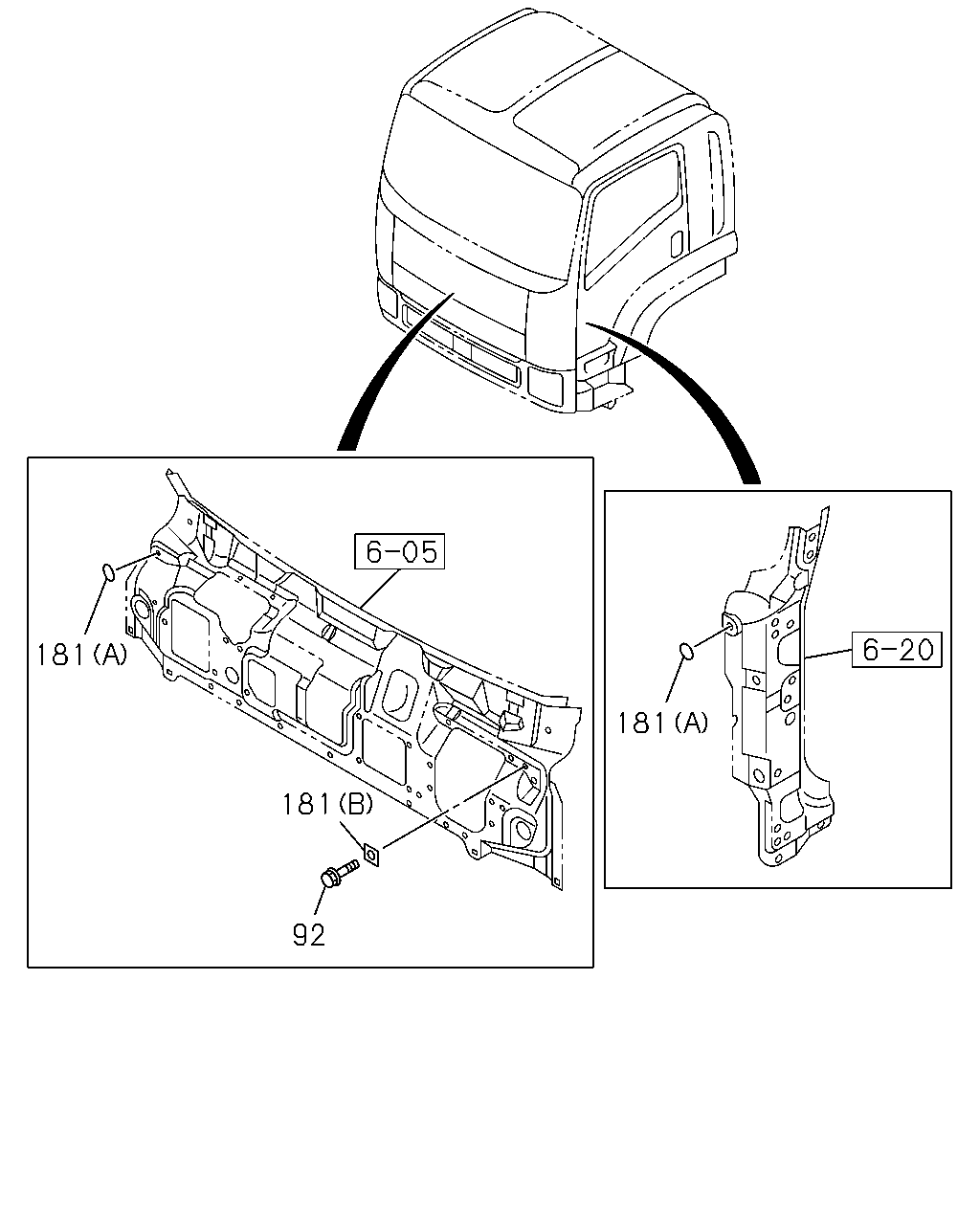

92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	01	1	1509-	●	●
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	02	1	1509-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1509-	●	●

72 71 26 72 49 89 86 13 66 145 136 66 63 66 96 307 87 136 87 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW	8-97431-225-0	01	1	1509-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-97431-224-0	01	1	1509-	●	●
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1509-	●	●
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1509-	●	●
49	STAY; MIRROR SIDE	8-97431-069-0	01	1	1509-	●	●
49	STAY; MIRROR SIDE	8-97431-070-0	01	1	1509-	●	●
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1509-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1509-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98031-794-2	01	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98031-793-2	01	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98092-491-3	01	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98064-775-0	01	1	1509-	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71798-484-1	01	1	1509-	●	●
72	SHEET (E)	8-97431-072-0	01	1	1509-	●	●
72	SHEET (F)	8-97431-071-0	01	1	1509-	●	●
72	SHEET (D)	8-98031-797-0	01	1	1509-	●	●
72	SHEET (C)	8-98031-796-0	01	1	1509-	●	●
72	SHEET (B)	8-98060-225-1	01	1	1509-	●	●
72	SHEET (A)	8-98064-773-0	01	1	1509-	●	●
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1509-	●	●
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1509-	●	●
87	SPACER (B)	8-98063-789-0	01	1	1509-	●	●
87	SPACER (A)	8-98063-786-0	02	1	1509-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1509-	●	●
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1509-	●	●
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1509-	●	●
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1509-	●	●
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1509-	●	●
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1509-	●	●
