6-70 — FLOOR PANEL (#175084) — 61 parça

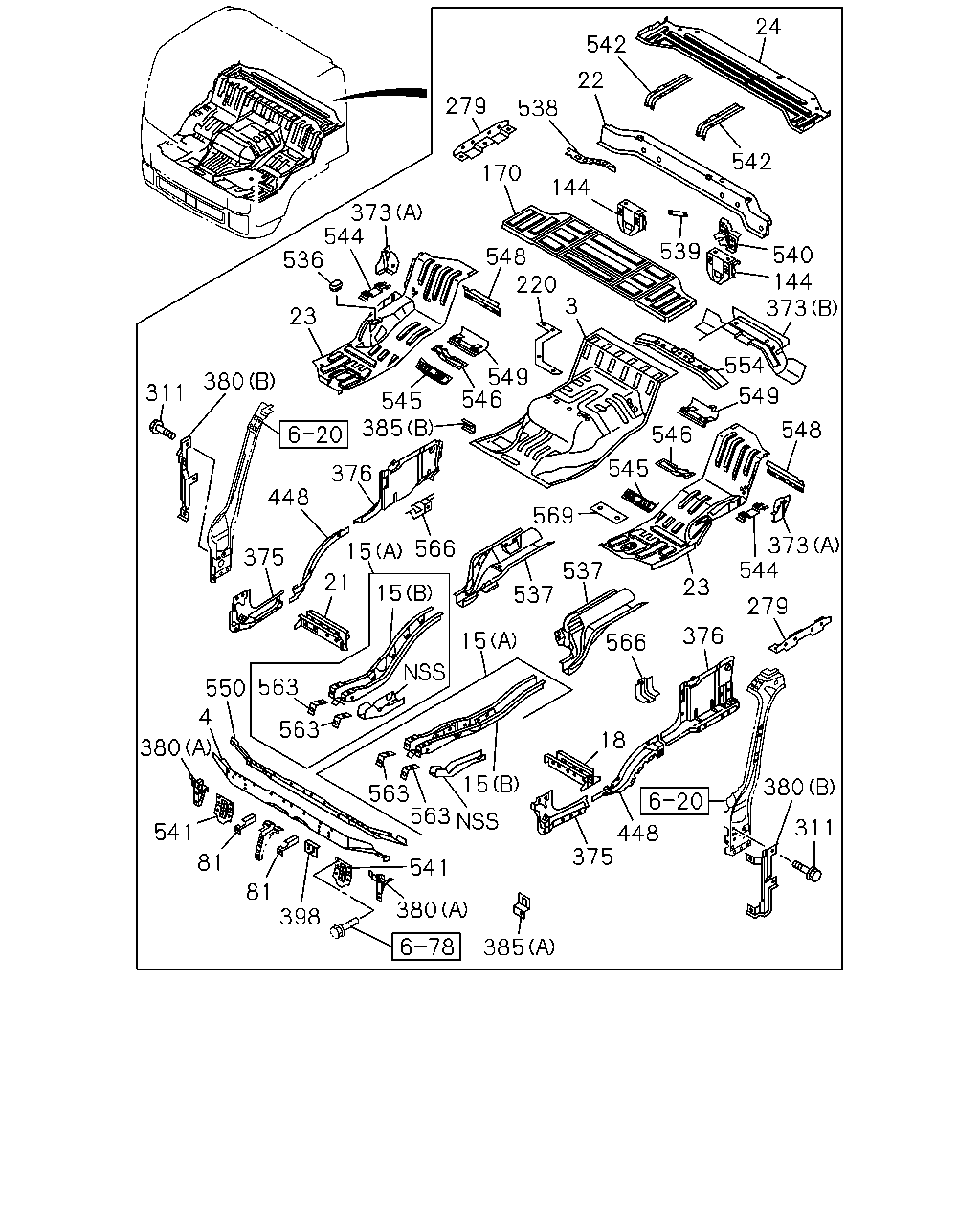

çizim 513444
24 542 538 279 170 539 540 542 144 373 548 554 546 545 373 544 279 23 376 566 537 569 537 566 380 311 448 375 541 380 398 81 22 144 548 3 373 544 536 23 380 311 545 549 546 385 376 549 18 15 563 550 563 15 385 541 81 448 375 15 380 21 15 563 4 563 220
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-97430-014-1 01 1 1509- ● ●
4 FRAME; FLOOR,FRT 8-97431-037-0 01 1 1509- ● ●
15 FRAME; UNDER
(A) 		8-97430-018-0 01 1 1509- ● ●
15 FRAME; UNDER
(B) 		8-97430-019-0 01 1 1509- ● ●
15 FRAME; UNDER
(A) 		8-97430-027-1 01 1 1509- ● ●
15 FRAME; UNDER
(B) 		8-97430-333-0 01 1 1509- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97430-028-1 01 1 1509- ● ●
21 FRAME; FLOOR CENTER 8-97430-022-0 01 1 1509- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1509- ● ●
23 PANEL; FLOOR,SIDE 8-97430-321-0 01 1 1509- ● ●
23 PANEL; FLOOR,SIDE 8-97430-324-0 01 1 1509- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1509- ● ●
81 BRACKET; HARNESS SUPPORT 8-97430-037-0 02 1 1509- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1509- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1509- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1509- ● ●
220 PATCH 8-97430-015-0 01 1 1509- ● ●
279 REINFORCEMENT 8-97430-904-0 01 1 1509- ● ●
279 REINFORCEMENT 8-97430-904-0 01 1 1509- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97430-880-0 01 1 1509- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1509- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1509- ● ●
375 CLOSING; PILLAR 8-97430-040-0 01 1 1509- ● ●
375 CLOSING; PILLAR 8-97430-043-0 01 1 1509- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1509- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 1509- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-97430-539-0 01 1 1509- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-97430-538-0 01 1 1509- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97430-033-0 01 1 1509- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1509- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1509- ● ●
385 BRACKET
(A) 		8-97430-035-0 01 1 1509- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1509- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1509- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1509- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1509- ● ●
537 SUPPORT ASM; MTG RR 8-97430-327-0 01 1 1509- ● ●
537 SUPPORT ASM; MTG RR 8-97430-328-0 01 1 1509- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1509- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1509- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1509- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1509- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1509- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1509- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1509- ● ●
545 BRACKET; SEAT FRT 8-97430-976-0 01 1 1509- ● ●
545 BRACKET; SEAT FRT 8-97430-994-0 01 1 1509- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 01 1 1509- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 01 1 1509- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1509- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1509- ● ●
549 BRACKET; SEAT RR 8-97430-322-0 01 1 1509- ● ●
549 BRACKET; SEAT RR 8-97430-992-0 01 1 1509- ● ●
550 CLOSING ASM; MTG,FRT 8-97589-710-3 01 1 1509- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97430-973-0 01 1 1509- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 02 1 1509- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 02 1 1509- ● ●
566 REINFORCEMENT; FENDER,RR 8-97430-041-0 01 1 1509- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 01 1 1509- ● ●
569 REINFORCEMENT; FRT,ENG HOOD 8-98108-382-0 01 1 1509- ● ●
