Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11662 - FXZ/GXZ LHD CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

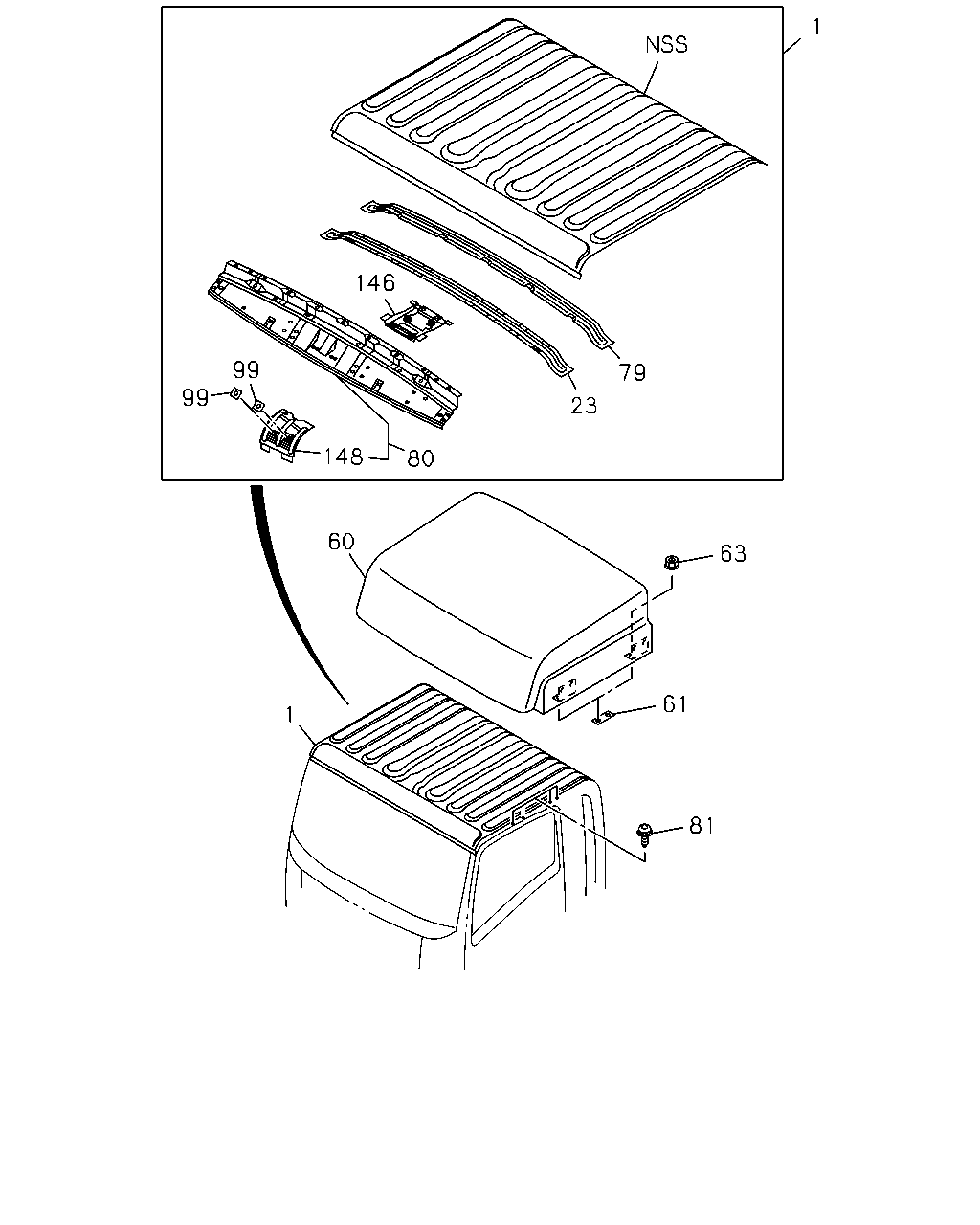

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#175082) — 15 parça
Tümü
A - FGZ6MX
B - GGZ6MX
1
79
23
63
61
81
60
148
80
99
99
146
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; ROOF
8-98152-807-0
01
1
1509-
●
●
23
REINFORCEMENT; ROOF PANEL,FRT
8-98019-316-0
01
1
1509-
●
●
60
COVER; ROOF
X5
1-87223-041-0
01
1
1509-
●
●
61
SEAL; ROOF COVER
EXC. WHEEL BASE 5300MM(53W) X5
1-87223-546-0
02
1
1509-
●
61
SEAL; ROOF COVER
X5
1-87223-546-0
02
1
1509-
●
61
SEAL; ROOF COVER
EXC. WHEEL BASE 5300MM(53W) X5
1-87223-547-0
02
1
1509-
●
61
SEAL; ROOF COVER
X5
1-87223-547-0
02
1
1509-
●
63
NUT; ROOF COVER
EXC. WHEEL BASE 5300MM(53W) X5
8-97431-309-0
04
1
1509-
●
63
NUT; ROOF COVER
X5
8-97431-309-0
04
1
1509-
●
79
REINFORCEMENT; ROOF PANEL,RR
8-97584-200-1
01
1
1509-
●
●
80
PANEL; HEADER,ROOF
8-98047-271-1
01
1
1509-
●
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1509-
●
●
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
02
1
1509-
●
●
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1509-
●
●
148
REINFORCEMENT; MIRROR
8-97411-013-0
01
1
1509-
●
●
