◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#175080) — 15 parça

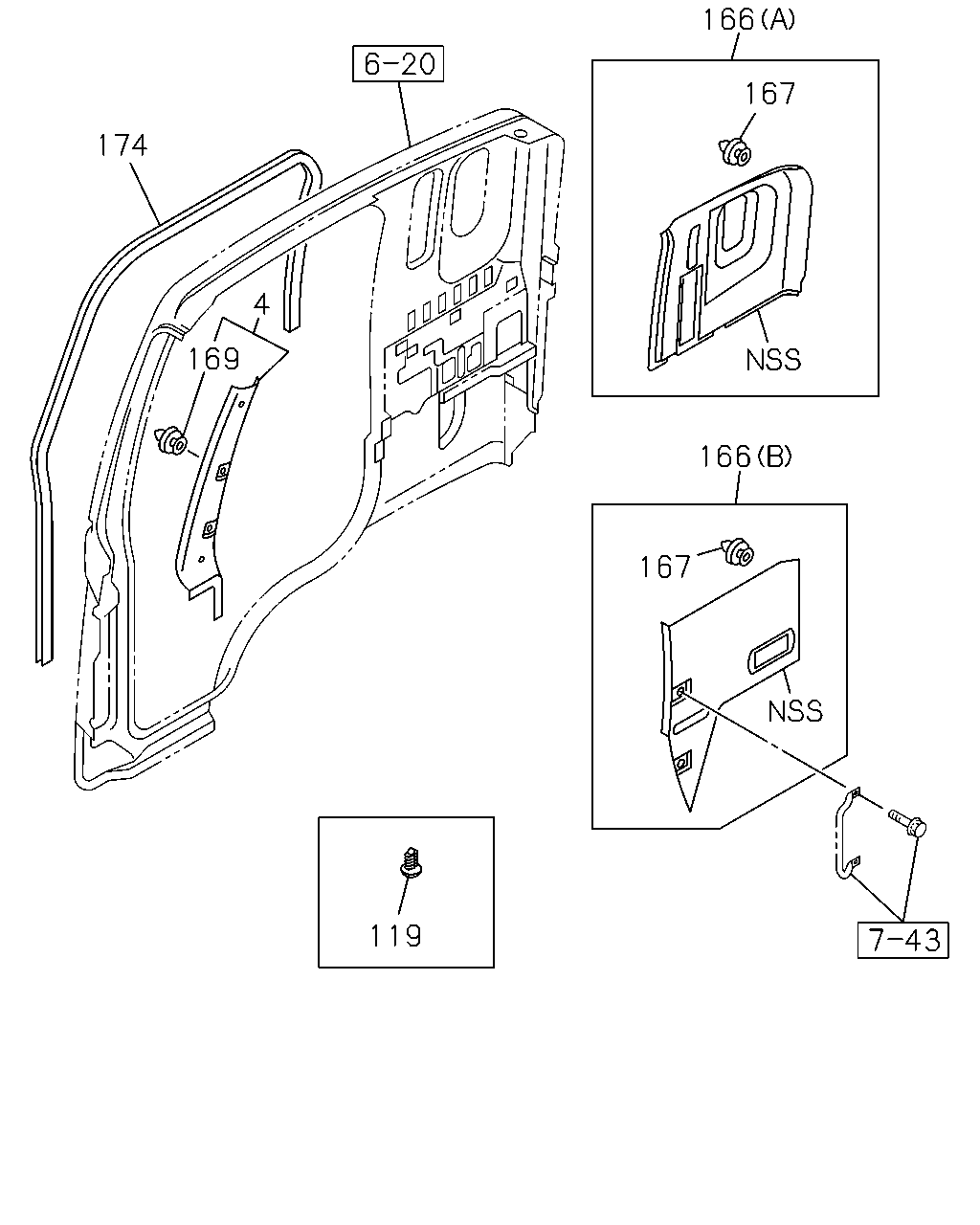

çizim 514380
174 119 169 4 166 167 167 166
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1509- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1509- ● ●
119 CLIP; FRT PILLAR
DARK GRAY 		8-97411-875-0 02 1 1509- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1509- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1509- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97425-039-0 01 1 1509- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97425-038-0 01 1 1509- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1509- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1509- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1509- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1509- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 02 1 1509- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 02 1 1509- ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1509- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1509- ● ●
