◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#175073) — 132 parça

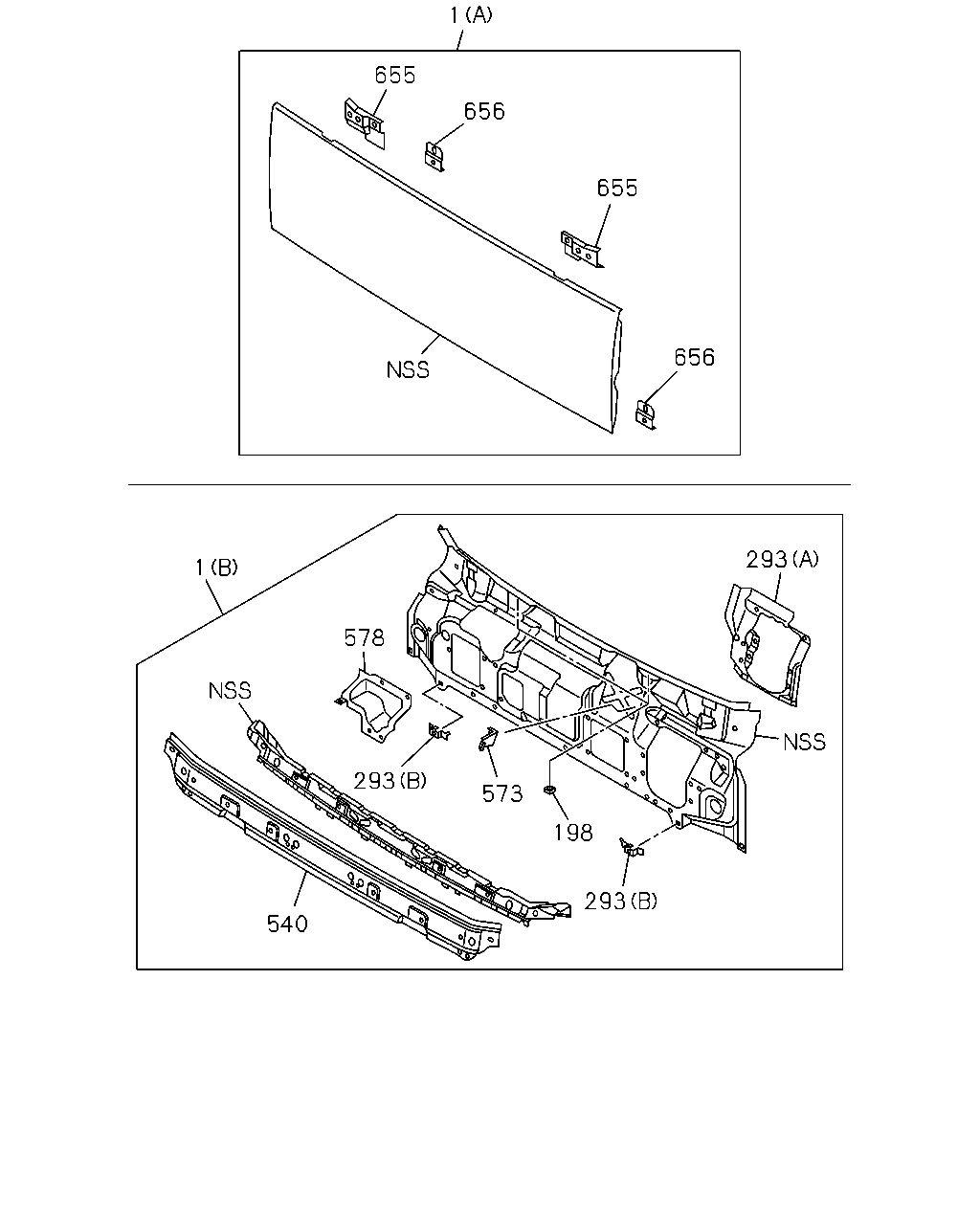

çizim 513916
655 655 656 656 1 578 293 573 198 293 293 540 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97430-001-0 01 1 1509- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1509- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1509- ● ●
293 BRACKET; PANEL
(C) H=16 		8-94318-803-1 01 1 1509- ● ●
293 BRACKET; PANEL
(A) 		8-97586-008-1 01 1 1509- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1509- ● ●
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1509- ● ●
540 PANEL; FRONT,OUTER 8-97585-967-1 01 1 1509- ● ●
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1509- ● ●
578 COVER; WIPER MOTOR 8-98017-702-1 01 1 1509- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1509- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1509- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1509- ● ●

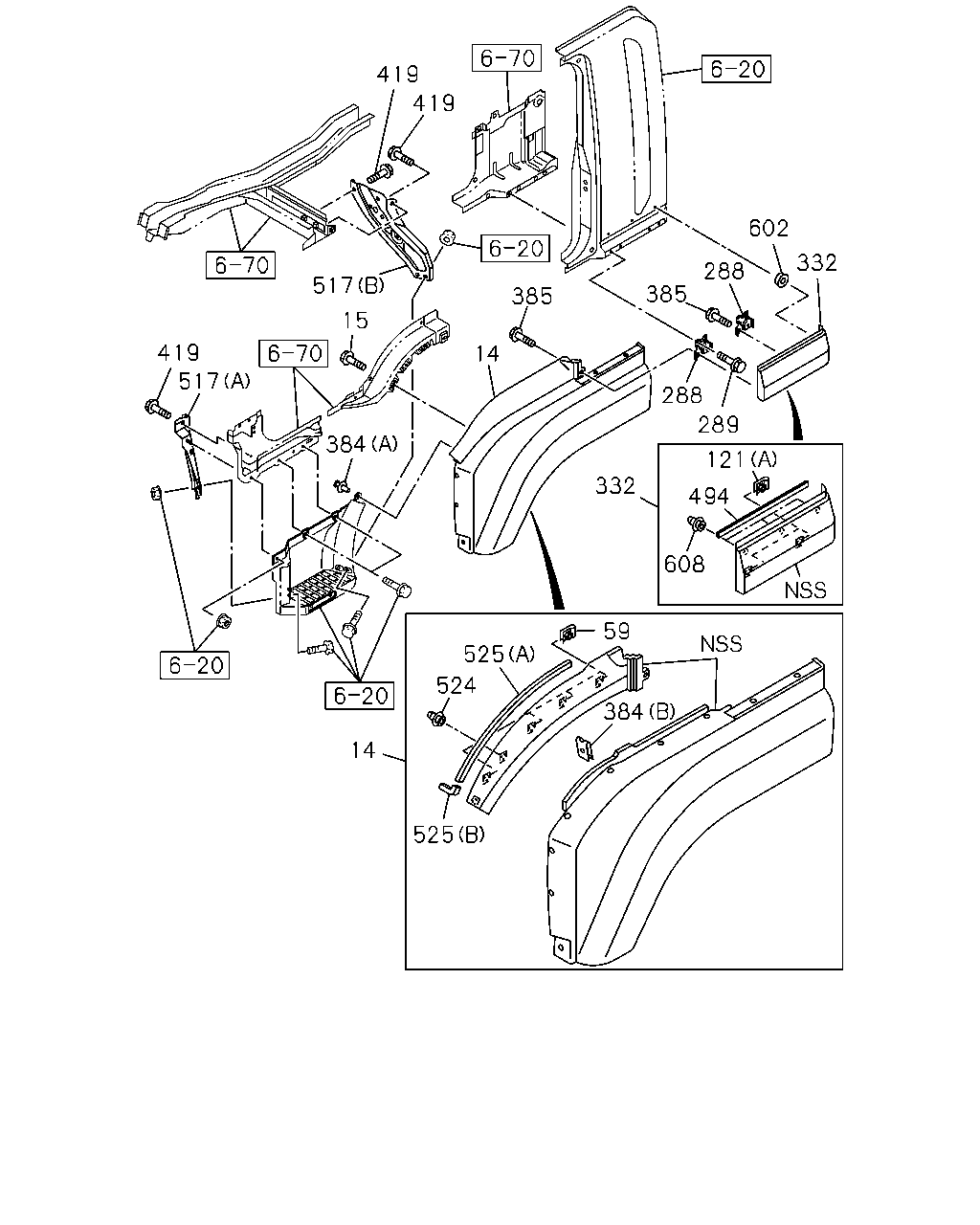

çizim 514217
419 419 517 15 419 517 384 14 14 385 385 288 602 332 288 289 332 494 608 121 59 525 524 525 384
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT 8-97430-532-0 01 1 1509- ● ●
14 FENDER; FRT 8-97430-531-0 01 1 1509- ● ●
15 BOLT; FENDER
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1509- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1509- ● ●
59 GROMMET; SCREW 8-94279-723-0 01 1 1509- ● ●
59 GROMMET; SCREW 8-94279-723-0 01 1 1509- ● ●
59 GROMMET; SCREW 8-94279-723-0 03 1 1509- ● ●
59 GROMMET; SCREW 8-94279-723-0 03 1 1509- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1509- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1509- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1509- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1509- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1509- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1509- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1509- ● ●
288 BRACKET; FENDER SKIRT 8-98059-770-1 04 1 1509- ● ●
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1509- ● ●
332 FENDER; RR
WHITE 		8-97407-507-2 01 1 1509- ● ●
332 FENDER; RR
WHITE 		8-97407-506-2 01 1 1509- ● ●
384 CLIP; FENDER LWR
(B) 		8-94334-769-0 02 1 1509- ● ●
384 CLIP; FENDER LWR
(B) 		8-94334-769-0 02 1 1509- ● ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 02 1 1509- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1509- ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1509- ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1509- ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1509- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1509- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-351-2 01 1 1509- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-97430-063-0 01 1 1509- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-350-2 01 1 1509- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 01 1 1509- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 01 1 1509- ● ●
525 SEAL; FENDER
(A) 		8-98061-760-0 01 1 1509- ● ●
525 SEAL; FENDER
(B) 		8-98061-762-0 01 1 1509- ● ●
525 SEAL; FENDER
(A) 		8-98061-760-0 01 1 1509- ● ●
525 SEAL; FENDER
(B) 		8-98061-762-0 01 1 1509- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1509- ● ●
608 CLIP
D5.4X8 		1-09983-154-0 03 1 1509- ● ●
608 CLIP
D5.4X8 		1-09983-154-0 03 1 1509- ● ●

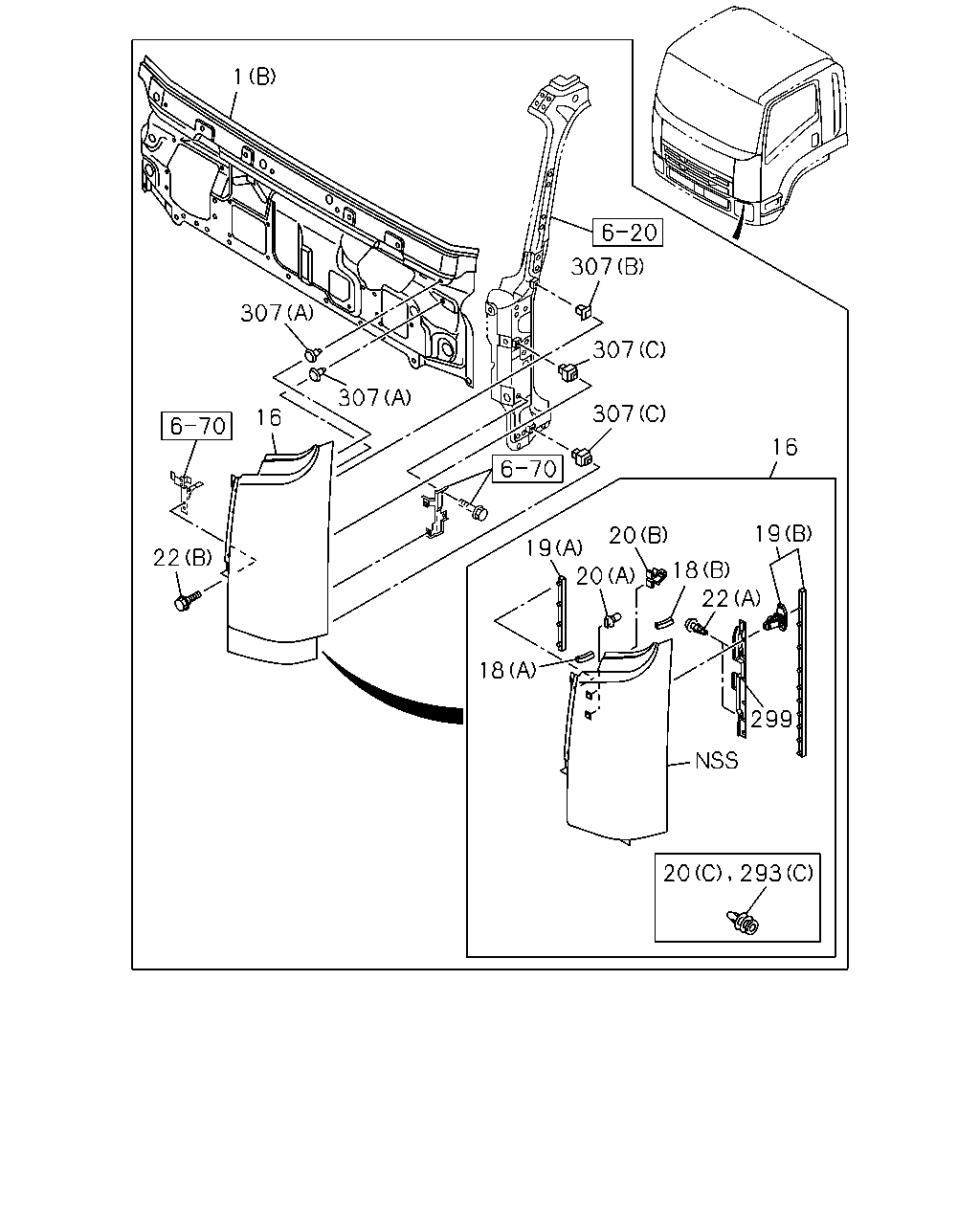

çizim 514237
1 307 307 16 22 307 307 307 16 19 20 20 18 18 22 19 299 20 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97430-001-0 01 1 1509- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1509- ● ●
16 PANEL; FRONT,SIDE 8-97430-959-0 01 1 1509- ● ●
16 PANEL; FRONT,SIDE 8-97430-957-0 01 1 1509- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1509- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1509- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1509- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1509- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1509- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1509- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1509- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1509- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 02 1 1509- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 01 1 1509- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 02 1 1509- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 01 1 1509- ● ●
20 CLIP; FRT PANEL SIDE
(C) H=16 		8-94318-803-1 01 1 1509- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1509- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1509- ● ●
22 SCREW; FRT PANEL SIDE
(B) M6X16 FLANGE 		8-98061-108-0 04 1 1509- ● ●
293 BRACKET; PANEL
(C) H=16 		8-94318-803-1 01 1 1509- ● ●
293 BRACKET; PANEL
(A) 		8-97586-008-1 01 1 1509- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1509- ● ●
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1509- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1509- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1509- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1509- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1509- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1509- ● ●

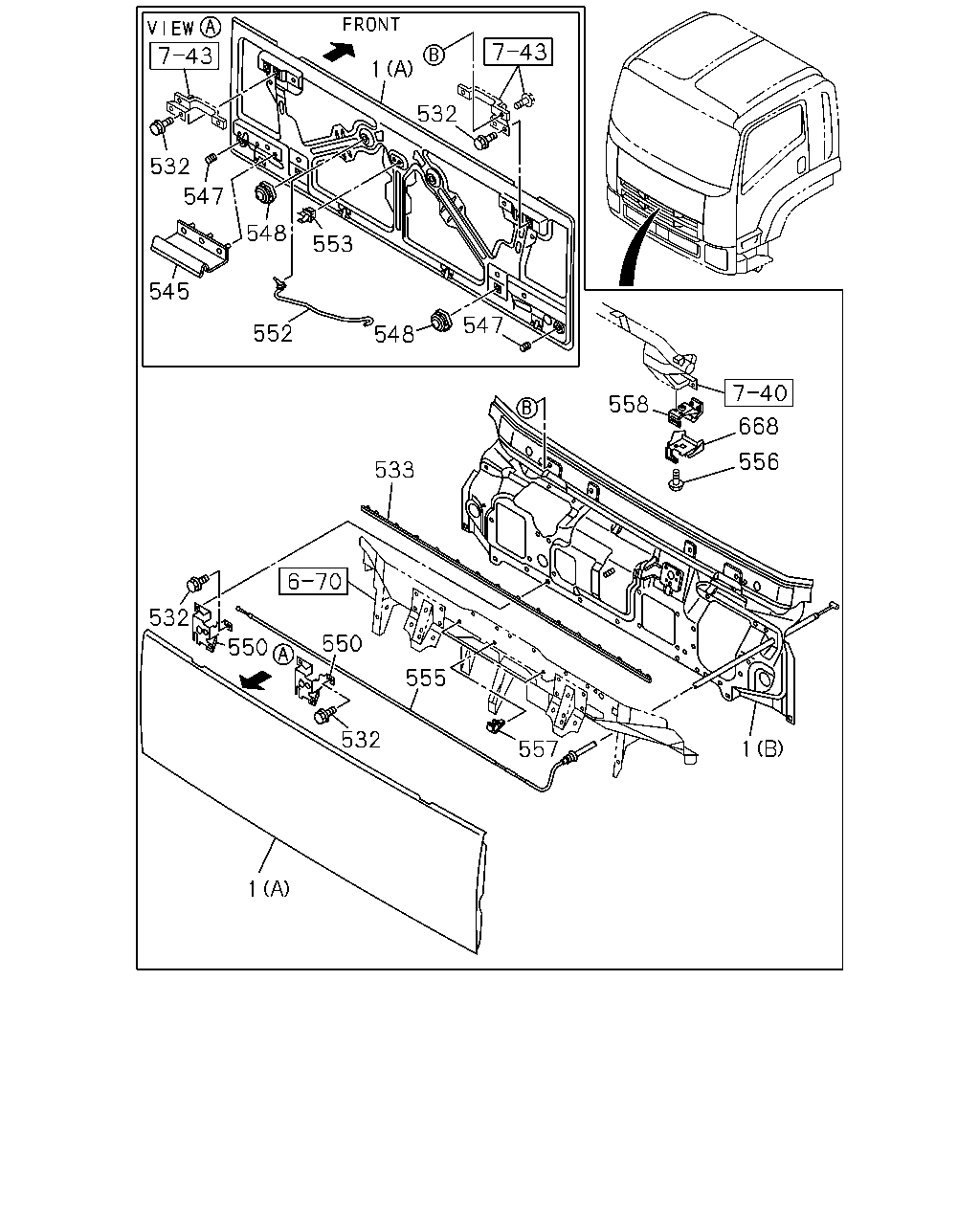

çizim 514278
1 532 553 547 548 552 545 548 547 532 533 532 550 550 555 557 532 1 1 558 668 556
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97430-001-0 01 1 1509- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1509- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 04 1 1509- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 04 1 1509- ● ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1509- ● ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1509- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1509- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1509- ● ●
550 LOCK ASM; FRT LID 8-98036-568-2 02 1 1509- ● ●
552 STAY; FRT LID 8-98089-839-1 01 1 1509- ● ●
553 CLIP; STAY 8-97031-428-0 01 1 1509- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1509- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1509- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1509- ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 1509- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-0 01 1 1509- ● ●

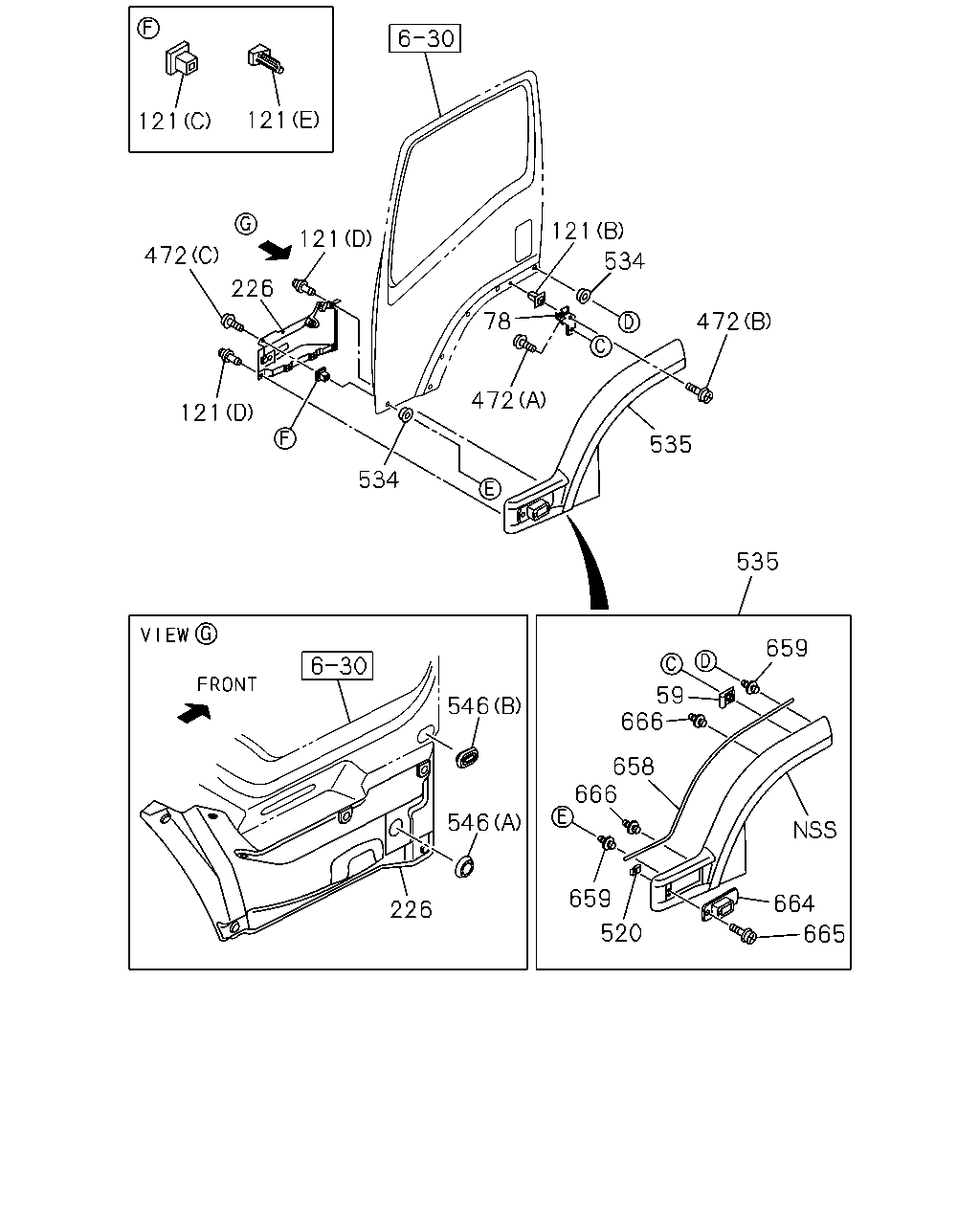

çizim 514366
121 121 472 121 226 121 534 121 534 78 472 472 535 535 659 59 666 658 666 659 520 664 665 226 546 546
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 01 1 1509- ● ●
59 GROMMET; SCREW 8-94279-723-0 01 1 1509- ● ●
59 GROMMET; SCREW 8-94279-723-0 03 1 1509- ● ●
59 GROMMET; SCREW 8-94279-723-0 03 1 1509- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1509- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1509- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1509- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1509- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1509- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1509- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1509- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1509- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1509- ● ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 1509- ● ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 1509- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1509- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1509- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1509- ● ●
520 NUT; FENDER 8-94279-501-0 01 1 1509- ● ●
520 NUT; FENDER 8-94279-501-0 01 1 1509- ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1509- ● ●
535 FENDER; BLISTER
WHITE 		8-97415-394-1 01 1 1509- ● ●
535 FENDER; BLISTER
WHITE 		8-97415-393-1 01 1 1509- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1509- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1509- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1509- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1509- ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 04 1 1509- ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 04 1 1509- ● ●
664 BASE; DOOR,SIDE TURN
WHITE 		8-97421-597-0 01 1 1509- ● ●
664 BASE; DOOR,SIDE TURN
WHITE 		8-97421-469-0 01 1 1509- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 01 1 1509- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 01 1 1509- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 02 1 1509- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 02 1 1509- ● ●
