◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#175070) — 16 parça

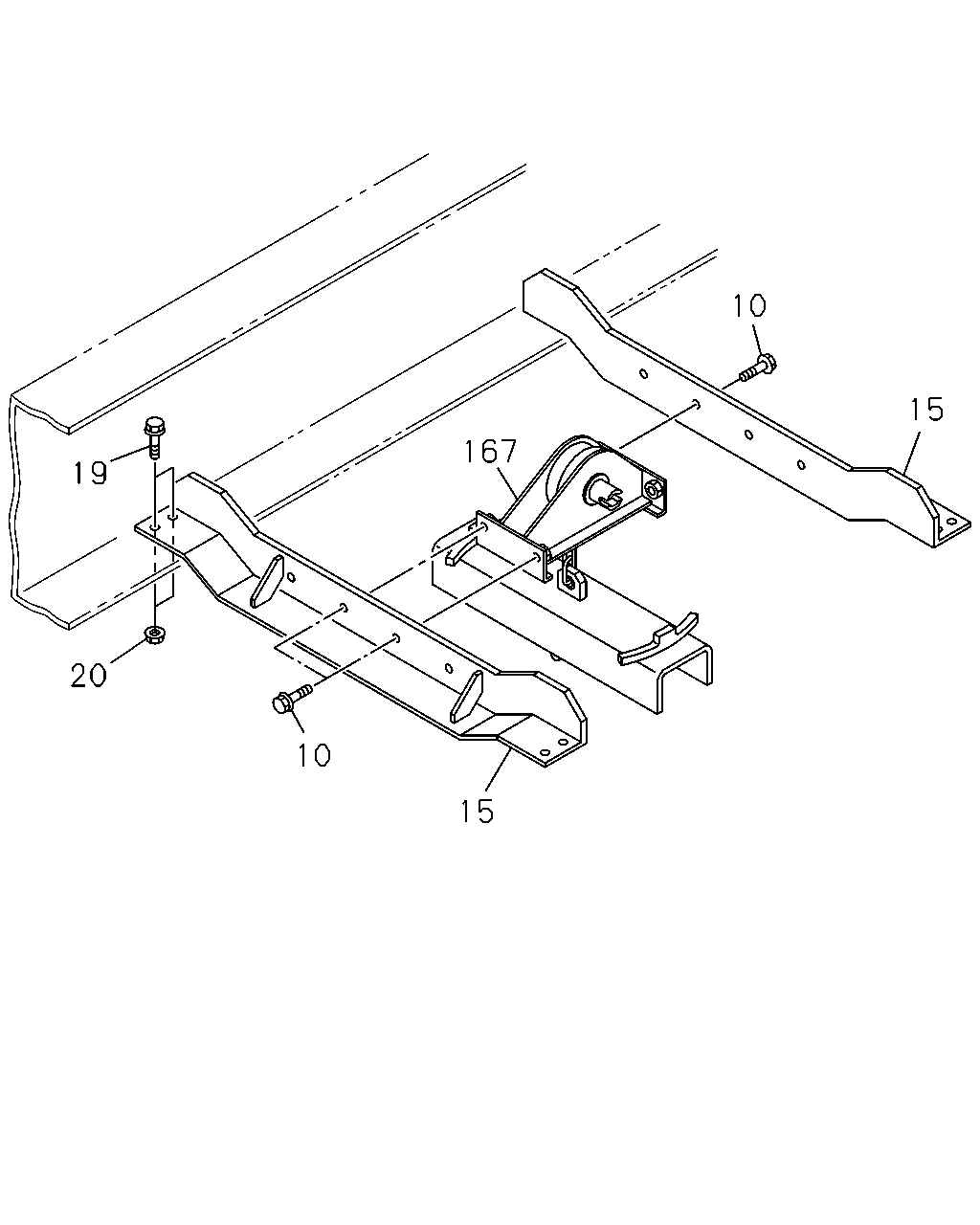

çizim 513161
19 20 10 15 167 10 15
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOLT; TIRE HANGER
M12X30 FLANGE 		0-28651-230-0 04 1 1509- ●
15 MEMBER; CROSS,SPARE TIRE 8-97608-196-1 02 1 1509- ●
19 BOLT; C/MBR
M10X50 FLANGE 		0-28051-050-0 08 1 1509- ●
20 NUT; C/MBR
M10 FLANGE 		0-91180-210-0 08 1 1509- ●
167 HANGER; TIRE 1-53630-210-4 01 1 1509- ●
çizim 514379
30 30 170 31 170 29 29 30 30 23 28 28 154 91 24 30
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,SPARE TIRE
M14X50 		0-20851-450-0 02 1 1509- ●
24 BOLT; SPARE TIRE
M14X50 		0-20851-450-0 02 1 1509- ●
28 WASHER; LK,SPARE TIRE
(A) ID=14.2 		0-91510-814-0 02 1 1509- ●
28 WASHER; LK,SPARE TIRE
(B) 		0-91614-814-0 02 1 1509- ●
29 WASHER; PL,BRKT,HANGER 0-91614-812-0 02 1 1509- ●
30 NUT; SPARE TIRE
(A) 		1-87223-647-0 04 1 1509- ●
30 NUT; SPARE TIRE
(B) 		1-87223-648-0 02 1 1509- ●
31 SPACER; HANGER BRKT 1-87223-021-0 01 1 1509- ●
91 PAD; TIRE CARRIER 1-53637-007-0 02 1 1509- ●
154 BRACKET ASM; S/TIRE 1-53631-444-0 01 1 1509- ●
170 STUD; BRKT TO FRAME 1-87223-022-0 02 1 1509- ●
