5-16 — OIL PUMP; CAB TILT (#175067) — 13 parça

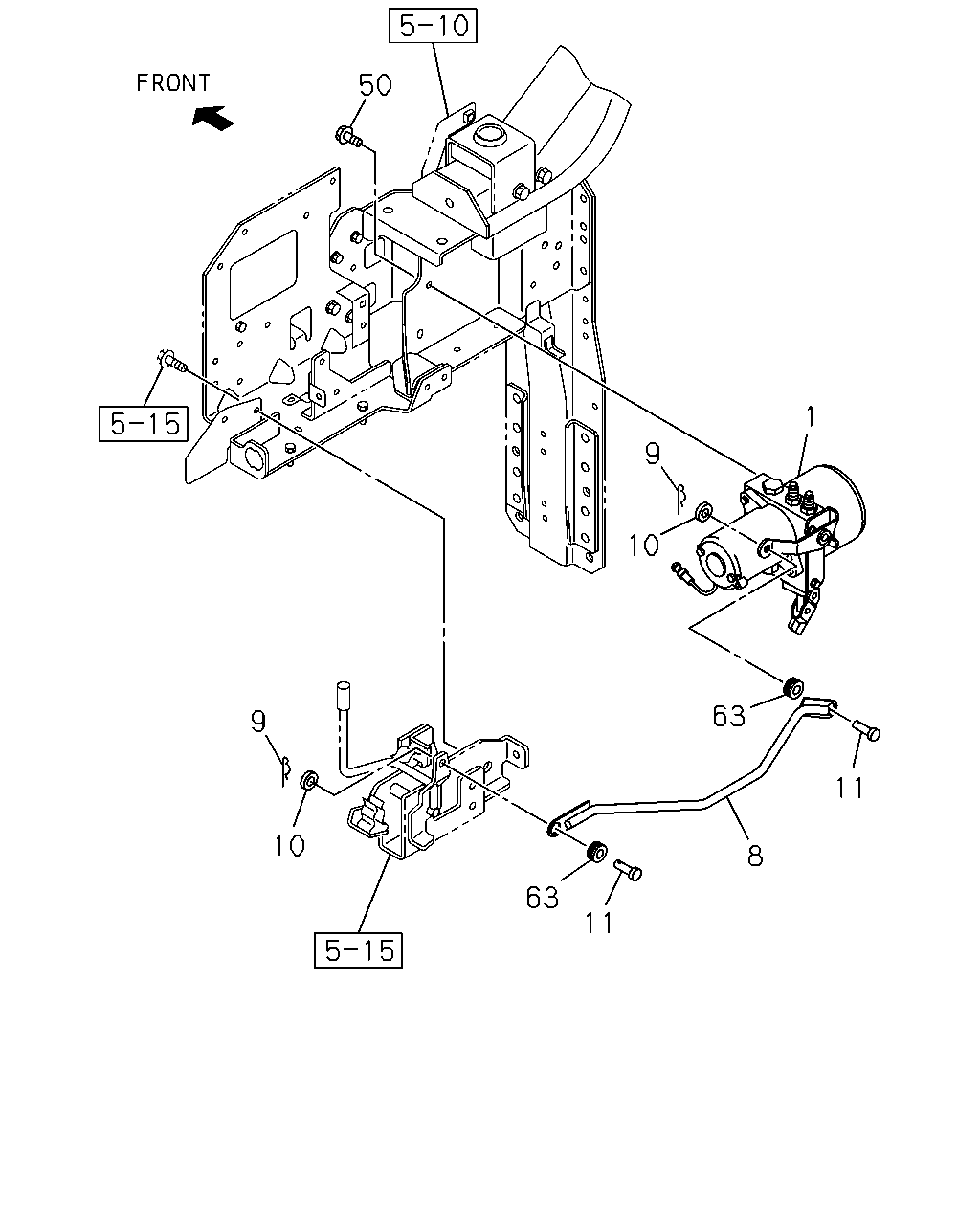

çizim 514224
50 9 1 10 63 11 8 11 63 10 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT 8-97431-815-0 01 1 1509- ● ●
8 LINK; OIL PUMP 8-98237-301-0 01 1 1509- ● ●
9 PIN; OIL PUMP
L=27.7 		1-09987-141-0 02 1 1509- ● ●
10 WASHER; OIL PUMP
ID=8.4 OD=22 		0-91610-708-0 02 1 1509- ● ●
11 PIN; SPLIT,OIL PUMP
OD=8 L=17 		0-82253-817-0 02 1 1509- ● ●
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 1509- ● ●
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 1509- ● ●

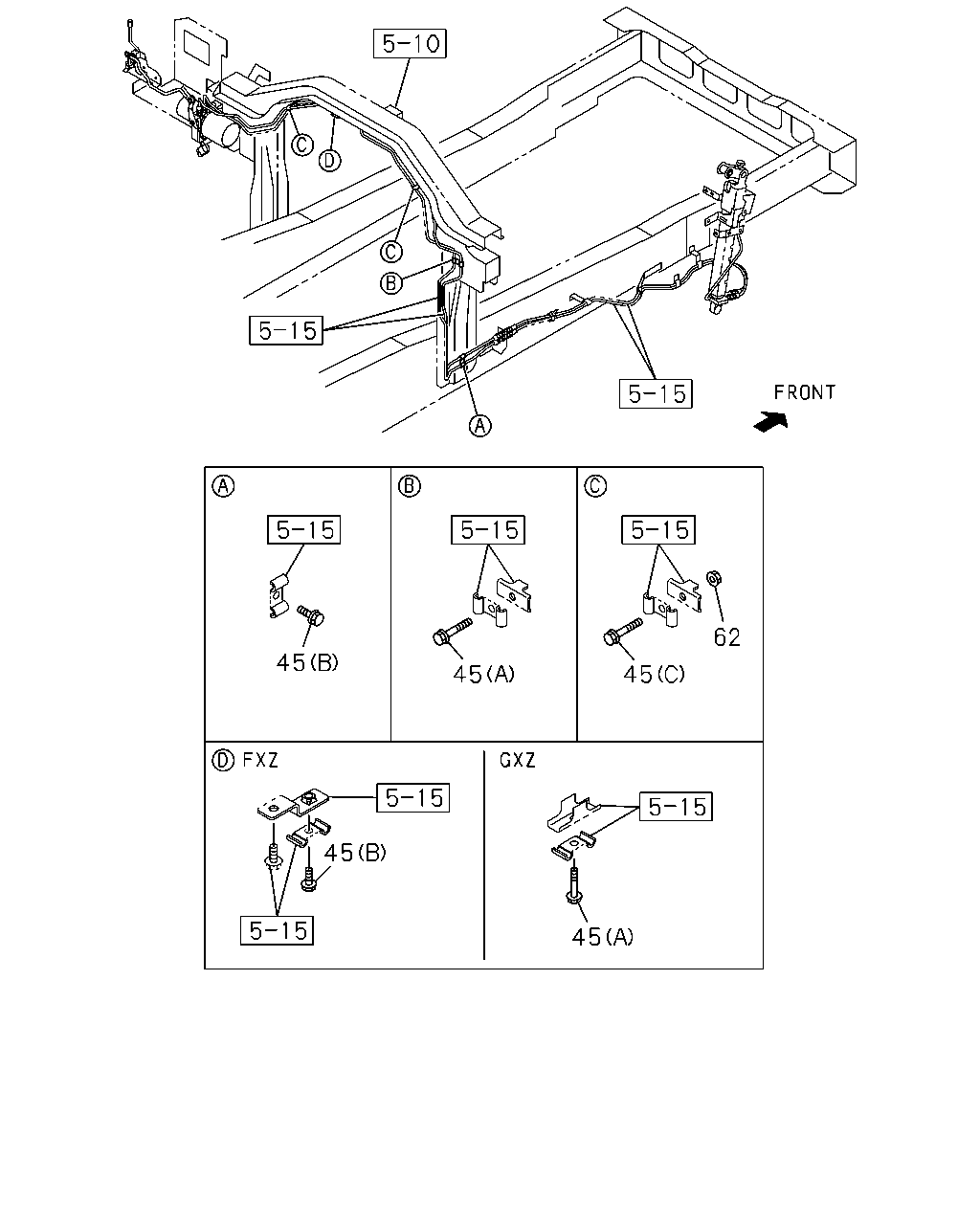

çizim 514256
45 45 45 45 62 45
BalonParca AdiParca NoAdetTipApplied Date A B
45 BOLT; COVER
(A) M8X40 FLANGE 		0-28050-840-0 01 1 1509- ●
45 BOLT; COVER
(A) M8X40 FLANGE 		0-28050-840-0 02 1 1509- ●
45 BOLT; COVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1509- ●
45 BOLT; COVER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
45 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1509- ● ●
62 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
