Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#175064) — 189 parça

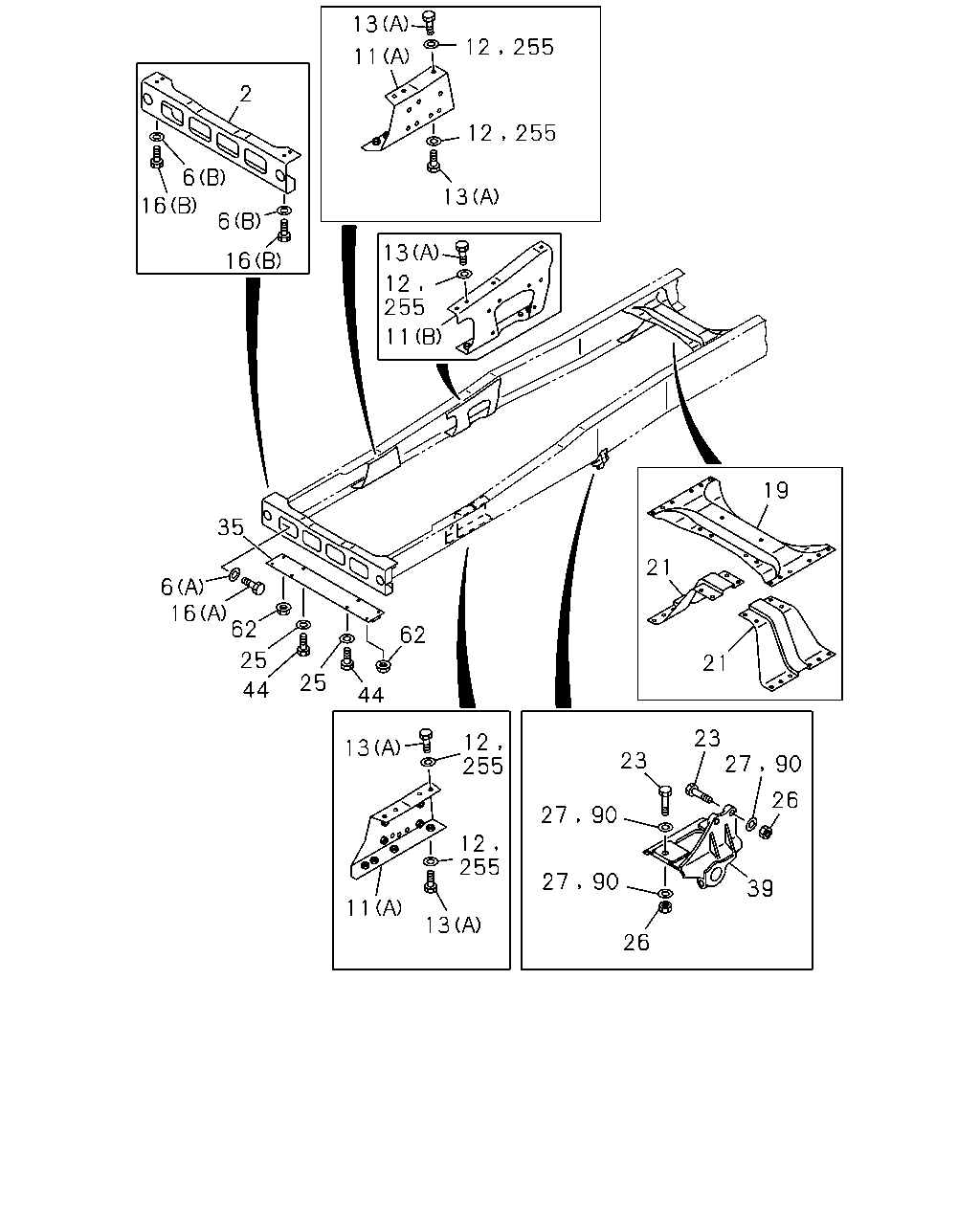

16 6 2 6 16 13 11 12 255 255 12 13 12 255 11 35 6 16 62 25 44 25 44 62 12 255 13 11 12 255 13 13 19 21 21 23 27 90 26 39 26 90 90 23 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97430-268-0	01	1	1509-	●	●
2	MEMBER; CROSS,1ST EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-97430-268-0	01	1	1509-			●
6	WASHER; LK,1ST C/MBR (B) Q10 ID=15	8-98010-627-1	04	1	1509-	●	●
6	WASHER; LK,1ST C/MBR (A) Q10 ID=17 OD=30	0-91610-516-0	08	1	1509-	●	●
6	WASHER; LK,1ST C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) Q10 ID=15	8-98010-627-1	04	1	1509-			●
6	WASHER; LK,1ST C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) Q10 ID=17 OD=30	0-91610-516-0	08	1	1509-			●
11	BRACKET; ENG MTG (A)	8-97430-277-0	01	1	1509-	●	●
11	BRACKET; ENG MTG (A)	8-97430-278-0	01	1	1509-	●	●
11	BRACKET; ENG MTG (B) Q10	8-97430-280-0	01	1	1509-	●	●
11	BRACKET; ENG MTG (B) Q10	8-97430-281-0	01	1	1509-	●	●
11	BRACKET; ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A)	8-97430-277-0	01	1	1509-			●
11	BRACKET; ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A)	8-97430-278-0	01	1	1509-			●
11	BRACKET; ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B)	8-97430-279-0	01	1	1509-			●
11	BRACKET; ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B)	8-98055-433-0	01	1	1509-			●
11	BRACKET; ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) X10	8-97431-781-0	01	1	1509-	●
11	BRACKET; ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) X10	8-97431-780-0	01	1	1509-	●
12	WASHER; PL,BRKT,ENG MTG Q10 ID=15	8-98010-627-1	09	1	1509-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	08	1	1509-	●	●
12	WASHER; PL,BRKT,ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 ID=15	8-98010-627-1	04	1	1509-	●
12	WASHER; PL,BRKT,ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 ID=15	8-98010-627-1	05	1	1509-	●
13	BOLT; BRKT,ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) X10 M14X40	0-20951-440-0	05	1	1509-	●
13	BOLT; BRKT,ENG MTG (A) X10 M14X40	0-20951-440-0	04	1	1509-	●	●	●
13	BOLT; BRKT,ENG MTG (A) Q10 M14X40	0-20951-440-0	09	1	1509-	●	●
13	BOLT; BRKT,ENG MTG (B) M14X50	0-20951-450-0	08	1	1509-	●	●
13	BOLT; BRKT,ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) M14X40	0-20951-440-0	09	1	1509-			●
13	BOLT; BRKT,ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) M14X50	0-20951-450-0	08	1	1509-			●
13	BOLT; BRKT,ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) X10 M14X40	0-20951-440-0	04	1	1509-	●
16	BOLT; 1ST C/MBR TO S/MBR (B) Q10 M14X30	0-20951-430-0	04	1	1509-	●	●
16	BOLT; 1ST C/MBR TO S/MBR (A) Q10 M16X35	0-20951-635-0	08	1	1509-	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) Q10 M14X30	0-20951-430-0	04	1	1509-			●
16	BOLT; 1ST C/MBR TO S/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) Q10 M16X35	0-20951-635-0	08	1	1509-			●
19	MEMBER; CROSS,2ND EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-98098-303-0	01	1	1509-			●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1509-	●	●
21	GUSSET; 2ND CROSS EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-98098-310-1	01	1	1509-			●
21	GUSSET; 2ND CROSS EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-98098-311-1	01	1	1509-			●
21	GUSSET; 2ND CROSS	8-98098-309-0	02	1	1509-	●	●
23	BOLT; BRKT,SPR M14X50	0-20951-450-0	08	1	1509-	●	●
23	BOLT; BRKT,SPR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14X40	0-20951-440-0	04	1	1509-			●
23	BOLT; BRKT,SPR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14X50	0-20951-450-0	04	1	1509-			●
23	BOLT; BRKT,SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 M14X50	0-20951-450-0	04	1	1509-	●
23	BOLT; BRKT,SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 M14X50	0-20951-450-0	04	1	1509-	●
25	WASHER; PL,BRKT ID=17	0-91614-516-0	04	1	1509-	●	●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	1509-	●	●
26	NUT; BRKT,SPR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14	0-91110-514-0	08	1	1509-			●
26	NUT; BRKT,SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 M14	0-91110-514-0	04	1	1509-	●
27	WASHER; LK,BRKT,FRT SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 ID=15	8-98010-627-1	06	1	1509-	●
27	WASHER; LK,BRKT,FRT SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 ID=15	8-98010-627-1	06	1	1509-	●
35	MEMBER; UNDER	8-97430-171-0	01	1	1509-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1509-	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1509-	●	●
39	BRACKET; FRT SPR,RR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-53352-179-0	01	1	1509-			●
39	BRACKET; FRT SPR,RR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-53352-180-0	01	1	1509-			●
44	BOLT; UNDER MBR M16X35	0-20951-635-0	04	1	1509-	●	●	●
62	NUT; MBR M12 FLANGE	0-91180-212-0	04	1	1509-	●	●	●
90	WASHER; PL Q10 ID=15	8-98010-627-1	12	1	1509-	●	●
90	WASHER; PL EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) ID=15	8-98010-627-1	12	1	1509-			●
255	WASHER; PL,BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) Q10 ID=15	8-98010-627-1	09	1	1509-			●
255	WASHER; PL,BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) ID=15	8-98010-627-1	08	1	1509-			●

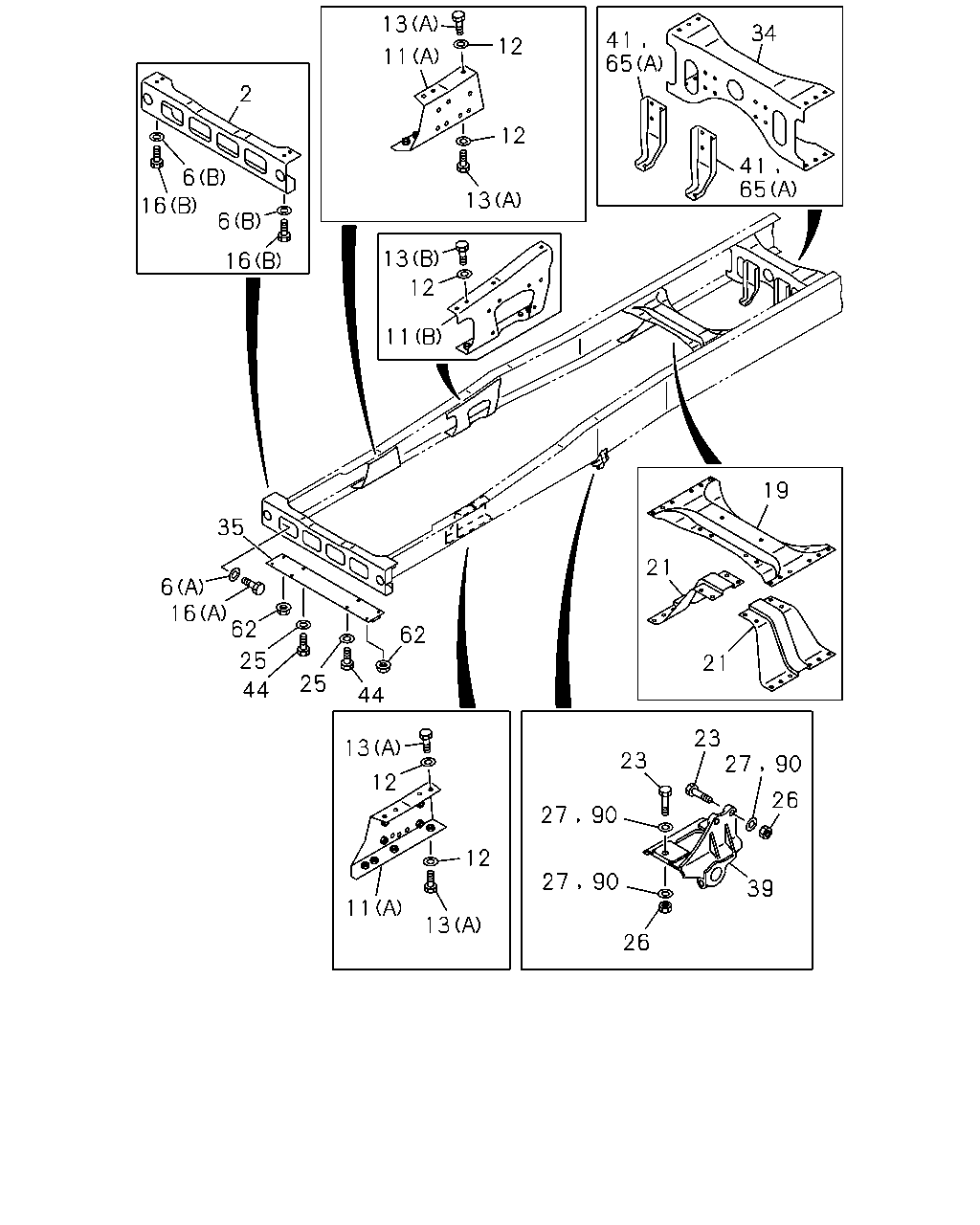

34 41 90 26 27 23 23 90 90 26 39 27 27 12 13 11 12 13 44 25 25 44 62 16 6 16 6 16 6 2 35 62 21 21 19 13 11 12 13 12 12 13 11 65 41 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97430-268-0	01	1	1509-	●	●
2	MEMBER; CROSS,1ST EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-97430-268-0	01	1	1509-			●
6	WASHER; LK,1ST C/MBR (B) Q10 ID=15	8-98010-627-1	04	1	1509-	●	●
6	WASHER; LK,1ST C/MBR (A) Q10 ID=17 OD=30	0-91610-516-0	08	1	1509-	●	●
6	WASHER; LK,1ST C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) Q10 ID=15	8-98010-627-1	04	1	1509-			●
6	WASHER; LK,1ST C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) Q10 ID=17 OD=30	0-91610-516-0	08	1	1509-			●
11	BRACKET; ENG MTG (A)	8-97430-277-0	01	1	1509-	●	●
11	BRACKET; ENG MTG (A)	8-97430-278-0	01	1	1509-	●	●
11	BRACKET; ENG MTG (B) Q10	8-97430-280-0	01	1	1509-	●	●
11	BRACKET; ENG MTG (B) Q10	8-97430-281-0	01	1	1509-	●	●
11	BRACKET; ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A)	8-97430-277-0	01	1	1509-			●
11	BRACKET; ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A)	8-97430-278-0	01	1	1509-			●
11	BRACKET; ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B)	8-97430-279-0	01	1	1509-			●
11	BRACKET; ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B)	8-98055-433-0	01	1	1509-			●
11	BRACKET; ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) X10	8-97431-781-0	01	1	1509-	●
11	BRACKET; ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) X10	8-97431-780-0	01	1	1509-	●
12	WASHER; PL,BRKT,ENG MTG Q10 ID=15	8-98010-627-1	09	1	1509-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	08	1	1509-	●	●
12	WASHER; PL,BRKT,ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 ID=15	8-98010-627-1	04	1	1509-	●
12	WASHER; PL,BRKT,ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 ID=15	8-98010-627-1	05	1	1509-	●
13	BOLT; BRKT,ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) X10 M14X40	0-20951-440-0	05	1	1509-	●
13	BOLT; BRKT,ENG MTG (A) X10 M14X40	0-20951-440-0	04	1	1509-	●	●	●
13	BOLT; BRKT,ENG MTG (A) Q10 M14X40	0-20951-440-0	09	1	1509-	●	●
13	BOLT; BRKT,ENG MTG (B) M14X50	0-20951-450-0	08	1	1509-	●	●
13	BOLT; BRKT,ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) M14X40	0-20951-440-0	09	1	1509-			●
13	BOLT; BRKT,ENG MTG EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) M14X50	0-20951-450-0	08	1	1509-			●
13	BOLT; BRKT,ENG MTG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) X10 M14X40	0-20951-440-0	04	1	1509-	●
16	BOLT; 1ST C/MBR TO S/MBR (B) Q10 M14X30	0-20951-430-0	04	1	1509-	●	●
16	BOLT; 1ST C/MBR TO S/MBR (A) Q10 M16X35	0-20951-635-0	08	1	1509-	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) Q10 M14X30	0-20951-430-0	04	1	1509-			●
16	BOLT; 1ST C/MBR TO S/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) Q10 M16X35	0-20951-635-0	08	1	1509-			●
19	MEMBER; CROSS,2ND EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-98098-303-0	01	1	1509-			●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1509-	●	●
21	GUSSET; 2ND CROSS EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-98098-310-1	01	1	1509-			●
21	GUSSET; 2ND CROSS EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-98098-311-1	01	1	1509-			●
21	GUSSET; 2ND CROSS	8-98098-309-0	02	1	1509-	●	●
23	BOLT; BRKT,SPR M14X50	0-20951-450-0	08	1	1509-	●	●
23	BOLT; BRKT,SPR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14X40	0-20951-440-0	04	1	1509-			●
23	BOLT; BRKT,SPR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14X50	0-20951-450-0	04	1	1509-			●
23	BOLT; BRKT,SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 M14X50	0-20951-450-0	04	1	1509-	●
23	BOLT; BRKT,SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 M14X50	0-20951-450-0	04	1	1509-	●
25	WASHER; PL,BRKT ID=17	0-91614-516-0	04	1	1509-	●	●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	1509-	●	●
26	NUT; BRKT,SPR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14	0-91110-514-0	08	1	1509-			●
26	NUT; BRKT,SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 M14	0-91110-514-0	04	1	1509-	●
27	WASHER; LK,BRKT,FRT SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 ID=15	8-98010-627-1	06	1	1509-	●
27	WASHER; LK,BRKT,FRT SPR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 ID=15	8-98010-627-1	06	1	1509-	●
34	MEMBER; CROSS,3RD	8-97430-269-0	01	1	1509-		●
34	MEMBER; CROSS,3RD EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10 Q8	8-97430-269-0	01	1	1509-	●
35	MEMBER; UNDER	8-97430-171-0	01	1	1509-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1509-	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1509-	●	●
39	BRACKET; FRT SPR,RR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-53352-179-0	01	1	1509-			●
39	BRACKET; FRT SPR,RR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-53352-180-0	01	1	1509-			●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97623-448-0	01	1	1509-		●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97623-448-0	01	1	1509-		●
44	BOLT; UNDER MBR M16X35	0-20951-635-0	04	1	1509-	●	●	●
62	NUT; MBR M12 FLANGE	0-91180-212-0	04	1	1509-	●	●	●
65	BRACKET; CENTER BRG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W),WHEEL BASE 5900MM(59W),WHEEL BASE 6400MM(64W) (B)	8-97614-127-0	02	1	1509-
65	BRACKET; CENTER BRG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) X10 Q8	8-97623-448-0	02	1	1509-	●
90	WASHER; PL Q10 ID=15	8-98010-627-1	12	1	1509-	●	●
90	WASHER; PL EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) ID=15	8-98010-627-1	12	1	1509-			●

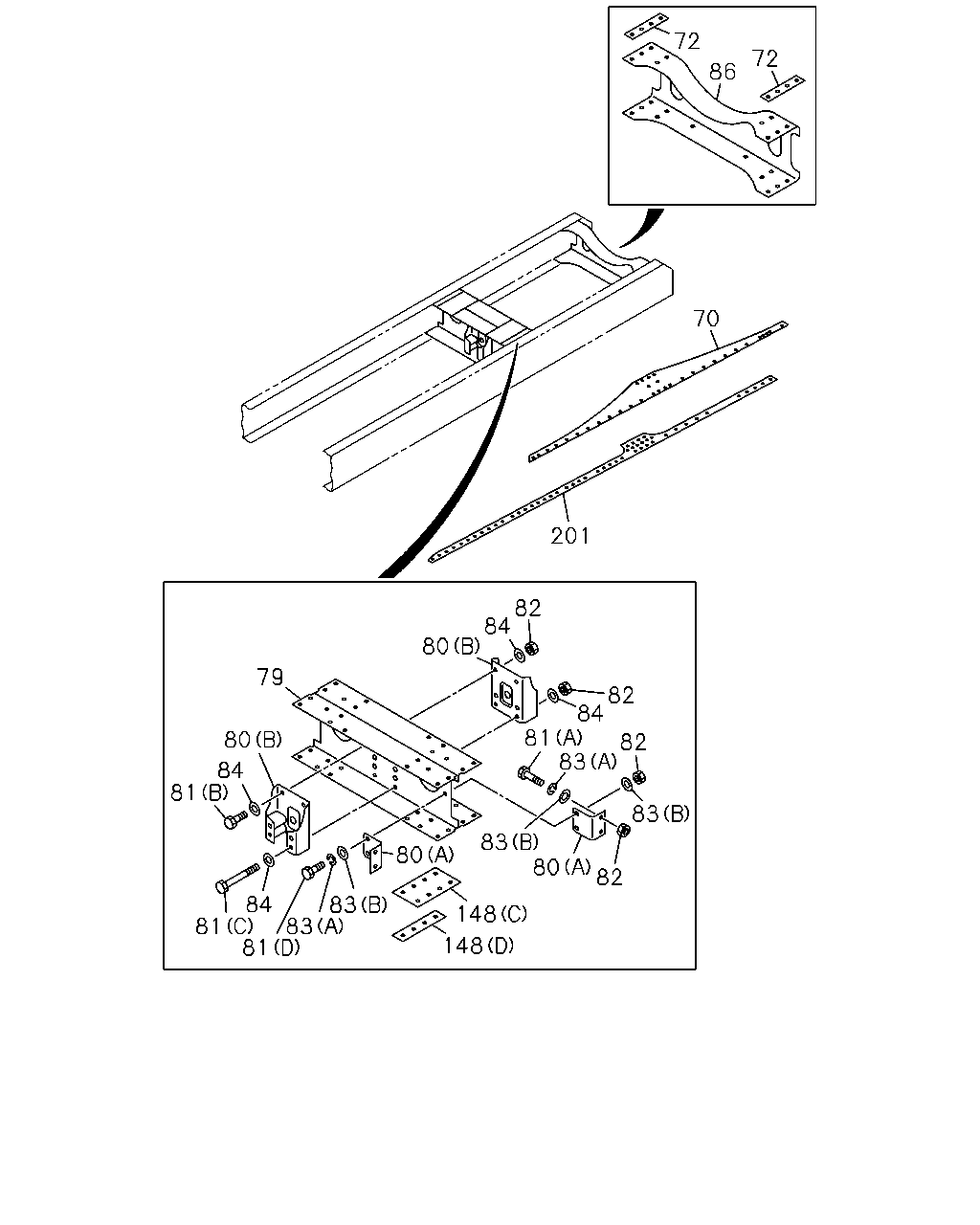

201 82 84 80 82 84 82 83 82 83 80 83 81 79 80 84 81 84 81 81 83 83 148 148 80 70 86 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
70	GUSSET; TRUNNION,UPR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-97430-882-0	02	1	1509-			●
72	SPACER; TRUNNION EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-97430-274-0	02	1	1509-			●
79	MEMBER; CROSS,TRUNNION ASM	8-97623-020-3	01	1	1509-	●	●
79	MEMBER; CROSS,TRUNNION ASM EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-53181-729-6	01	1	1509-			●
80	BRACKET; C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B)	1-53363-031-2	02	1	1509-			●
80	BRACKET; C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A)	1-53167-610-0	04	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) M14X50	0-20951-450-0	02	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (C) M14X205	1-09000-147-0	02	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) M14X40	0-20951-440-0	08	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (D) M14X55	9-91066-455-0	04	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) X10 M14X50	0-20951-450-0	02	1	1509-	●
81	BOLT; BRKT EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (C) Q10 M14X205	1-09000-147-0	02	1	1509-	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1509-	●	●
82	NUT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14	0-91110-514-0	04	1	1509-			●
82	NUT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14	0-91110-514-0	12	1	1509-			●
83	WASHER; LK,BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) ID=14.2	0-91510-614-0	12	1	1509-			●
83	WASHER; LK,BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) ID=15 OD=26	0-91614-514-0	16	1	1509-			●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1509-	●	●
84	WASHER; PL,BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) ID=15	8-98010-627-1	08	1	1509-			●
86	MEMBER; CROSS,RR SUSP RR Q10	1-53181-757-3	01	1	1509-	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W),WHEEL BASE 5900MM(59W),WHEEL BASE 6400MM(64W)	1-53181-757-3	01	1	1509-
86	MEMBER; CROSS,RR SUSP RR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-97430-270-0	01	1	1509-			●
148	SPACER; C/MBR (A)	8-97430-273-0	02	1	1509-	●	●
148	SPACER; C/MBR (B) Q10	8-97623-199-0	02	1	1509-	●	●
148	SPACER; C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (C)	8-97430-272-0	02	1	1509-			●
148	SPACER; C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (D)	8-97623-201-0	02	1	1509-			●
201	GUSSET; C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-97430-883-0	02	1	1509-			●

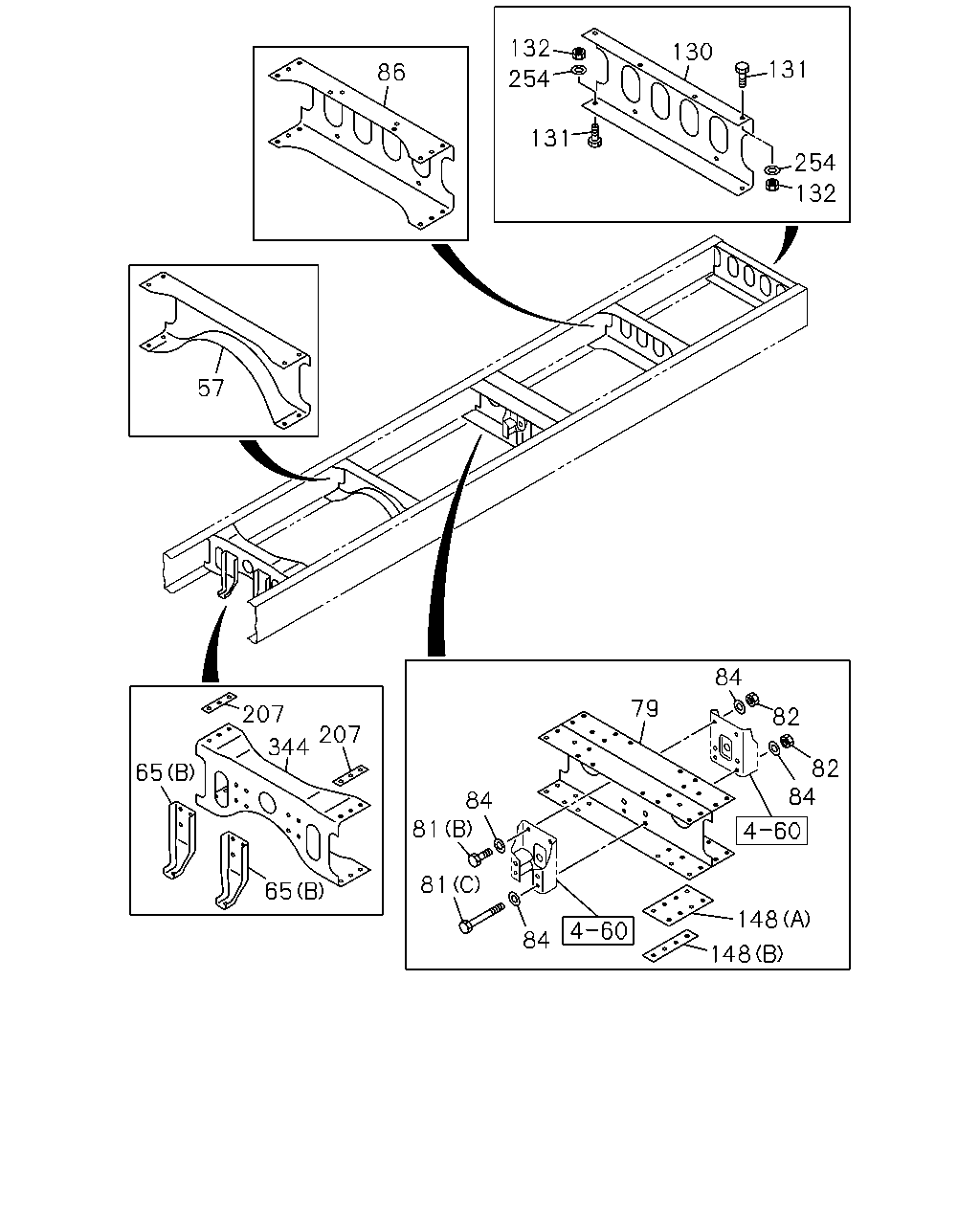

86 132 254 131 130 131 254 132 57 207 207 344 65 65 79 82 82 84 84 81 81 84 148 148 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	1509-	●	●
65	BRACKET; CENTER BRG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W),WHEEL BASE 5900MM(59W),WHEEL BASE 6400MM(64W) (B)	8-97614-127-0	02	1	1509-
65	BRACKET; CENTER BRG EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) X10 Q8	8-97623-448-0	02	1	1509-	●
79	MEMBER; CROSS,TRUNNION ASM	8-97623-020-3	01	1	1509-	●	●
79	MEMBER; CROSS,TRUNNION ASM EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-53181-729-6	01	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) M14X50	0-20951-450-0	02	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (C) M14X205	1-09000-147-0	02	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) M14X40	0-20951-440-0	08	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (D) M14X55	9-91066-455-0	04	1	1509-			●
81	BOLT; BRKT EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B) X10 M14X50	0-20951-450-0	02	1	1509-	●
81	BOLT; BRKT EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (C) Q10 M14X205	1-09000-147-0	02	1	1509-	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1509-	●	●
82	NUT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14	0-91110-514-0	04	1	1509-			●
82	NUT; BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14	0-91110-514-0	12	1	1509-			●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1509-	●	●
84	WASHER; PL,BRKT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) ID=15	8-98010-627-1	08	1	1509-			●
86	MEMBER; CROSS,RR SUSP RR Q10	1-53181-757-3	01	1	1509-	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W),WHEEL BASE 5900MM(59W),WHEEL BASE 6400MM(64W)	1-53181-757-3	01	1	1509-
86	MEMBER; CROSS,RR SUSP RR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	8-97430-270-0	01	1	1509-			●
130	MEMBER; CROSS,END Q10	8-97430-271-0	01	1	1509-	●	●
130	MEMBER; CROSS,END EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) X10	8-97431-784-0	01	1	1509-	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1509-	●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1509-	●	●
132	NUT; END C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) M14	0-91110-514-0	04	1	1509-			●
148	SPACER; C/MBR (A)	8-97430-273-0	02	1	1509-	●	●
148	SPACER; C/MBR (B) Q10	8-97623-199-0	02	1	1509-	●	●
148	SPACER; C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (C)	8-97430-272-0	02	1	1509-			●
148	SPACER; C/MBR EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (D)	8-97623-201-0	02	1	1509-			●
207	SPACER; 4TH C/MBR EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W),WHEEL BASE 5900MM(59W),WHEEL BASE 6400MM(64W)	8-98203-934-0	02	1	1509-
254	WASHER; PL,C/MBR Q10 ID=15	8-98010-627-1	04	1	1509-	●	●
344	MEMBER; CROSS,4TH EXC. WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W),WHEEL BASE 5900MM(59W),WHEEL BASE 6400MM(64W)	8-98224-577-0	01	1	1509-

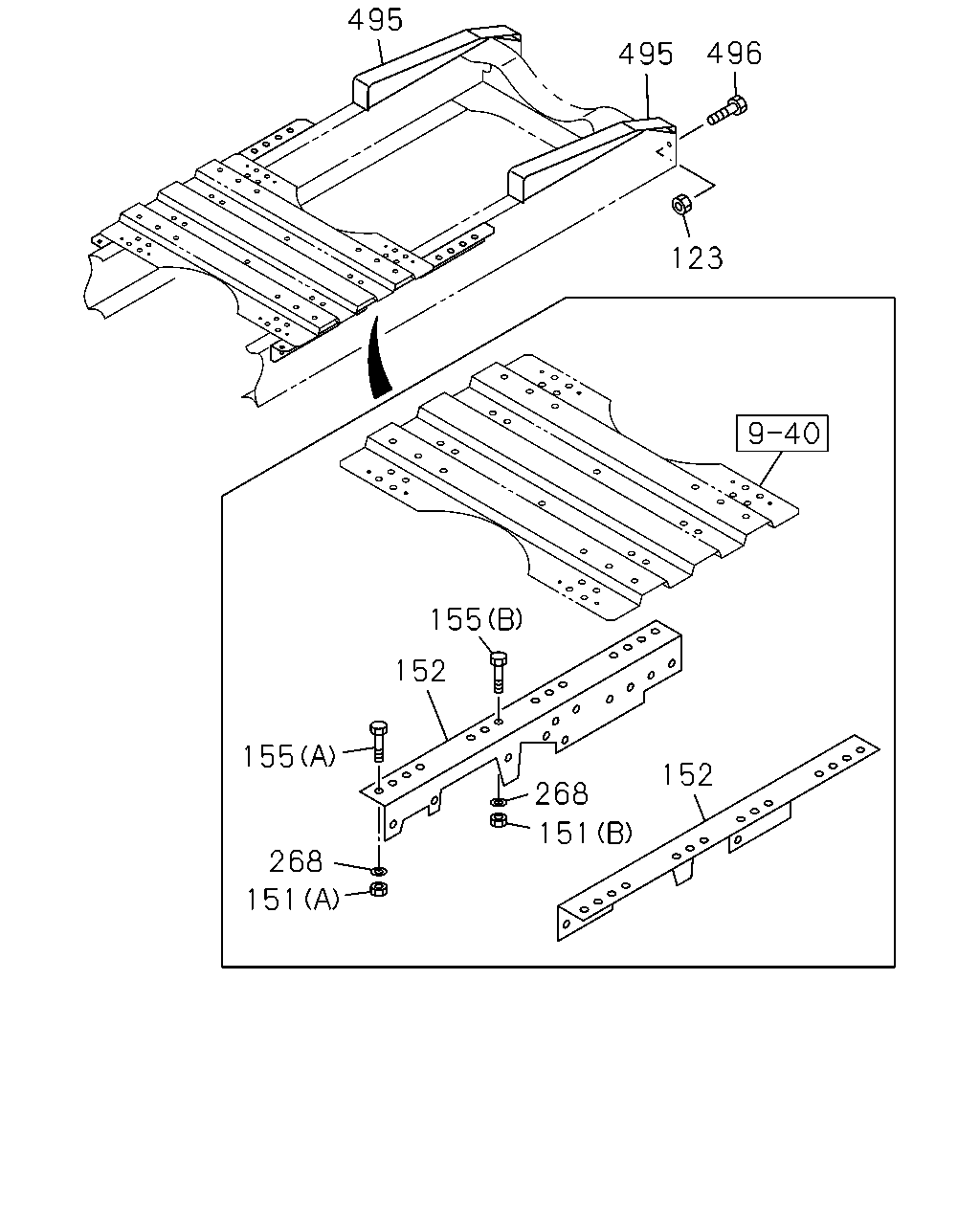

495 495 496 123 155 152 155 268 151 268 151 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
123	NUT EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-87223-647-0	06	1	1509-	●
151	NUT; OUTRIGGER EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A)	1-87223-652-0	12	1	1509-	●
151	NUT; OUTRIGGER EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B)	1-87223-653-0	22	1	1509-	●
152	OUTRIGGER EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-87223-029-0	01	1	1509-	●
152	OUTRIGGER EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-87223-030-0	01	1	1509-	●
155	BOLT; OUTRIGGER EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (A) M16X50	0-20951-650-0	12	1	1509-	●
155	BOLT; OUTRIGGER EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W) (B)	1-87223-638-0	22	1	1509-	●
268	WASHER; PL,OUTRIGGER EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-87223-655-0	12	1	1509-	●
268	WASHER; PL,OUTRIGGER EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-87223-655-0	22	1	1509-	●
495	GUIDE; COUPLER EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-87223-023-0	02	1	1509-	●
496	BOLT; GUIDE EXC. WHEEL BASE 7100MM(71W),WHEEL BASE 6400MM(64W)	1-87223-646-0	06	1	1509-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
