4-36 — POWER STEERING CONTROL; ENGINE SIDE (#175056) — 15 parça

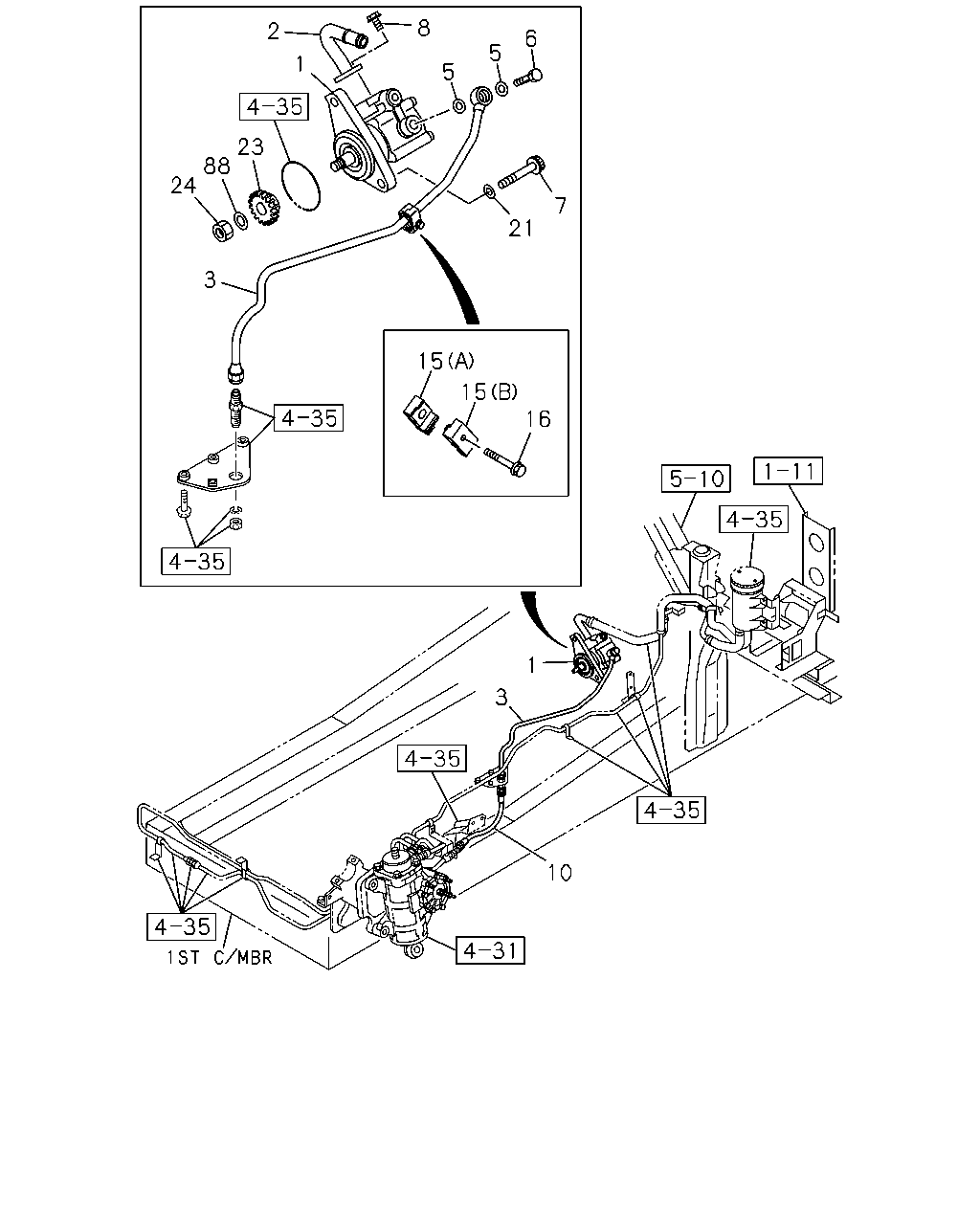

çizim 513025
8 10 1 3 21 7 16 15 15 23 88 3 24 6 5 5 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S 8-97431-991-0 01 1 1509- ● ●
2 PIPE ASM; OIL,SUCTION 8-97603-768-0 01 1 1509- ● ●
3 PIPE; OIL,CHARGE,P/S 8-98271-890-0 01 1 1509- ● ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 1509- ● ●
6 BOLT; EYE,P/S PIPE
M18X33 		1-09675-058-0 01 1 1509- ● ●
7 BOLT; OIL PUMP,P/S
M12X75 		1-09070-058-0 02 1 1509- ● ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=380 		1-09365-226-0 01 1 1509- ● ●
15 CLIP; OIL PIPE SUCTION
(B) ID=8 L=14 		8-98060-971-0 01 1 1509- ● ●
15 CLIP; OIL PIPE SUCTION
(A) ID=8 L=14 		8-98060-970-0 01 1 1509- ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X40 FLANGE 		0-28650-640-0 01 1 1509- ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 1509- ● ●
23 GEAR; OIL PUMP 8-97430-609-1 01 1 1509- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 1509- ● ●
88 WASHER; GEAR,P/S PUMP
ID=16.2 		9-09851-672-2 01 1 1509- ● ●
