◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#175049) — 37 parça

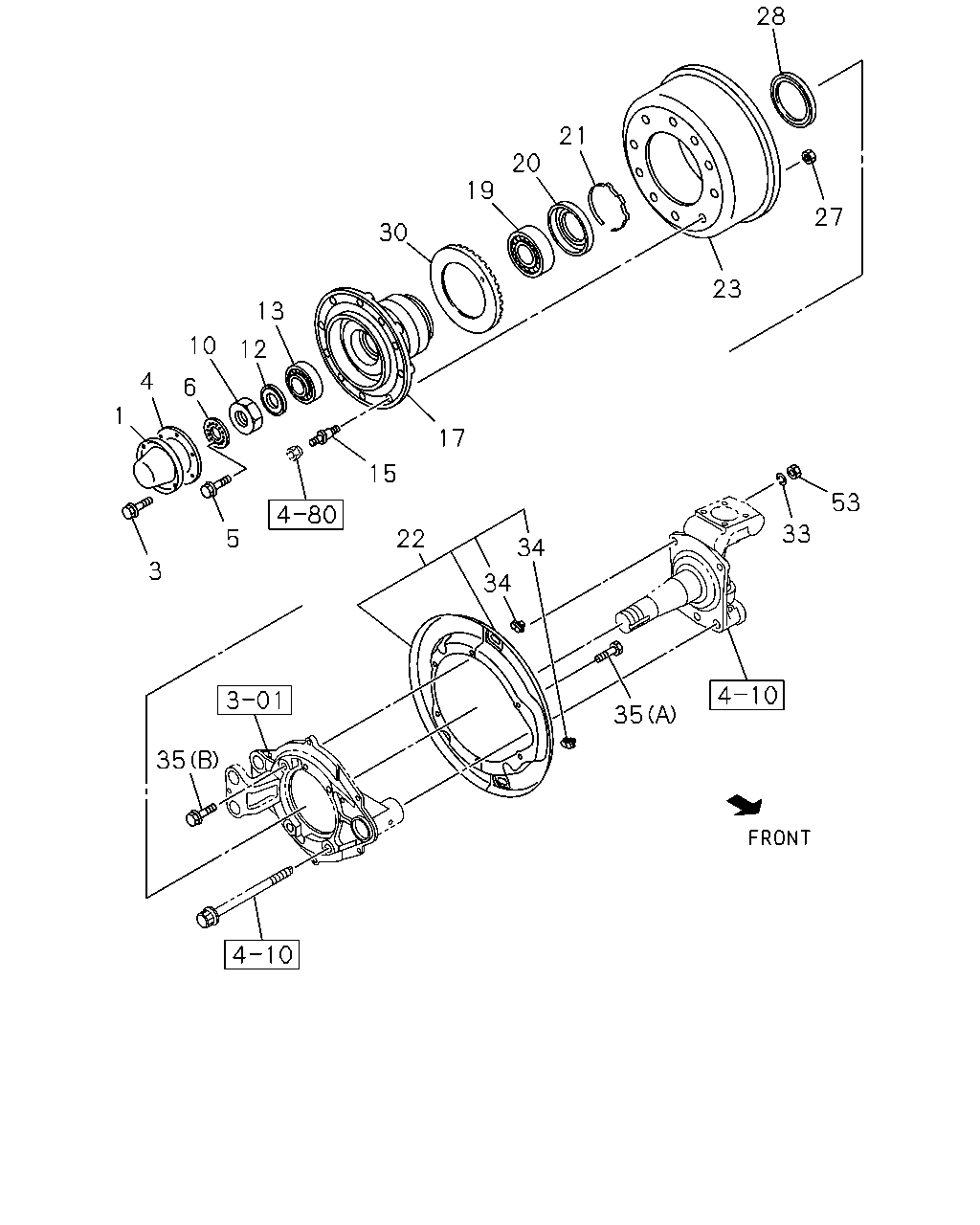

çizim 512952
21 20 19 30 13 10 6 4 3 5 15 17 22 34 34 35 35 33 53 23 27 28 12 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 1509- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 1509- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 1509- ● ●
5 BOLT; LK WASHER
Q10 M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ●
5 BOLT; LK WASHER
X10 M6X16 HEX SOCKET 		8-98200-943-0 04 1 1509- ●
6 WASHER; LK,FRT HUB
Q10 ID=48 		1-09533-012-1 02 1 1509- ● ●
6 WASHER; LK,FRT HUB
X10 ID=48 		8-98084-561-0 02 1 1509- ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 1509- ● ●
12 WASHER; LK,FRT HUB BRG
Q10 ID=48 		1-09533-016-0 02 1 1509- ● ●
12 WASHER; LK,FRT HUB BRG
X10 ID=48 		8-98156-755-0 02 1 1509- ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 1509- ● ●
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 10 1 1509- ● ●
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 10 1 1509- ● ●
17 HUB; FRT AXLE 1-42312-100-1 01 1 1509- ● ●
17 HUB; FRT AXLE 1-42312-100-1 01 1 1509- ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 1509- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 1509- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 1509- ● ●
22 COVER SET; FRT BRK DRUM
Q10 		1-47151-459-1 02 1 1509- ● ●
22 COVER SET; FRT BRK DRUM
X10 		1-47151-775-0 02 1 1509- ● ●
23 DRUM; BRK,FRT
Q10 		1-42315-380-0 01 1 1509- ● ●
23 DRUM; BRK,FRT
Q10 		1-42315-380-0 01 1 1509- ● ●
23 DRUM; BRK,FRT
X10 		1-42315-365-0 01 1 1509- ●
23 DRUM; BRK,FRT
X10 		1-42315-365-0 01 1 1509- ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 10 1 1509- ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 10 1 1509- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 1509- ● ●
30 RING; EXCITER,FRT HUB
Q10 		1-87223-003-0 01 1 1509- ● ●
30 RING; EXCITER,FRT HUB
Q10 		1-87223-003-0 01 1 1509- ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		0-91510-816-0 04 1 1509- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1509- ● ●
35 BOLT; DRUM COVER
(B) M16X59 FLANGE 		1-09044-002-2 04 1 1509- ● ●
35 BOLT; DRUM COVER
(A) Q10 M10X12 		1-47159-187-0 06 1 1509- ● ●
35 BOLT; DRUM COVER
(A) Q10 M10X12 		1-47159-187-0 06 1 1509- ● ●
35 BOLT; DRUM COVER
(A) X10 M10X12 		1-47159-187-0 06 1 1509- ●
35 BOLT; DRUM COVER
(A) X10 M10X12 		1-47159-187-0 06 1 1509- ●
53 NUT; DRUM COVER
M16 		0-91110-516-0 04 1 1509- ● ●
