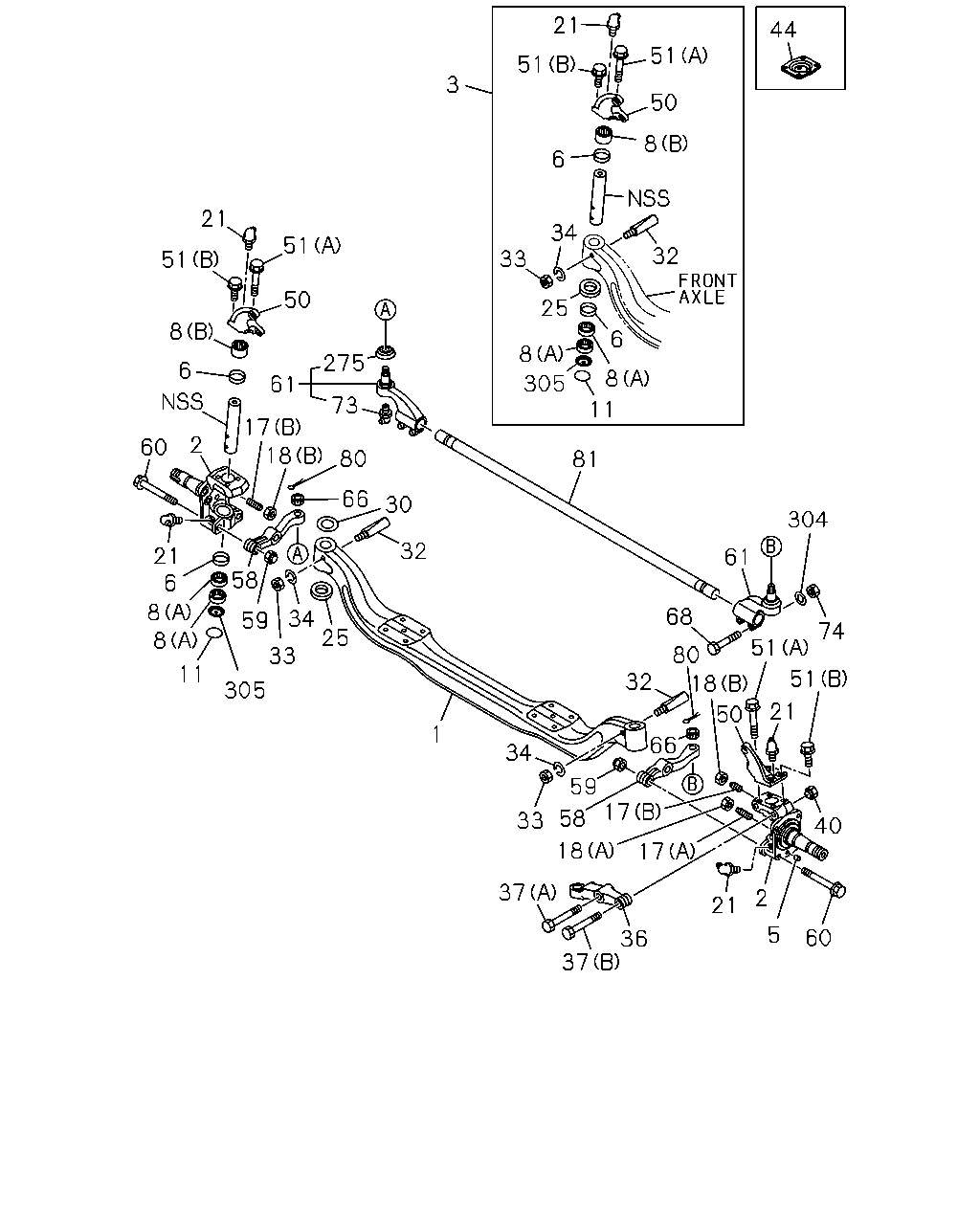

4-10 — FRONT AXLE (#175048) — 61 parça

44 21 51 3 6 34 33 25 8 305 11 8 6 32 8 50 51 81 61 304 74 51 51 21 40 60 5 2 21 17 17 18 33 58 59 66 32 50 18 80 68 36 37 37 34 25 33 305 11 59 34 32 30 66 80 18 17 73 275 50 51 61 21 51 8 6 60 2 21 8 6 8 58 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	8-98116-056-4	01	1	1509-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	1509-	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	1509-	●	●
3	KING PIN SET	1-87831-435-0	02	1	1509-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	01	1	1509-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	01	1	1509-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1509-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1509-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1509-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	1509-	●	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1509-	●	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1509-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1509-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1509-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1509-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1509-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1509-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1509-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1509-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1509-	●	●
36	ARM; KNUCKLE	8-97430-854-0	01	1	1509-	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	1509-	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	1509-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1509-	●	●
44	COVER; KING PIN	8-98100-655-0	02	1	1509-	●	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	1509-	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	1509-	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	1509-	●	●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	06	1	1509-	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	1509-	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	1509-	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1509-	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	1509-	●	●
61	ROD END; TIE ROD	8-98236-798-0	01	1	1509-	●	●
61	ROD END; TIE ROD	8-98236-799-0	01	1	1509-	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1509-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	02	1	1509-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	02	1	1509-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1509-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	02	1	1509-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	02	1	1509-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1509-	●	●
81	ROD; TIE	1-43151-121-0	01	1	1509-	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1509-	●	●
304	WASHER; PL ID=12.5	0-91614-512-0	02	1	1509-	●	●
304	WASHER; PL ID=12.5	0-91614-512-0	02	1	1509-	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	1509-	●	●
