◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#175044) — 105 parça

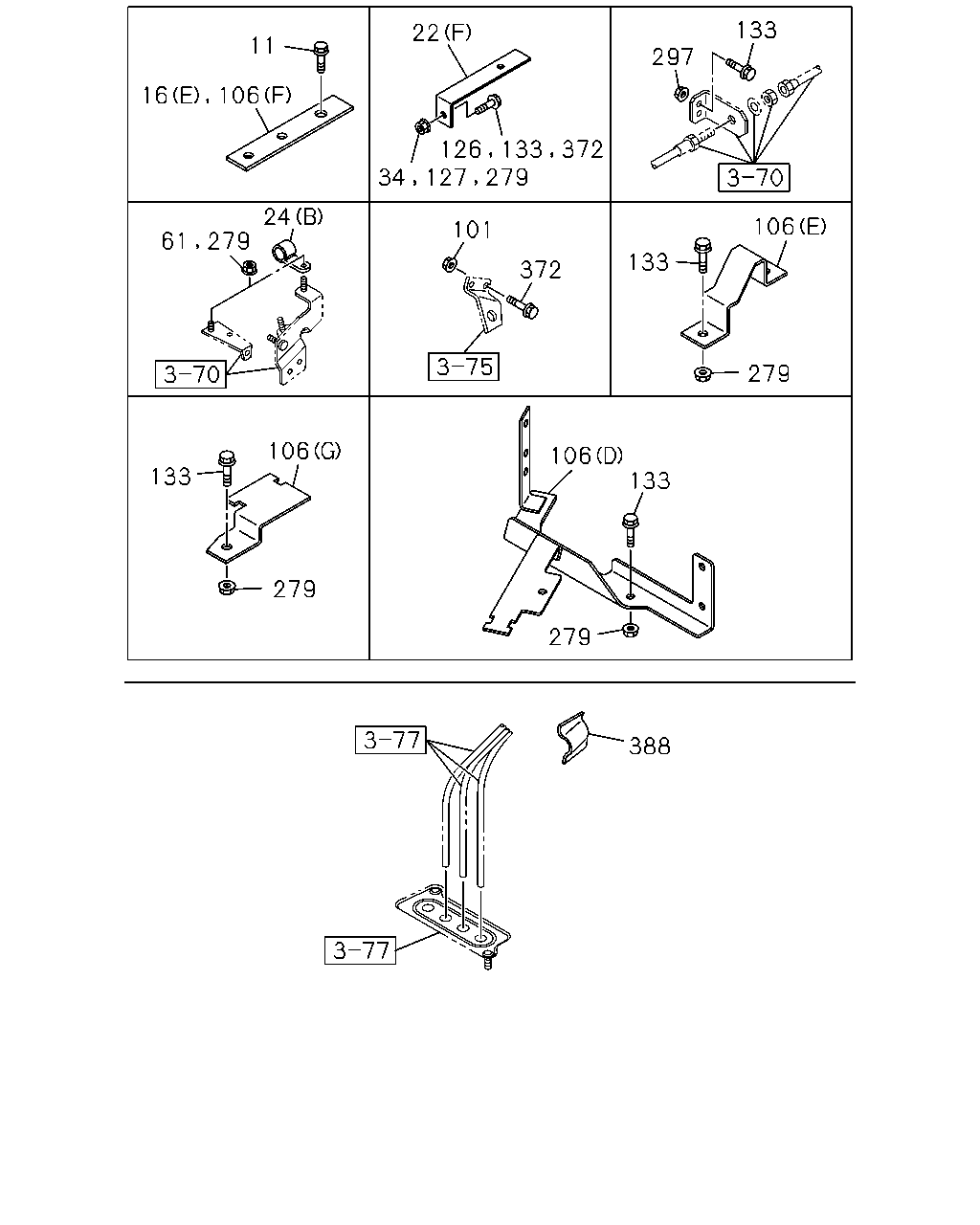

çizim 513090
11 16 106 61 279 24 133 106 279 388 279 106 133 279 133 106 133 297 372 101 279 127 34 372 133 126 22
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1509- ● ●
11 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1509- ●
11 BOLT; CLIP BRKT
X2 M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
16 BRACKET; PIPE CLIP
(A) 		8-97431-537-0 01 1 1509- ● ●
16 BRACKET; PIPE CLIP
(B) 		8-97431-538-0 01 1 1509- ● ●
16 BRACKET; PIPE CLIP
(A) 		8-97431-537-0 01 1 1509- ● ●
16 BRACKET; PIPE CLIP
(B) 		8-97431-538-0 01 1 1509- ● ●
22 BRACKET; CLIP
(E) 		1-47477-571-3 01 1 1509- ● ●
22 BRACKET; CLIP
(C) 		1-47479-554-0 02 1 1509- ● ●
22 BRACKET; CLIP
(F) L=90 		1-47477-755-1 02 1 1509- ●
22 BRACKET; CLIP
(D) X2 		1-47477-514-3 01 1 1509- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1509- ● ●
22 BRACKET; CLIP
(B) L=95 		1-82699-085-0 01 1 1509- ● ●
24 CLIP; PIPE
WHEEL BASE 5300MM(53W) ID=25 L=50 		1-09701-019-0 02 1 1509- ●
24 CLIP; PIPE
EXC. WHEEL BASE 5300MM(53W) ID=25 L=50 		1-09701-019-0 03 1 1509- ●
24 CLIP; PIPE
ID=25 L=50 		1-09701-019-0 03 1 1509- ●
24 CLIP; PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 1509- ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
61 NUT; CLIP FIX
WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 02 1 1509- ●
61 NUT; CLIP FIX
EXC. WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 03 1 1509- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1509- ●
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
106 BRACKET; TUBE CLIP
(F) L=150 		1-47471-217-0 02 1 1509- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47477-571-3 01 1 1509- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1509- ● ●
106 BRACKET; TUBE CLIP
(E) 		8-97430-375-0 01 1 1509- ● ●
106 BRACKET; TUBE CLIP
(G) 		8-97430-380-0 02 1 1509- ● ●
106 BRACKET; TUBE CLIP
(D) 		8-97430-382-0 01 1 1509- ● ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 03 1 1509- ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 01 1 1509- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1509- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 06 1 1509- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1509- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1509- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1509- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1509- ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
388 SEAL
100X40 		1-72498-022-1 04 1 1509- ● ●

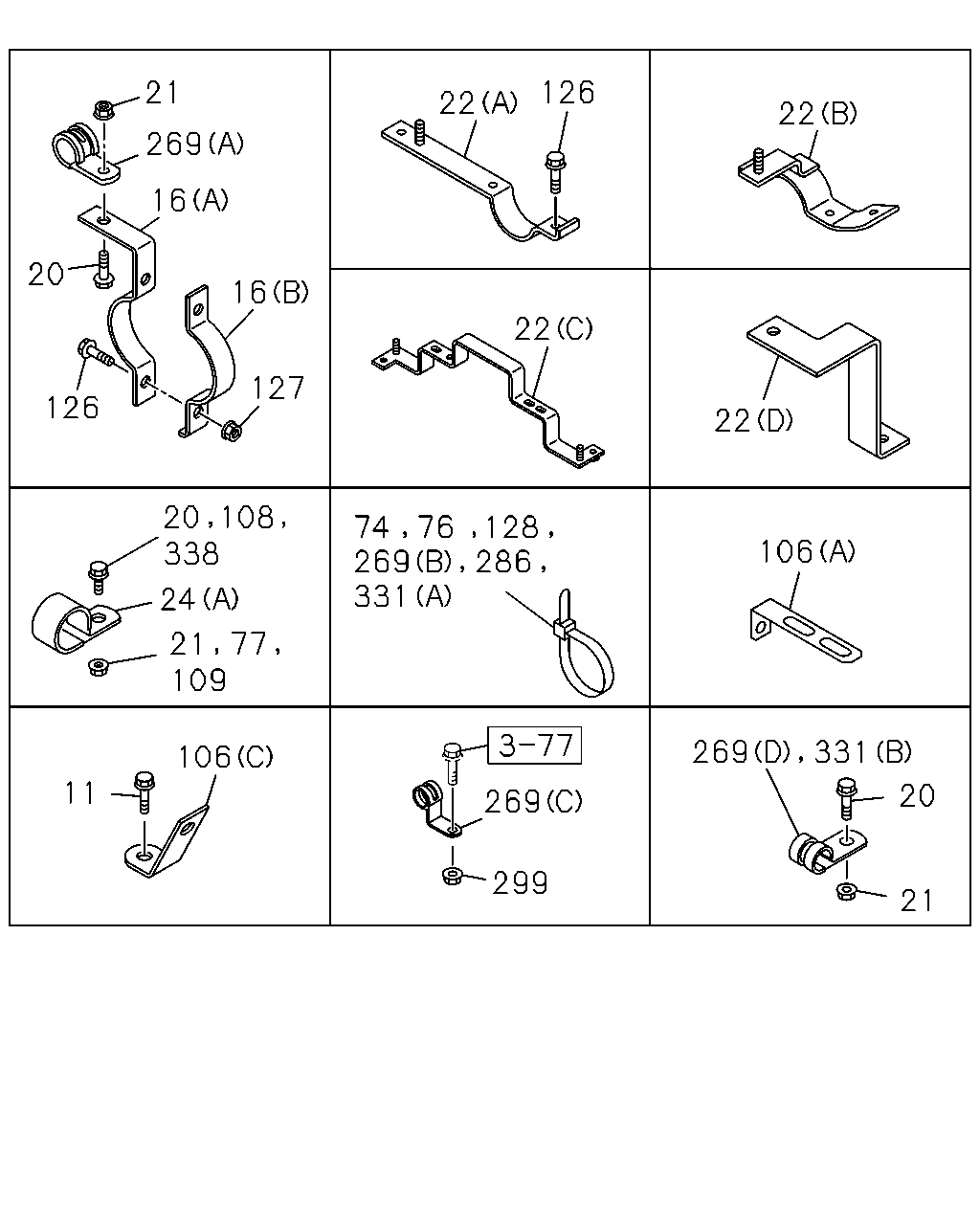

çizim 513117
21 20 126 11 106 109 21 77 24 338 20 108 74 331 269 286 128 76 269 299 269 331 20 21 106 22 22 22 126 22 127 16 16 269
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1509- ● ●
11 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1509- ●
11 BOLT; CLIP BRKT
X2 M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
16 BRACKET; PIPE CLIP
(A) 		8-97431-537-0 01 1 1509- ● ●
16 BRACKET; PIPE CLIP
(B) 		8-97431-538-0 01 1 1509- ● ●
16 BRACKET; PIPE CLIP
(A) 		8-97431-537-0 01 1 1509- ● ●
16 BRACKET; PIPE CLIP
(B) 		8-97431-538-0 01 1 1509- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
22 BRACKET; CLIP
(E) 		1-47477-571-3 01 1 1509- ● ●
22 BRACKET; CLIP
(C) 		1-47479-554-0 02 1 1509- ● ●
22 BRACKET; CLIP
(F) L=90 		1-47477-755-1 02 1 1509- ●
22 BRACKET; CLIP
(D) X2 		1-47477-514-3 01 1 1509- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1509- ● ●
22 BRACKET; CLIP
(B) L=95 		1-82699-085-0 01 1 1509- ● ●
24 CLIP; PIPE
WHEEL BASE 5300MM(53W) ID=25 L=50 		1-09701-019-0 02 1 1509- ●
24 CLIP; PIPE
EXC. WHEEL BASE 5300MM(53W) ID=25 L=50 		1-09701-019-0 03 1 1509- ●
24 CLIP; PIPE
ID=25 L=50 		1-09701-019-0 03 1 1509- ●
24 CLIP; PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 1509- ● ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1509- ● ●
76 CLIP; NYLON TUBE
L=350 		1-09707-183-0 10 1 1509- ● ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
106 BRACKET; TUBE CLIP
(F) L=150 		1-47471-217-0 02 1 1509- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47477-571-3 01 1 1509- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1509- ● ●
106 BRACKET; TUBE CLIP
(E) 		8-97430-375-0 01 1 1509- ● ●
106 BRACKET; TUBE CLIP
(G) 		8-97430-380-0 02 1 1509- ● ●
106 BRACKET; TUBE CLIP
(D) 		8-97430-382-0 01 1 1509- ● ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 03 1 1509- ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 01 1 1509- ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 22 1 1509- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) L=350 		1-09707-183-0 17 1 1509- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 19 1 1509- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 02 1 1509- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 1509- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 1509- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=24 L=27 		1-09700-809-0 02 1 1509- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=25 H=30 L=35 		1-09700-875-0 01 1 1509- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1509- ●
269 CLIP; BAND,NYLON TUBE
(B) X2 L=350 		1-09707-183-0 01 1 1509- ● ●
269 CLIP; BAND,NYLON TUBE
(D) ID=21 L=24 		8-98019-191-0 02 1 1509- ●
269 CLIP; BAND,NYLON TUBE
(B) X2 L=350 		1-09707-183-0 05 1 1509- ● ●
269 CLIP; BAND,NYLON TUBE
(B) X2 L=350 		1-09707-183-0 06 1 1509- ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
331 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 1509- ● ●
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1509- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
