3-75 — BRAKE PIPING; AIR,FRONT (#175042) — 93 parça

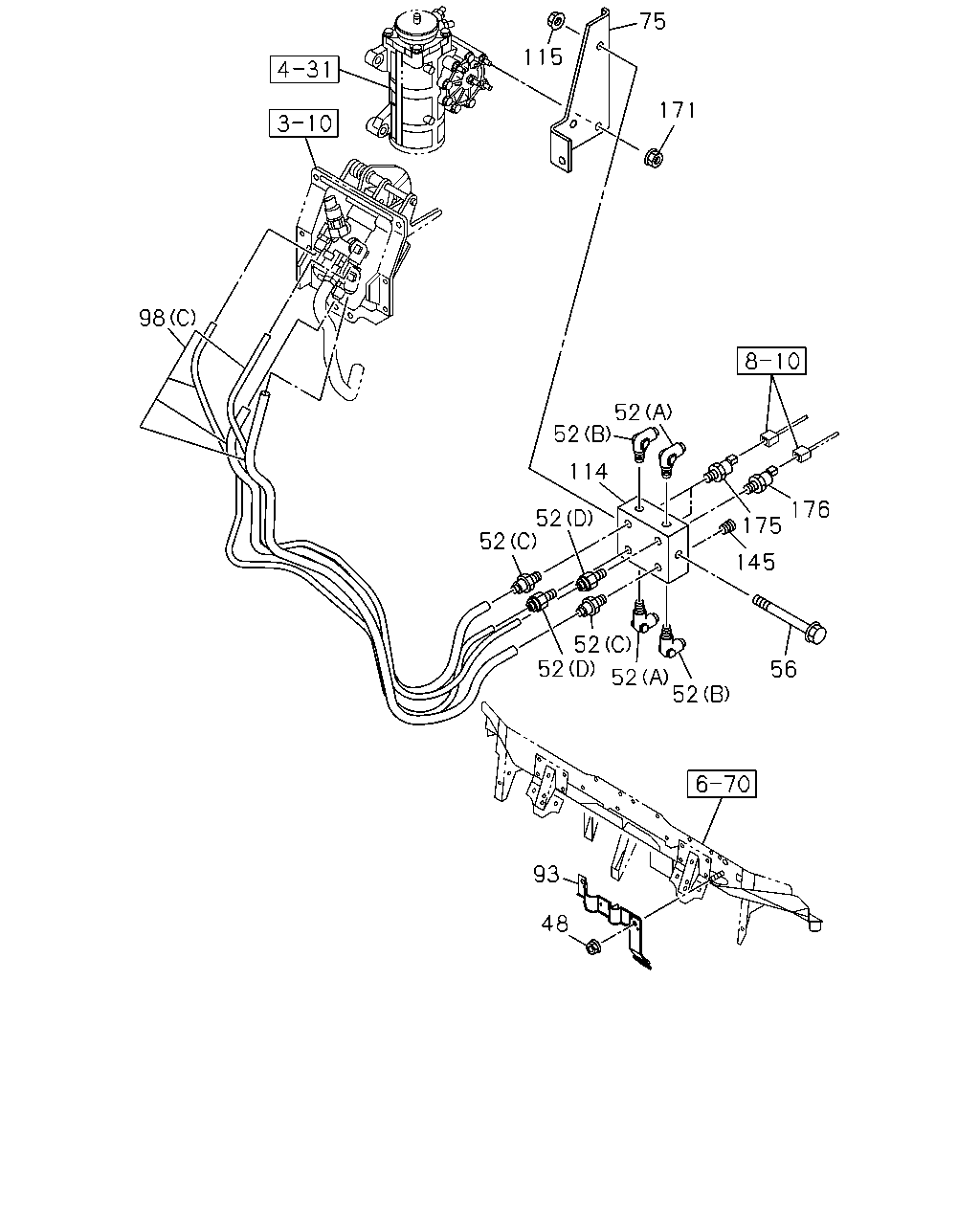

çizim 513042
98 115 75 171 52 52 52 52 114 176 175 145 52 52 52 52 56 93 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		8-97431-446-0 02 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		8-97431-400-0 02 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT 		8-97431-401-0 02 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN12 R1/4 STRAIGHT 		8-97431-451-0 02 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		8-97431-455-0 01 1 1509- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE 		0-28050-800-0 01 1 1509- ● ●
75 BRACKET; UNION 8-97430-371-0 01 1 1509- ● ●
93 BRACKET; UNION,TUBE 8-98112-515-1 01 1 1509- ● ●
98 TUBE; NYLON
(D) 		8-97431-622-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 5300MM(53W) (D) 		8-97431-606-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 5900MM(59W) (D) 		8-97431-607-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 6400MM(64W) (D) 		1-87223-531-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 7100MM(71W) (D) 		1-87223-532-0 01 1 1509- ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ●
98 TUBE; NYLON
(C) 		8-97431-605-0 01 1 1509- ● ●
98 TUBE; NYLON
(A) 		8-97431-608-0 01 1 1509- ● ●
98 TUBE; NYLON
(B) 		8-97431-609-0 01 1 1509- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 1509- ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1509- ● ●
171 NUT; BRACKET
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1509- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1509- ● ●

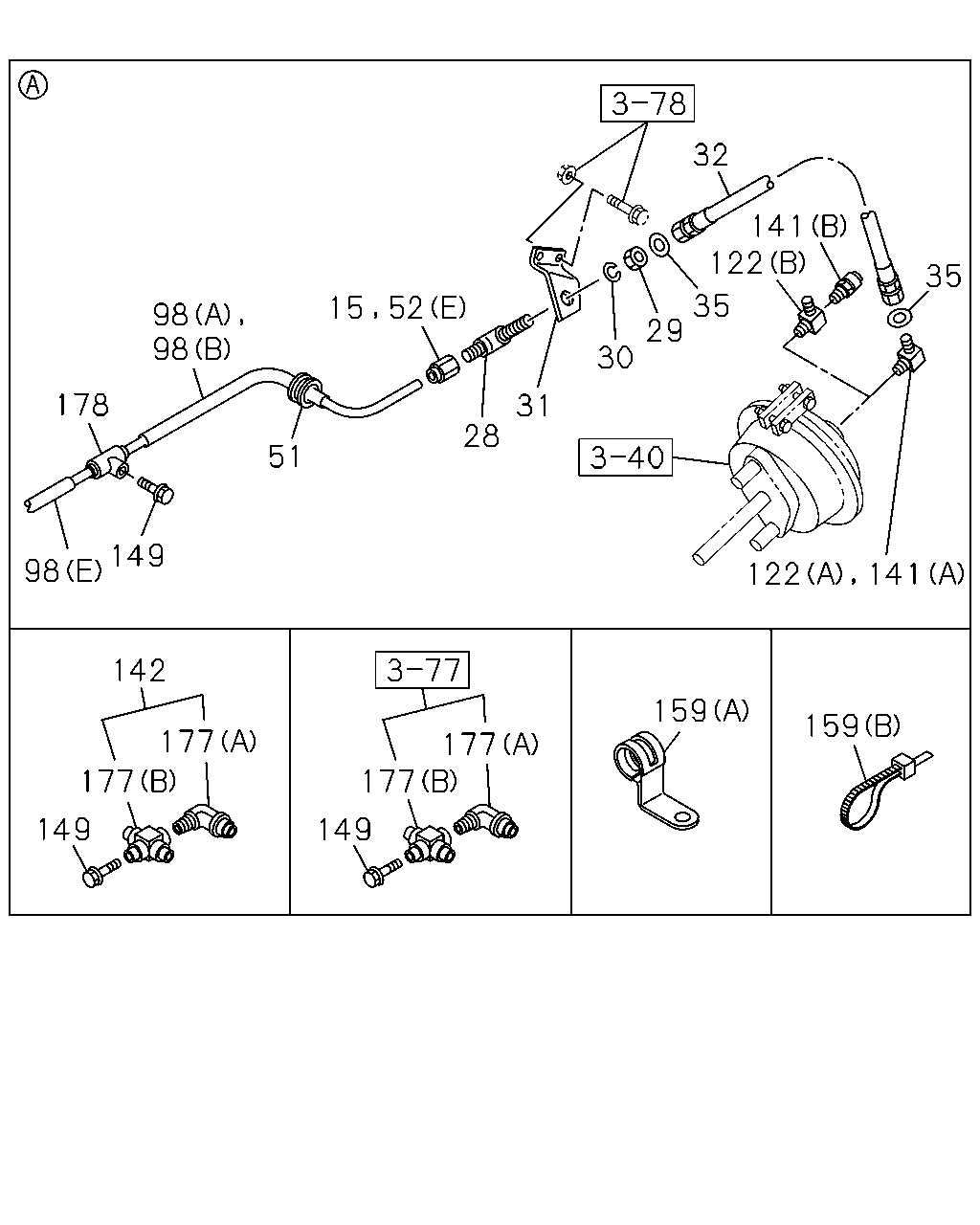

çizim 513053
15 98 178 98 149 51 28 30 31 29 35 122 141 32 52 35 122 141 159 159 177 149 177 142 177 149 177 98
BalonParca AdiParca NoAdetTipApplied Date A B
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT 		8-97431-455-0 01 1 1509- ● ●
28 NIPPLE; AIR PIPE
M20 & M20 ELBOW 		1-09654-128-1 01 1 1509- ● ●
28 NIPPLE; AIR PIPE
M20 & M20 ELBOW 		1-09654-128-1 01 1 1509- ● ●
29 NUT; NIPPLE
M20 		0-91111-520-0 01 1 1509- ● ●
29 NUT; NIPPLE
M20 		0-91111-520-0 01 1 1509- ● ●
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 01 1 1509- ● ●
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 01 1 1509- ● ●
31 BRACKET; NIPPLE 8-97430-381-0 01 1 1509- ● ●
31 BRACKET; NIPPLE 8-97430-381-0 01 1 1509- ● ●
32 HOSE; FLEX,FRT
L=500 		0-57847-500-1 01 1 1509- ● ●
32 HOSE; FLEX,FRT
L=500 		0-57847-500-1 01 1 1509- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 1509- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 1509- ● ●
51 GROMMET; NYLON TUBE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1509- ● ●
51 GROMMET; NYLON TUBE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		8-97431-446-0 02 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		8-97431-400-0 02 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT 		8-97431-401-0 02 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN12 R1/4 STRAIGHT 		8-97431-451-0 02 1 1509- ● ●
52 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		8-97431-455-0 01 1 1509- ● ●
98 TUBE; NYLON
(D) 		8-97431-622-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 5300MM(53W) (D) 		8-97431-606-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 5900MM(59W) (D) 		8-97431-607-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 6400MM(64W) (D) 		1-87223-531-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 7100MM(71W) (D) 		1-87223-532-0 01 1 1509- ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ●
98 TUBE; NYLON
(C) 		8-97431-605-0 01 1 1509- ● ●
98 TUBE; NYLON
(A) 		8-97431-608-0 01 1 1509- ● ●
98 TUBE; NYLON
(B) 		8-97431-609-0 01 1 1509- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ● ●
122 CONNECTOR; FLEX HOSE
(A) X10 M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 1509- ●
122 CONNECTOR; FLEX HOSE
(B) X10 		1-09661-592-0 01 1 1509- ●
141 CONNECTOR; TEST
(A) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 1509- ● ●
141 CONNECTOR; TEST
(A) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 1509- ● ●
141 CONNECTOR; TEST
(B) X10 R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1509- ●
142 UNION; 3-WAY 8-97431-677-0 01 1 1509- ●
149 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1509- ●
149 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
149 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1509- ● ●
159 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 02 1 1509- ● ●
159 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 18 1 1509- ●
159 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 28 1 1509- ●
159 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 29 1 1509- ●
177 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1509- ●
177 CONNECTOR
(B) 		8-97431-670-0 01 1 1509- ●
177 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1509- ●
177 CONNECTOR
(B) 		8-97431-670-0 01 1 1509- ●
178 UNION 8-97431-456-0 01 1 1509- ● ●
178 UNION 8-97431-456-0 01 1 1509- ● ●

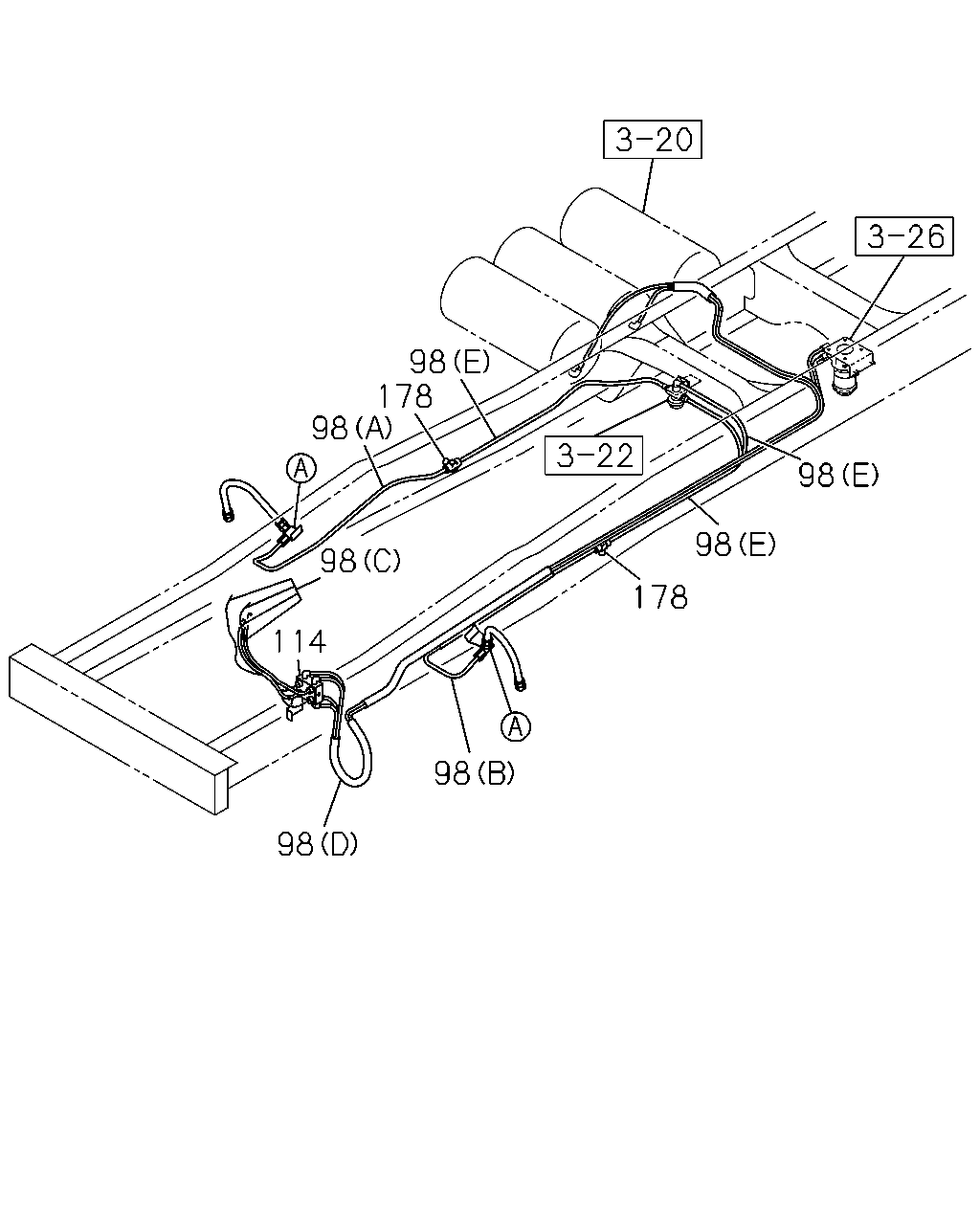

çizim 513268
98 98 178 98 98 98 98 114 178 98
BalonParca AdiParca NoAdetTipApplied Date A B
98 TUBE; NYLON
(D) 		8-97431-622-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 5300MM(53W) (D) 		8-97431-606-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 5900MM(59W) (D) 		8-97431-607-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 6400MM(64W) (D) 		1-87223-531-0 01 1 1509- ●
98 TUBE; NYLON
WHEEL BASE 7100MM(71W) (D) 		1-87223-532-0 01 1 1509- ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ●
98 TUBE; NYLON
(C) 		8-97431-605-0 01 1 1509- ● ●
98 TUBE; NYLON
(A) 		8-97431-608-0 01 1 1509- ● ●
98 TUBE; NYLON
(B) 		8-97431-609-0 01 1 1509- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1509- ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 1509- ● ●
178 UNION 8-97431-456-0 01 1 1509- ● ●
178 UNION 8-97431-456-0 01 1 1509- ● ●
