3-70 — BRAKE PIPING; AIR,AIR MASTER (#175041) — 91 parça
çizim 512715

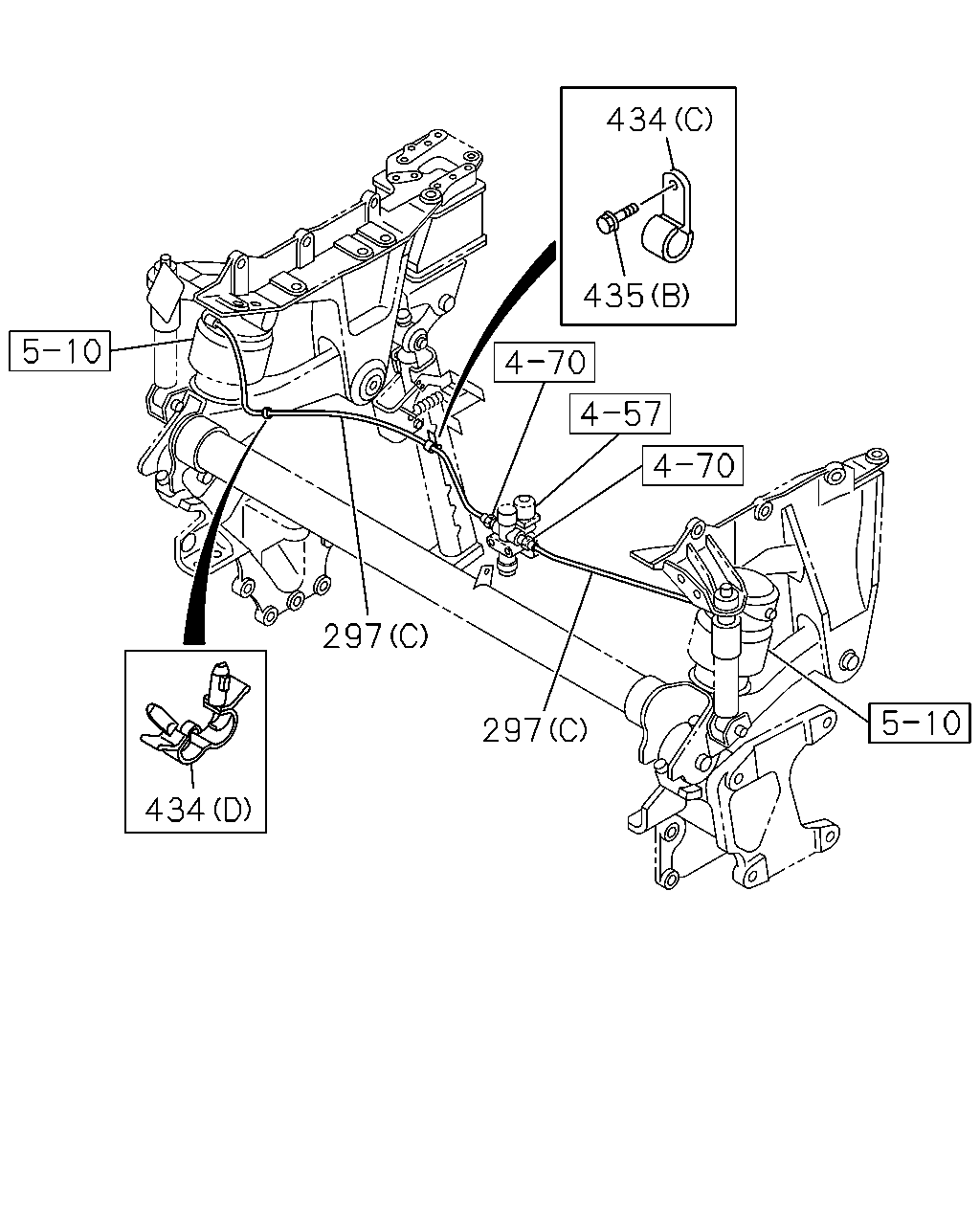

434 297 297 434 435
BalonParca AdiParca NoAdetTipApplied Date A B
297 TUBE; NYLON
(A) 		8-97431-540-0 01 1 1509- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1509- ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1509- ●
297 TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1509- ● ●
297 TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1509- ● ●
434 CLIP
(B) L=350 		1-09707-183-0 02 1 1509- ● ●
434 CLIP
(A) ID=18 L=28 		1-09701-067-0 01 1 1509- ● ●
434 CLIP
(C) X2 ID=7 L=16 		0-95234-622-0 01 1 1509- ● ●
434 CLIP
(D) X2 		1-09987-161-0 01 1 1509- ● ●
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
435 BOLT; CLIP
(B) X2 M6X16 FLANGE 		0-28650-616-0 01 1 1509- ● ●
çizim 512717

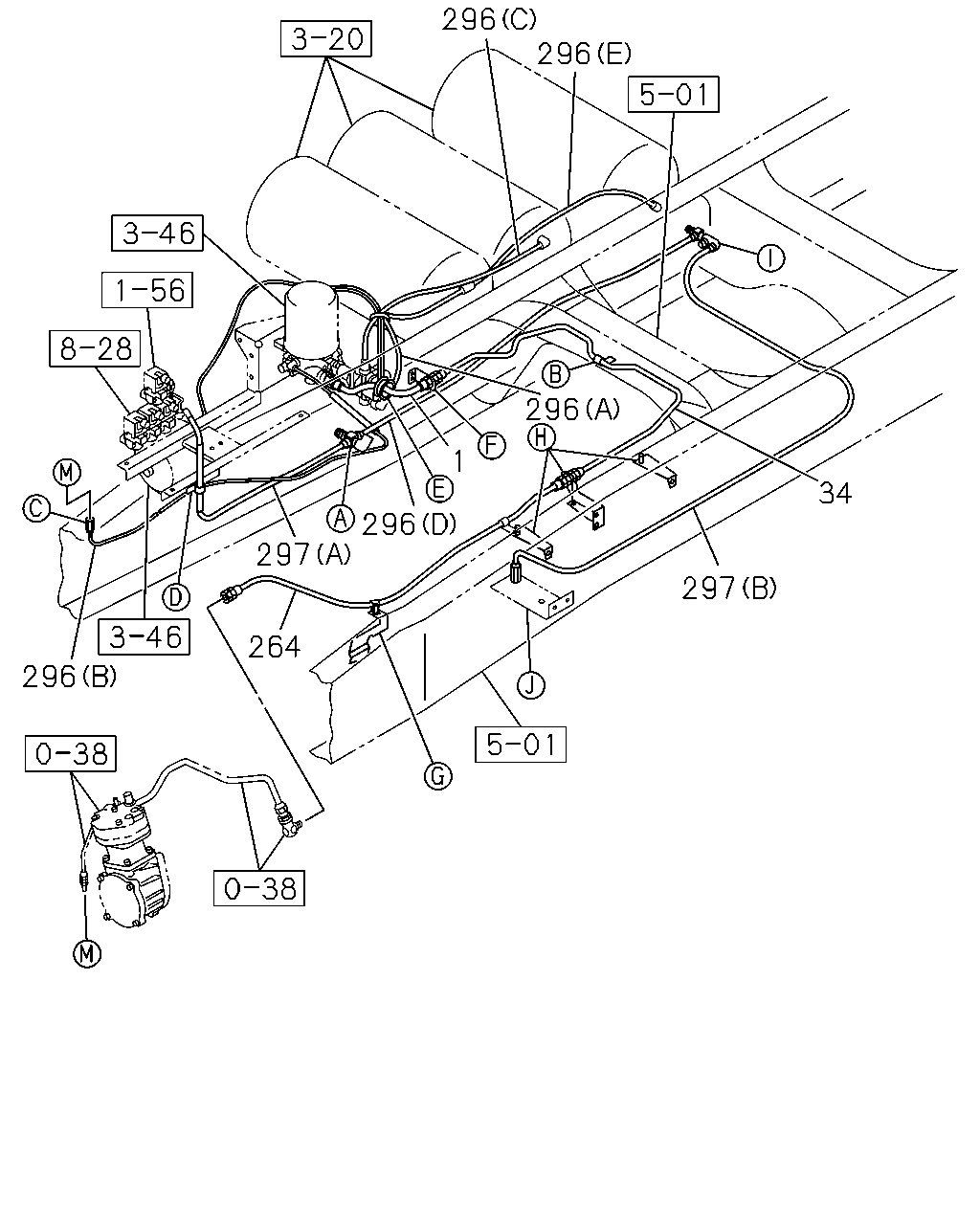

296 296 297 264 297 34 296 296 296 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97431-507-0 01 1 1509- ● ●
34 PIPE; AIR 8-97431-647-0 01 1 1509- ●
34 PIPE; AIR 8-97431-505-0 01 1 1509- ●
264 HOSE; FLEX
EXC. WHEEL BASE 5300MM(53W) L=1176 		8-97431-586-0 01 1 1509- ●
264 HOSE; FLEX
L=1176 		8-97431-586-0 01 1 1509- ●
264 HOSE; FLEX
WHEEL BASE 5300MM(53W) L=1026 		8-97431-587-0 01 1 1509- ●
296 TUBE; NYLON
(A) 		8-97431-509-0 01 1 1509- ●
296 TUBE; NYLON
(A) 		8-97431-676-0 01 1 1509- ●
296 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 1509- ●
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 1509- ● ●
296 TUBE; NYLON
(B) 		8-97431-582-0 01 1 1509- ● ●
296 TUBE; NYLON
(D) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1509- ●
296 TUBE; NYLON
(D) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1509- ●
297 TUBE; NYLON
(A) 		8-97431-540-0 01 1 1509- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1509- ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1509- ●
297 TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1509- ● ●
297 TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1509- ● ●
çizim 512718
297 229 91 91 434 255 444 107 107
BalonParca AdiParca NoAdetTipApplied Date A B
91 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1509- ● ●
91 BRACKET; TUBE CLIP
(B) 		8-97431-488-0 01 1 1509- ● ●
107 COUPLING; SERVICE
SERVICE 		8-97431-422-0 01 1 1509- ●
107 COUPLING; SERVICE
EMERGENCY 		8-97431-421-0 01 1 1509- ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		8-97431-585-0 01 1 1509- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		8-97431-454-0 01 1 1509- ● ●
255 UNION; NYLON TUBE
(A) 		8-97431-597-0 01 1 1509- ● ●
255 UNION; NYLON TUBE
(B) Q2 		8-97431-545-0 01 1 1509- ● ●
255 UNION; NYLON TUBE
(C) X2 		8-97431-693-0 01 1 1509- ● ●
297 TUBE; NYLON
(A) 		8-97431-540-0 01 1 1509- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1509- ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1509- ●
297 TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1509- ● ●
297 TUBE; NYLON
(C) X2 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1509- ● ●
434 CLIP
(B) L=350 		1-09707-183-0 02 1 1509- ● ●
434 CLIP
(A) ID=18 L=28 		1-09701-067-0 01 1 1509- ● ●
434 CLIP
(C) X2 ID=7 L=16 		0-95234-622-0 01 1 1509- ● ●
434 CLIP
(D) X2 		1-09987-161-0 01 1 1509- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
çizim 513044

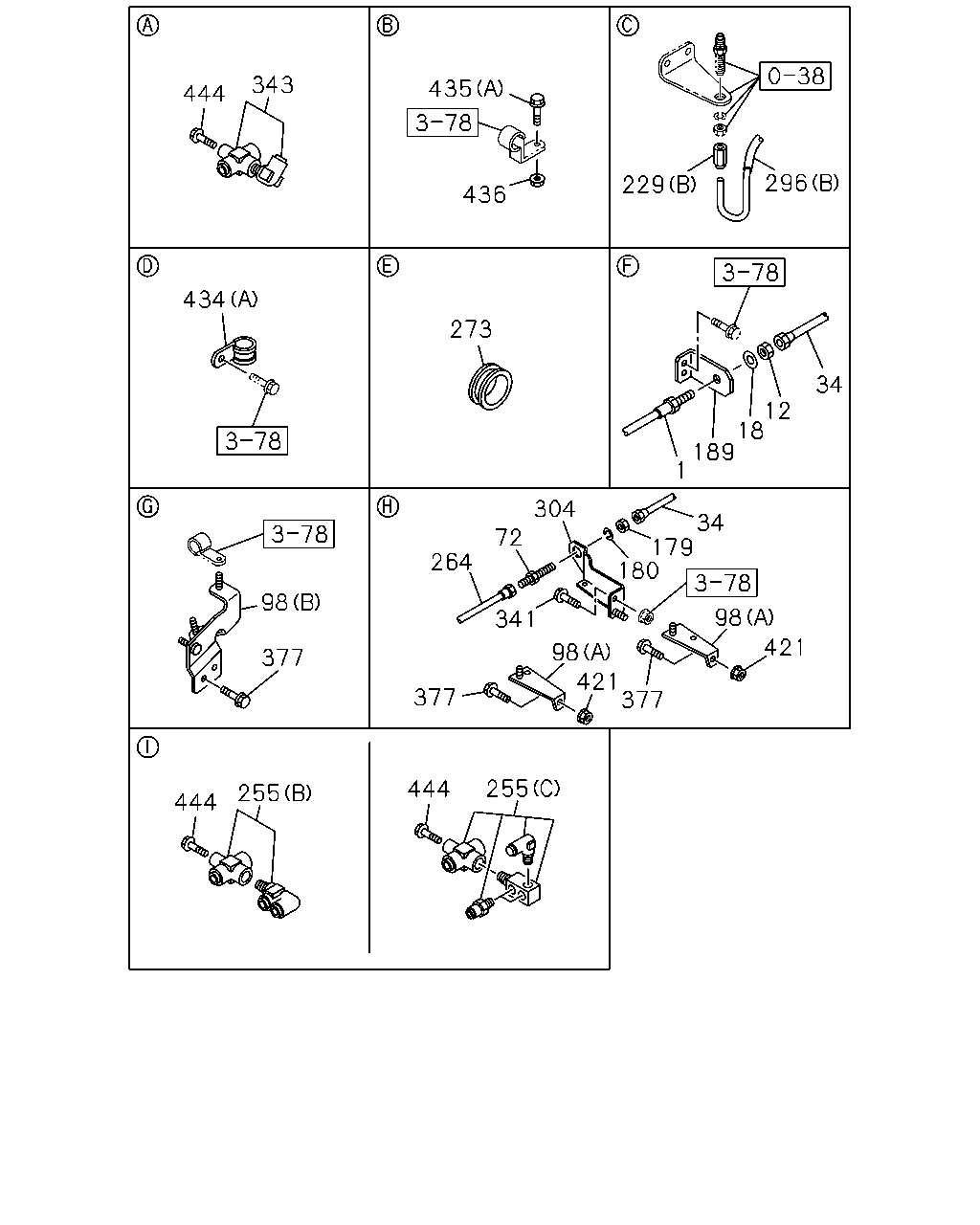

444 343 435 436 229 296 434 273 1 189 18 12 34 98 377 304 72 264 377 341 180 179 34 98 421 377 421 98 255 444 255 444
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97431-507-0 01 1 1509- ● ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 1509- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1509- ● ●
34 PIPE; AIR 8-97431-647-0 01 1 1509- ●
34 PIPE; AIR 8-97431-505-0 01 1 1509- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1509- ● ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 1509- ● ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 1509- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1509- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1509- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 1509- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		8-97431-585-0 01 1 1509- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		8-97431-454-0 01 1 1509- ● ●
255 UNION; NYLON TUBE
(A) 		8-97431-597-0 01 1 1509- ● ●
255 UNION; NYLON TUBE
(B) Q2 		8-97431-545-0 01 1 1509- ● ●
255 UNION; NYLON TUBE
(C) X2 		8-97431-693-0 01 1 1509- ● ●
264 HOSE; FLEX
EXC. WHEEL BASE 5300MM(53W) L=1176 		8-97431-586-0 01 1 1509- ●
264 HOSE; FLEX
L=1176 		8-97431-586-0 01 1 1509- ●
264 HOSE; FLEX
WHEEL BASE 5300MM(53W) L=1026 		8-97431-587-0 01 1 1509- ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1509- ● ●
296 TUBE; NYLON
(A) 		8-97431-509-0 01 1 1509- ●
296 TUBE; NYLON
(A) 		8-97431-676-0 01 1 1509- ●
296 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 1509- ●
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 1509- ● ●
296 TUBE; NYLON
(B) 		8-97431-582-0 01 1 1509- ● ●
296 TUBE; NYLON
(D) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1509- ●
296 TUBE; NYLON
(D) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1509- ●
304 BRACKET; UNION 8-97610-362-1 01 1 1509- ● ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1509- ● ●
343 UNION; NYLON TUBE 8-97431-544-0 01 1 1509- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 1509- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
434 CLIP
(B) L=350 		1-09707-183-0 02 1 1509- ● ●
434 CLIP
(A) ID=18 L=28 		1-09701-067-0 01 1 1509- ● ●
434 CLIP
(C) X2 ID=7 L=16 		0-95234-622-0 01 1 1509- ● ●
434 CLIP
(D) X2 		1-09987-161-0 01 1 1509- ● ●
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
435 BOLT; CLIP
(B) X2 M6X16 FLANGE 		0-28650-616-0 01 1 1509- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
