◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11662 - FXZ/GXZ LHD CHINA ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#175036) — 14 parça

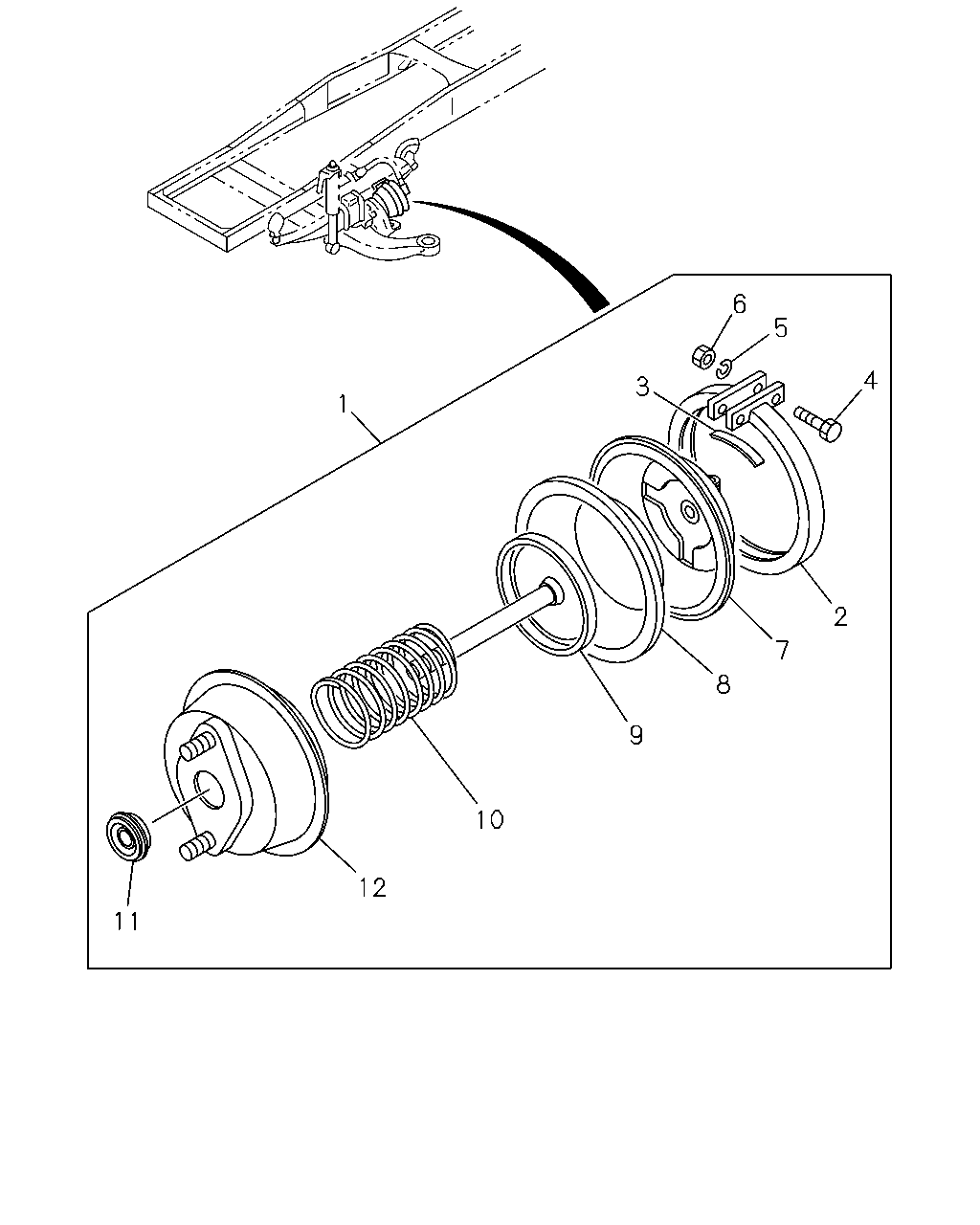

çizim 512946
1 11 12 10 9 7 8 2 4 5 6 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
Q10 		5-15101-006-2 01 1 1509- ● ●
1 CHAMBER ASM; POWER,FRT BRK
Q10 		5-15101-006-2 01 1 1509- ● ●
1 CHAMBER ASM; POWER,FRT BRK
X10 		1-48250-524-0 02 1 1509- ●
2 RING; CLAMP,SPR CHAMBER
X10 		1-48259-001-0 02 1 1509- ● ●
3 RETAINER; DIAPH
X10 		9-48259-016-0 02 1 1509- ● ●
4 BOLT; CLAMP RING
X10 		1-48259-002-0 04 1 1509- ● ●
5 WASHER; LK,CLAMP RING
X10 ID=10.2 		9-09150-510-0 04 1 1509- ● ●
6 NUT; CLAMP RING
X10 M10 		9-09110-010-0 04 1 1509- ● ●
7 COVER ASM; UPR,SPR CHAMBER
X10 		1-48251-007-0 02 1 1509- ● ●
8 DIAPHRAGM; SPR CHAMBER
X10 		1-48252-006-0 02 1 1509- ● ●
9 PISTON; SPR CHAMBER
X10 		1-48253-001-0 02 1 1509- ● ●
10 SPRING; PISTON,SPR CHAMBER
X10 		1-48255-001-0 02 1 1509- ● ●
11 SEAL; PISTON,SPR CHAMBER
X10 		1-48252-025-0 02 1 1509- ● ●
12 COVER ASM; LWR,SPR CHAMBER
X10 		1-48251-018-0 02 1 1509- ● ●
