Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11662 - FXZ/GXZ LHD CHINA
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#175034) — 30 parça
Tümü
A - GGZ6MX
B - FGZ6MX
◀

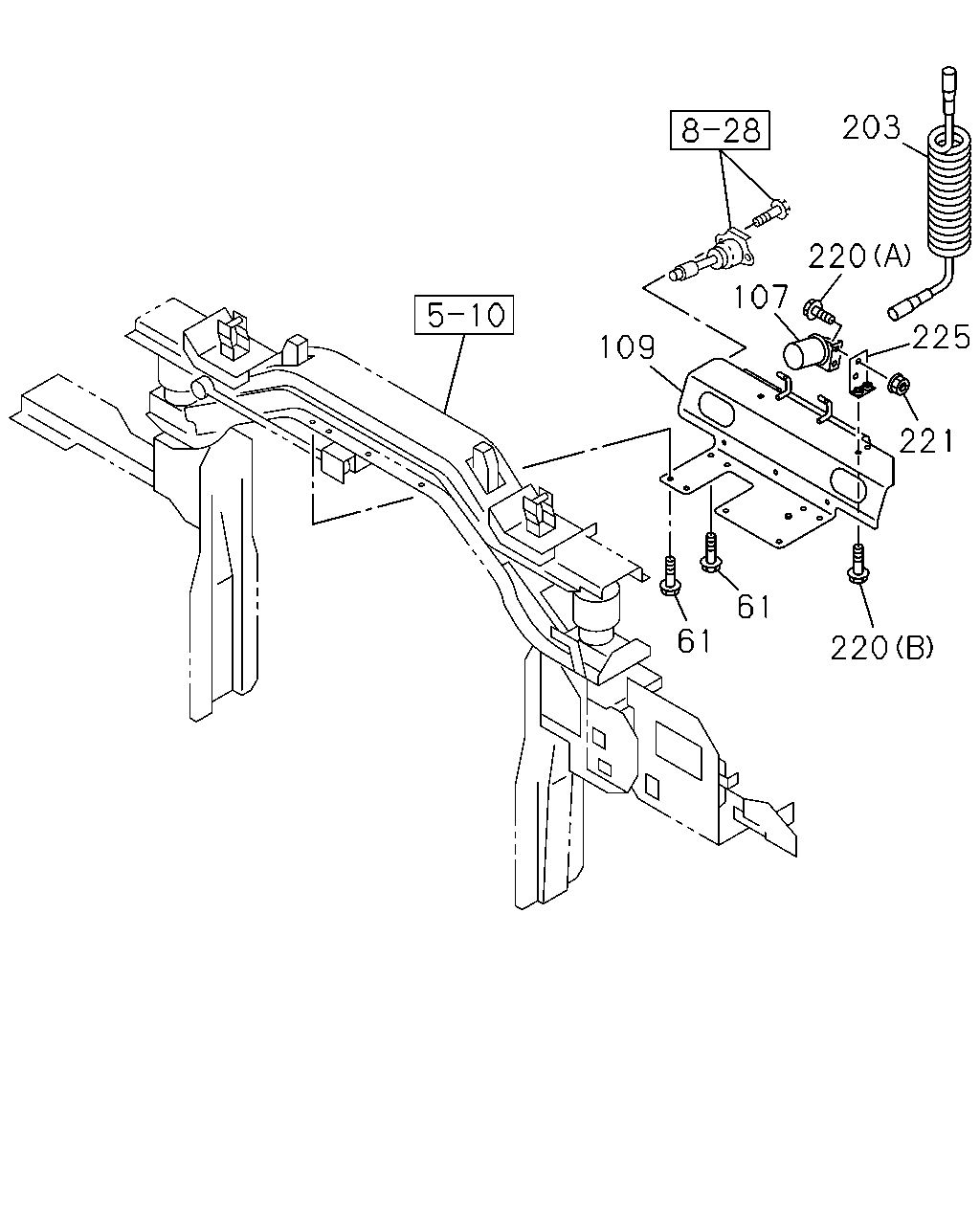

[326A] HANGER AND BRACKET; JUMPER HOSE (8 parça)

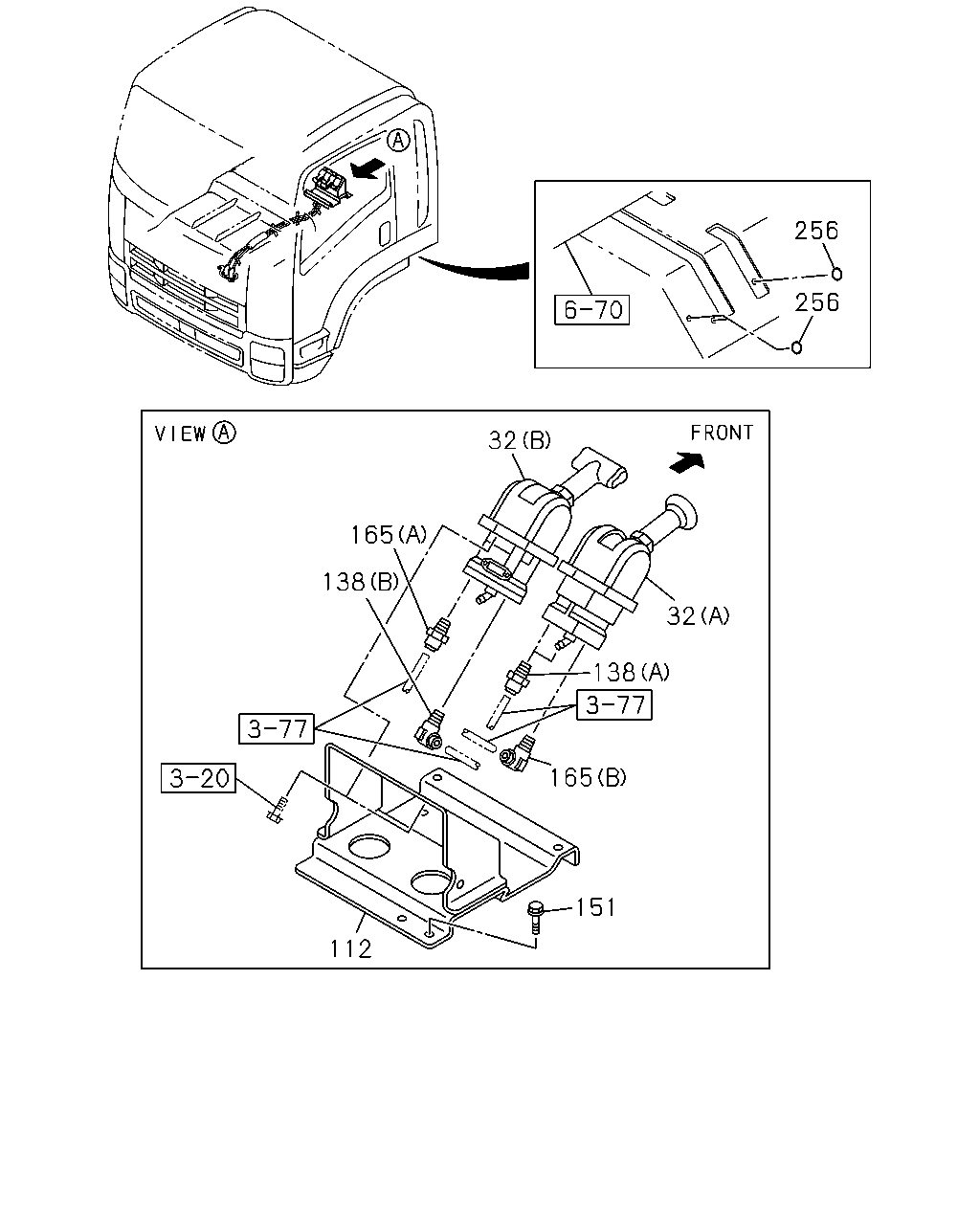

[326A] VALVE; HAND BRAKE (10 parça)
[326A] VALVE; TRAILER CONT (12 parça)
▶
203
220
225
220
61
109
107
61
221
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
61
BOLT; STEP BOARD
M10X25 FLANGE
0-28051-025-0
08
1
1509-
●
107
HANGER; JUMPER HOSE
1-57550-022-1
01
1
1509-
●
109
BRACKET; HOSE HANGER
8-97430-519-0
01
1
1509-
●
203
CABLE; JUMPER
L=5500
8-98107-178-0
01
1
1509-
●
220
BOLT; HANGER
(A) M6X16 FLANGE
0-28650-616-0
02
1
1509-
●
220
BOLT; HANGER
(B) M8X25 FLANGE
0-28650-825-0
02
1
1509-
●
221
NUT; HANGER
M6 FLANGE
0-91180-106-0
02
1
1509-
●
225
BRACKET; HANGER
1-82698-002-0
01
1
1509-
●
256
256
32
165
138
32
138
165
151
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
VALVE; BRK,HAND CONT
(B)
8-97431-188-0
01
1
1509-
●
32
VALVE; BRK,HAND CONT
(A)
8-97431-187-0
01
1
1509-
●
32
VALVE; BRK,HAND CONT
(A)
8-97431-186-0
01
1
1509-
●
112
BRACKET; CONT VLV
8-97430-080-0
01
1
1509-
●
●
138
CONNECTOR; DELIVERY
(A) DIN8 R1/4 STRAIGHT
8-97431-401-0
02
1
1509-
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & R1/4 ELBOW
8-97431-400-0
01
1
1509-
●
151
BOLT; VLV BRKT
M6X16
0-52000-616-0
04
1
1509-
●
●
165
CONNECTOR; HAND BRK VLV
(A) DIN8 R1/4 STRAIGHT
8-97431-401-0
01
1
1509-
●
165
CONNECTOR; HAND BRK VLV
(B) DIN8 & R1/4 ELBOW
8-97431-400-0
01
1
1509-
●
256
SEAL
OD=25 BLACK
1-76798-019-0
03
1
1509-
●
●
129
106
65
125
252
87
88
137
215
143
143
143
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
65
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
02
1
1509-
●
87
CONNECTOR; DBL CHECK VLV
(A) DIN12 & R3/8 ELBOW
8-97431-399-0
01
1
1509-
●
87
CONNECTOR; DBL CHECK VLV
(B)
8-97431-669-0
01
1
1509-
●
88
CONNECTOR; ELBOW
PT3/8 & PT3/8
1-09661-303-0
01
1
1509-
●
106
BRACKET; VLV
8-97431-674-0
01
1
1509-
●
125
BOLT; RELAY VLV
M8X30 FLANGE
0-28650-830-0
02
1
1509-
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
04
1
1509-
●
137
CONNECTOR; SUPPLY
DIN12 & R3/8 ELBOW
8-97431-399-0
01
1
1509-
●
143
CONNECTOR; CONT
(B)
8-97431-668-0
01
1
1509-
●
143
CONNECTOR; CONT
(A) DIN8 & R3/8 ELBOW
8-97431-398-0
02
1
1509-
●
215
VALVE; TRAILER CONT
8-97431-420-0
01
1
1509-
●
252
SWITCH; PRESSURE
STAMP 0.3
8-98010-857-0
01
1
1509-
●
