3-20 — AIR TANK (#175032) — 130 parça
çizim 512598
241 158
BalonParca AdiParca NoAdetTipApplied Date A B
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1509- ●
241 BOLT; SET,CONT VLV
M6X16 		0-52000-616-0 02 1 1509- ●
241 BOLT; SET,CONT VLV
M6X16 		0-52000-616-0 04 1 1509- ●

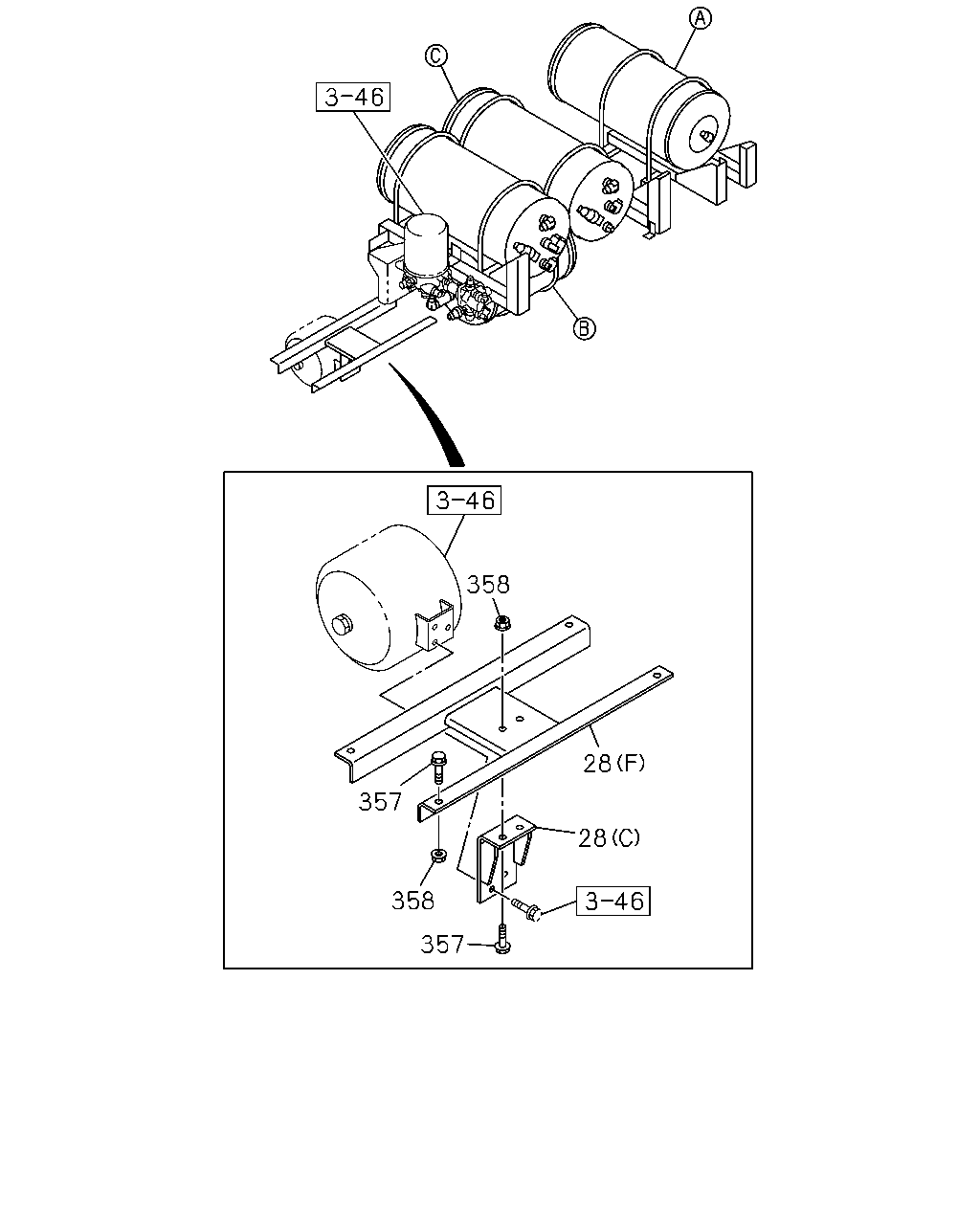

çizim 512608
358 357 358 357 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
28 BRACKET; AIR TANK
(F) 		8-97431-492-0 01 1 1509- ● ●
28 BRACKET; AIR TANK
(C) 		8-97431-493-0 01 1 1509- ● ●
28 BRACKET; AIR TANK
(E) 		8-97431-485-0 01 1 1509- ●
28 BRACKET; AIR TANK
(E) 		8-97431-485-0 01 1 1509- ●
28 BRACKET; AIR TANK
(A) 		8-97431-487-0 01 1 1509- ●
28 BRACKET; AIR TANK
(B) 		8-97431-516-0 01 1 1509- ●
28 BRACKET; AIR TANK
(D) 		8-97431-486-0 01 1 1509- ●
28 BRACKET; AIR TANK
(A) 		8-97431-487-0 01 1 1509- ●
28 BRACKET; AIR TANK
(B) 		8-97431-516-0 01 1 1509- ●
357 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 1509- ● ●
358 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 1509- ● ●

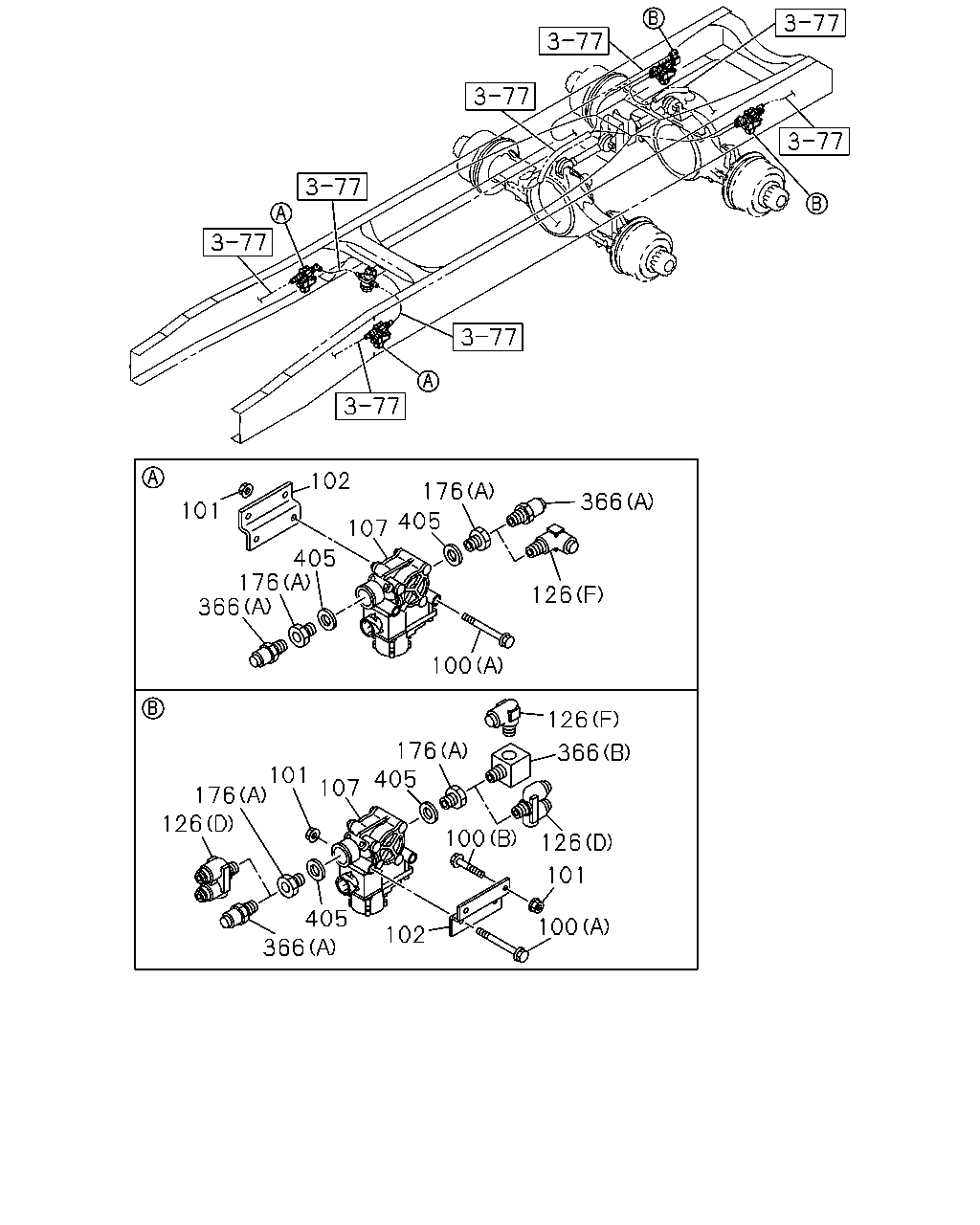

çizim 512906
101 102 405 176 405 107 176 366 100 126 366 176 101 107 176 405 126 405 366 102 100 126 101 100 366 126
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1509- ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1509- ● ●
100 BOLT; MODULATOR
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1509- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
102 BRACKET; MODULATOR
FRONT 		1-87223-013-0 01 1 1509- ● ●
102 BRACKET; MODULATOR
FRONT 		1-87223-015-0 01 1 1509- ● ●
102 BRACKET; MODULATOR
REAR 		1-87223-013-0 02 1 1509- ● ●
107 MODULATOR; RR 1-87223-002-0 04 1 1509- ● ●
107 MODULATOR; RR 1-87223-002-0 04 1 1509- ● ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 03 1 1509- ●
126 CONNECTOR; ELBOW
(H) DIN8 & R3/8 ELBOW 		8-97431-398-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(G) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1509- ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 02 1 1509- ●
126 CONNECTOR; ELBOW
(H) DIN8 & R3/8 ELBOW 		8-97431-398-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(G) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1509- ●
126 CONNECTOR; ELBOW
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		8-97431-447-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 STRAIGHT 		8-97431-397-0 02 1 1509- ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509- ● ●
126 CONNECTOR; ELBOW
(D) DIN12X2 & R3/8 3WAY 		8-97430-308-0 02 1 1509- ● ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		8-97431-447-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(C) DIN12 & M22 ELBOW 		8-97431-448-0 01 1 1509- ●
176 ADAPTER
(B) 		8-97431-462-0 01 1 1509- ●
176 ADAPTER
(C) 		8-97431-692-0 01 1 1509- ●
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1509- ● ●
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1509- ● ●
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1509- ● ●
176 ADAPTER
(B) 		8-97431-462-0 02 1 1509- ●
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 STRAIGHT 		8-97431-397-0 02 1 1509- ● ●
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 STRAIGHT 		8-97431-397-0 02 1 1509- ● ●
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 STRAIGHT 		8-97431-397-0 01 1 1509- ● ●
366 CONNECTOR; NYLON TUBE
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1509- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1509- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1509- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1509- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1509- ●

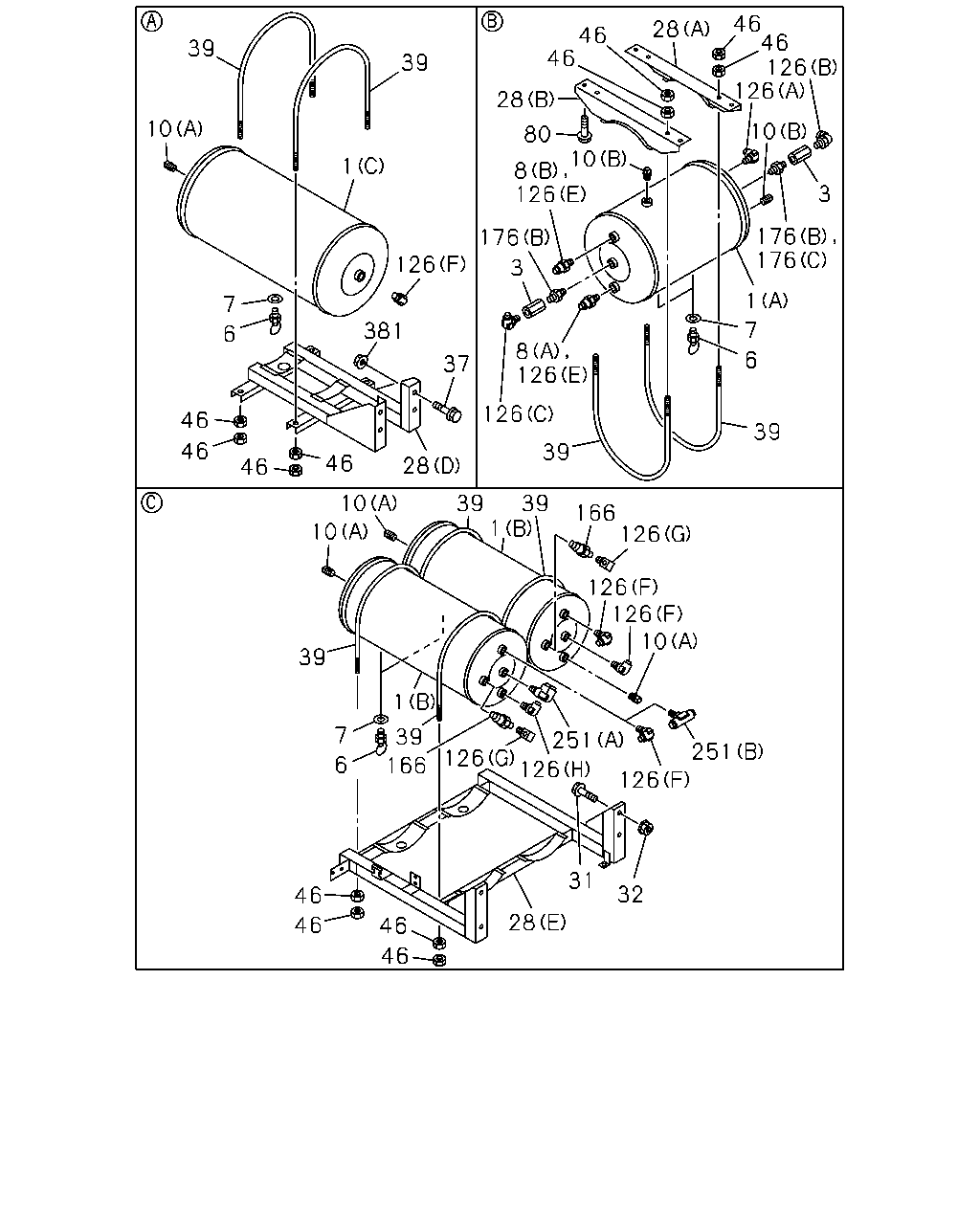

çizim 513263
39 10 1 7 6 46 46 46 46 381 126 39 37 28 10 10 39 7 6 46 46 46 46 1 39 166 39 39 1 166 126 126 126 10 251 126 126 28 31 32 126 251 46 46 28 10 8 176 126 3 8 126 126 39 80 28 46 46 126 126 10 3 176 176 1 7 6 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		8-97431-425-0 02 1 1509- ●
1 TANK ASM; AIR
(B) 		8-97431-425-0 02 1 1509- ●
1 TANK ASM; AIR
(A) 		8-97431-423-0 01 1 1509- ●
1 TANK ASM; AIR
(C) 		8-97431-424-0 01 1 1509- ●
1 TANK ASM; AIR
(A) 		8-97431-423-0 01 1 1509- ●
3 VALVE; CHECK,AIR TANK 8-97431-414-0 02 1 1509- ●
3 VALVE; CHECK,AIR TANK 8-97431-414-0 02 1 1509- ●
6 COCK; DRAIN,AIR TANK 8-97431-413-0 02 1 1509- ●
6 COCK; DRAIN,AIR TANK 8-97431-413-0 02 1 1509- ●
6 COCK; DRAIN,AIR TANK 8-97431-413-0 02 1 1509- ●
6 COCK; DRAIN,AIR TANK 8-97431-413-0 01 1 1509- ●
6 COCK; DRAIN,AIR TANK 8-97431-413-0 02 1 1509- ●
7 GASKET; DRAIN COCK 9-09572-022-0 02 1 1509- ●
7 GASKET; DRAIN COCK 9-09572-022-0 02 1 1509- ●
7 GASKET; DRAIN COCK 9-09572-022-0 02 1 1509- ●
7 GASKET; DRAIN COCK 9-09572-022-0 01 1 1509- ●
7 GASKET; DRAIN COCK 9-09572-022-0 02 1 1509- ●
8 CONNECTOR; AIR TANK
(A) DIN8 & R3/8 STRAIGHT 		8-97431-396-0 01 1 1509- ●
8 CONNECTOR; AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		8-97431-397-0 01 1 1509- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1509- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1509- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1509- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1509- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1509- ●
28 BRACKET; AIR TANK
(F) 		8-97431-492-0 01 1 1509- ● ●
28 BRACKET; AIR TANK
(C) 		8-97431-493-0 01 1 1509- ● ●
28 BRACKET; AIR TANK
(E) 		8-97431-485-0 01 1 1509- ●
28 BRACKET; AIR TANK
(E) 		8-97431-485-0 01 1 1509- ●
28 BRACKET; AIR TANK
(A) 		8-97431-487-0 01 1 1509- ●
28 BRACKET; AIR TANK
(B) 		8-97431-516-0 01 1 1509- ●
28 BRACKET; AIR TANK
(D) 		8-97431-486-0 01 1 1509- ●
28 BRACKET; AIR TANK
(A) 		8-97431-487-0 01 1 1509- ●
28 BRACKET; AIR TANK
(B) 		8-97431-516-0 01 1 1509- ●
31 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28651-240-0 04 1 1509- ● ●
32 NUT; BRKT TO FRAME
M12 FLANGE 		0-91180-212-0 04 1 1509- ● ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 1509- ●
39 U-BOLT; AIR TANK
L=290 		8-97431-484-0 04 1 1509- ●
39 U-BOLT; AIR TANK
L=290 		8-97431-484-0 04 1 1509- ●
39 U-BOLT; AIR TANK
L=290 		8-97431-484-0 02 1 1509- ●
39 U-BOLT; AIR TANK
L=290 		8-97431-484-0 02 1 1509- ●
39 U-BOLT; AIR TANK
L=290 		8-97431-484-0 02 1 1509- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1509- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1509- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1509- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1509- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1509- ●
80 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1509- ● ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 03 1 1509- ●
126 CONNECTOR; ELBOW
(H) DIN8 & R3/8 ELBOW 		8-97431-398-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(G) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1509- ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 02 1 1509- ●
126 CONNECTOR; ELBOW
(H) DIN8 & R3/8 ELBOW 		8-97431-398-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(G) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1509- ●
126 CONNECTOR; ELBOW
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		8-97431-447-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 STRAIGHT 		8-97431-397-0 02 1 1509- ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509- ● ●
126 CONNECTOR; ELBOW
(D) DIN12X2 & R3/8 3WAY 		8-97430-308-0 02 1 1509- ● ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		8-97431-447-0 01 1 1509- ●
126 CONNECTOR; ELBOW
(C) DIN12 & M22 ELBOW 		8-97431-448-0 01 1 1509- ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 02 1 1509- ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 02 1 1509- ●
176 ADAPTER
(B) 		8-97431-462-0 01 1 1509- ●
176 ADAPTER
(C) 		8-97431-692-0 01 1 1509- ●
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1509- ● ●
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1509- ● ●
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1509- ● ●
176 ADAPTER
(B) 		8-97431-462-0 02 1 1509- ●
251 CONNECTOR; DELIVERY
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		8-97431-450-0 01 1 1509- ●
251 CONNECTOR; DELIVERY
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		8-97431-450-0 01 1 1509- ●
251 CONNECTOR; DELIVERY
(B) DIN12X2 & R3/8 3WAY 		8-97431-452-0 01 1 1509- ●
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 04 1 1509- ●
