2-07B — CLUTCH BOOSTER; MINIPACK (#17503) — 105 parça

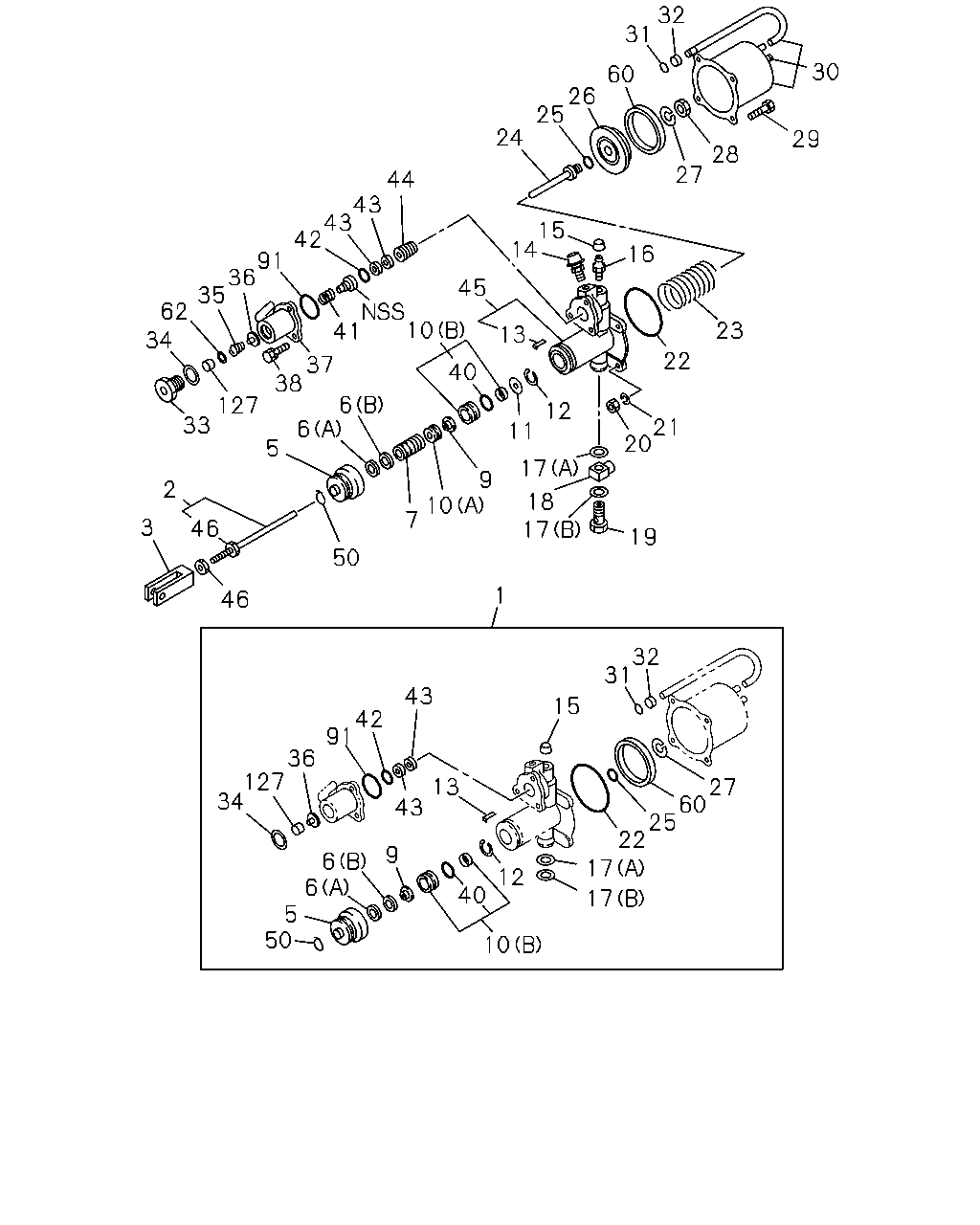

çizim 110025
32 31 30 60 26 25 24 29 28 27 44 43 43 42 15 14 16 91 36 35 62 45 41 10 23 13 34 22 37 38 40 6 127 33 12 21 20 6 11 5 17 9 2 18 17 10 7 3 46 19 50 1 46 32 31 43 15 42 91 36 127 34 13 27 60 25 22 17 43 9 6 6 5 50 12 40 17 10
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-611-0 01 1 1109-1205
1 REPAIR KIT; CLU BOOSTER 1-31829-611-0 01 1 1206-1412
1 REPAIR KIT; CLU BOOSTER 1-31829-606-0 01 1 1501-
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1501-
2 ROD; PUSH,CLU BOOSTER 1-31824-248-0 01 1 1109-1205
2 ROD; PUSH,CLU BOOSTER 1-31824-248-0 01 1 1206-1412
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 1109-1205
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1206-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1109-1205
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1206-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-032-0 01 1 1109-1205
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-032-0 01 1 1206-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-033-0 01 1 1109-1205
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-033-0 01 1 1206-
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1109-1205
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1206-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1109-1205
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1206-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1109-1205
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1206-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1109-1205
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1206-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1109-1205
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1206-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1109-1205
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1206-
13 PIN; SPR 1-31829-109-0 01 1 1109-1205
13 PIN; SPR 1-31829-109-0 01 1 1206-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1109-1205
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1206-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1109-1205
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1206-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1109-1205
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1206-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1109-1205
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1206-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1109-1205
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1206-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1109-1205
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1206-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1109-1205
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1206-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1109-1205
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1206-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1109-1205
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1206-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1109-1205
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1206-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1109-1205
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1206-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1109-1205
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1206-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1109-1205
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1206-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1109-1205
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1206-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1109-1205
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1206-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1109-1205
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1206-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1109-1205
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1206-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1109-1205
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1206-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1109-1205
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1206-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1109-1205
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1206-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1109-1205
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1206-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1109-1205
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1206-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1109-1205
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1206-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1109-1205
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1206-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1109-1205
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1206-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1109-1205
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1206-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1109-1205
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1206-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1109-1205
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1206-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1109-1205
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1206-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1109-1205
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1206-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1109-1205
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1206-
45 PLATE; END,CLU BOOSTER 1-31811-150-0 01 1 1109-1205
45 PLATE; END,CLU BOOSTER 1-31811-150-0 01 1 1206-1412
45 PLATE; END,CLU BOOSTER 1-31811-149-0 01 1 1501-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1109-1205
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1206-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1109-1205
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1206-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1109-1205
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1206-
62 RETAINER; POPPET 1-31829-489-0 01 1 1109-1205
62 RETAINER; POPPET 1-31829-489-0 01 1 1206-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1109-1205
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1206-
127 FILTER; POPPET 1-31829-495-0 01 1 1109-1205
127 FILTER; POPPET 1-31829-495-0 01 1 1206-
