3-01 — FRONT WHEEL BRAKE (#175029) — 98 parça

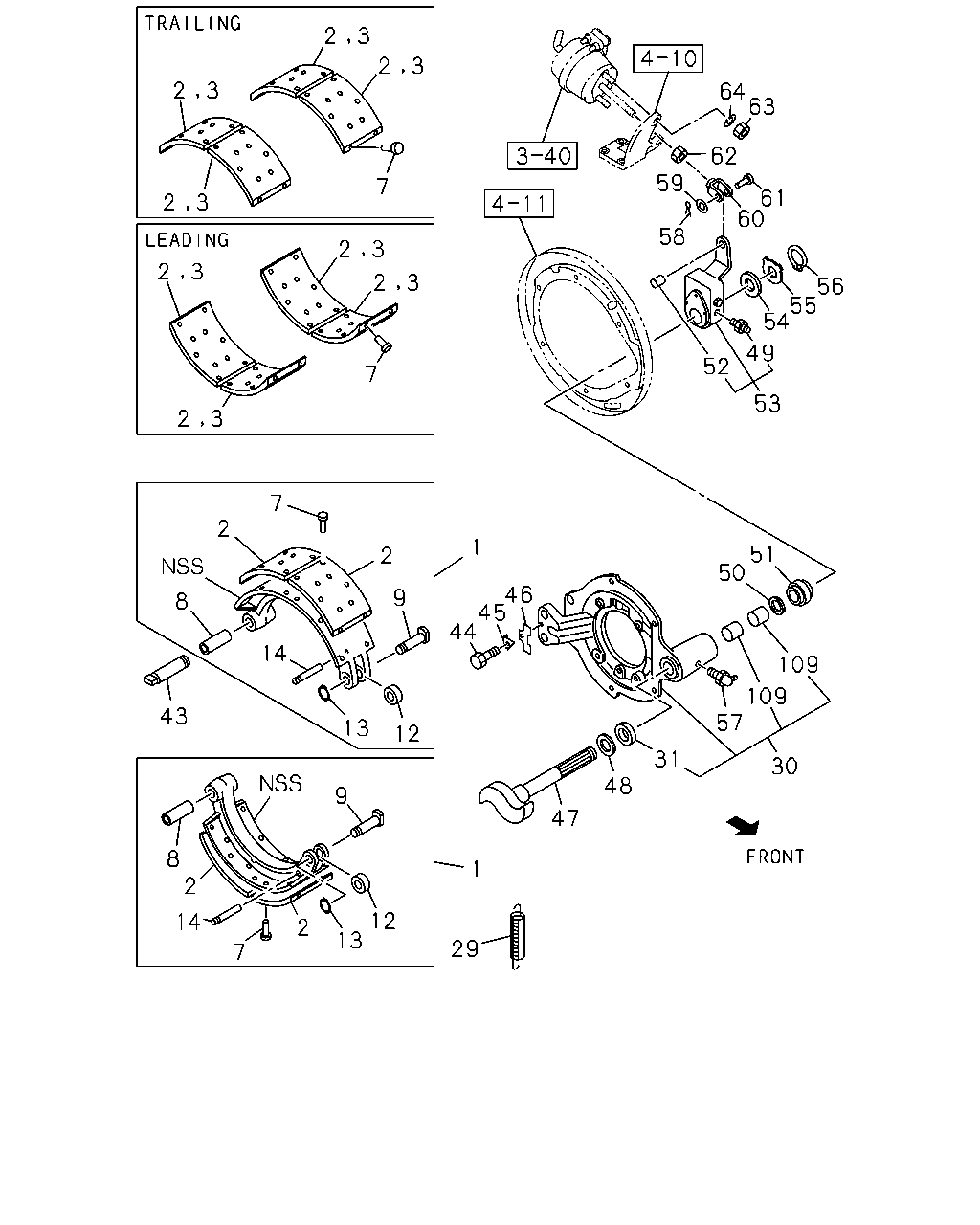

çizim 513751
2 3 2 3 2 3 2 3 7 2 3 2 3 2 3 2 3 7 7 2 8 14 2 9 13 12 9 8 2 14 7 13 2 12 1 29 47 31 30 48 57 109 51 50 1 45 44 46 43 109 64 59 62 63 61 60 58 52 53 49 54 55 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
LEADING Q10 		1-47120-709-0 01 1 1509- ● ●
1 SHOE; BRK,FRT
TRAILING Q10 		1-47120-710-0 01 1 1509- ● ●
1 SHOE; BRK,FRT
TRAILING Q10 		1-47120-711-0 01 1 1509- ● ●
1 SHOE; BRK,FRT
LEADING Q10 		1-47120-712-0 01 1 1509- ● ●
1 SHOE; BRK,FRT
TRAILING X10 		1-47170-293-0 01 1 1509- ●
1 SHOE; BRK,FRT
LEADING X10 		1-47170-294-0 01 1 1509- ●
1 SHOE; BRK,FRT
TRAILING X10 		1-47170-292-0 01 1 1509- ●
1 SHOE; BRK,FRT
LEADING X10 		1-47170-295-0 01 1 1509- ●
2 LINING; FRT BRK SHOE,STANDARD
LEADING Q10 		1-47125-793-0 04 1 1509- ● ●
2 LINING; FRT BRK SHOE,STANDARD
TRAILING Q10 		1-47125-795-0 04 1 1509- ● ●
2 LINING; FRT BRK SHOE,STANDARD
LEADING X10 		1-47126-265-0 04 1 1509- ● ●
2 LINING; FRT BRK SHOE,STANDARD
TRAILING X10 		1-47126-268-0 04 1 1509- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
LEADING Q10 		1-47125-794-0 04 1 1509- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
TRAILING Q10 		1-47125-796-0 04 1 1509- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
LEADING X10 		1-47126-266-0 04 1 1509- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
TRAILING X10 		1-47126-269-0 04 1 1509- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 20 1 1509- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 20 1 1509- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 20 1 1509- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 20 1 1509- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 01 1 1509- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 01 1 1509- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 01 1 1509- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 01 1 1509- ● ●
9 PIN; SHOE HOLDER 1-09744-060-0 01 1 1509- ● ●
9 PIN; SHOE HOLDER 1-09744-060-0 01 1 1509- ● ●
9 PIN; SHOE HOLDER
Q10 		1-09744-060-0 01 1 1509- ● ●
9 PIN; SHOE HOLDER 1-09744-060-0 01 1 1509- ● ●
12 ROLLER; CAM,BRK SHOE 1-47113-007-0 01 1 1509- ● ●
12 ROLLER; CAM,BRK SHOE 1-47113-007-0 01 1 1509- ● ●
12 ROLLER; CAM,BRK SHOE 1-47113-007-0 01 1 1509- ● ●
12 ROLLER; CAM,BRK SHOE 1-47113-007-0 01 1 1509- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 01 1 1509- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 01 1 1509- ● ●
13 CLIP; ROLLER PIN,BRK SHOE
Q10 		9-47119-022-0 01 1 1509- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 01 1 1509- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 01 1 1509- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 01 1 1509- ● ●
14 PIN; SHOE RETURN SPR
Q10 L=73.5 		1-47119-017-1 01 1 1509- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 01 1 1509- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-185-2 01 1 1509- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-185-2 01 1 1509- ● ●
30 BRACKET; ANCHOR,FRT
Q10 		1-47137-118-3 01 1 1509- ● ●
30 BRACKET; ANCHOR,FRT
Q10 		1-47137-119-3 01 1 1509- ● ●
30 BRACKET; ANCHOR,FRT
X10 		1-47137-481-0 01 1 1509- ●
30 BRACKET; ANCHOR,FRT
X10 		1-47137-480-0 01 1 1509- ●
31 SEAL; OIL,CM/SHF 1-09625-228-0 01 1 1509- ● ●
31 SEAL; OIL,CM/SHF 1-09625-228-0 01 1 1509- ● ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 02 1 1509- ● ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 02 1 1509- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 01 1 1509- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 01 1 1509- ● ●
45 WASHER; LK 1-47133-011-0 01 1 1509- ● ●
45 WASHER; LK 1-47133-011-0 01 1 1509- ● ●
46 PLATE; LOCK 1-47133-005-0 01 1 1509- ● ●
46 PLATE; LOCK 1-47133-005-0 01 1 1509- ● ●
47 CAMSHAFT; FRT BRK 1-47141-052-0 01 1 1509- ● ●
47 CAMSHAFT; FRT BRK 1-47141-051-0 01 1 1509- ● ●
48 RING; SPACER,CM/SHF 1-47143-005-0 01 1 1509- ● ●
48 RING; SPACER,CM/SHF 1-47143-005-0 01 1 1509- ● ●
49 NIPPLE; GREASE,SLACK ADJ
X10 PT1/8 STRAIGHT 		0-90301-410-0 01 1 1509- ●
49 NIPPLE; GREASE,SLACK ADJ
X10 PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1509- ●
50 RING; FELT,CM/SHF 1-09620-009-0 01 1 1509- ● ●
50 RING; FELT,CM/SHF 1-09620-009-0 01 1 1509- ● ●
51 COLLAR; RING,CM/SHF
Q10 		1-47143-013-0 01 1 1509- ● ●
51 COLLAR; RING,CM/SHF
Q10 		1-47143-013-0 01 1 1509- ● ●
51 COLLAR; RING,CM/SHF
X10 		1-47143-016-0 01 1 1509- ●
51 COLLAR; RING,CM/SHF
X10 		1-47143-016-0 01 1 1509- ●
52 BUSHING; SLACK ADJ
X10 		1-09330-041-0 01 1 1509- ●
52 BUSHING; SLACK ADJ
X10 		1-09330-041-0 01 1 1509- ●
53 ADJUSTER ASM; SLACK
Q10 		1-48270-072-0 01 1 1509- ● ●
53 ADJUSTER ASM; SLACK
Q10 		1-48270-071-0 01 1 1509- ● ●
53 ADJUSTER ASM; SLACK
X10 		1-48270-044-0 01 1 1509- ●
53 ADJUSTER ASM; SLACK
X10 		1-48270-043-0 01 1 1509- ●
54 SPACER; CM/SHF 1-47143-004-0 02 1 1509- ● ●
54 SPACER; CM/SHF 1-47143-004-0 02 1 1509- ● ●
54 SPACER; CM/SHF
Q10 		1-47143-004-0 01 1 1509- ● ●
54 SPACER; CM/SHF
Q10 		1-47143-004-0 01 1 1509- ● ●
55 PLATE; STOPPER,CM/SHF 1-47149-055-0 01 1 1509- ● ●
55 PLATE; STOPPER,CM/SHF 1-47149-055-0 01 1 1509- ● ●
56 CLIP; ANCHOR PIN 9-09180-038-0 01 1 1509- ● ●
56 CLIP; ANCHOR PIN 9-09180-038-0 01 1 1509- ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
Q10 PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 1509- ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
Q10 PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 1509- ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
X10 PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1509- ●
57 NIPPLE; GREASE,ANCHOR BRKT
X10 PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1509- ●
58 PIN; SPLIT,JAW JOINT
OD=3.7 L=28 		0-81124-028-0 02 1 1509- ● ●
59 WASHER; PL,JAW JOINT
Q10 ID=17 OD=32 		9-09160-616-0 02 1 1509- ● ●
59 WASHER; PL,JAW JOINT
X10 		0-91610-616-0 02 1 1509- ●
60 JOINT; JAW,POWER CHAMBER 1-09768-060-1 02 1 1509- ● ●
61 PIN; JAW JOINT,POWER CHAMBER 1-09744-088-0 02 1 1509- ● ●
62 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 1509- ● ●
63 NUT; POWER CHAMBER
M16 		0-91110-516-0 04 1 1509- ● ●
64 WASHER; LK,POWER CHAMBER
ID=16.2 		0-91510-516-0 04 1 1509- ● ●
109 BUSHING; CM/SHF,FRT BRK
Q10 		1-47146-003-1 02 1 1509- ● ●
109 BUSHING; CM/SHF,FRT BRK
Q10 		1-47146-003-1 02 1 1509- ● ●
109 BUSHING; CM/SHF,FRT BRK
X10 		1-47146-019-0 01 1 1509- ●
109 BUSHING; CM/SHF,FRT BRK
X10 		1-47146-019-0 01 1 1509- ●
