2-05 — CLUTCH PIPING (#175021) — 52 parça
çizim 512519
235 101 16 29 104 115 116 101 27 42
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1509- ● ●
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1509- ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		8-97430-495-0 01 1 1509- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
EXC. WHEEL BASE 5300MM(53W) (B) 		8-97431-531-0 01 1 1509- ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-97431-531-0 01 1 1509- ●
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 5300MM(53W) (B) 		8-97431-713-0 01 1 1509- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-97431-525-0 01 1 1509- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1417 SERVICED BY L=1550 		1-47428-766-0 01 1 1509- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1509- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1509- ● ●
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1509- ● ●

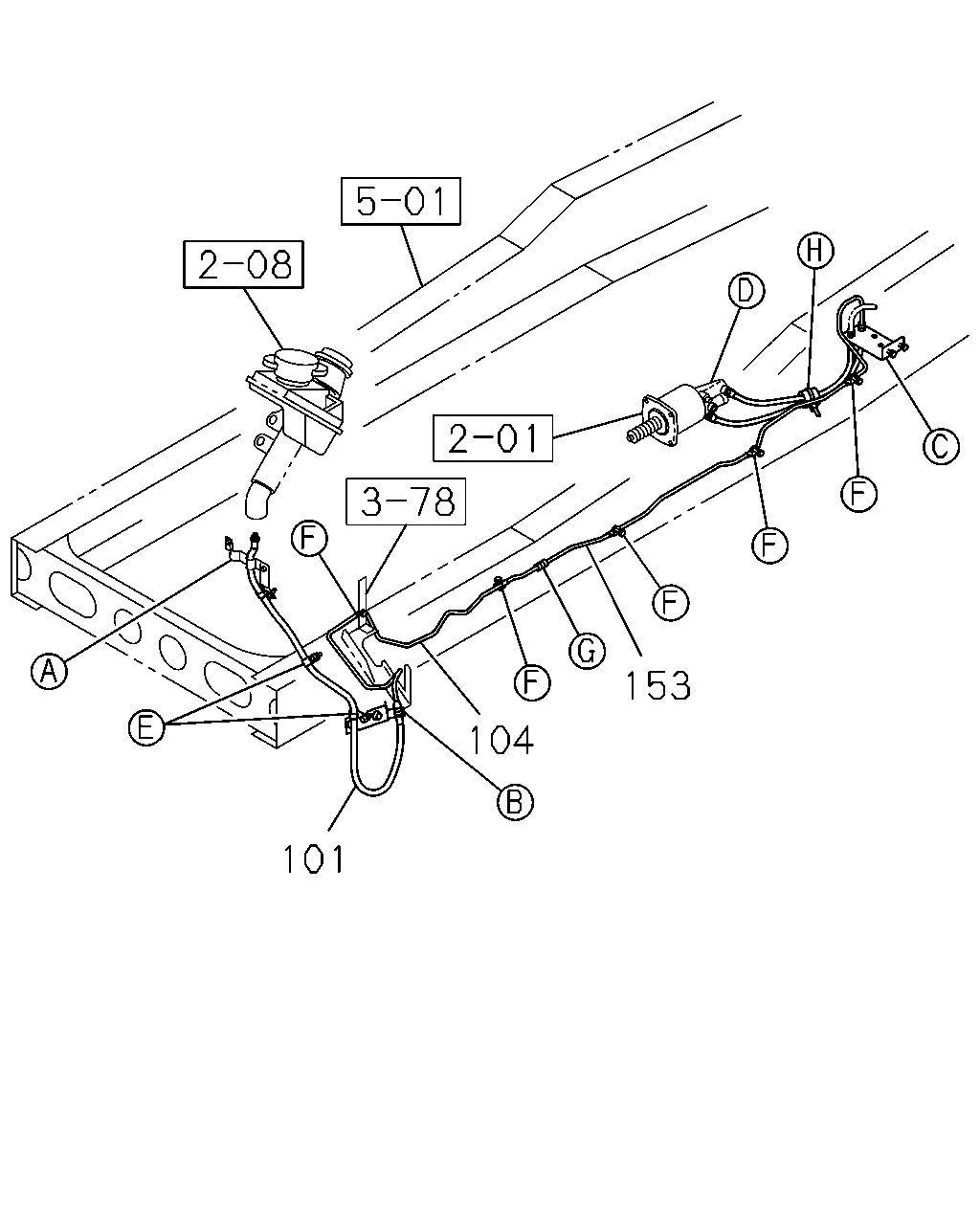

çizim 513508
153 104 101
BalonParca AdiParca NoAdetTipApplied Date A B
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-97431-525-0 01 1 1509- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1417 SERVICED BY L=1550 		1-47428-766-0 01 1 1509- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. WHEEL BASE 5300MM(53W) 		8-97431-528-0 01 1 1509- ●
153 PIPE ASM; CLU,UNION TO FLEX 8-97431-528-0 01 1 1509- ●
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 5300MM(53W) 		8-97431-714-0 01 1 1509- ●
çizim 513619
153 115 42 116 47 45 43 46 44 47 29 207 16 26 35 44 210 164 233 26 35 44 210 28 33 29 34 207 34 33 35 48 48 47 47 106 107 51
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1509- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 02 1 1509- ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 02 1 1509- ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1509- ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		8-97430-495-0 01 1 1509- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
EXC. WHEEL BASE 5300MM(53W) (B) 		8-97431-531-0 01 1 1509- ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-97431-531-0 01 1 1509- ●
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 5300MM(53W) (B) 		8-97431-713-0 01 1 1509- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 1509- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1509- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 1509- ● ●
47 HOSE; FLEX,CLU CONT
EXC. WHEEL BASE 5300MM(53W) (A) L=570 		8-97431-526-0 01 1 1509- ●
47 HOSE; FLEX,CLU CONT
(A) L=570 		8-97431-526-0 01 1 1509- ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 5300MM(53W) (A) L=530 		8-97431-527-0 01 1 1509- ●
47 HOSE; FLEX,CLU CONT
EXC. WHEEL BASE 5300MM(53W) (B) L=670 		8-97431-529-0 01 1 1509- ●
47 HOSE; FLEX,CLU CONT
(B) L=670 		8-97431-529-0 01 1 1509- ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 5300MM(53W) (B) L=600 		8-97431-530-0 01 1 1509- ●
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 OD=20.0 		9-09571-414-0 01 1 1509- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 OD=20.0 		9-09571-414-0 01 1 1509- ● ●
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 1509- ● ●
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1509- ● ●
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 1509- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1509- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1509- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. WHEEL BASE 5300MM(53W) 		8-97431-528-0 01 1 1509- ●
153 PIPE ASM; CLU,UNION TO FLEX 8-97431-528-0 01 1 1509- ●
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 5300MM(53W) 		8-97431-714-0 01 1 1509- ●
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1509- ● ●
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1509- ● ●
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
233 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 1509- ● ●
