◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#17502) — 96 parça

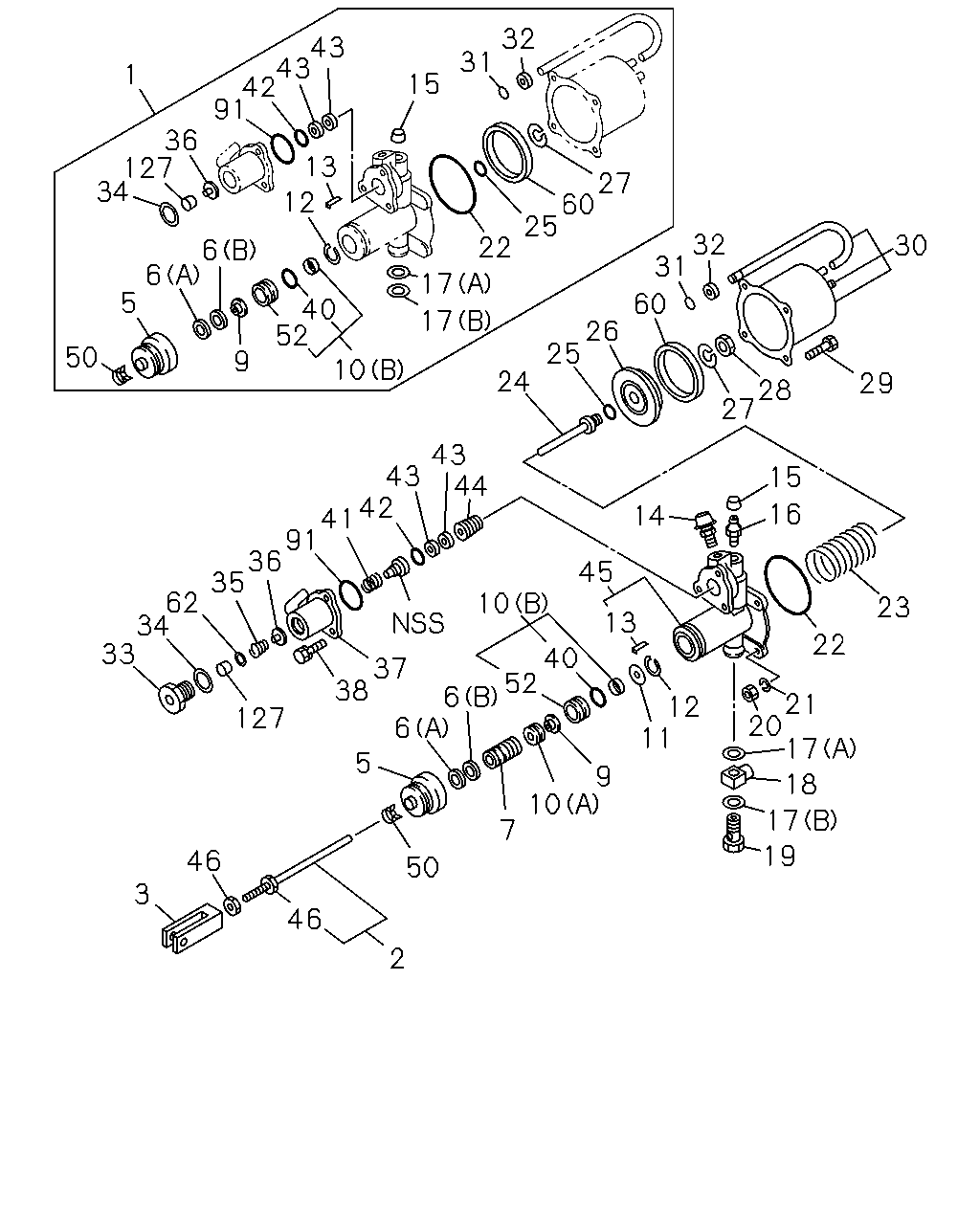

çizim 110026
32 43 43 42 91 31 1 15 36 127 34 13 27 60 25 12 32 31 30 22 6 6 5 17 60 40 52 17 26 25 50 9 10 24 29 28 27 43 43 44 42 41 91 36 35 62 34 33 15 16 14 45 10 23 13 22 40 52 6 37 38 21 20 17 12 11 127 6 5 9 18 10 17 7 19 46 50 3 46 2
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-603-0 01 1 1109-
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1109-1412
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1501-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 1109-1205
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1206-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1109-1205
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1206-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 1109-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 1109-
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1109-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1109-1205
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1206-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1109-1205
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1206-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1109-1205
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1206-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1109-1205
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1206-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1109-1205
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1206-
13 PIN; SPR 1-31829-109-0 01 1 1109-1205
13 PIN; SPR 1-31829-109-0 01 1 1206-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1109-1205
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1206-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1109-1205
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1206-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1109-1205
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1206-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1109-1205
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1206-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1109-1205
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1206-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1109-1205
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1206-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1109-1205
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1206-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1109-1205
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1206-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1109-1205
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1206-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1109-1205
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1206-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1109-1205
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1206-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1109-1205
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1206-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1109-1205
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1206-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1109-1205
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1206-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1109-1205
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1206-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1109-1205
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1206-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1109-1205
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1206-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1109-1205
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1206-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1109-1205
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1206-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1109-1205
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1206-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1109-1205
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1206-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1109-1205
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1206-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1109-1205
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1206-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1109-1205
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1206-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-147-0 01 1 1109-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1109-1205
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1206-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1109-1205
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1206-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1109-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1109-1205
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1206-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1109-1205
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1206-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1109-1205
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1206-
45 PLATE; END,CLU BOOSTER 1-31811-143-0 01 1 1109-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1109-1205
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1206-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1109-1205
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1206-
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 1109-1412
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1109-1205
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1206-
62 RETAINER; POPPET 1-31829-489-0 01 1 1109-1205
62 RETAINER; POPPET 1-31829-489-0 01 1 1206-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1109-1205
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1206-
127 FILTER; POPPET 1-31829-495-0 01 1 1109-1205
127 FILTER; POPPET 1-31829-495-0 01 1 1206-
