Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#175016) — 27 parça

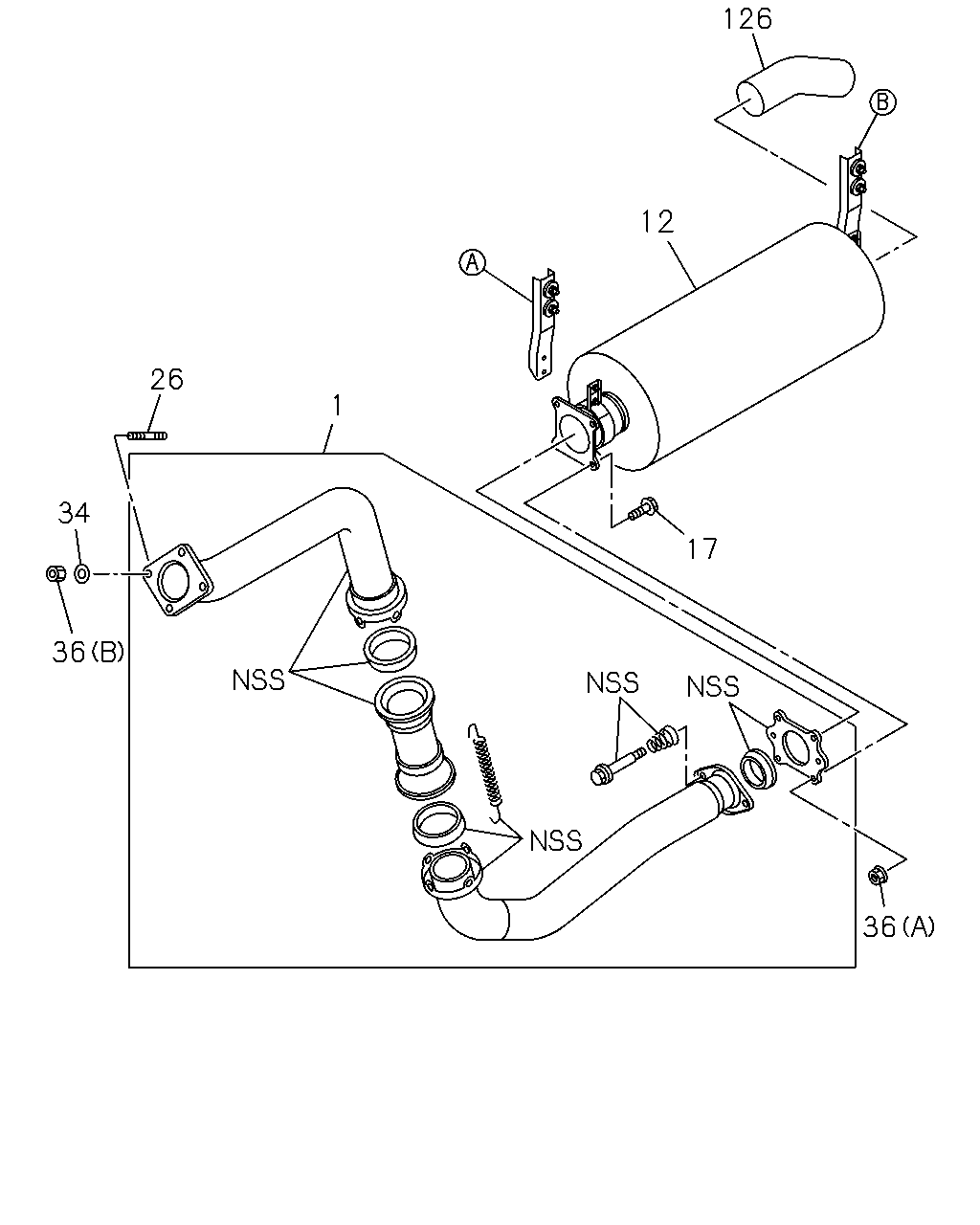

26 34 36 36 17 12 126 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH	8-97430-177-0	01	1	1509-	●	●
12	SILENCER ASM; EXH	8-98183-450-2	01	1	1509-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1509-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1509-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1509-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1509-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1509-	●	●
126	PIPE; EXH,RR	8-97430-179-0	01	1	1509-	●	●

107 81 75 56 24 72 75 94 105 89 105 94 118 115 56 113 530 115 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	02	1	1509-	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-97430-181-0	01	1	1509-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98055-106-0	01	1	1509-	●	●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	02	1	1509-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	1509-	●	●
81	NUT; BRKT M10	0-91110-510-0	02	1	1509-	●	●
89	CLAMP; EXH SILENCER,RR	8-97621-090-0	01	1	1509-	●	●
94	BOLT; CLAMP M8X30 FLANGE	0-28050-830-0	04	1	1509-	●	●
105	NUT; CLAMP M8 FLANGE	0-91180-108-0	04	1	1509-	●	●
107	BOLT; BRKT M10X60	0-10856-060-0	02	1	1509-	●	●
107	BOLT; BRKT M10X60	0-10856-060-0	02	1	1509-	●	●
113	COLLAR; DIST,MTG BRKT L=22	9-22159-024-0	02	1	1509-	●	●
115	RUBBER; MTG,SILENCER OD=40	1-22159-094-0	04	1	1509-	●	●
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	02	1	1509-	●	●
530	WASHER ID=10.2	0-91510-810-0	02	1	1509-	●	●

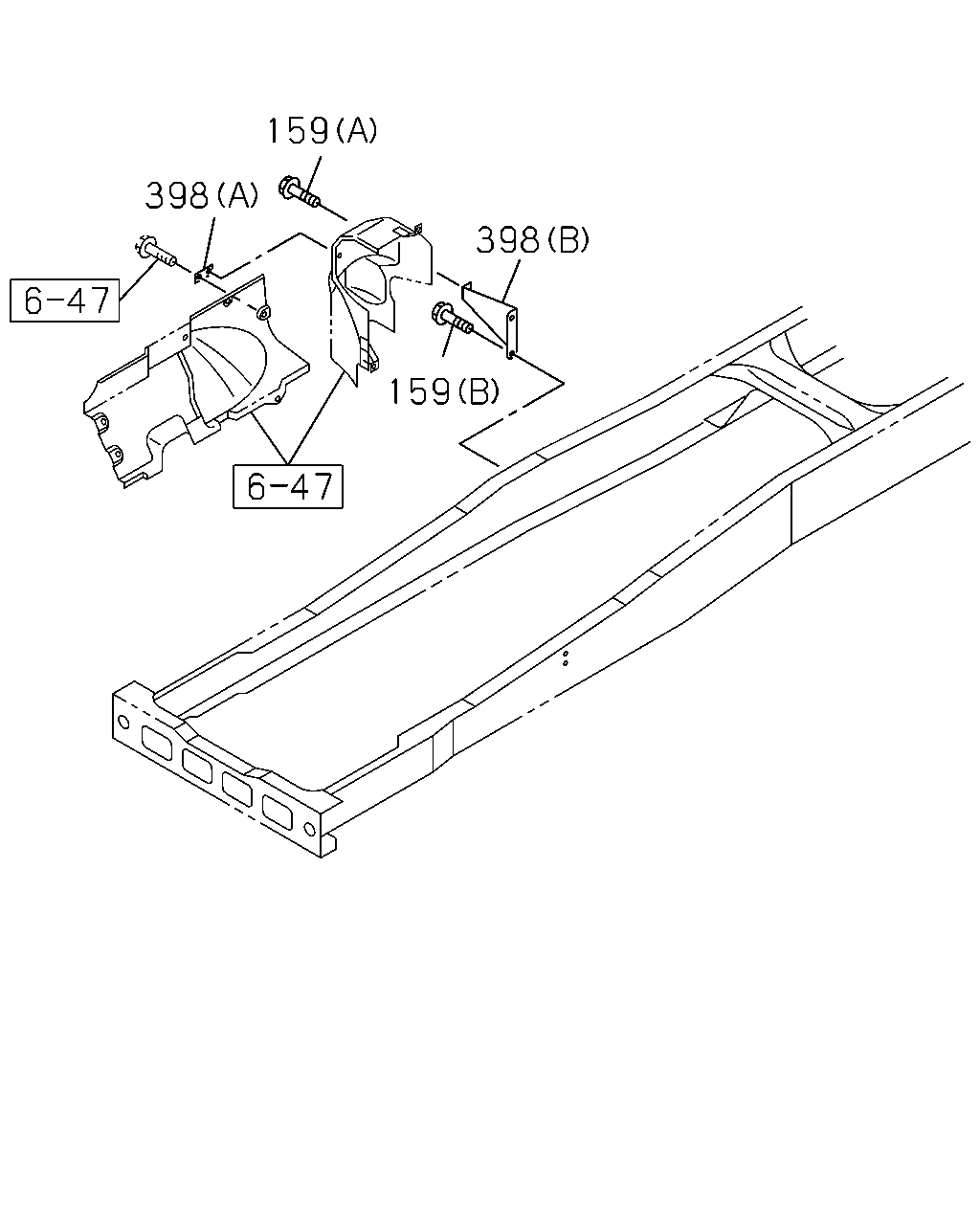

398 159 398 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-	●	●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28650-830-0	02	1	1509-	●	●
398	BRACKET; HEAT PROTECTOR (A)	8-98039-501-1	01	1	1509-	●	●
398	BRACKET; HEAT PROTECTOR (B)	8-98127-027-0	01	1	1509-	●	●
