Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#17501) — 235 parça

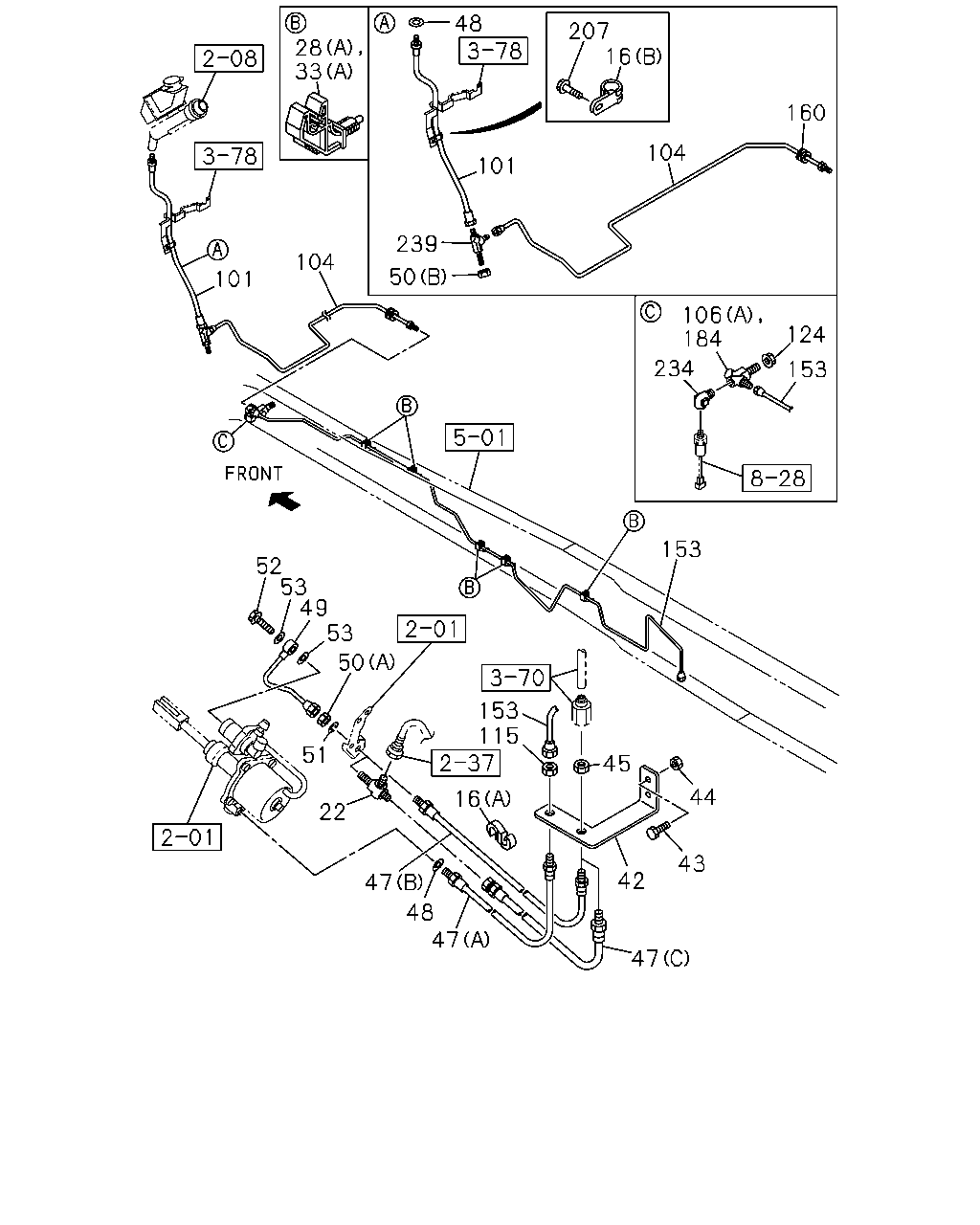

109 47 153 131 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C) L=380	1-09363-884-0	01	1	1206-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (E) L=390	1-09363-629-0	01	1	1206-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (B) L=470	1-09363-716-0	01	1	1109-1205
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=470	1-09363-716-0	01	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (A) L=375	1-09364-407-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (C) L=500	1-09363-720-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09364-329-0	01	1	1109-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1109-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1109-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1109-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1206-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1109-

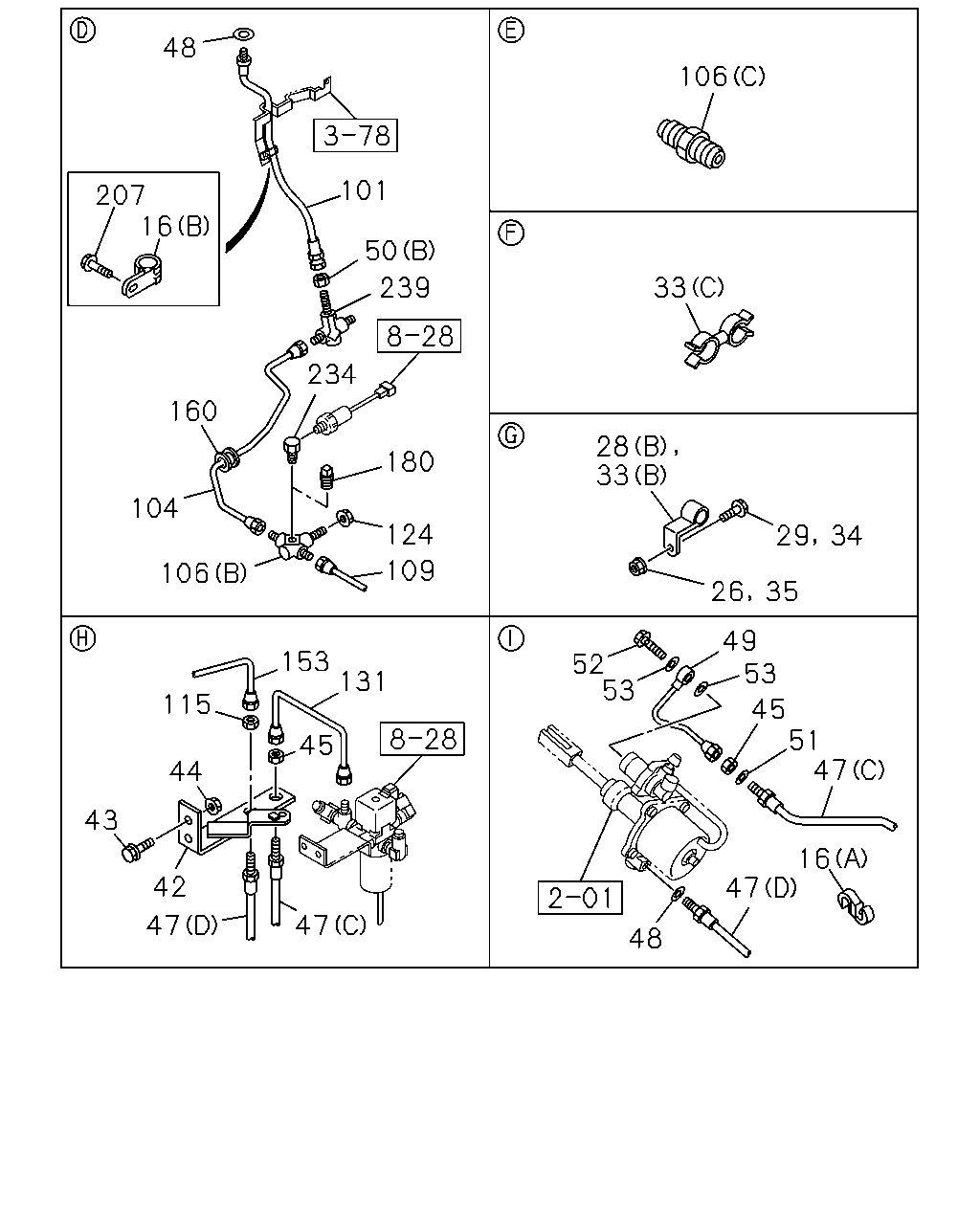

48 106 101 207 16 50 33 239 234 160 28 33 180 104 124 29 34 109 106 26 35 49 53 153 52 53 131 115 45 51 47 45 44 43 16 47 42 47 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (B) ID=18 L=28	1-09701-067-0	01	1	1109-
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (A) ID=10 & 12	1-09709-278-1	01	1	1109-
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	1109-1205
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	01	1	1206-
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1109-
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1109-1205
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1206-
29	BOLT; CLIP,OIL PIPE FULLER ES11109 DD M/T(Y5N) M8X25 FLANGE	0-28650-825-0	01	1	1206-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1109-
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1206-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	05	1	1109-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1109-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1109-
34	BOLT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1206-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1109-
35	NUT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1206-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1109-
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1206-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1109-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1109-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	1109-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1109-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1109-
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	1109-1205
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M12	9-09840-280-0	02	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C) L=380	1-09363-884-0	01	1	1206-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (E) L=390	1-09363-629-0	01	1	1206-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (B) L=470	1-09363-716-0	01	1	1109-1205
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=470	1-09363-716-0	01	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (A) L=375	1-09364-407-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (C) L=500	1-09363-720-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09364-329-0	01	1	1109-
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	1109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N)	1-49124-974-0	01	1	1206-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1109-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1109-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1109-1205
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1206-
51	WASHER; LK MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1206-
51	WASHER; LK MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1109-1205
51	WASHER; LK MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1206-
51	WASHER; LK ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) ID=12.2	0-91510-812-0	01	1	1206-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1109-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1109-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1206-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1109-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	1109-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1109-1205
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1206-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1206-
106	UNION; OIL PIPE MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1109-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1109-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1109-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1109-1205
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M14	0-91111-514-0	01	1	1206-
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	1109-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1109-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1109-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1206-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1109-
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1109-
180	PLUG; PIPE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1109-1205
180	PLUG; PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1206-
207	BOLT; CLIP MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	1109-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1109-
234	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1109-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1109-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	1109-1205
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M12 & M14 2WAY	1-09654-141-2	01	1	1206-

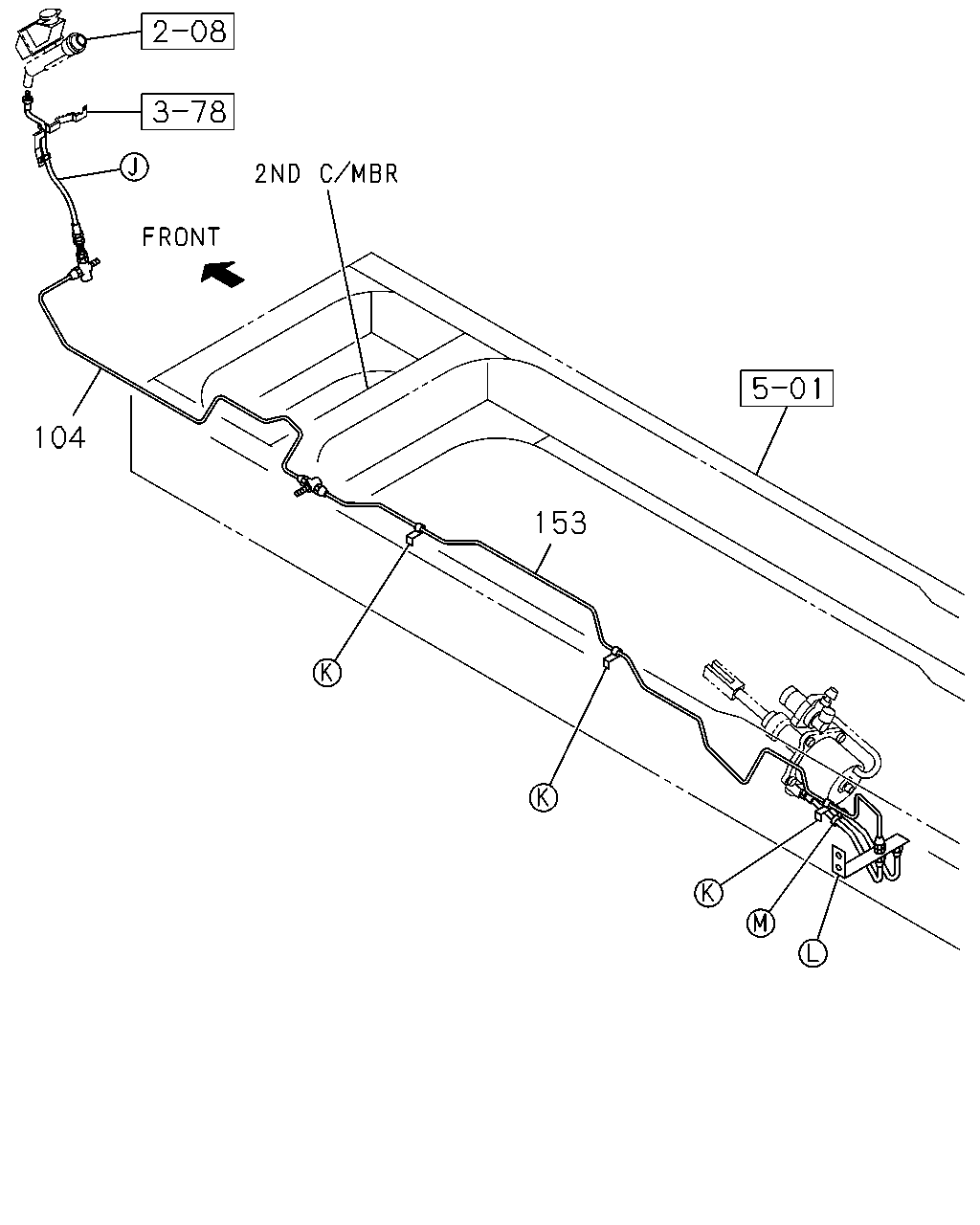

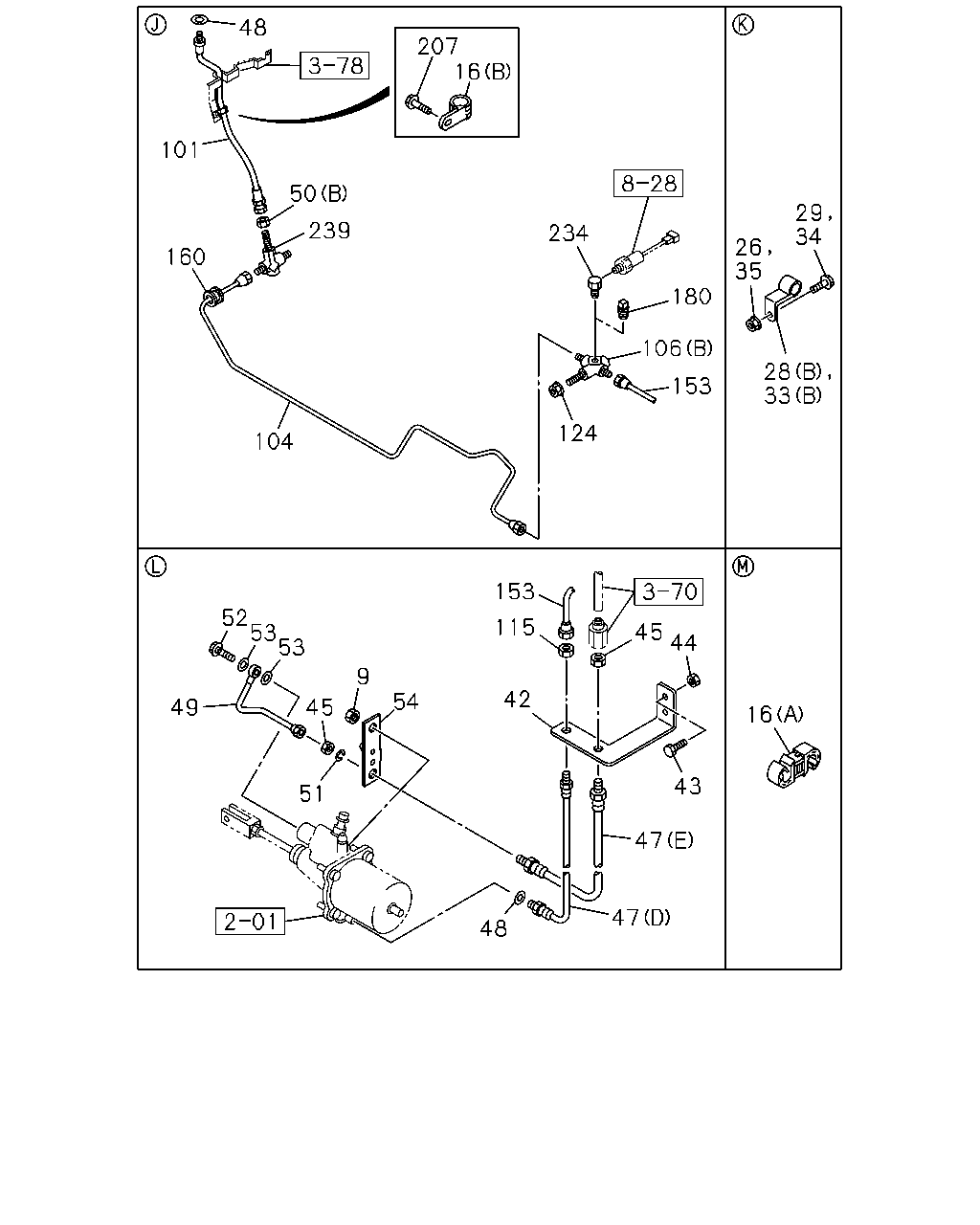

33 28 48 16 207 160 104 101 239 104 50 106 234 124 184 153 153 101 47 42 44 45 115 153 16 47 48 47 22 51 43 50 53 49 53 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (B) ID=18 L=28	1-09701-067-0	01	1	1109-
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (A) ID=10 & 12	1-09709-278-1	01	1	1109-
22	UNION; CLU PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1206-
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1109-
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1109-1205
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1206-
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1206-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	05	1	1109-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1109-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1109-
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1206-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1109-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1109-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	1109-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1109-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1109-
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	1109-1205
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M12	9-09840-280-0	02	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C) L=380	1-09363-884-0	01	1	1206-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (E) L=390	1-09363-629-0	01	1	1206-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (B) L=470	1-09363-716-0	01	1	1109-1205
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=470	1-09363-716-0	01	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (A) L=375	1-09364-407-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (C) L=500	1-09363-720-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09364-329-0	01	1	1109-
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	1109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N)	1-49124-974-0	01	1	1206-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1109-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1109-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1109-1205
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1206-
51	WASHER; LK MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1206-
51	WASHER; LK MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1109-1205
51	WASHER; LK MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1206-
51	WASHER; LK ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) ID=12.2	0-91510-812-0	01	1	1206-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1109-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1109-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1206-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1109-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	1109-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1109-1205
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1206-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1206-
106	UNION; OIL PIPE MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1109-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1109-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1109-1205
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M14	0-91111-514-0	01	1	1206-
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1206-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1109-
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1109-
184	UNION; FLEX HOSE MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1109-
207	BOLT; CLIP MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	1109-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1109-
234	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1109-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1109-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	1109-1205
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M12 & M14 2WAY	1-09654-141-2	01	1	1206-

104 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1206-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1206-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1109-

48 207 16 101 50 29 34 239 234 26 35 160 180 106 28 33 153 124 104 153 52 53 53 115 45 44 9 42 54 49 45 16 43 51 47 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER ES11109 DD M/T(Y5N) M10 FLANGE	0-91180-210-0	02	1	1206-
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (B) ID=18 L=28	1-09701-067-0	01	1	1109-
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (A) ID=10 & 12	1-09709-278-1	01	1	1109-
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	1109-1205
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	01	1	1206-
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1109-
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1109-1205
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1206-
29	BOLT; CLIP,OIL PIPE FULLER ES11109 DD M/T(Y5N) M8X25 FLANGE	0-28650-825-0	01	1	1206-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1109-
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1206-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	05	1	1109-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1109-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1109-
34	BOLT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1206-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1109-
35	NUT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1206-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1109-
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1206-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1109-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1109-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	1109-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1109-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1109-
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	1109-1205
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M12	9-09840-280-0	02	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C) L=380	1-09363-884-0	01	1	1206-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (E) L=390	1-09363-629-0	01	1	1206-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (B) L=470	1-09363-716-0	01	1	1109-1205
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=470	1-09363-716-0	01	1	1206-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (A) L=375	1-09364-407-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (C) L=500	1-09363-720-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09364-329-0	01	1	1109-
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	1109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N)	1-49124-974-0	01	1	1206-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1109-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1109-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1109-1205
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1206-
51	WASHER; LK MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1206-
51	WASHER; LK MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1109-1205
51	WASHER; LK MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1206-
51	WASHER; LK ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) ID=12.2	0-91510-812-0	01	1	1206-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1109-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1109-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
54	BRACKET; AIR,FLEX HOSE FULLER ES11109 DD M/T(Y5N)	8-98081-247-0	01	1	1206-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1206-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1109-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	1109-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1109-1205
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1206-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1206-
106	UNION; OIL PIPE MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1109-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1109-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1109-1205
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M14	0-91111-514-0	01	1	1206-
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1206-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1109-
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1109-
180	PLUG; PIPE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1109-1205
180	PLUG; PIPE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1206-
207	BOLT; CLIP MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	1109-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1109-
234	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1109-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1109-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	1109-1205
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M12 & M14 2WAY	1-09654-141-2	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
