◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#175008) — 24 parça

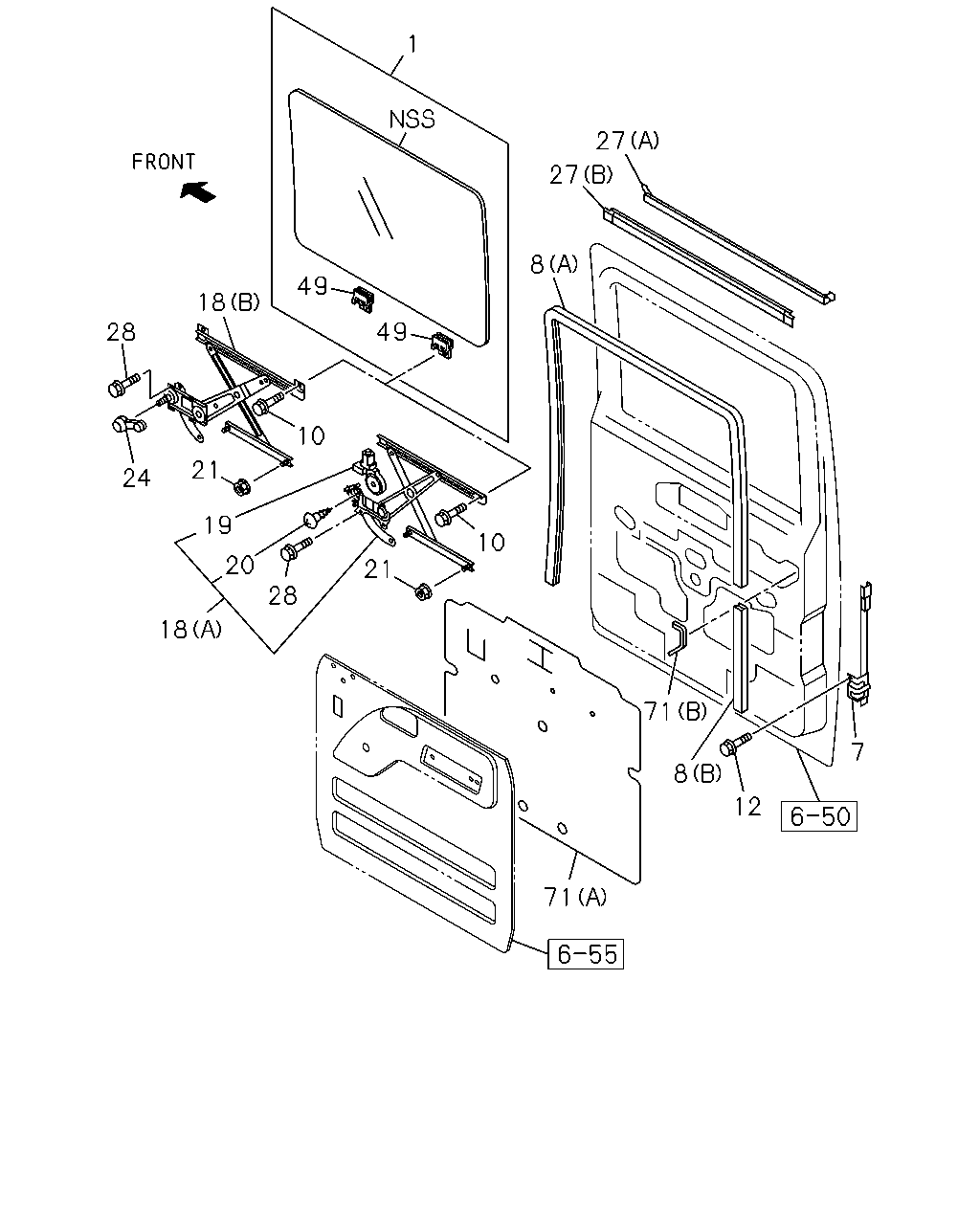

çizim 514592
27 27 1 49 18 28 24 21 19 10 49 10 21 28 20 18 71 8 71 12 8 7
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; RR DOOR 8-98211-769-0 01 1 1501-
1 GLASS; RR DOOR 8-98211-770-0 01 1 1501-
7 CHANNEL; GLASS RUN,RR DOOR 8-98032-137-2 01 1 1501-
7 CHANNEL; GLASS RUN,RR DOOR 8-98032-138-2 01 1 1501-
8 RUN; GLASS,RR DOOR
(A) 		8-97587-685-1 01 1 1501-
8 RUN; GLASS,RR DOOR
(A) 		8-98002-256-1 01 1 1501-
8 RUN; GLASS,RR DOOR
(B) 		8-98070-147-0 02 1 1501-
10 SCREW; GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 1501-
12 SCREW; CHANNEL,GLASS RUN
M6X10 FLANGE 		0-28050-610-0 04 1 1501-
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-97587-695-3 01 1 1501-
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-97587-696-3 01 1 1501-
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98155-996-0 01 1 1501-
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98155-997-0 01 1 1501-
19 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-300-0 01 1 1501-
19 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-301-0 01 1 1501-
20 SCREW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98058-431-0 06 1 1501-
21 NUT; FLANGE,WINDOW REG
M6 FLANGE MAL 		0-91180-106-0 04 1 1501-
24 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97405-313-3 02 1 1501-
27 SEAL; WAIST,RR DOOR
(A) 		8-97587-691-1 02 1 1501-
27 SEAL; WAIST,RR DOOR
(B) 		8-97587-692-1 02 1 1501-
28 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 1501-
49 HOLDER; DOOR GLASS
MAL 		8-98211-762-0 04 1 1501-
71 SEAL; WATER,RR DOOR
(A) 		8-97587-700-1 02 1 1501-
71 SEAL; WATER,RR DOOR
(B) 		8-98061-351-0 02 1 1501-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
