Sayfa 3-70 - Isuzu EPC

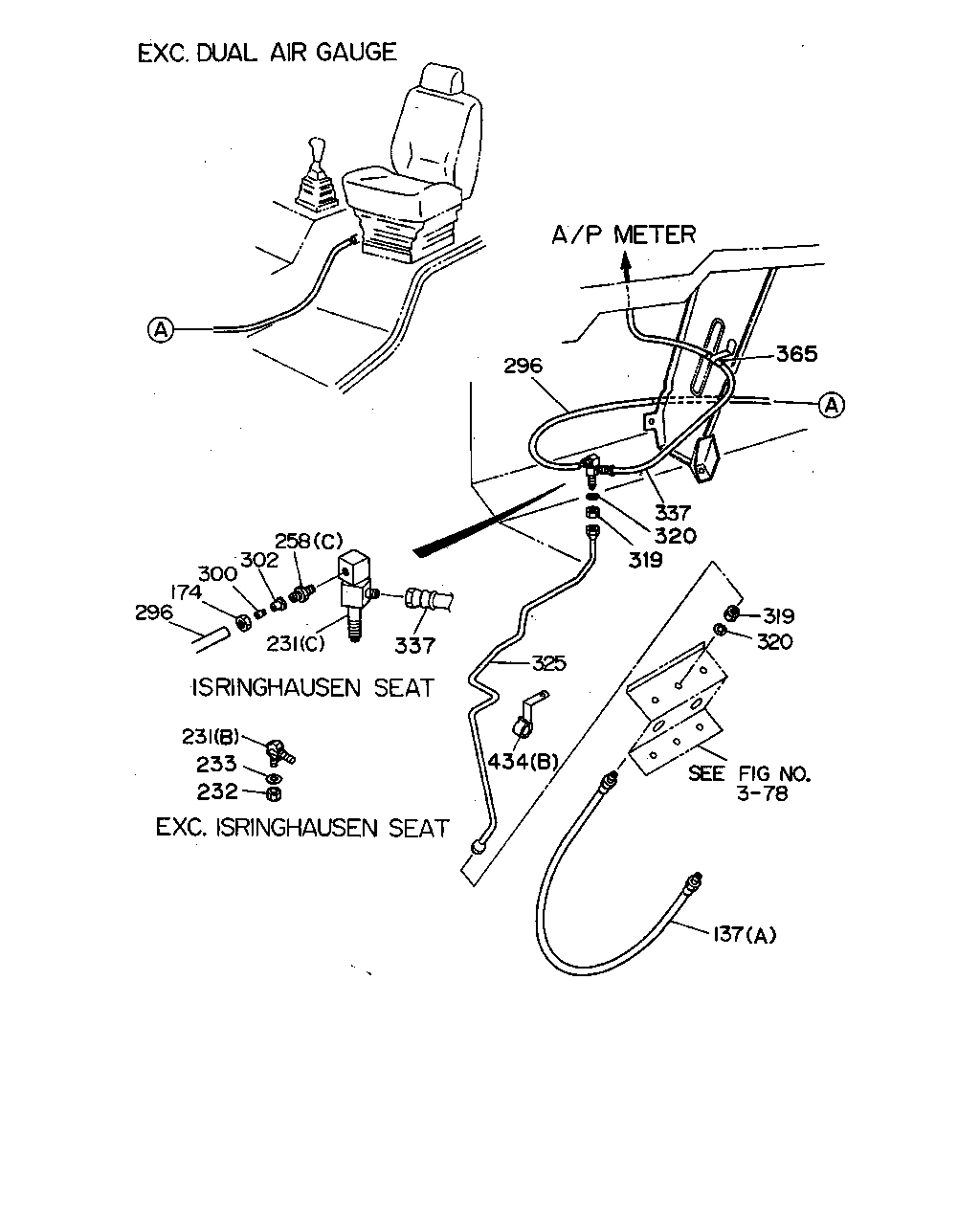

3-70 — BRAKE PIPING; AIR,AIR MASTER (#1750) — 682 parça

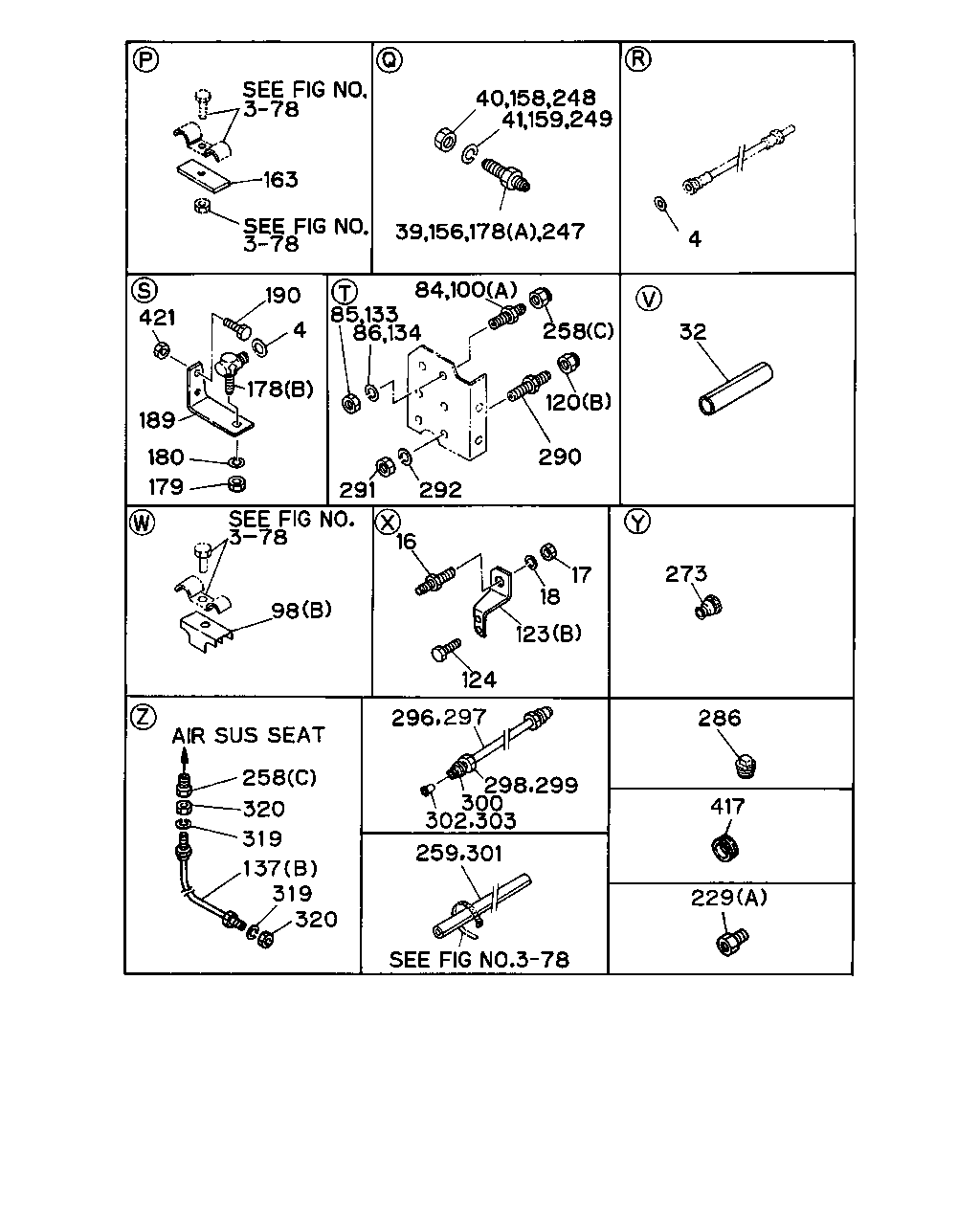

4 40 158 248 32 290 249 41 159 247 39 156 178 190 421 4 178 189 179 180 292 291 134 84 163 100 133 85 86 98 16 17 273 124 123 18 286 417 229 299 297 296 298 300 303 302 301 259 320 319 258 320 319 137 258 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; FLEX HOSE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●
4	GASKET; FLEX HOSE EXC. AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●
16	UNION; AIR PIPE 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> M22	9-09233-315-1	01	1	9307-	●
17	NUT; UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> M22	9-09111-422-0	01	1	9307-	●
18	WASHER; LK,UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=22.5	9-09150-522-0	01	1	9405-	●
32	SLEEVE; RUBBER,AIR PIPE NYLON TUBE AIR PIPING<Z29> L=40	1-09337-013-0	02	1	9307-	●
32	SLEEVE; RUBBER,AIR PIPE NYLON TUBE AIR PIPING<Z29> L=150	1-09360-677-1	02	1	9307-	●
39	UNION; AIR PIPE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20 & M20	9-09233-312-1	01	1	9002-	●	●
39	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M20 & M20	9-09233-312-1	01	1	9002-	●	●
40	NUT; PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-	●	●
40	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-	●	●
41	WASHER; LK,PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-	●	●
41	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-	●	●
84	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	9-09223-206-1	01	1	9002-9306	●
84	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> 17/32" PT1/4	1-09660-573-0	01	1	9307-	●
85	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-9306	●
86	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	01	1	9003-9004	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	01	1	9003-9004		●
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-303-1	01	1	9002-	●	●
98	BRACKET; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=50	1-47475-299-2	01	1	9002-	●	●
98	BRACKET; AIR PIPE 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> (C) L=50	1-47475-299-2	01	1	9002-	●
98	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> (C) L=50	1-47475-299-2	01	1	9002-		●
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A)	9-09223-206-0	01	1	9002-9009	●
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (A)	9-09223-206-1	01	1	9010-9306	●
100	CONNECTOR; AIR PIPE (B)	1-09650-031-0	01	1	9002-9103	●	●
100	CONNECTOR; AIR PIPE (B)	1-09650-332-1	01	1	9104-9404	●	●
100	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09650-332-1	01	1	9405-	●	●
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	1-47470-165-1	01	1	9002-	●
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D)	1-47470-167-3	01	1	9002-	●
120	CONNECTOR; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> (A)	1-09660-220-0	03	1	9002-9306	●
120	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	01	1	9002-9306	●
123	BRACKET; UNION EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-432-3	01	1	9002-9103	●
123	BRACKET; UNION (A)	1-47475-432-3	01	1	9002-9103		●
123	BRACKET; UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-432-3	01	1	9104-	●	●
123	BRACKET; UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-432-3	01	1	9104-	●	●
123	BRACKET; UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47475-857-1	01	1	9307-	●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
124	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204		●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●
124	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306		●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9103	●
124	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9103		●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9104-9204	●	●
124	BOLT; BRKT FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9104-9204	●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
124	BOLT; BRKT FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●
124	BOLT; BRKT FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●
133	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-9009	●
133	NUT; UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9010-9306	●
134	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9009	●
134	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9010-9306	●
137	HOSE; FLEX,AIR PRESSURE GAGE DRIVER SEAT W/ARM REST(SGP) (B) L=660	0-07030-660-0	01	1	9307-	●
137	HOSE; FLEX,AIR PRESSURE GAGE CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) L=950	1-09363-372-1	01	1	9002-	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) L=840	1-09363-368-1	01	1	9002-	●	●
156	UNION; AIR PIPE EXC. AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9002-	●	●
158	NUT; UNION,AIR PIPE EXC. AIR DRYER<PS7> M12	9-09840-280-0	01	1	9002-	●	●
159	WASHER; LK,UNION,AIR PIPE EXC. AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	06	1	9002-9005	●	●
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-9009	●	●
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9002-9009	●
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9010-9306	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	02	1	9307-	●	●
178	UNION; AIR PIPE AIR DRYER<PS7> (B) M12	1-09654-087-1	01	1	9002-	●	●
178	UNION; AIR PIPE AIR DRYER<PS7> (A) M12 L=66.5	9-09223-306-1	01	1	9002-	●	●
179	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	01	1	9002-	●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-	●	●
189	BRACKET; FLEX HOSE AIR DRYER<PS7> CAB UP 50MM(W60)	1-47476-163-1	01	1	9002-	●	●
189	BRACKET; FLEX HOSE AIR DRYER<PS7> EXC. CAB UP 50MM(W60)	1-47475-874-0	01	1	9002-	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) PT1/2	1-09650-373-0	02	1	9307-	●
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) PT1/4 M14 & PT1/4	9-48319-149-0	01	1	9307-	●
247	UNION; AIR PIPE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20 & M20	9-09233-312-1	01	1	9002-	●
248	NUT; PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-	●
249	WASHER; LK,PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-	●
258	CONNECTOR; NYLON TUBE DRIVER SEAT W/ARM REST(SGP) (C)	1-09660-626-0	01	1	9307-	●
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-240-0	01	1	9002-9306	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-218-0	01	1	9002-9306	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09660-599-1	01	1	9206-9306		●
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> OD=16.8 L=50	1-09369-010-0	02	1	9002-	●
273	GROMMET DRIVER SEAT W/ARM REST(SGP)	1-09332-102-0	01	1	9307-	●
286	PLUG; AIR PIPE JUMPER HOSE & CABLE DELETE<SJK> PT1/2	9-09204-521-0	01	1	9002-	●	●
290	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M12 L=62.5	9-09223-206-1	01	1	9002-9306	●
291	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-9306	●
292	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●

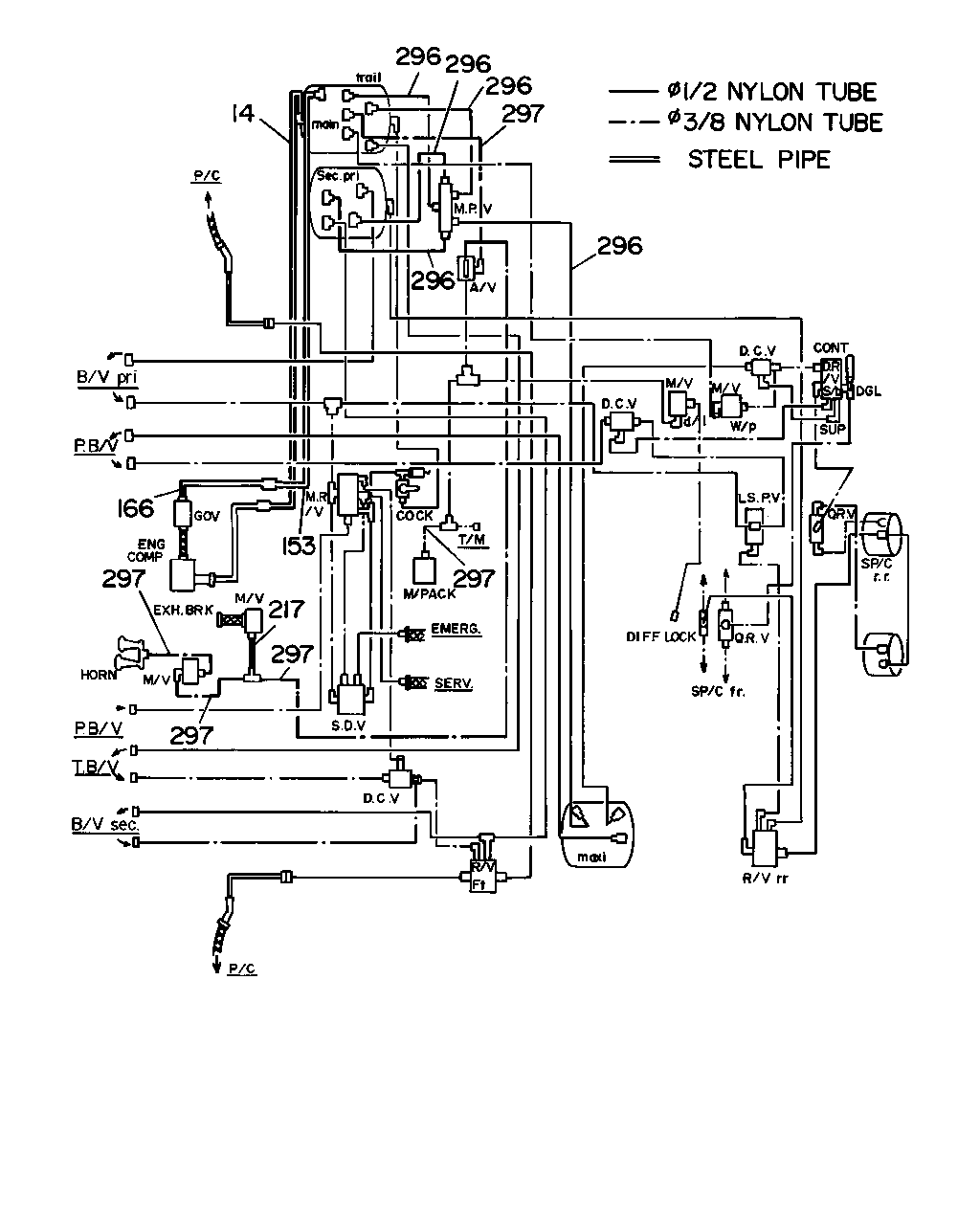

296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-	●
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) BLACK SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9206-9306		●
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-	●
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5) BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-	●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-	●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306	●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306	●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	AR	1	9307-	●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	04	1	9307-	●
299	NUT; SLEEVE NEW ZEALAND EQUIPMENT(PK5) OD=3/8"	1-09660-557-0	AR	1	9307-	●
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-	●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-	●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-	●
300	SLEEVE; TUBE DRIVER ISRINGHAUSEN SEAT(SJA) FOR 8MM TUBE	1-09666-064-0	AR	1	9206-9306		●
301	SLEEVE; TUBE NEW ZEALAND EQUIPMENT(PK5) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-	●
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	04	1	9307-	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-	●
302	RING; INSERT DRIVER ISRINGHAUSEN SEAT(SJA) FOR 34MM TUBE	1-09669-106-0	AR	1	9206-9306		●
303	RING; INSERT NEW ZEALAND EQUIPMENT(PK5) OD=3/8"	1-09669-108-0	AR	1	9307-	●
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-	●
319	NUT; FLEX HOSE,CAB SIDE DRIVER SEAT W/ARM REST(SGP) M12	9-09840-280-0	02	1	9307-	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M10	1-09400-029-0	01	1	9002-	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE DRIVER SEAT W/ARM REST(SGP) ID=12.2	9-09150-512-0	02	1	9307-	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	01	1	9002-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-	●	●
417	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	02	1	9307-9404	●
417	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	01	1	9405-	●
421	NUT; BRKT AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-	●	●

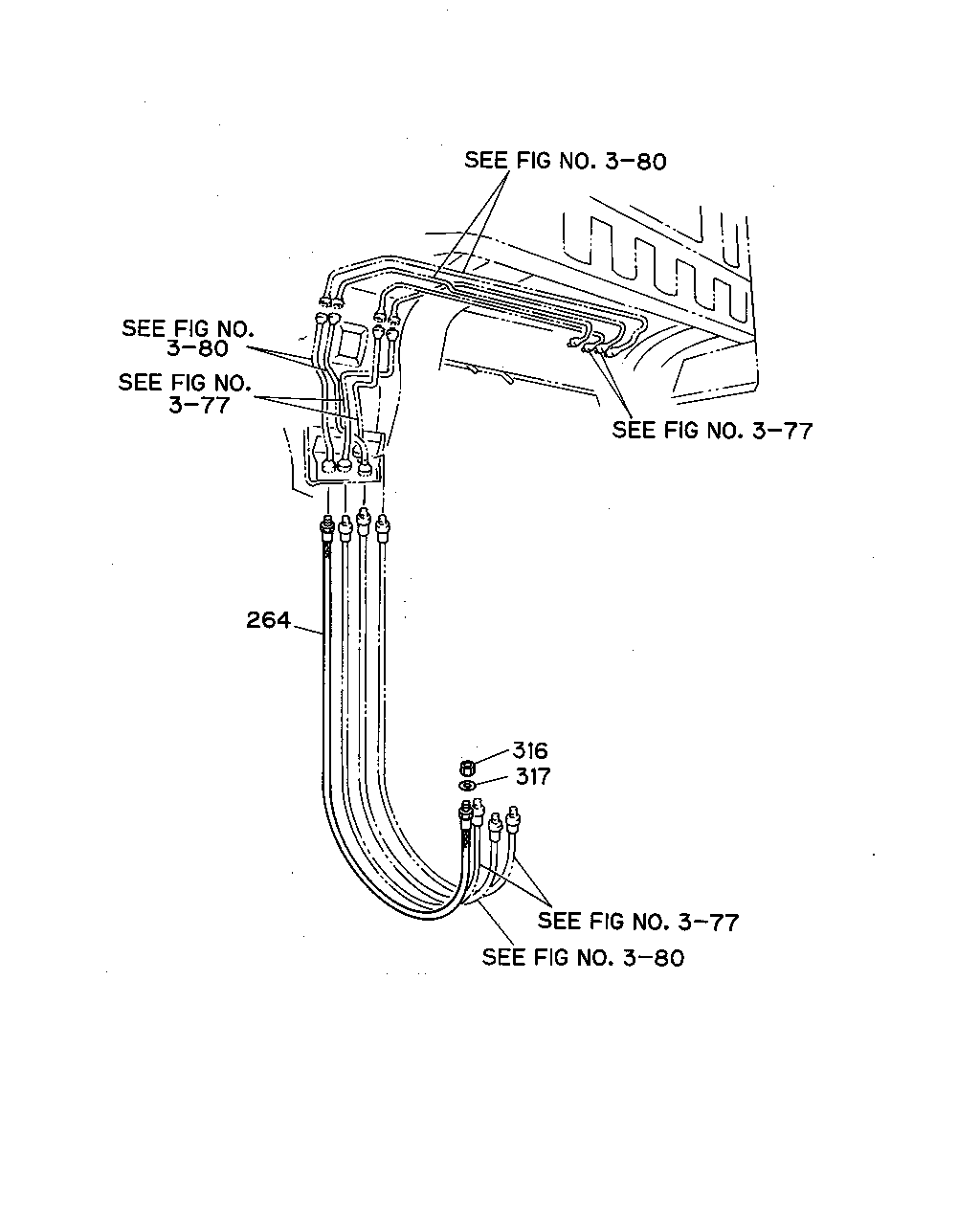

264 316 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
264	HOSE; FLEX CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> L=700	0-07404-700-0	01	1	9002-	●
264	HOSE; FLEX EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=580	0-07404-580-0	01	1	9002-	●
264	HOSE; FLEX L=580	0-07404-580-0	01	1	9002-		●
316	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-	●
316	NUT; FLEX HOSE M14	9-99111-414-0	01	1	9002-		●
317	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-	●
317	WASHER; LK,FLEX HOSE ID=14.2	9-09150-514-0	01	1	9002-		●

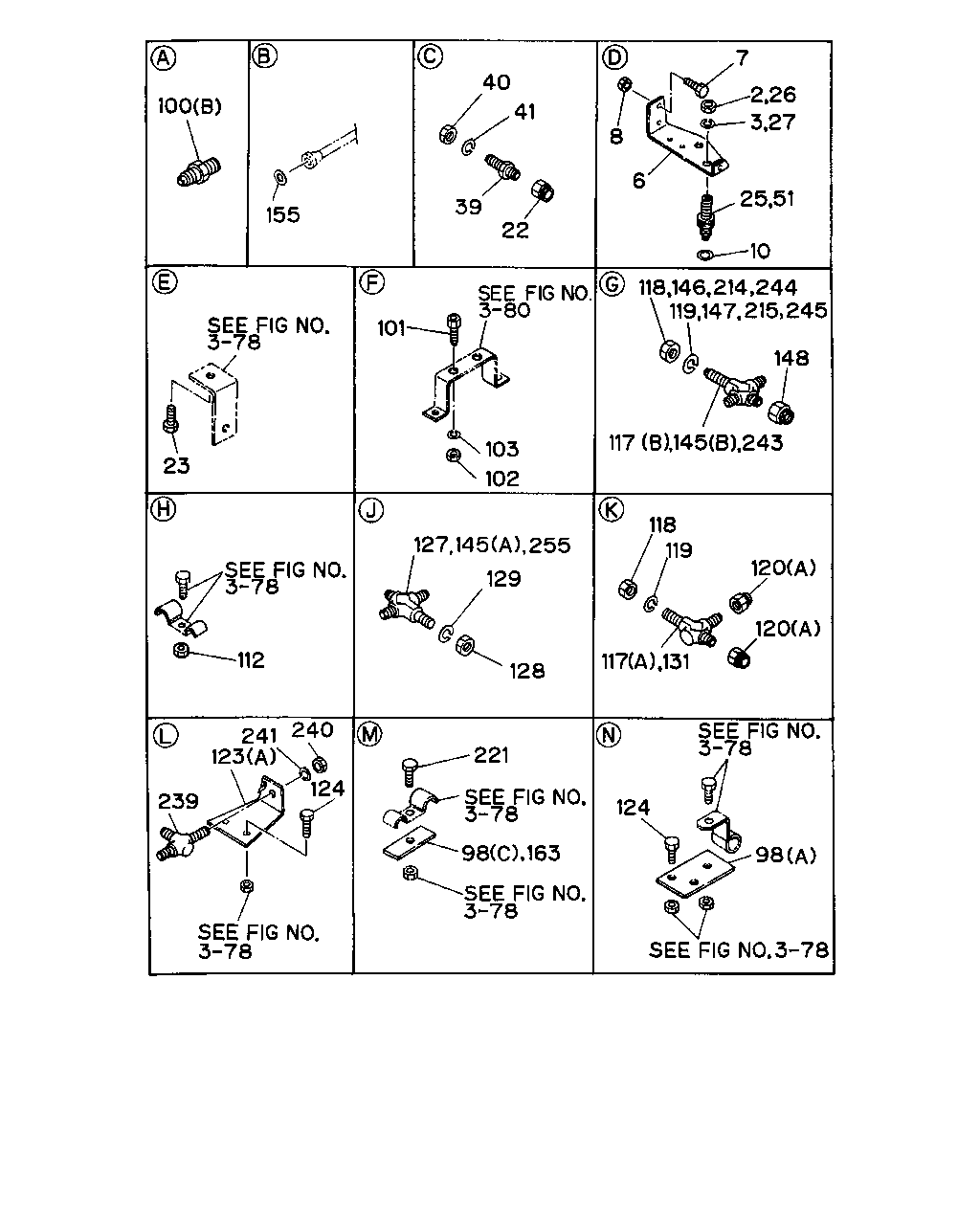

100 155 39 41 40 22 8 6 7 2 26 51 25 10 23 101 103 102 117 145 243 148 118 146 214 244 245 215 147 119 112 127 145 255 129 128 118 119 120 117 131 120 241 240 124 123 239 221 163 98 124 98 27 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-	●	●
6	BRACKET; FLEX HOSE,AIR TANK 8PD1 STD ENG(38L)	1-47475-301-4	01	1	9307-	●
6	BRACKET; FLEX HOSE,AIR TANK 10PD1 STD ENG(40L)	1-47476-363-1	01	1	9002-	●	●
6	BRACKET; FLEX HOSE,AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L)	1-47475-572-0	01	1	9002-	●	●
6	BRACKET; FLEX HOSE,AIR TANK 12PD1 STD ENG(42L)	1-47475-969-4	01	1	9002-9306		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9002-	●	●
10	GASKET; CHECK VLV ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●
22	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> M18 & M20 STRAIGHT	1-09660-221-0	01	1	9002-9306	●
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	9-01900-828-0	01	1	9002-9204	●
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	0-50040-828-0	01	1	9205-9302	●
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306	●
23	BOLT; BRKT,AIR PIPE M8X25 W/LK WASHER	9-01910-825-0	01	1	9002-9005		●
23	BOLT; BRKT,AIR PIPE M8X25 W/LK WASHER	0-50040-825-0	01	1	9006-9302		●
23	BOLT; BRKT,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9303-9306		●
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-1	01	1	9002-	●	●
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-	●	●
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-	●	●
39	UNION; AIR PIPE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20 & M20	9-09233-312-1	01	1	9002-	●	●
39	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M20 & M20	9-09233-312-1	01	1	9002-	●	●
40	NUT; PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-	●	●
40	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-	●	●
41	WASHER; LK,PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-	●	●
41	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-	●	●
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9002-	●	●
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-427-1	01	1	9003-9004	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	01	1	9003-9004		●
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-303-1	01	1	9002-	●	●
98	BRACKET; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=50	1-47475-299-2	01	1	9002-	●	●
98	BRACKET; AIR PIPE 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> (C) L=50	1-47475-299-2	01	1	9002-	●
98	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> (C) L=50	1-47475-299-2	01	1	9002-		●
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A)	9-09223-206-0	01	1	9002-9009	●
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (A)	9-09223-206-1	01	1	9010-9306	●
100	CONNECTOR; AIR PIPE (B)	1-09650-031-0	01	1	9002-9103	●	●
100	CONNECTOR; AIR PIPE (B)	1-09650-332-1	01	1	9104-9404	●	●
100	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09650-332-1	01	1	9405-	●	●
101	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-09650-222-1	01	1	9002-	●	●
102	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-	●	●
103	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-	●	●
112	NUT EXC. NYLON TUBE AIR PIPING<Z29> M6	9-09110-406-0	01	1	9002-9307	●
112	NUT EXC. NYLON TUBE AIR PIPING<Z29> M6 FLANGE	0-91150-106-0	01	1	9308-	●
117	UNION; AIR PIPE FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (A) M12 & M16X2 3WAY	1-09654-086-1	01	1	9002-	●
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> (A)	9-09228-910-0	01	1	9002-9103	●
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. DRIVER SEAT W/ARM REST(SGP),NYLON TUBE AIR PIPING<Z29> (A) M16 3WAY	9-09238-910-1	01	1	9104-	●
117	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	9-09229-210-1	01	1	9002-9306	●	●
117	UNION; AIR PIPE FULLER M/T<X9B> (B)	1-09656-444-1	01	1	9002-		●
117	UNION; AIR PIPE ISUZU M/T<X9A> (B)	1-09656-426-1	01	1	9002-9306		●
117	UNION; AIR PIPE DRIVER SEAT W/ARM REST(SGP) (B)	1-09656-426-1	01	1	9307-	●
117	UNION; AIR PIPE ISUZU M/T<X9A> (B)	1-09656-426-1	01	1	9307-		●
118	NUT; UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●
118	NUT; UNION M16	9-99111-416-0	01	1	9002-	●	●
118	NUT; UNION EXC. DUAL AIR GAUGE<UG2> M12	9-99110-412-0	01	1	9002-9304		●
118	NUT; UNION EXC. DUAL AIR GAUGE<UG2> M12	9-99110-512-0	01	1	9305-		●
119	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●
119	WASHER; LK,UNION EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-9312		●
119	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9002-9312	●	●
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	1-47470-165-1	01	1	9002-	●
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D)	1-47470-167-3	01	1	9002-	●
120	CONNECTOR; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> (A)	1-09660-220-0	03	1	9002-9306	●
120	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	01	1	9002-9306	●
123	BRACKET; UNION EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-432-3	01	1	9002-9103	●
123	BRACKET; UNION (A)	1-47475-432-3	01	1	9002-9103		●
123	BRACKET; UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-432-3	01	1	9104-	●	●
123	BRACKET; UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-432-3	01	1	9104-	●	●
123	BRACKET; UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47475-857-1	01	1	9307-	●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
124	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204		●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●
124	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306		●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9103	●
124	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9103		●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9104-9204	●	●
124	BOLT; BRKT FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9104-9204	●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
124	BOLT; BRKT FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●
124	BOLT; BRKT FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●
127	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9002-	●

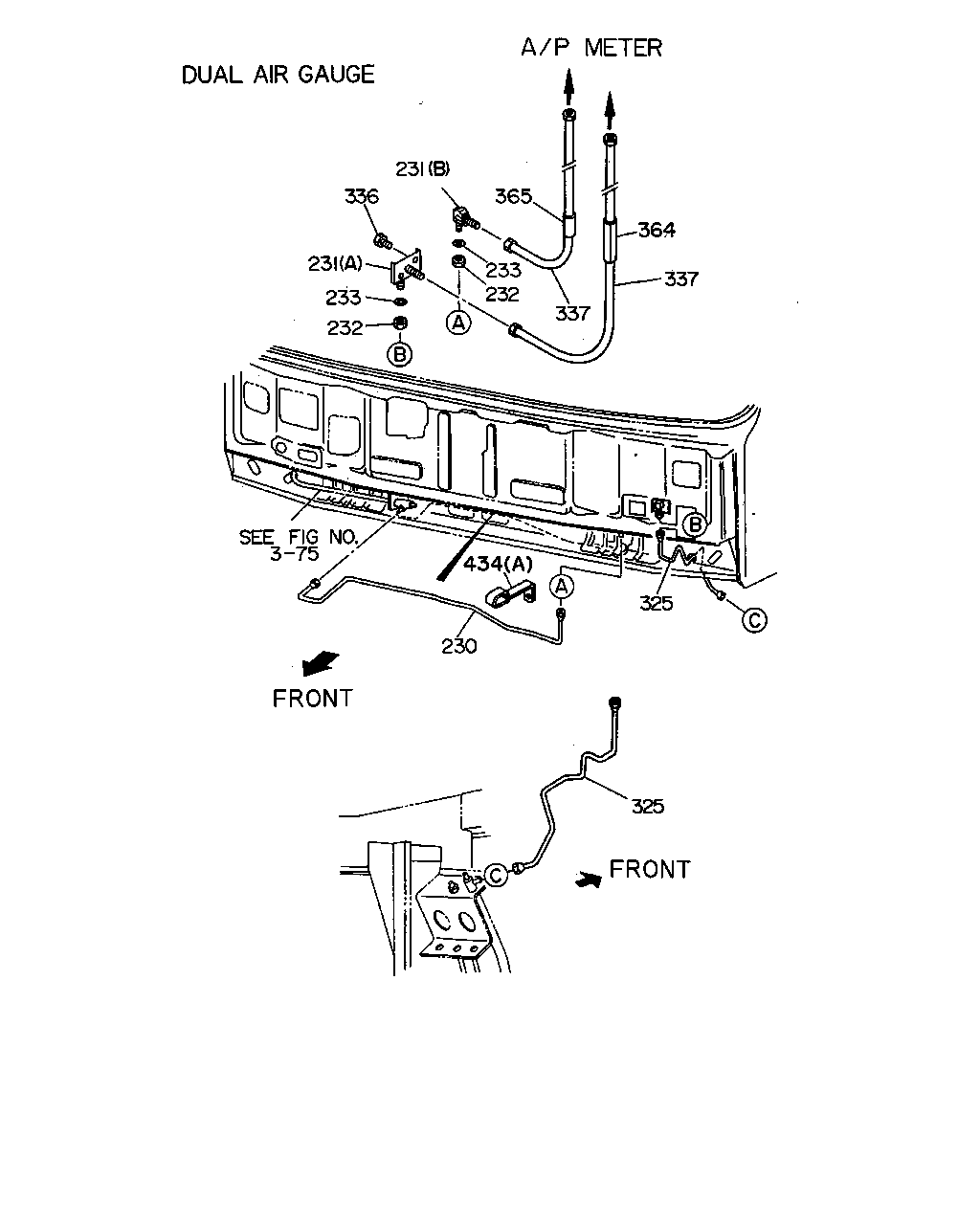

127	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> M12	9-09228-306-1	01	1	9002-		●
127	UNION; AIR PIPE DUAL AIR GAUGE<UG2> M12 2WAY	1-09654-059-2	01	1	9002-		●
128	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9110	●	●
128	NUT; PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9111-9304	●	●
128	NUT; PIPE UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9111-9304	●	●
128	NUT; PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-	●	●
128	NUT; PIPE UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-	●	●
129	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
131	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> M12 ELBOW	9-09225-206-1	01	1	9002-	●
131	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M12 3WAY	9-09228-906-1	01	1	9002-	●
131	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> M12 2WAY	1-09654-059-2	01	1	9002-		●
145	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09656-362-1	01	1	9002-9306	●
145	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (A) M14 3WAY	1-09664-066-0	01	1	9002-9306	●
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M12	9-99110-412-0	01	1	9002-9304	●
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M12	9-99110-512-0	01	1	9305-9306	●
147	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-9306	●
148	CONNECTOR; UNION NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> M14 & M16 STRAIGHT	1-09660-220-0	02	1	9002-9306	●
155	GASKET; AIR PIPE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	06	1	9002-9005	●	●
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-9009	●	●
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9002-9009	●
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9010-9306	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	02	1	9307-	●	●
214	NUT; UNION,AIR PIPE NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	9307-	●
215	WASHER; LK,UNION,AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9002-9302	●
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9303-	●
239	UNION; AIR PIPE FULLER M/T<X9B> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> M12	1-09656-392-2	01	1	9002-	●
239	UNION; AIR PIPE FULLER M/T<X9B> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	1-09656-392-2	01	1	9002-		●
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9002-	●
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),DUAL AIR GAUGE<UG2> M12	9-09228-306-1	01	1	9002-		●
239	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12 3WAY	9-09228-906-1	01	1	9002-	●	●
239	UNION; AIR PIPE ISUZU M/T<X9A> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X1.5	1-09654-059-2	01	1	9002-		●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●	●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-	●	●
240	NUT; UNION,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●	●
240	NUT; UNION,AIR PIPE FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●	●
241	WASHER; LK,UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-	●	●
243	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-09656-283-1	01	1	9002-	●
243	UNION; AIR PIPE	1-09656-283-1	01	1	9002-		●
244	NUT; UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	9002-	●	●
245	WASHER; LK,UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
255	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9307-	●

296 296 14 296 296 297 296 166 153 297 217 297 297 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) AIR DRYER<PS7> L=1519 SERVICED BY L=1650	1-47437-996-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1526 SERVICED BY L=1650	1-49111-464-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1547 SERVICED BY L=1650	1-47437-996-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1554 SERVICED BY L=1650	1-47437-996-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) AIR DRYER<PS7> L=1417	1-47487-502-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) AIR DRYER<PS7> L=1414	1-47491-429-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. AIR DRYER<PS7> L=1430	1-47486-149-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. AIR DRYER<PS7> L=1419	1-47491-427-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) AIR DRYER<PS7> L=1506	1-47489-251-0	01	1	9002-9006		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) AIR DRYER<PS7> L=1513	1-47491-433-0	01	1	9007-9306		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) EXC. AIR DRYER<PS7> L=1534	1-47489-250-0	01	1	9002-9006		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) EXC. AIR DRYER<PS7> L=1541	1-47491-432-0	01	1	9007-9306		●
153	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1030 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=1030 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=881 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306	●	●
153	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=1079	1-49111-060-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1116	1-49111-061-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1147	1-47484-369-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. AIR DRYER<PS7> L=976	1-47485-192-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV 12PD1 STD ENG(42L) EXC. AIR DRYER<PS7> L=1121	1-47489-252-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=838 SERVICED BY L=900	1-47426-349-0	01	1	9002-9306	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=819 SERVICED BY L=900	1-47426-349-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1292 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 12PD1 STD ENG(42L) L=1147 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-	●
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) BLACK SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9206-9306		●
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-	●
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5) BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-	●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-	●

34 176 21 262 153 242 33 238 166 217 250 272 287 130 237 126 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	PIPE; AIR,UNION TO AIR DRYER 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> L=827	1-47487-501-0	01	1	9307-	●
33	PIPE; AIR,UNION TO AIR TANK 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=894	1-47482-402-0	01	1	9307-	●
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-47434-485-1	01	1	9002-9306	●	●
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-49111-443-0	01	1	9307-	●	●
126	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> L=471	1-47488-493-0	01	1	9002-	●	●
126	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-	●	●
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306	●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306		●
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-	●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-		●
153	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1030 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=1030 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=881 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306	●	●
153	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=1079	1-49111-060-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1116	1-49111-061-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1147	1-47484-369-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. AIR DRYER<PS7> L=976	1-47485-192-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV 12PD1 STD ENG(42L) EXC. AIR DRYER<PS7> L=1121	1-47489-252-0	01	1	9002-9306		●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=1223 SERVICED BY L=1250	1-47434-389-0	01	1	9002-	●	●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=838 SERVICED BY L=900	1-47426-349-0	01	1	9002-9306	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=819 SERVICED BY L=900	1-47426-349-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1292 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 12PD1 STD ENG(42L) L=1147 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
237	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29>	1-47481-704-0	01	1	9307-	●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1346 SERVICED BY L=1370	1-47434-390-0	01	1	9307-	●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007	●
238	PIPE; AIR,UNION TO UNION (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007		●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306	●
238	PIPE; AIR,UNION TO UNION (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306		●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-	●
238	PIPE; AIR,UNION TO UNION (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-		●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (B) L=1330 SERVICED BY L=1370	1-47434-390-0	01	1	9307-	●	●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1330 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> (B) L=1883 SERVICED BY L=2000	1-47434-395-0	01	1	9002-	●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1322 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●	●
242	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-	●
242	PIPE; AIR,AIR TANK TO UNION L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●
242	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●
242	PIPE; AIR,AIR TANK TO UNION L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●
242	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=956 SERVICED BY L=1000	1-47426-414-0	01	1	9307-	●
250	PIPE; AIR,UNION TO FLEX HOSE AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=2278 SERVICED BY L=2350	1-47434-397-0	01	1	9002-9306	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> L=1496 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9306	●
250	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60) L=1340 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●
250	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1443 SERVICED BY L=1620	1-47434-392-0	01	1	9307-	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9307-9308	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-		●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1131 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> L=1131 SERVICED BY L=1200	1-47434-388-0	01	1	9002-		●
262	PIPE; AIR,UNION TO FLEX 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> L=1075 SERVICED BY L=1200	1-47426-352-0	01	1	9307-	●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) AIR DRYER<PS7> L=949 SERVICED BY L=1000	1-47434-386-0	01	1	9002-	●	●
262	PIPE; AIR,UNION TO FLEX 12PD1 STD ENG(42L) AIR DRYER<PS7> L=1105 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
262	PIPE; AIR,UNION TO FLEX 8PD1 STD ENG(38L) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1097 SERVICED BY L=1200	1-47426-352-0	01	1	9307-	●
272	PIPE; AIR,MAG VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1102 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●
272	PIPE; AIR,MAG VLV TO UNION L TYPE ENG<90L> L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306		●
272	PIPE; AIR,MAG VLV TO UNION V TYPE ENG<91L> L=2838 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306		●
272	PIPE; AIR,MAG VLV TO UNION L=2853 SERVICED BY L=2900	1-47426-364-0	01	1	9307-9308		●
272	PIPE; AIR,MAG VLV TO UNION L=2862 SERVICED BY L=2900	1-47426-364-0	01	1	9309-		●
287	PIPE; AIR,MAG VLV	1-47444-990-2	01	1	9002-9212	●
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-9404	●
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47496-263-0	01	1	9405-	●
287	PIPE; AIR,MAG VLV	1-47488-299-0	01	1	9002-9306		●
287	PIPE; AIR,MAG VLV	1-47496-264-0	01	1	9307-		●

296 365 337 320 319 319 337 258 296 302 300 174 231 232 325 233 434 137 320 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	HOSE; FLEX,AIR PRESSURE GAGE DRIVER SEAT W/ARM REST(SGP) (B) L=660	0-07030-660-0	01	1	9307-	●
137	HOSE; FLEX,AIR PRESSURE GAGE CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) L=950	1-09363-372-1	01	1	9002-	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> (A) L=840	1-09363-368-1	01	1	9002-	●	●
174	NUT; SLEEVE,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA)	1-09660-589-0	02	1	9206-9306		●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-09654-180-3	02	1	9002-	●
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B)	1-09654-180-3	01	1	9002-	●
231	UNION; AIR PIPE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-09654-180-3	01	1	9002-		●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09656-167-1	01	1	9206-9302		●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09660-565-0	01	1	9303-9306		●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A)	1-47470-194-1	01	1	9002-		●
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9002-	●
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9002-	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	9002-		●
233	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9002-	●
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9002-	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	9002-		●
258	CONNECTOR; NYLON TUBE DRIVER SEAT W/ARM REST(SGP) (C)	1-09660-626-0	01	1	9307-	●
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-240-0	01	1	9002-9306	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-218-0	01	1	9002-9306	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09660-599-1	01	1	9206-9306		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-	●
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) BLACK SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9206-9306		●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-	●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-	●
300	SLEEVE; TUBE DRIVER ISRINGHAUSEN SEAT(SJA) FOR 8MM TUBE	1-09666-064-0	AR	1	9206-9306		●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	04	1	9307-	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-	●
302	RING; INSERT DRIVER ISRINGHAUSEN SEAT(SJA) FOR 34MM TUBE	1-09669-106-0	AR	1	9206-9306		●
319	NUT; FLEX HOSE,CAB SIDE DRIVER SEAT W/ARM REST(SGP) M12	9-09840-280-0	02	1	9307-	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M10	1-09400-029-0	01	1	9002-	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE DRIVER SEAT W/ARM REST(SGP) ID=12.2	9-09150-512-0	02	1	9307-	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	01	1	9002-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-	●	●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=530	1-47445-586-1	01	1	9002-	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1594	1-47448-029-2	01	1	9002-	●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> L=577	1-47448-182-0	01	1	9002-		●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=720	1-47448-807-1	01	1	9002-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	02	1	9002-	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	01	1	9002-	●	●
365	SLEEVE; RUBBER,FLEX HOSE DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	02	1	9002-		●
365	SLEEVE; RUBBER,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	01	1	9002-		●
434	CLIP DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9307-	●	●
434	CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (B) ID=14	8-94157-443-0	01	1	9307-	●	●

242 238 34 14 238 171 154 169 176 262 287 272 130 217 38 246 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) AIR DRYER<PS7> L=1519 SERVICED BY L=1650	1-47437-996-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1526 SERVICED BY L=1650	1-49111-464-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1547 SERVICED BY L=1650	1-47437-996-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1554 SERVICED BY L=1650	1-47437-996-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) AIR DRYER<PS7> L=1417	1-47487-502-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) AIR DRYER<PS7> L=1414	1-47491-429-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. AIR DRYER<PS7> L=1430	1-47486-149-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. AIR DRYER<PS7> L=1419	1-47491-427-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) AIR DRYER<PS7> L=1506	1-47489-251-0	01	1	9002-9006		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) AIR DRYER<PS7> L=1513	1-47491-433-0	01	1	9007-9306		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) EXC. AIR DRYER<PS7> L=1534	1-47489-250-0	01	1	9002-9006		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) EXC. AIR DRYER<PS7> L=1541	1-47491-432-0	01	1	9007-9306		●
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-47434-485-1	01	1	9002-9306	●	●
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-49111-443-0	01	1	9307-	●	●
38	PIPE; AIR,MAIN TANK TO UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=1317 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
38	PIPE; AIR,MAIN TANK TO UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=1317 SERVICED BY L=1450	1-49111-447-0	01	1	9307-	●
45	PIPE; AIR,UNION TO AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=762	1-47488-914-0	01	1	9002-9204	●	●
45	PIPE; AIR,UNION TO AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=814	1-47494-960-0	01	1	9205-9306	●	●
45	PIPE; AIR,UNION TO AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=814 SERVICED BY L=900	1-49111-442-0	01	1	9307-	●
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306	●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306		●
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-	●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-		●
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-47487-299-0	01	1	9002-	●	●
169	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> DRIVER SEAT W/ARM REST(SGP) L=3024	1-47499-296-0	01	1	9307-	●
169	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> DRIVER SEAT W/ARM REST(SGP) L=3032	1-47499-297-0	01	1	9307-9308	●
169	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> DRIVER SEAT W/ARM REST(SGP) L=3041	1-49111-232-0	01	1	9309-	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=992	1-47487-300-0	01	1	9002-	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=1223 SERVICED BY L=1250	1-47434-389-0	01	1	9002-	●	●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=838 SERVICED BY L=900	1-47426-349-0	01	1	9002-9306	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=819 SERVICED BY L=900	1-47426-349-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1292 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 12PD1 STD ENG(42L) L=1147 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1346 SERVICED BY L=1370	1-47434-390-0	01	1	9307-	●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007	●
238	PIPE; AIR,UNION TO UNION (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007		●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306	●
238	PIPE; AIR,UNION TO UNION (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306		●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-	●
238	PIPE; AIR,UNION TO UNION (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-		●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (B) L=1330 SERVICED BY L=1370	1-47434-390-0	01	1	9307-	●	●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1330 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> (B) L=1883 SERVICED BY L=2000	1-47434-395-0	01	1	9002-	●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1322 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●	●
242	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-	●
242	PIPE; AIR,AIR TANK TO UNION L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●
242	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●
242	PIPE; AIR,AIR TANK TO UNION L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●
242	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=956 SERVICED BY L=1000	1-47426-414-0	01	1	9307-	●
246	PIPE; AIR,UNION TO UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=1532 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306	●
246	PIPE; AIR,UNION TO UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=1533 SERVICED BY L=1600	1-49111-448-0	01	1	9307-	●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1131 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> L=1131 SERVICED BY L=1200	1-47434-388-0	01	1	9002-		●
262	PIPE; AIR,UNION TO FLEX 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> L=1075 SERVICED BY L=1200	1-47426-352-0	01	1	9307-	●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) AIR DRYER<PS7> L=949 SERVICED BY L=1000	1-47434-386-0	01	1	9002-	●	●
262	PIPE; AIR,UNION TO FLEX 12PD1 STD ENG(42L) AIR DRYER<PS7> L=1105 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
262	PIPE; AIR,UNION TO FLEX 8PD1 STD ENG(38L) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1097 SERVICED BY L=1200	1-47426-352-0	01	1	9307-	●
272	PIPE; AIR,MAG VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1102 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●
272	PIPE; AIR,MAG VLV TO UNION L TYPE ENG<90L> L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306		●
272	PIPE; AIR,MAG VLV TO UNION V TYPE ENG<91L> L=2838 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306		●
272	PIPE; AIR,MAG VLV TO UNION L=2853 SERVICED BY L=2900	1-47426-364-0	01	1	9307-9308		●
272	PIPE; AIR,MAG VLV TO UNION L=2862 SERVICED BY L=2900	1-47426-364-0	01	1	9309-		●
287	PIPE; AIR,MAG VLV	1-47444-990-2	01	1	9002-9212	●
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-9404	●
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47496-263-0	01	1	9405-	●
287	PIPE; AIR,MAG VLV	1-47488-299-0	01	1	9002-9306		●
287	PIPE; AIR,MAG VLV	1-47496-264-0	01	1	9307-		●

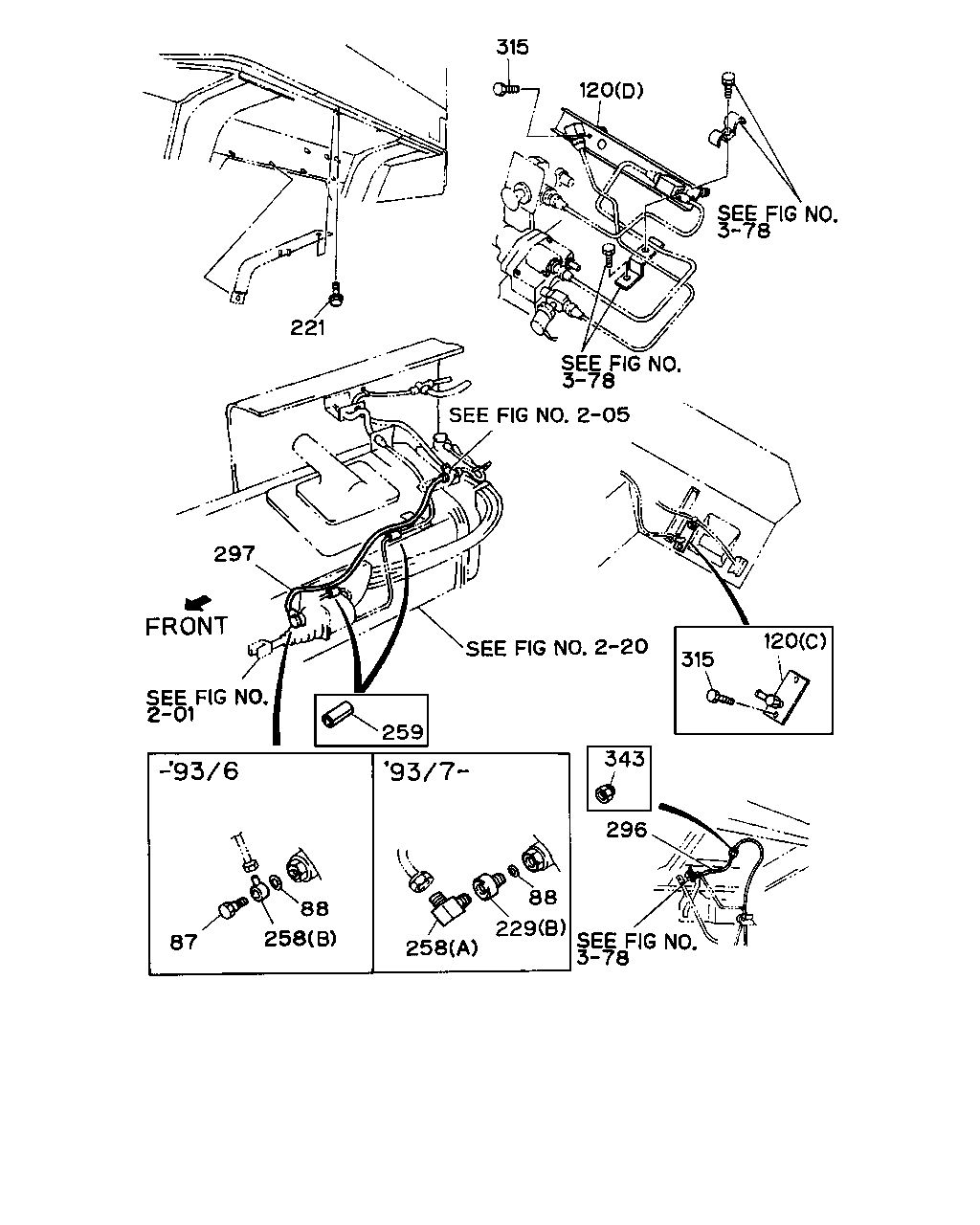

315 221 120 297 259 87 258 258 229 343 315 120 296 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	BOLT; EYE,NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29>	1-09675-170-0	01	1	9002-9306	●
88	GASKET; NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=20.0	9-09571-414-0	01	1	9002-9306	●
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-	●
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	1-47470-165-1	01	1	9002-	●
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D)	1-47470-167-3	01	1	9002-	●
120	CONNECTOR; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) NYLON TUBE AIR PIPING<Z29> (A)	1-09660-220-0	03	1	9002-9306	●
120	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	01	1	9002-9306	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9002-9302	●
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9303-	●
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) PT1/2	1-09650-373-0	02	1	9307-	●
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) PT1/4 M14 & PT1/4	9-48319-149-0	01	1	9307-	●
258	CONNECTOR; NYLON TUBE DRIVER SEAT W/ARM REST(SGP) (C)	1-09660-626-0	01	1	9307-	●
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-240-0	01	1	9002-9306	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-218-0	01	1	9002-9306	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09660-599-1	01	1	9206-9306		●
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> OD=16.8 L=50	1-09369-010-0	02	1	9002-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-	●
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) BLACK SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9206-9306		●
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-	●
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5) BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-	●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-	●
315	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	04	1	9002-9204	●
315	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	04	1	9205-9302	●
315	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	04	1	9303-	●
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29>	1-09660-217-1	02	1	9002-9306	●
343	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09660-603-0	02	1	9307-	●
343	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2>	1-09660-217-1	01	1	9002-9306	●

14 153 242 238 166 272 250 287 217 126 130 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) AIR DRYER<PS7> L=1519 SERVICED BY L=1650	1-47437-996-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1526 SERVICED BY L=1650	1-49111-464-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1547 SERVICED BY L=1650	1-47437-996-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1554 SERVICED BY L=1650	1-47437-996-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) AIR DRYER<PS7> L=1417	1-47487-502-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) AIR DRYER<PS7> L=1414	1-47491-429-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. AIR DRYER<PS7> L=1430	1-47486-149-0	01	1	9002-9006	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. AIR DRYER<PS7> L=1419	1-47491-427-0	01	1	9007-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) AIR DRYER<PS7> L=1506	1-47489-251-0	01	1	9002-9006		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) AIR DRYER<PS7> L=1513	1-47491-433-0	01	1	9007-9306		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) EXC. AIR DRYER<PS7> L=1534	1-47489-250-0	01	1	9002-9006		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 STD ENG(42L) EXC. AIR DRYER<PS7> L=1541	1-47491-432-0	01	1	9007-9306		●
126	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> L=471	1-47488-493-0	01	1	9002-	●	●
126	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-	●	●
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306	●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306		●
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-	●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-		●
153	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1030 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=1030 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=881 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306	●	●
153	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=1079	1-49111-060-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1116	1-49111-061-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1147	1-47484-369-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. AIR DRYER<PS7> L=976	1-47485-192-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV 12PD1 STD ENG(42L) EXC. AIR DRYER<PS7> L=1121	1-47489-252-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=838 SERVICED BY L=900	1-47426-349-0	01	1	9002-9306	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=819 SERVICED BY L=900	1-47426-349-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1292 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 12PD1 STD ENG(42L) L=1147 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1346 SERVICED BY L=1370	1-47434-390-0	01	1	9307-	●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007	●
238	PIPE; AIR,UNION TO UNION (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007		●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306	●
238	PIPE; AIR,UNION TO UNION (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306		●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-	●
238	PIPE; AIR,UNION TO UNION (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-		●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (B) L=1330 SERVICED BY L=1370	1-47434-390-0	01	1	9307-	●	●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1330 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29> (B) L=1883 SERVICED BY L=2000	1-47434-395-0	01	1	9002-	●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1322 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●	●
242	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-	●
242	PIPE; AIR,AIR TANK TO UNION L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●
242	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●
242	PIPE; AIR,AIR TANK TO UNION L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●
242	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. NYLON TUBE AIR PIPING<Z29> L=956 SERVICED BY L=1000	1-47426-414-0	01	1	9307-	●
250	PIPE; AIR,UNION TO FLEX HOSE AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=2278 SERVICED BY L=2350	1-47434-397-0	01	1	9002-9306	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> L=1496 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9306	●
250	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60) L=1340 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●
250	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1443 SERVICED BY L=1620	1-47434-392-0	01	1	9307-	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9307-9308	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-		●
272	PIPE; AIR,MAG VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1102 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●
272	PIPE; AIR,MAG VLV TO UNION L TYPE ENG<90L> L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306		●
272	PIPE; AIR,MAG VLV TO UNION V TYPE ENG<91L> L=2838 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306		●
272	PIPE; AIR,MAG VLV TO UNION L=2853 SERVICED BY L=2900	1-47426-364-0	01	1	9307-9308		●
272	PIPE; AIR,MAG VLV TO UNION L=2862 SERVICED BY L=2900	1-47426-364-0	01	1	9309-		●
287	PIPE; AIR,MAG VLV	1-47444-990-2	01	1	9002-9212	●
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-9404	●
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47496-263-0	01	1	9405-	●
287	PIPE; AIR,MAG VLV	1-47488-299-0	01	1	9002-9306		●
287	PIPE; AIR,MAG VLV	1-47496-264-0	01	1	9307-		●

36 358 359 296 297 296 217 293 250 297 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=981	1-47486-148-0	01	1	9002-9009	●	●
36	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=987	1-47491-818-0	01	1	9010-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=838 SERVICED BY L=900	1-47426-349-0	01	1	9002-9306	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=819 SERVICED BY L=900	1-47426-349-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1292 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV 12PD1 STD ENG(42L) L=1147 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
250	PIPE; AIR,UNION TO FLEX HOSE AUTO CAB TILT<WV2> CAB UP 50MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=2278 SERVICED BY L=2350	1-47434-397-0	01	1	9002-9306	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> L=1496 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9306	●
250	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60) L=1340 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●
250	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) EXC. NYLON TUBE AIR PIPING<Z29> L=1443 SERVICED BY L=1620	1-47434-392-0	01	1	9307-	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9307-9308	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-		●
293	PIPE ASM; AIR,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=1841	1-47485-595-1	01	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-	●
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) BLACK SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9206-9306		●
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-	●
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5) BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-	●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-	●
358	PIPE; AIR,AIR TANK TO AIR VLV NYLON TUBE AIR PIPING<Z29> L=780 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●
359	PIPE; AIR,AIR VLV TO UNION NYLON TUBE AIR PIPING<Z29> L=538 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306	●

231 336 365 231 233 364 337 232 337 233 232 325 434 230 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=667	1-47448-466-1	01	1	9002-	●
230	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=638	1-47448-468-1	01	1	9002-	●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> L=964	1-47448-808-0	01	1	9002-		●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-09654-180-3	02	1	9002-	●
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B)	1-09654-180-3	01	1	9002-	●
231	UNION; AIR PIPE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-09654-180-3	01	1	9002-		●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09656-167-1	01	1	9206-9302		●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09660-565-0	01	1	9303-9306		●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A)	1-47470-194-1	01	1	9002-		●
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9002-	●
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9002-	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	9002-		●
233	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9002-	●
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9002-	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	9002-		●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=530	1-47445-586-1	01	1	9002-	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1594	1-47448-029-2	01	1	9002-	●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> L=577	1-47448-182-0	01	1	9002-		●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=720	1-47448-807-1	01	1	9002-		●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204		●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301		●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302		●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 FLANGE	0-28080-616-0	02	1	9303-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	02	1	9002-	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	01	1	9002-	●	●
364	PROTECTOR; AIR GAUGE HOSE DUAL AIR GAUGE<UG2> L=80	5-71997-133-0	01	1	9002-9306		●
364	PROTECTOR; AIR GAUGE HOSE DUAL AIR GAUGE<UG2> L=80	1-71998-400-0	01	1	9307-		●
365	SLEEVE; RUBBER,FLEX HOSE DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	02	1	9002-		●
365	SLEEVE; RUBBER,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	01	1	9002-		●
434	CLIP DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9307-	●	●
434	CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (B) ID=14	8-94157-443-0	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
