Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#17496) — 364 parça

11 415 97 22 105 128 12 506 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	PIPE; EXH,RR	8-98104-955-0	01	1	1109-1205
11	PIPE; EXH,RR CHILE EQUIPMENT(KE1)	8-98104-955-0	01	1	1206-
12	SILENCER ASM; EXH	8-98165-988-0	01	1	1109-
17	BOLT; EXH PIPE (C) M12X35 FLANGE	0-28051-235-0	04	1	1204-1205
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (C) M12X35 FLANGE	0-28051-235-0	04	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1109-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-
22	CLAMP; EXH PIPE (B) ID=97	1-22133-043-1	01	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (B) ID=97	1-22133-043-1	01	1	1206-
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1109-1205
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE (A) ID=94-98	1-22133-237-0	02	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (A) ID=94-98	1-22133-237-0	02	1	1206-
97	WASHER; PL,CLAMP ID=10.5	0-91610-710-0	01	1	1109-1205
97	WASHER; PL,CLAMP CHILE EQUIPMENT(KE1) ID=10.5	0-91610-710-0	01	1	1206-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1109-1205
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	03	1	1109-1205
105	NUT; CLAMP CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
128	PIPE; EXH,RR WHEEL BASE 5000MM(50W)	8-98114-834-1	01	1	1109-1205
128	PIPE; EXH,RR WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1)	8-98114-834-1	01	1	1206-
128	PIPE; EXH,RR WHEEL BASE 5500MM(55W)	8-98113-915-1	01	1	1109-1205
128	PIPE; EXH,RR WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1)	8-98113-915-1	01	1	1206-
415	BOLT; CLAMP M10X35 FLANGE	0-28651-035-0	01	1	1109-1205
415	BOLT; CLAMP CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	01	1	1206-
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1206-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1109-1203

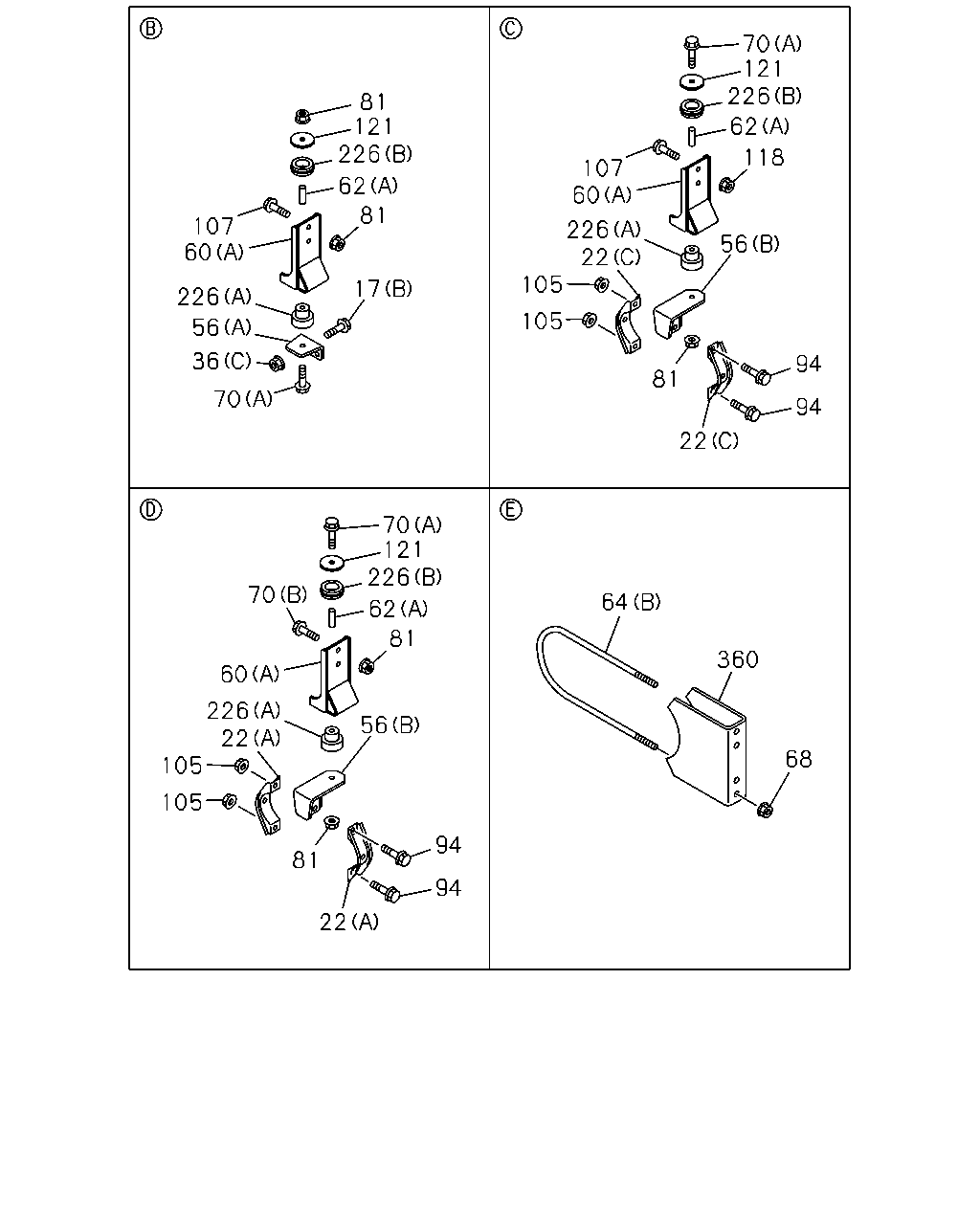

70 121 226 81 121 226 62 118 107 60 62 81 107 60 22 2 56 105 17 226 105 56 36 94 81 70 94 22 70 121 226 70 64 62 81 360 60 226 22 56 68 105 105 94 81 94 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1109-
17	BOLT; EXH PIPE (C) M12X35 FLANGE	0-28051-235-0	04	1	1204-1205
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (C) M12X35 FLANGE	0-28051-235-0	04	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1109-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-
22	CLAMP; EXH PIPE (B) ID=97	1-22133-043-1	01	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (B) ID=97	1-22133-043-1	01	1	1206-
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1109-1205
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE (A) ID=94-98	1-22133-237-0	02	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (A) ID=94-98	1-22133-237-0	02	1	1206-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1109-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1109-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1109-
56	BRACKET; CLAMP,EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C)	1-22131-528-1	01	1	1206-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1109-
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. CHILE EQUIPMENT(KE1) (B)	8-98108-507-0	01	1	1206-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98245-532-0	01	1	1310-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. CHILE EQUIPMENT(KE1) (B) L=22	9-22159-024-0	01	1	1206-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1302-
64	U-BOLT; EXH PIPE,RR (B)	1-22113-063-1	01	1	1109-1205
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) (B)	1-22113-063-1	01	1	1206-
64	U-BOLT; EXH PIPE,RR (A)	1-22113-100-0	01	1	1109-1205
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) (A)	1-22113-100-0	01	1	1206-
68	NUT; U BOLT M8 FLANGE	0-91180-108-0	04	1	1109-1205
68	NUT; U BOLT CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	04	1	1206-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) (C) M10X50 FLANGE	0-28051-050-0	01	1	1206-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-1205
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (B) M10X35 FLANGE	0-28651-035-0	02	1	1206-
81	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	02	1	1206-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1302-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1109-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1109-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1109-1205
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	03	1	1109-1205
105	NUT; CLAMP CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
107	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1206-
107	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1109-1205
107	BOLT; BRKT CHILE EQUIPMENT(KE1) M8X35 FLANGE	0-28650-835-0	02	1	1206-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1204-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1109-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) ID=11 OD=54	1-09503-154-2	01	1	1302-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (B)	8-94457-278-1	01	1	1302-
360	PIECE; DIST,EXH PIPE	1-22113-064-0	01	1	1109-1205
360	PIECE; DIST,EXH PIPE CHILE EQUIPMENT(KE1)	1-22113-064-0	01	1	1206-

81 75 62 56 75 60 81 94 107 22 70 105 22 126 12 506 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH	8-98165-988-0	01	1	1109-
17	BOLT; EXH PIPE (C) M12X35 FLANGE	0-28051-235-0	04	1	1204-1205
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (C) M12X35 FLANGE	0-28051-235-0	04	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1109-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-
22	CLAMP; EXH PIPE (B) ID=97	1-22133-043-1	01	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (B) ID=97	1-22133-043-1	01	1	1206-
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1109-1205
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE (A) ID=94-98	1-22133-237-0	02	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (A) ID=94-98	1-22133-237-0	02	1	1206-
56	BRACKET; CLAMP,EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C)	1-22131-528-1	01	1	1206-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1109-
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. CHILE EQUIPMENT(KE1) (B)	8-98108-507-0	01	1	1206-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98245-532-0	01	1	1310-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. CHILE EQUIPMENT(KE1) (B) L=22	9-22159-024-0	01	1	1206-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1302-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) (C) M10X50 FLANGE	0-28051-050-0	01	1	1206-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-1205
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (B) M10X35 FLANGE	0-28651-035-0	02	1	1206-
75	RUBBER; SUPPORT,BRKT EXC. CHILE EQUIPMENT(KE1) OD=40	1-22159-193-0	02	1	1206-
81	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	02	1	1206-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1302-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1109-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1109-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1109-1205
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	03	1	1109-1205
105	NUT; CLAMP CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
107	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1206-
107	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1109-1205
107	BOLT; BRKT CHILE EQUIPMENT(KE1) M8X35 FLANGE	0-28650-835-0	02	1	1206-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1204-
126	PIPE; EXH,RR EXC. CHILE EQUIPMENT(KE1)	8-98069-920-0	01	1	1206-
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1206-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1109-1203

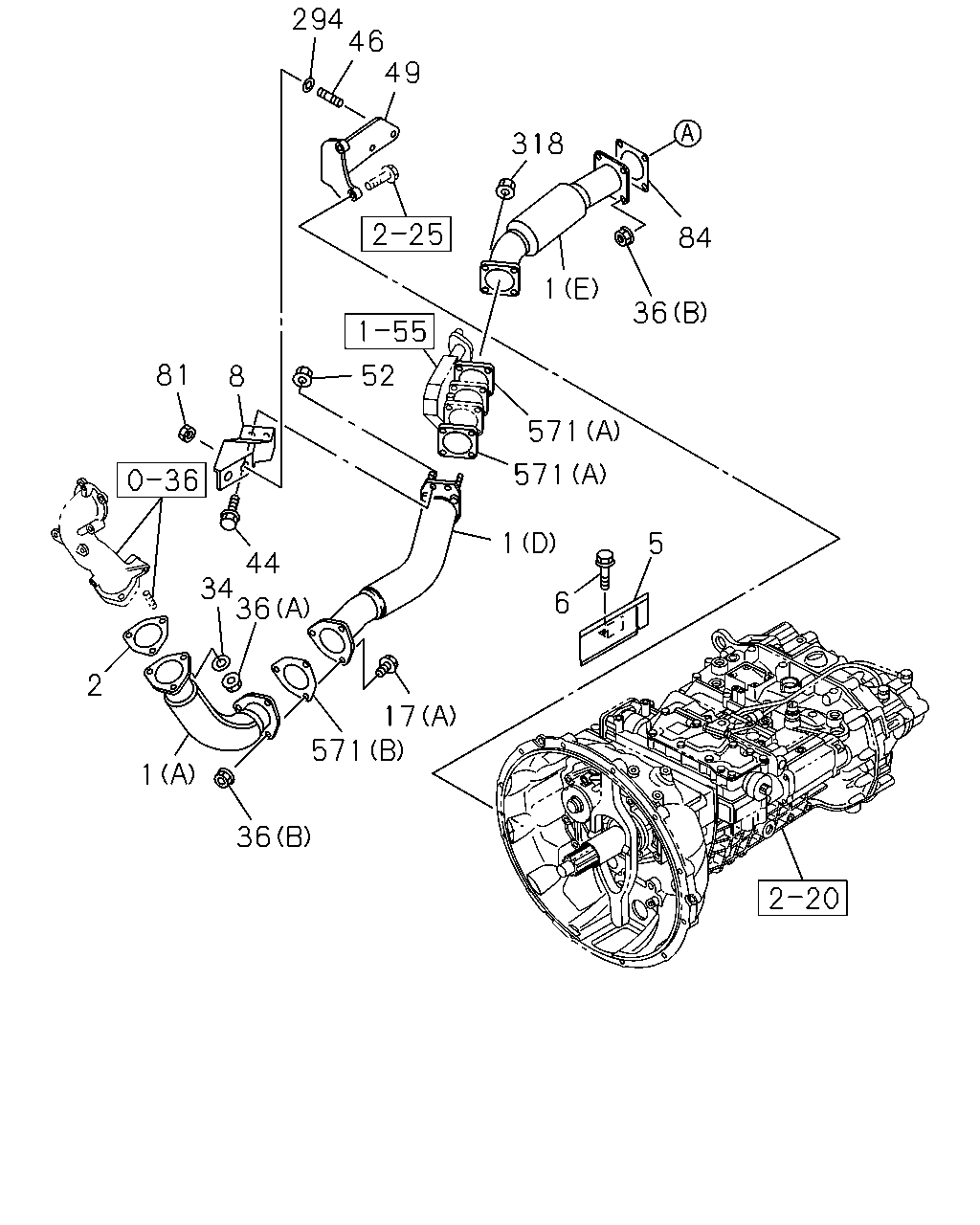

294 46 49 318 84 1 36 81 52 8 571 571 1 5 44 34 36 6 2 17 571 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (A)	8-98182-389-0	01	1	1109-1301
1	PIPE; EXH (A)	8-98234-511-0	01	1	1302-
1	PIPE; EXH MZW6P M/T(RSZ) (C)	8-98096-668-2	01	1	1109-
1	PIPE; EXH MZW6P M/T(RSZ) (B)	8-98119-515-0	01	1	1109-1209
1	PIPE; EXH MZW6P M/T(RSZ) (B)	8-98230-001-0	01	1	1210-1301
1	PIPE; EXH MZW6P M/T(RSZ) (B)	8-98234-516-1	01	1	1302-
1	PIPE; EXH ZF9S1110 M/T(Y5E) (D)	8-98060-615-0	01	1	1109-1205
1	PIPE; EXH ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (D)	8-98060-615-0	01	1	1206-1301
1	PIPE; EXH ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (D)	8-98234-515-0	01	1	1302-
1	PIPE; EXH ZF9S1110 M/T(Y5E) (E)	8-98090-386-0	01	1	1109-1205
1	PIPE; EXH ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (E)	8-98090-386-0	01	1	1206-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1109-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98073-436-0	01	1	1206-1406
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98255-001-0	01	1	1407-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1206-
8	BRACKET; EXH PIPE FULLER ES11109 DD M/T(Y5N)	8-98069-914-0	01	1	1206-
8	BRACKET; EXH PIPE ZF9S1110 M/T(Y5E)	8-98120-522-0	01	1	1109-
17	BOLT; EXH PIPE (C) M12X35 FLANGE	0-28051-235-0	04	1	1204-1205
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (C) M12X35 FLANGE	0-28051-235-0	04	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1109-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1109-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1109-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1109-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1109-
44	BOLT; BRKT ZF9S1110 M/T(Y5E) M10X35 FLANGE	0-28651-035-0	02	1	1109-1205
44	BOLT; BRKT ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M10X35 FLANGE	0-28651-035-0	02	1	1206-
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1109-
49	BRACKET; EXH PIPE TO TRANS FULLER ES11109 DD M/T(Y5N)	8-98123-995-0	01	1	1206-
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ)	8-98120-493-0	01	1	1109-
49	BRACKET; EXH PIPE TO TRANS ZF9S1110 M/T(Y5E)	8-98120-497-0	01	1	1109-
52	NUT; BRKT ZF9S1110 M/T(Y5E) M10 FLANGE	0-91180-210-0	02	1	1109-1205
52	NUT; BRKT ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M10 FLANGE	0-91180-210-0	02	1	1206-
81	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	02	1	1206-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1302-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1109-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1109-
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1109-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1109-
571	GASKET (B) ID=81	8-98043-481-0	01	1	1109-

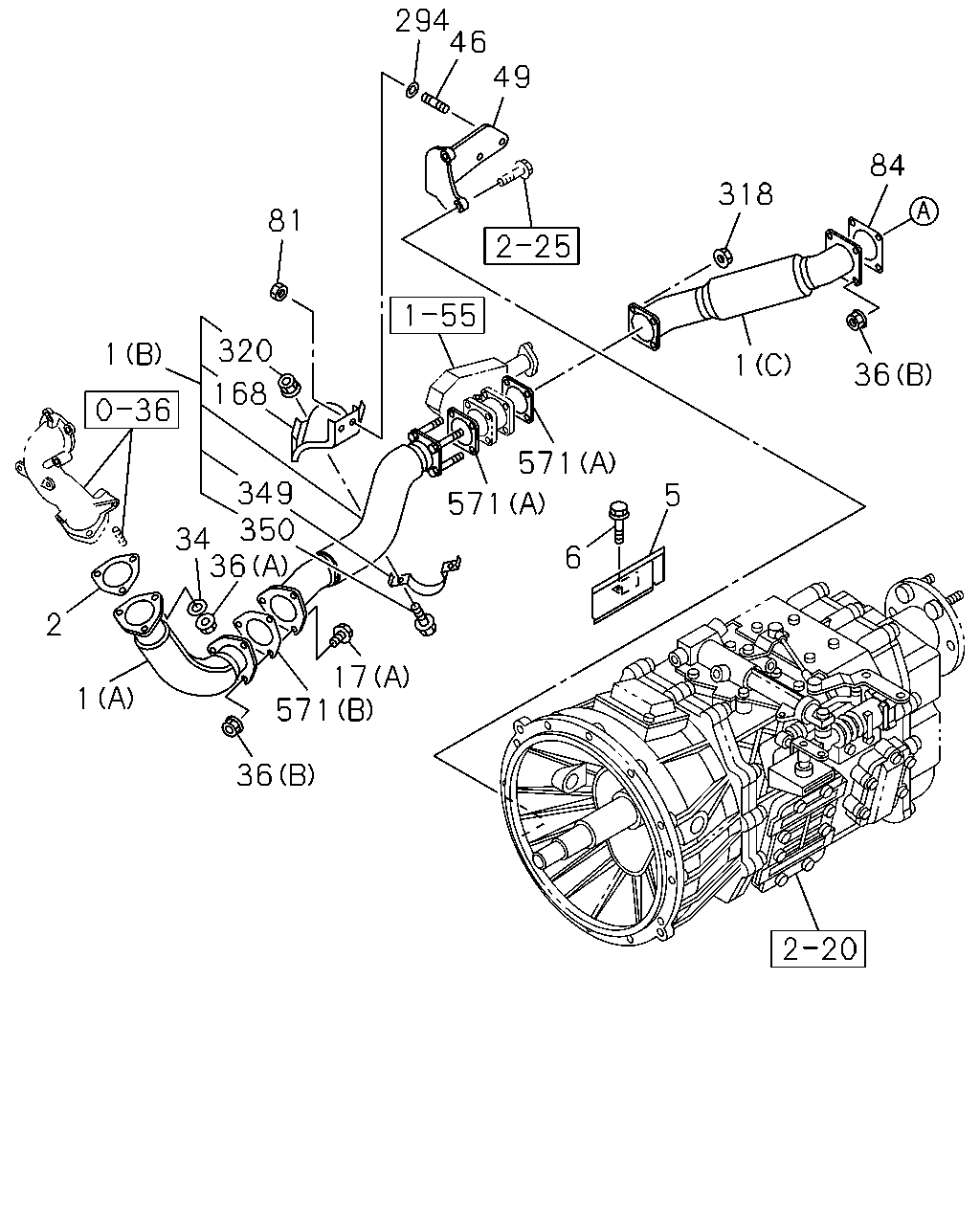

294 46 49 84 318 8 320 168 1 1 36 571 349 350 34 36 5 571 6 2 17 571 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (A)	8-98182-389-0	01	1	1109-1301
1	PIPE; EXH (A)	8-98234-511-0	01	1	1302-
1	PIPE; EXH MZW6P M/T(RSZ) (C)	8-98096-668-2	01	1	1109-
1	PIPE; EXH MZW6P M/T(RSZ) (B)	8-98119-515-0	01	1	1109-1209
1	PIPE; EXH MZW6P M/T(RSZ) (B)	8-98230-001-0	01	1	1210-1301
1	PIPE; EXH MZW6P M/T(RSZ) (B)	8-98234-516-1	01	1	1302-
1	PIPE; EXH ZF9S1110 M/T(Y5E) (D)	8-98060-615-0	01	1	1109-1205
1	PIPE; EXH ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (D)	8-98060-615-0	01	1	1206-1301
1	PIPE; EXH ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (D)	8-98234-515-0	01	1	1302-
1	PIPE; EXH ZF9S1110 M/T(Y5E) (E)	8-98090-386-0	01	1	1109-1205
1	PIPE; EXH ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (E)	8-98090-386-0	01	1	1206-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1109-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98073-436-0	01	1	1206-1406
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98255-001-0	01	1	1407-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1206-
8	BRACKET; EXH PIPE FULLER ES11109 DD M/T(Y5N)	8-98069-914-0	01	1	1206-
8	BRACKET; EXH PIPE ZF9S1110 M/T(Y5E)	8-98120-522-0	01	1	1109-
17	BOLT; EXH PIPE (C) M12X35 FLANGE	0-28051-235-0	04	1	1204-1205
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (C) M12X35 FLANGE	0-28051-235-0	04	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1109-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1109-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1109-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1109-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1109-
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1109-
49	BRACKET; EXH PIPE TO TRANS FULLER ES11109 DD M/T(Y5N)	8-98123-995-0	01	1	1206-
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ)	8-98120-493-0	01	1	1109-
49	BRACKET; EXH PIPE TO TRANS ZF9S1110 M/T(Y5E)	8-98120-497-0	01	1	1109-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1109-
168	BRACKET; EXH PIPE,FRT MZW6P M/T(RSZ)	8-98071-144-0	01	1	1109-1209
168	BRACKET; EXH PIPE,FRT MZW6P M/T(RSZ)	8-98221-369-1	01	1	1210-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1109-
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1109-
320	NUT; CLAMP,EXH PIPE MZW6P M/T(RSZ) M10 FLANGE	0-91180-210-0	02	1	1109-
349	CLAMP; EXH PIPE MZW6P M/T(RSZ)	8-98115-162-0	01	1	1109-
350	BOLT; CLAMP,EXH PIPE MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	1109-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1109-
571	GASKET (B) ID=81	8-98043-481-0	01	1	1109-

107 81 58 68 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BRACKET; EXH PIPE,RR	8-98056-460-0	01	1	1109-1205
58	BRACKET; EXH PIPE,RR CHILE EQUIPMENT(KE1)	8-98056-460-0	01	1	1206-
64	U-BOLT; EXH PIPE,RR (B)	1-22113-063-1	01	1	1109-1205
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) (B)	1-22113-063-1	01	1	1206-
64	U-BOLT; EXH PIPE,RR (A)	1-22113-100-0	01	1	1109-1205
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) (A)	1-22113-100-0	01	1	1206-
68	NUT; U BOLT M8 FLANGE	0-91180-108-0	04	1	1109-1205
68	NUT; U BOLT CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	04	1	1206-
81	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	02	1	1206-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1302-
107	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1206-
107	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1109-1205
107	BOLT; BRKT CHILE EQUIPMENT(KE1) M8X35 FLANGE	0-28650-835-0	02	1	1206-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1204-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
