◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#1749) — 23 parça

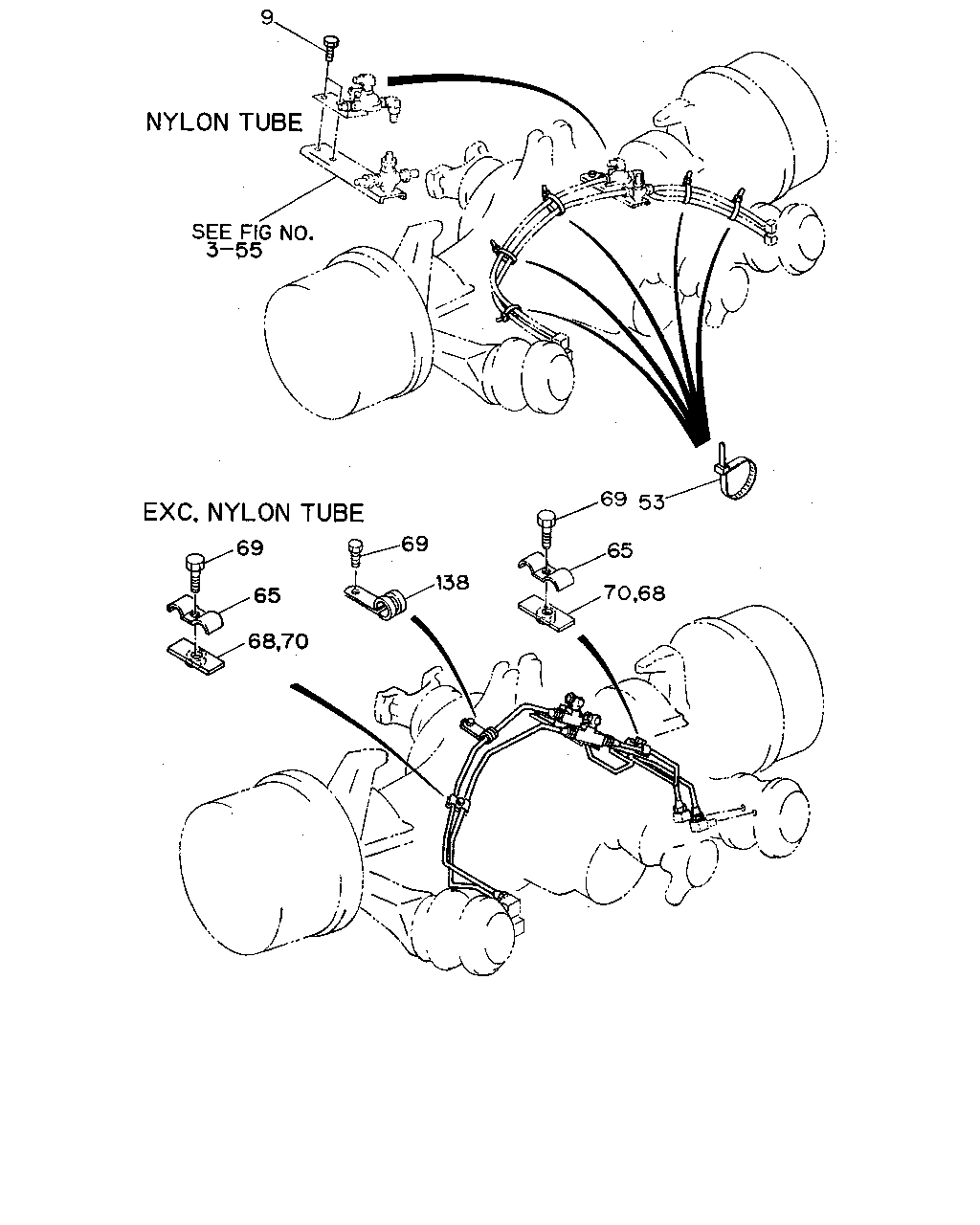

çizim 95331
53 69 69 69 138 65 65 68 70 70 68 9
BalonParca AdiParca NoAdetTipApplied Date A B
9 BOLT; BRKT
NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER 		9-01900-816-0 02 1 9002-9204 ●
9 BOLT; BRKT
NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-9306 ●
9 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9307- ● ●
9 BOLT; BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE 		0-28080-816-0 02 1 9307- ●
9 BOLT; BRKT
EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER 		9-01910-816-0 01 1 9002-9005 ●
9 BOLT; BRKT
M8X16 W/LK WASHER 		9-01910-816-0 01 1 9002-9005 ●
9 BOLT; BRKT
EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER 		0-50040-816-0 01 1 9006-9306 ●
9 BOLT; BRKT
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9006-9306 ●
53 CLIP; UNION
NYLON TUBE AIR PIPING<Z29> L=250 		1-09707-126-0 08 1 9002-9306 ●
65 CLIP; AIR PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9002-9306 ●
68 BRACKET; CLIP
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> WO/NUT L=50 		1-47475-299-2 01 1 9002-9306 ●
69 BOLT; CLIP
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> M8X12 		9-01910-812-0 01 1 9002-9005 ●
69 BOLT; CLIP
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> M8X12 W/LK WASHER 		0-50040-812-0 01 1 9006-9306 ●
69 BOLT; CLIP
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X12 W/LK WASHER 		0-50040-812-0 01 1 9307- ●
69 BOLT; CLIP
M8X12 W/LK WASHER 		0-50040-812-0 03 1 9307- ● ●
70 BRACKET; CLIP
EXC. NYLON TUBE AIR PIPING<Z29> M8 W/NUT 		1-47475-729-0 02 1 9002-9007 ●
70 BRACKET; CLIP
M8 W/NUT 		1-47475-729-0 02 1 9002-9007 ●
70 BRACKET; CLIP
EXC. NYLON TUBE AIR PIPING<Z29> L=50 		1-47475-299-2 02 1 9008-9306 ●
70 BRACKET; CLIP
L=50 		1-47475-299-2 02 1 9008-9306 ●
70 BRACKET; CLIP
EXC. NYLON TUBE AIR PIPING<Z29> M9 W/NUT L=100 		1-47476-456-0 01 1 9002-9306 ●
70 BRACKET; CLIP
M9 W/NUT L=100 		1-47476-456-0 01 1 9002-9306 ●
138 CLIP; TUBE
ID=25 L=50 		1-09701-019-0 01 1 9307- ● ●
138 CLIP; TUBE
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> ID=25 L=50 		1-09701-019-0 01 1 9307- ●
