◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#1748) — 248 parça

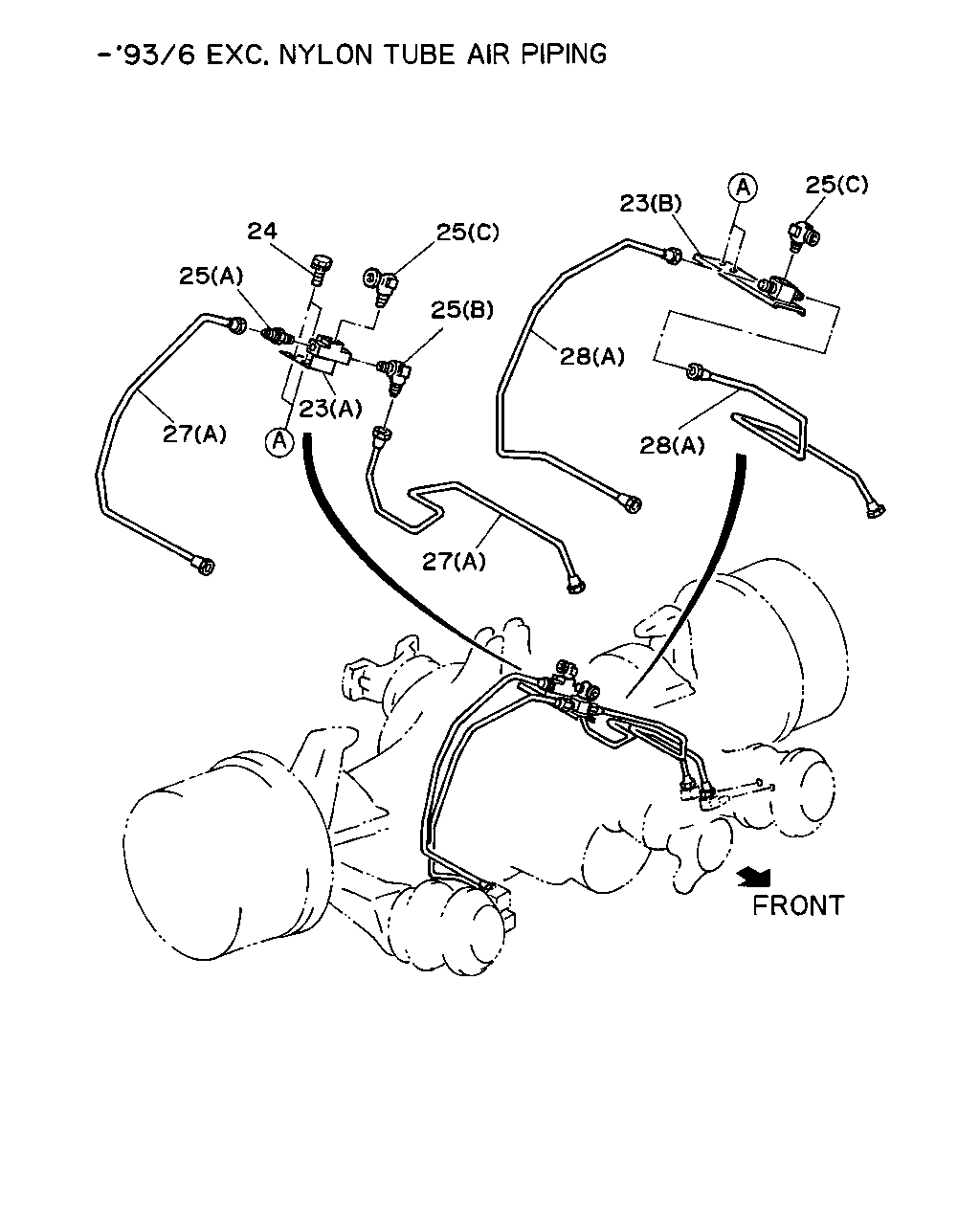

çizim 27665
23 25 25 24 25 25 23 27 27 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
23 NIPPLE; W/BRKT
EXC. NYLON TUBE AIR PIPING<Z29> (A) 		1-47475-536-0 01 1 9002- ●
23 NIPPLE; W/BRKT
(A) 		1-47475-536-0 01 1 9002- ●
23 NIPPLE; W/BRKT
EXC. NYLON TUBE AIR PIPING<Z29> (B) 		1-47475-543-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
(B) 		1-47475-543-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) 		1-47470-380-0 01 1 9307- ●
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) 		1-47475-537-0 01 1 9307- ●
23 NIPPLE; W/BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) 		1-47475-385-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-47475-537-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
(C) 		1-47470-373-1 01 1 9307- ● ●
24 BOLT; UNION
EXC. NYLON TUBE AIR PIPING<Z29> M8X18 W/LK WASHER 		9-01910-818-0 02 1 9002-9005 ●
24 BOLT; UNION
M8X18 W/LK WASHER 		9-01910-818-0 02 1 9002-9005 ●
24 BOLT; UNION
EXC. NYLON TUBE AIR PIPING<Z29> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9006-9306 ●
24 BOLT; UNION
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9006-9306 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306 ●
25 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ●
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306 ●
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306 ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306 ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307- ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307- ●
25 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (F) 		1-09660-572-0 02 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
(D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
(E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
(F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (H) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9307- ●
25 CONNECTOR
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 9002-9306 ●
25 CONNECTOR
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (H) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9002-9306 ●
25 CONNECTOR
(G) 		1-09660-574-0 01 1 9307- ● ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (G) 		1-09660-574-0 01 1 9307- ●
25 CONNECTOR
(G) 		1-09660-574-0 01 1 9307- ●
27 PIPE; AIR,3 WAY TO MAXI
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=706 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
(A) L=706 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=925 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
(A) L=925 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=637 SERVICED BY L=660 		1-47437-964-0 01 1 9002-9005 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=886 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9005 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=759 SERVICED BY L=800 		1-47434-475-0 01 1 9006-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=1024 SERVICED BY L=1100 		1-47437-967-0 01 1 9006-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=899 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
(B) L=899 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. NYLON TUBE AIR PIPING<Z29> (A) L=782 SERVICED BY L=800 		1-47434-475-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
(A) L=782 SERVICED BY L=800 		1-47434-475-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. NYLON TUBE AIR PIPING<Z29> (A) L=972 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
(A) L=972 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=531 		1-47487-936-0 01 1 9002-9005 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=658 SERVICED BY L=660 		1-47437-964-0 01 1 9006-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=901 		1-47488-736-0 01 1 9002-9005 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=1063 SERVICED BY L=1100 		1-47437-967-0 01 1 9006-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) REARWARD L=805 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
(B) REARWARD L=805 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
çizim 27728
43 42 43
BalonParca AdiParca NoAdetTipApplied Date A B
42 HOSE; FLEX,DIFF LOCK
EXC. NYLON TUBE AIR PIPING<Z29> 		0-07151-630-0 01 1 9002-9306 ●
42 HOSE; FLEX,DIFF LOCK 0-07151-630-0 01 1 9002-9306 ●
42 HOSE; FLEX,DIFF LOCK
EXC. NYLON TUBE AIR PIPING<Z29> 		0-07151-560-0 01 1 9307- ●
42 HOSE; FLEX,DIFF LOCK 0-07151-560-0 01 1 9307- ●
43 GASKET; FLEX TUBE
EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18 		9-09572-510-0 02 1 9002- ●
43 GASKET; FLEX TUBE
ID=11 OD=18 		9-09572-510-0 02 1 9002- ●

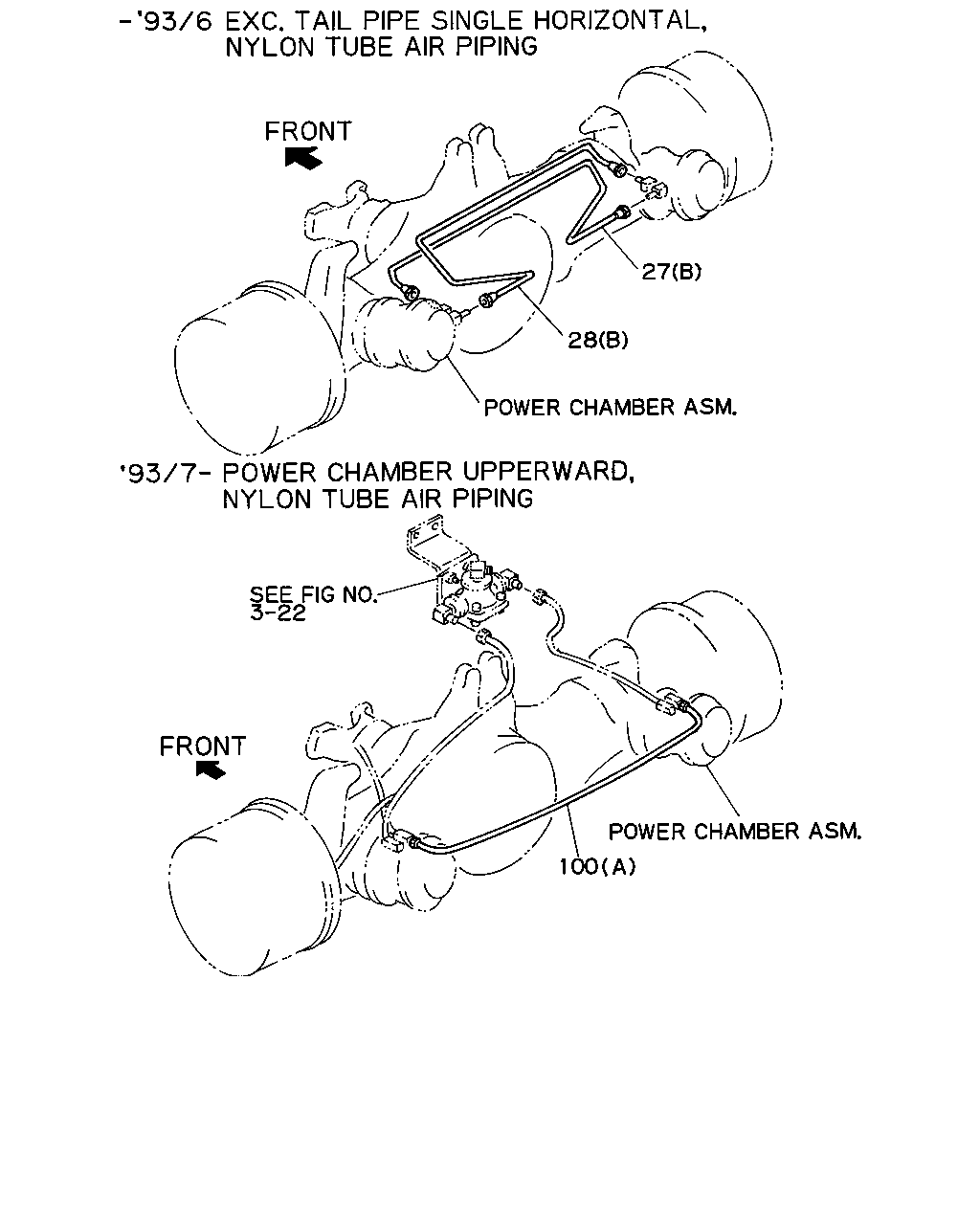

çizim 28312
27 28 100
BalonParca AdiParca NoAdetTipApplied Date A B
27 PIPE; AIR,3 WAY TO MAXI
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=706 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
(A) L=706 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=925 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
(A) L=925 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=637 SERVICED BY L=660 		1-47437-964-0 01 1 9002-9005 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=886 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9005 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=759 SERVICED BY L=800 		1-47434-475-0 01 1 9006-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=1024 SERVICED BY L=1100 		1-47437-967-0 01 1 9006-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=899 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
(B) L=899 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. NYLON TUBE AIR PIPING<Z29> (A) L=782 SERVICED BY L=800 		1-47434-475-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
(A) L=782 SERVICED BY L=800 		1-47434-475-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. NYLON TUBE AIR PIPING<Z29> (A) L=972 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
(A) L=972 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=531 		1-47487-936-0 01 1 9002-9005 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=658 SERVICED BY L=660 		1-47437-964-0 01 1 9006-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=901 		1-47488-736-0 01 1 9002-9005 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=1063 SERVICED BY L=1100 		1-47437-967-0 01 1 9006-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) REARWARD L=805 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
(B) REARWARD L=805 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
100 TUBE ASM; NYLON,RWD AXLE
NYLON TUBE AIR PIPING<Z29> (B) 		1-47440-013-1 01 1 9002-9306 ●
100 TUBE ASM; NYLON,RWD AXLE
POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> (A) SERVICED BY L=30000 OD=1/2" 		1-09368-251-0 01 1 9405- ●

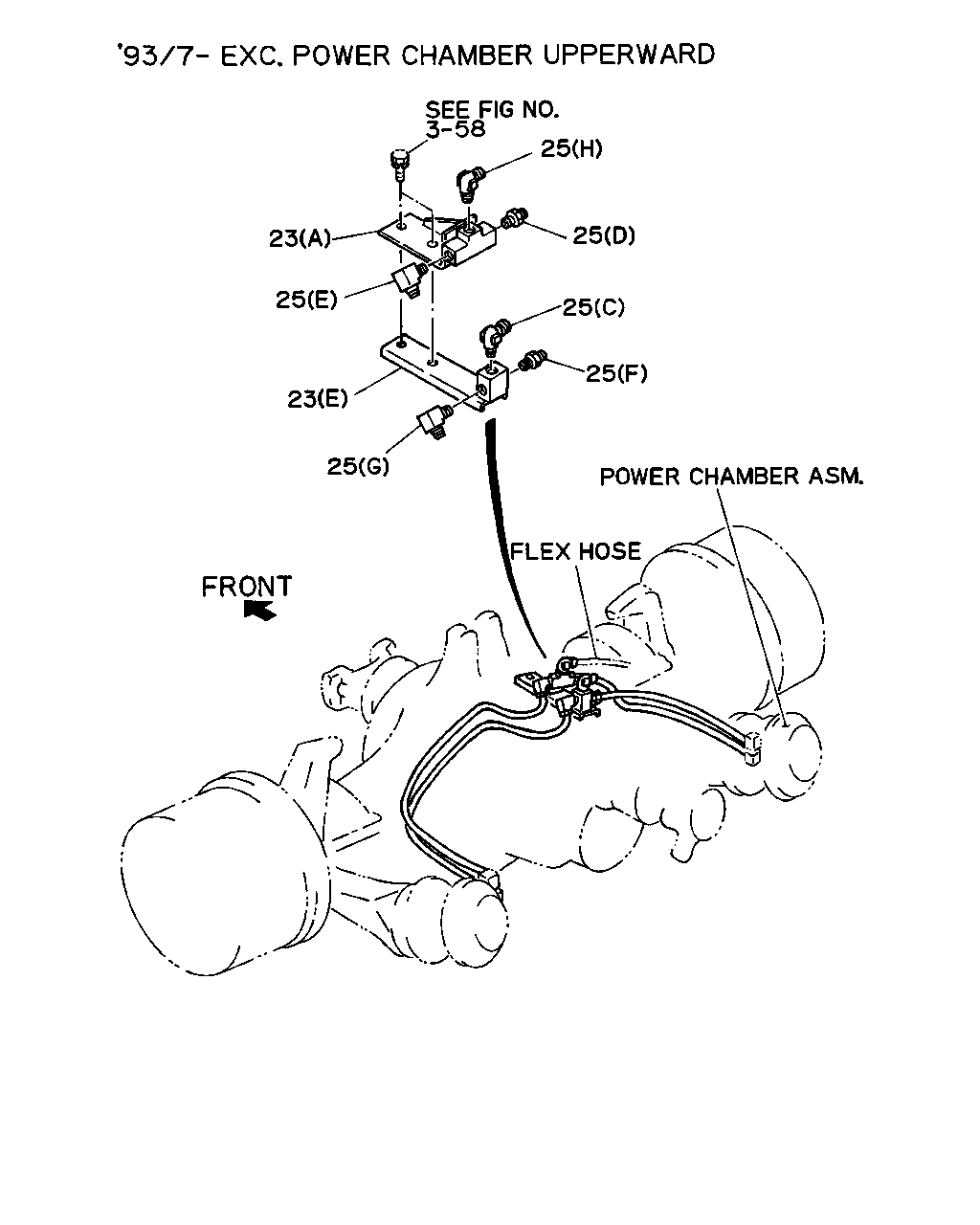

çizim 29313
25 23 25 25 25 25 23 25
BalonParca AdiParca NoAdetTipApplied Date A B
23 NIPPLE; W/BRKT
EXC. NYLON TUBE AIR PIPING<Z29> (A) 		1-47475-536-0 01 1 9002- ●
23 NIPPLE; W/BRKT
(A) 		1-47475-536-0 01 1 9002- ●
23 NIPPLE; W/BRKT
EXC. NYLON TUBE AIR PIPING<Z29> (B) 		1-47475-543-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
(B) 		1-47475-543-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) 		1-47470-380-0 01 1 9307- ●
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) 		1-47475-537-0 01 1 9307- ●
23 NIPPLE; W/BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) 		1-47475-385-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-47475-537-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
(C) 		1-47470-373-1 01 1 9307- ● ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306 ●
25 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ●
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306 ●
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306 ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306 ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307- ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307- ●
25 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (F) 		1-09660-572-0 02 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
(D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
(E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
(F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (H) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9307- ●
25 CONNECTOR
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 9002-9306 ●
25 CONNECTOR
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (H) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9002-9306 ●
25 CONNECTOR
(G) 		1-09660-574-0 01 1 9307- ● ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (G) 		1-09660-574-0 01 1 9307- ●
25 CONNECTOR
(G) 		1-09660-574-0 01 1 9307- ●

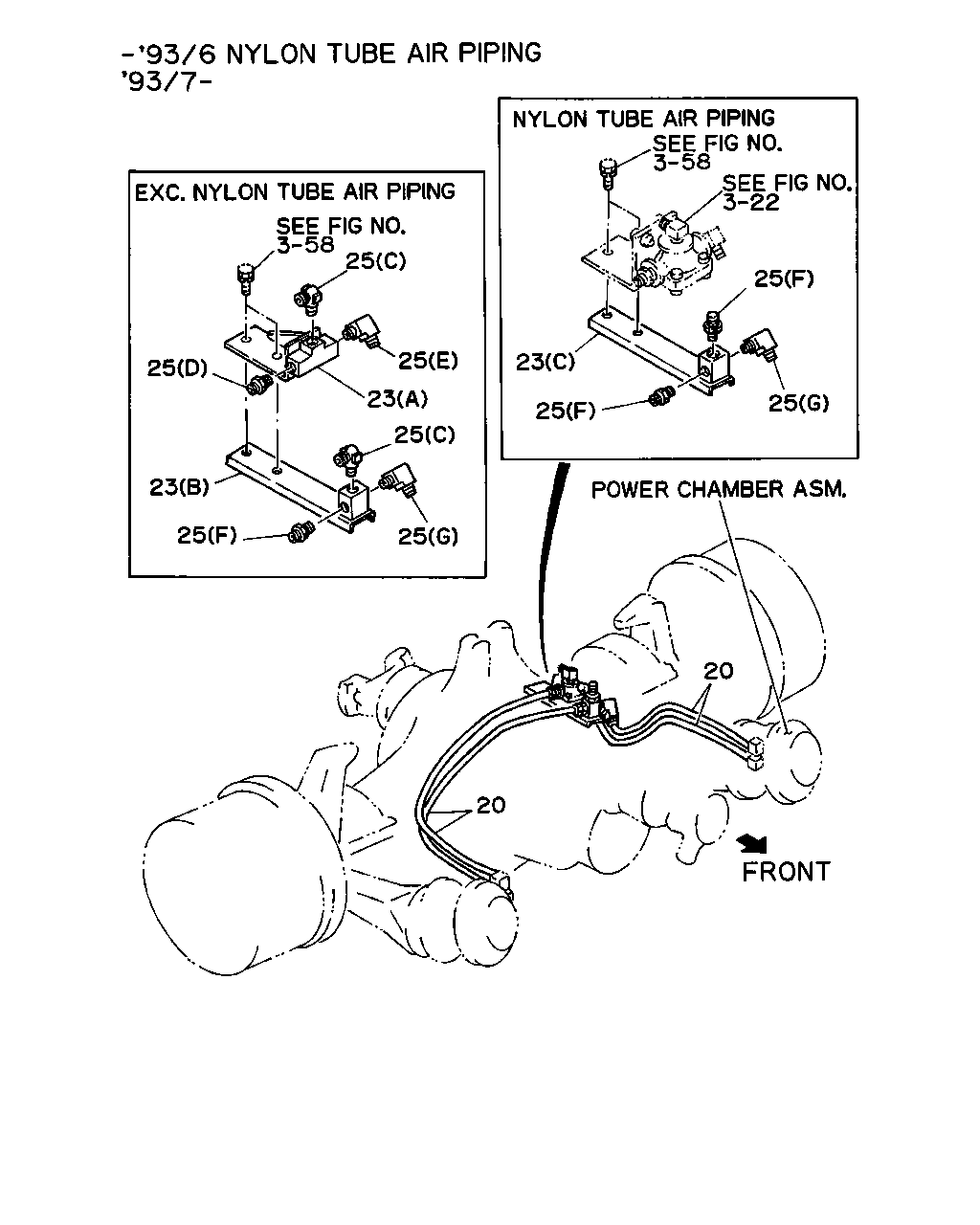

çizim 93228
25 25 25 23 23 25 25 25 23 25 25 25 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
20 TUBE ASM; NYLON,FWD AXLE
NYLON TUBE AIR PIPING<Z29> 		1-47440-012-1 01 1 9002-9306 ●
20 TUBE ASM; NYLON,FWD AXLE
NYLON TUBE AIR PIPING<Z29> 		1-47440-011-1 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
EXC. NYLON TUBE AIR PIPING<Z29> (A) 		1-47475-536-0 01 1 9002- ●
23 NIPPLE; W/BRKT
(A) 		1-47475-536-0 01 1 9002- ●
23 NIPPLE; W/BRKT
EXC. NYLON TUBE AIR PIPING<Z29> (B) 		1-47475-543-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
(B) 		1-47475-543-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) 		1-47470-380-0 01 1 9307- ●
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) 		1-47475-537-0 01 1 9307- ●
23 NIPPLE; W/BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) 		1-47475-385-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-47475-537-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
(C) 		1-47470-373-1 01 1 9307- ● ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306 ●
25 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ●
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306 ●
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306 ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306 ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307- ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307- ●
25 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (F) 		1-09660-572-0 02 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
(D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
(E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
(F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (H) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9307- ●
25 CONNECTOR
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 9002-9306 ●
25 CONNECTOR
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (H) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9002-9306 ●
25 CONNECTOR
(G) 		1-09660-574-0 01 1 9307- ● ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (G) 		1-09660-574-0 01 1 9307- ●
25 CONNECTOR
(G) 		1-09660-574-0 01 1 9307- ●

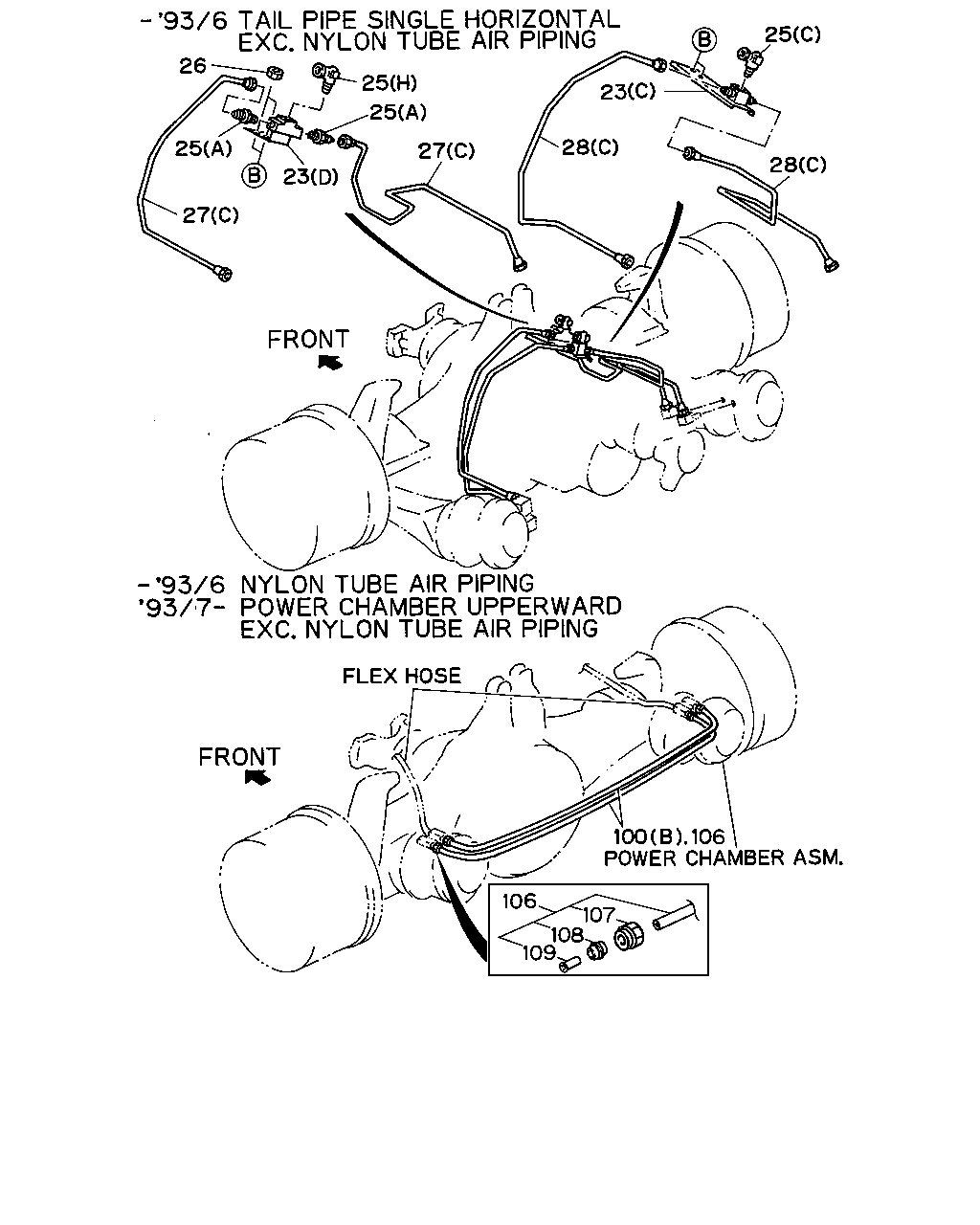

çizim 95058
26 25 25 25 23 27 27 25 23 28 28 106 107 108 109 106 100
BalonParca AdiParca NoAdetTipApplied Date A B
23 NIPPLE; W/BRKT
EXC. NYLON TUBE AIR PIPING<Z29> (A) 		1-47475-536-0 01 1 9002- ●
23 NIPPLE; W/BRKT
(A) 		1-47475-536-0 01 1 9002- ●
23 NIPPLE; W/BRKT
EXC. NYLON TUBE AIR PIPING<Z29> (B) 		1-47475-543-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
(B) 		1-47475-543-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) 		1-47470-380-0 01 1 9307- ●
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) 		1-47475-537-0 01 1 9307- ●
23 NIPPLE; W/BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) 		1-47475-385-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-47475-537-0 01 1 9002-9306 ●
23 NIPPLE; W/BRKT
(C) 		1-47470-373-1 01 1 9307- ● ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306 ●
25 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ●
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306 ●
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306 ●
25 CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306 ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306 ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307- ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307- ●
25 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (F) 		1-09660-572-0 02 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
(D) 		1-09660-569-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
(E) 		1-09660-570-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
(F) 		1-09660-572-0 01 1 9307- ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (H) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9307- ●
25 CONNECTOR
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 9002-9306 ●
25 CONNECTOR
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (H) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9002-9306 ●
25 CONNECTOR
(G) 		1-09660-574-0 01 1 9307- ● ●
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (G) 		1-09660-574-0 01 1 9307- ●
25 CONNECTOR
(G) 		1-09660-574-0 01 1 9307- ●
26 NUT; UNION
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> M8X18 W/LK WASHER 		9-01910-818-0 02 1 9002-9005 ●
26 NUT; UNION
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9006-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=706 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
(A) L=706 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=925 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
(A) L=925 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=637 SERVICED BY L=660 		1-47437-964-0 01 1 9002-9005 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=886 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9005 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=759 SERVICED BY L=800 		1-47434-475-0 01 1 9006-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=1024 SERVICED BY L=1100 		1-47437-967-0 01 1 9006-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) L=899 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
27 PIPE; AIR,3 WAY TO MAXI
(B) L=899 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. NYLON TUBE AIR PIPING<Z29> (A) L=782 SERVICED BY L=800 		1-47434-475-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
(A) L=782 SERVICED BY L=800 		1-47434-475-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. NYLON TUBE AIR PIPING<Z29> (A) L=972 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
(A) L=972 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=531 		1-47487-936-0 01 1 9002-9005 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=658 SERVICED BY L=660 		1-47437-964-0 01 1 9006-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=901 		1-47488-736-0 01 1 9002-9005 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. NYLON TUBE AIR PIPING<Z29> (C) L=1063 SERVICED BY L=1100 		1-47437-967-0 01 1 9006-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NYLON TUBE AIR PIPING<Z29> (B) REARWARD L=805 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
28 PIPE; AIR,3 WAY TO POWER CHAMBER
(B) REARWARD L=805 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306 ●
100 TUBE ASM; NYLON,RWD AXLE
NYLON TUBE AIR PIPING<Z29> (B) 		1-47440-013-1 01 1 9002-9306 ●
100 TUBE ASM; NYLON,RWD AXLE
POWER CHAMBER BRAKE UPPERWARD<C1T> NYLON TUBE AIR PIPING<Z29> (A) SERVICED BY L=30000 OD=1/2" 		1-09368-251-0 01 1 9405- ●
106 TUBE; NYLON
POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=3/8" 		1-09368-247-0 01 1 9307-9404 ●
106 TUBE; NYLON
SERVICED BY L=30000 OD=3/8" 		1-09368-247-0 01 1 9307-9404 ●
106 TUBE; NYLON
POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8" 		1-09368-247-0 01 1 9405- ●
106 TUBE; NYLON
SERVICED BY L=30000 OD=3/8" 		1-09368-247-0 01 1 9405- ●
106 TUBE; NYLON
POWER CHAMBER BRAKE UPPERWARD<C1T> SERVICED BY L=30000 OD=1/2" 		1-09368-251-0 01 1 9307-9404 ●
106 TUBE; NYLON
SERVICED BY L=30000 OD=1/2" 		1-09368-251-0 01 1 9307-9404 ●
106 TUBE; NYLON
POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2" 		1-09368-251-0 01 1 9405- ●
106 TUBE; NYLON
SERVICED BY L=30000 OD=1/2" 		1-09368-251-0 01 1 9405- ●
107 NUT; SLEEVE
POWER CHAMBER BRAKE UPPERWARD<C1T> OD=1/2" 		1-09660-558-0 02 1 9307-9404 ●
107 NUT; SLEEVE
OD=1/2" 		1-09660-558-0 02 1 9307-9404 ●
107 NUT; SLEEVE
POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> OD=1/2" 		1-09660-558-0 02 1 9405- ●
107 NUT; SLEEVE
OD=1/2" 		1-09660-558-0 02 1 9405- ●
107 NUT; SLEEVE
POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> OD=3/8" 		1-09660-557-0 02 1 9405- ●
107 NUT; SLEEVE
OD=3/8" 		1-09660-557-0 02 1 9405- ●
108 SLEEVE; TUBE
POWER CHAMBER BRAKE UPPERWARD<C1T> ID=12.93 OD=15.85 L=10.92 		1-09666-061-0 02 1 9307-9404 ●
108 SLEEVE; TUBE
ID=12.93 OD=15.85 L=10.92 		1-09666-061-0 02 1 9307-9404 ●
108 SLEEVE; TUBE
POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92 		1-09666-061-0 02 1 9405- ●
108 SLEEVE; TUBE
ID=12.93 OD=15.85 L=10.92 		1-09666-061-0 02 1 9405- ●
108 SLEEVE; TUBE
POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 02 1 9405- ●
108 SLEEVE; TUBE
ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 02 1 9405- ●
109 RING; INSERT
POWER CHAMBER BRAKE UPPERWARD<C1T> OD=1/2" 		1-09669-107-0 02 1 9307-9404 ●
109 RING; INSERT
OD=1/2" 		1-09669-107-0 02 1 9307-9404 ●
109 RING; INSERT
POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> OD=1/2" 		1-09669-107-0 02 1 9405- ●
109 RING; INSERT
OD=1/2" 		1-09669-107-0 02 1 9405- ●
109 RING; INSERT
POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NYLON TUBE AIR PIPING<Z29> OD=3/8" 		1-09669-108-0 02 1 9405- ●
109 RING; INSERT
OD=3/8" 		1-09669-108-0 02 1 9405- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
