0-36 — TURBOCHARGER SYSTEM (#17474) — 46 parça

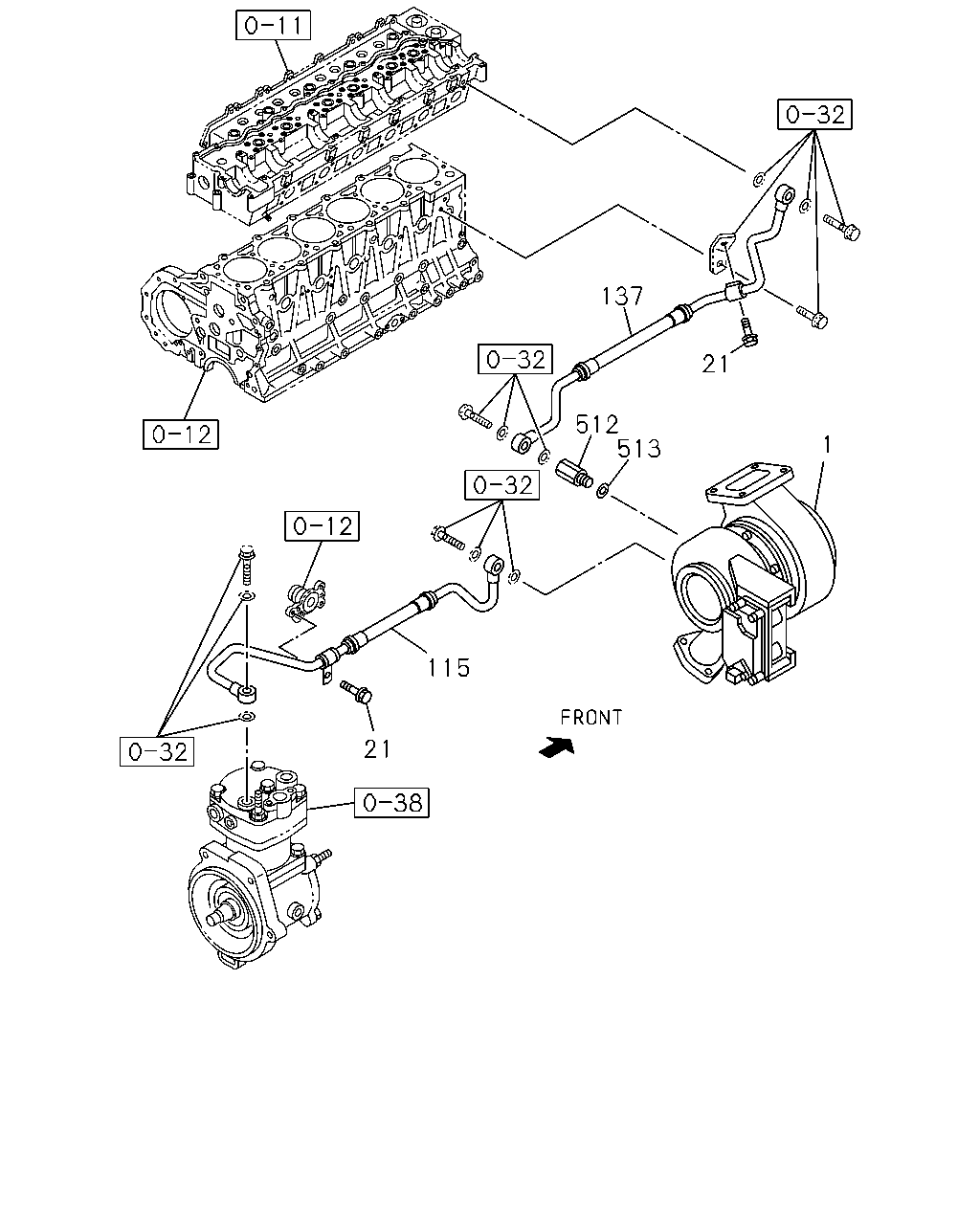

çizim 109965
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1109- ● ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1109- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97610-087-2 01 1 1109- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 1109- ● ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 1109- ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 1109-1312 ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ● ●

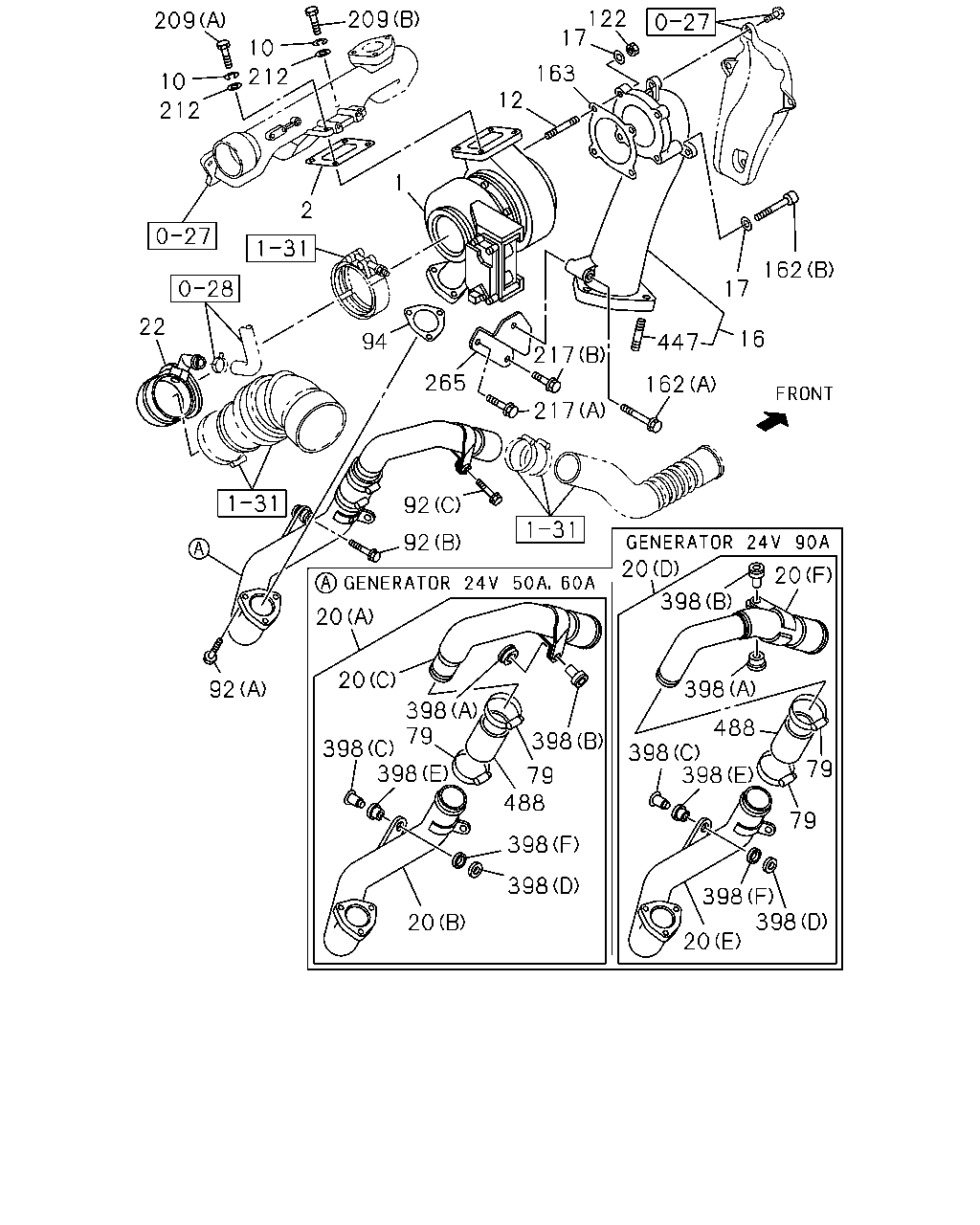

çizim 109966
10 209 10 212 2 22 1 92 94 12 163 17 122 447 17 162 16 162 217 217 265 92 92 212 20 20 398 398 398 488 398 398 20 79 398 20 20 398 398 488 79 79 398 398 398 398 20 209 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1109- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 1109- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 1109- ● ●
12 STUD; TURBOCHARGER
M8X25 L=36 		8-94476-282-0 02 1 1109- ● ●
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 1109- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 1109- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 1109-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 1109- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 1109- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1109-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1109- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1109- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 1109- ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1109- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1109- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1109- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1109- ● ●
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 1109- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 1109- ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 1109- ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 1109- ● ●
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-2 01 1 1109- ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 1109- ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-1 02 1 1109- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1109- ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1109- ● ●
265 BRACKET; EXH PIPE 8-98260-415-0 01 1 1109- ● ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1109- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1109- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1109- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1109- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1109- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1109- ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 1109- ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 1109-1408 ● ●
488 HOSE; RUBBER
ID=52.5 L=70 		8-98245-242-0 01 1 1409- ● ●
