1 |

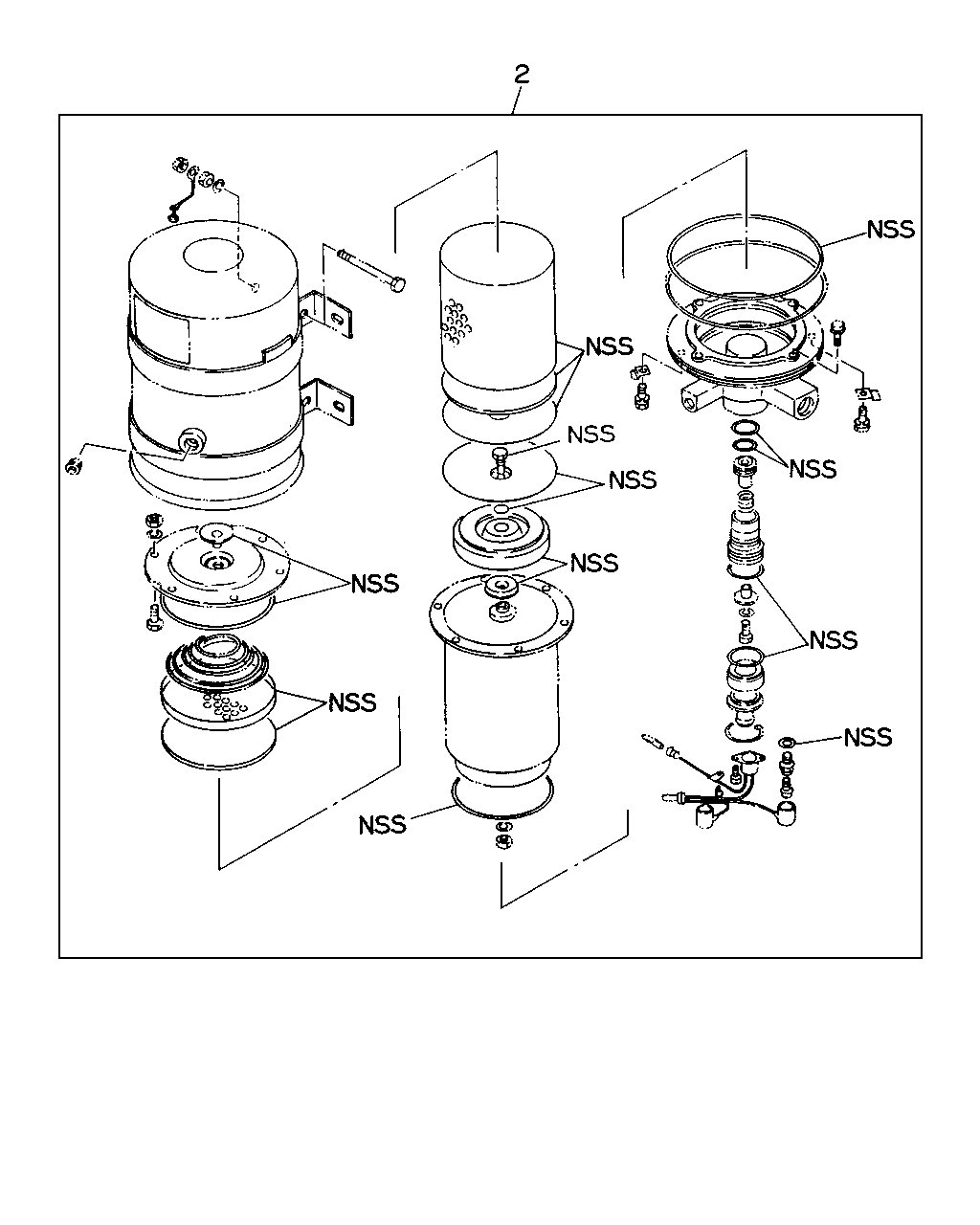

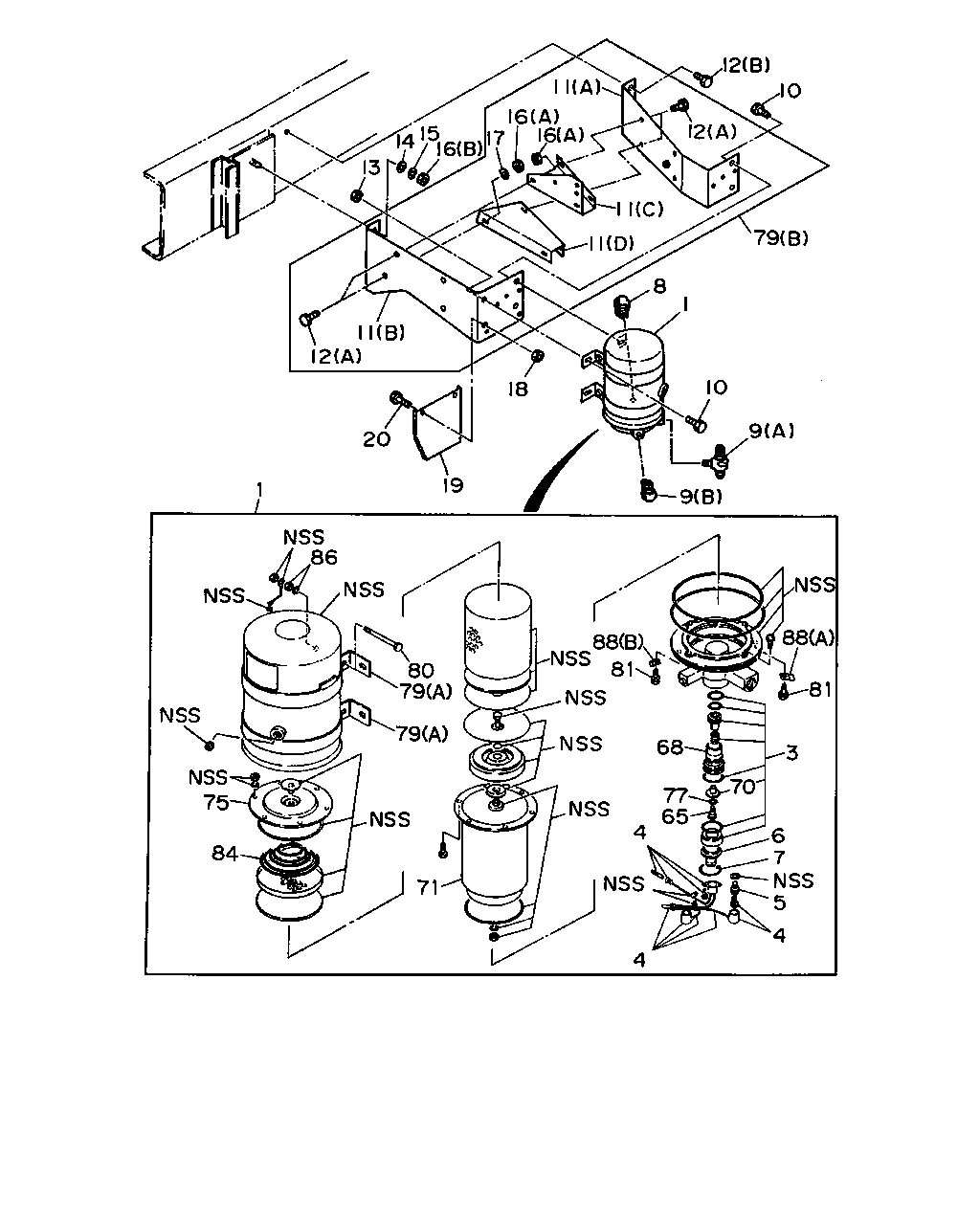

DRYER; AIR
AIR DRYER<PS7>
|
1-48190-054-1 |
01 |
1 |
9002-9306 |
● |
● |
| |
1 |
DRYER; AIR
AIR DRYER<PS7>
|
1-48190-160-2 |
01 |
1 |
9307- |
● |
● |
| |
3 |
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
|
1-85576-057-1 |
01 |
1 |
9002- |
● |
● |
| |
4 |
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
|
1-85576-066-0 |
01 |
1 |
9002-9306 |
● |
● |
| |
4 |
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
|
1-85576-129-0 |
01 |
1 |
9307- |
● |
● |
| |
5 |
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
|
1-48199-085-0 |
02 |
1 |
9002- |
● |
● |
| |
6 |
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
|
1-48199-101-0 |
01 |
1 |
9002- |
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
|
1-48199-154-0 |
01 |
1 |
9002- |
● |
● |
| |
8 |
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7>
M20 & PT1/2 ELBOW
|
1-09650-178-1 |
01 |
1 |
9002-9302 |
● |
● |
| |
8 |
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7>
M20 & PT1/2 ELBOW
|
1-09650-443-0 |
01 |
1 |
9303- |
● |
● |
| |
9 |
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7>
(A)
M12X2 & PT1/4 3WAY
|
1-09656-229-1 |
01 |
1 |
9002- |
● |
● |
| |
9 |
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7>
(B)
M22 & PT1/2 ELBOW
|
9-09234-315-1 |
01 |
1 |
9002-9302 |
● |
● |
| |
9 |
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7>
(B)
M22 & PT1/2 ELBOW
|
1-09650-444-0 |
01 |
1 |
9303- |
● |
● |
| |
10 |
BOLT; AIR DRYER
AIR DRYER<PS7>
M10X30 W/LK&PL WASHER
|
9-01961-030-0 |
04 |
1 |
9002-9204 |
● |
● |
| |
10 |
BOLT; AIR DRYER
AIR DRYER<PS7>
M10X30 W/LK&PL WASHER
|
0-50141-030-0 |
04 |
1 |
9205- |
● |
● |
| |
11 |
BRACKET; AIR DRYER
AIR DRYER<PS7>
(A)
|
1-53497-338-1 |
01 |
1 |
9002-9301 |
● |
● |
| |
11 |
BRACKET; AIR DRYER
AIR DRYER<PS7>
(A)
|
1-53497-349-1 |
01 |
1 |
9302- |
● |
● |
| |
11 |
BRACKET; AIR DRYER
AIR DRYER<PS7>
(B)
|
1-53497-339-3 |
01 |
1 |
9002- |
● |
● |
| |
11 |
BRACKET; AIR DRYER
AIR DRYER<PS7>
(C)
|
1-53497-340-1 |
01 |
1 |
9002- |
● |
● |
| |
11 |
BRACKET; AIR DRYER
AIR DRYER<PS7>
(D)
|
1-53497-341-1 |
01 |
1 |
9002- |
● |
● |
| |
12 |
BOLT; BRKT
AIR DRYER<PS7>
(A)
M10X25 W/LK WASHER
|
9-01901-025-0 |
05 |
1 |
9002-9204 |
● |
● |
| |
12 |
BOLT; BRKT
AIR DRYER<PS7>
(A)
M10X25 W/LK WASHER
|
0-50041-025-0 |
05 |
1 |
9205- |
● |
● |
| |
12 |
BOLT; BRKT
AIR DRYER<PS7>
(B)
M14X35
|
9-92051-435-0 |
02 |
1 |
9002-9003 |
● |
● |
| |
12 |
BOLT; BRKT
AIR DRYER<PS7>
(B)
M14X40
|
9-92051-440-0 |
02 |
1 |
9004-9005 |
● |
● |
| |
12 |
BOLT; BRKT
AIR DRYER<PS7>
(B)
M14X40
|
0-20801-440-0 |
02 |
1 |
9006- |
● |
● |
| |
12 |
BOLT; BRKT
AIR DRYER<PS7>
CAB UP 50MM(W60)
(B)
M8X30 W/LK WASHER
|
9-01900-830-0 |
02 |
1 |
9002-9204 |
● |
● |
| |
12 |
BOLT; BRKT
AIR DRYER<PS7>
CAB UP 50MM(W60)
(B)
M8X30 W/LK WASHER
|
0-50040-830-0 |
02 |
1 |
9205-9306 |
● |
● |
| |
13 |
NUT; AIR DRYER
AIR DRYER<PS7>
M10
|
9-09110-510-0 |
04 |
1 |
9002- |
● |
● |
| |
14 |
WASHER; PL,AIR DRYER
AIR DRYER<PS7>
ID=15 OD=26
|
9-09164-514-0 |
02 |
1 |
9002-9003 |
● |
● |
| |
14 |
WASHER; PL,AIR DRYER
AIR DRYER<PS7>
ID=15 OD=26
|
9-09164-514-0 |
04 |
1 |
9004- |
● |
● |
| |
15 |
WASHER; LK,BRKT
AIR DRYER<PS7>
ID=14.2
|
9-09150-514-0 |
02 |
1 |
9002-9003 |
● |
● |
| |
15 |
WASHER; LK,BRKT
AIR DRYER<PS7>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9004- |
● |
● |
| |
16 |
NUT; BRKT
AIR DRYER<PS7>
(A)
M10
|
9-09110-410-0 |
05 |
1 |
9002- |
● |
● |
| |
16 |
NUT; BRKT
AIR DRYER<PS7>
(B)
M14
|
9-99110-514-0 |
02 |
1 |
9002- |
● |
● |
| |
16 |
NUT; BRKT
AIR DRYER<PS7>
CAB UP 50MM(W60)
(B)
M8
|
9-09110-408-0 |
02 |
1 |
9002-9306 |
● |
● |
| |
17 |
WASHER; PL,STAY,LWR
AIR DRYER<PS7>
ID=10.5 OD=18
|
9-09160-510-0 |
04 |
1 |
9002- |
● |
● |
| |
18 |
NUT; PROTECTOR
V TYPE ENG<91L>
AIR DRYER<PS7>
M8
|
9-09110-408-0 |
02 |
1 |
9002- |
● |
● |
| |
19 |
PROTECTOR; HEAT,AIR DRYER
V TYPE ENG<91L>
AIR DRYER<PS7>
|
1-48195-039-0 |
01 |
1 |
9002- |
● |
● |
| |
20 |
BOLT; PROTECTOR
V TYPE ENG<91L>
AIR DRYER<PS7>
M8X25 W/LK WASHER
|
9-01900-825-0 |
02 |
1 |
9002-9204 |
● |
● |
| |
20 |
BOLT; PROTECTOR
V TYPE ENG<91L>
AIR DRYER<PS7>
M8X25 W/LK WASHER
|
0-50040-825-0 |
02 |
1 |
9205- |
● |
● |
| |
65 |
BOLT; PURGE VLV
AIR DRYER<PS7>
|
1-48199-102-0 |
01 |
1 |
9002- |
● |
● |
| |
68 |
BODY; VALVE
AIR DRYER<PS7>
|
1-48199-216-0 |
01 |
1 |
9002- |
● |
● |
| |
70 |
VALVE; AIR DRYER
AIR DRYER<PS7>
|
1-48199-105-0 |
01 |
1 |
9002- |
● |
● |
| |
71 |
CASE; INNER,AIR DRYER
AIR DRYER<PS7>
|
1-48199-156-1 |
01 |
1 |
9002- |
● |
● |
| |
75 |
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
|
1-48199-167-0 |
01 |
1 |
9002- |
● |
● |
| |
77 |
WASHER; LK,VALVE
AIR DRYER<PS7>
|
1-48199-103-0 |
01 |
1 |
9002- |
● |
● |
| |
79 |
BRACKET; AIR DRYER
AIR DRYER<PS7>
(A)
|
1-48199-189-0 |
02 |
1 |
9002- |
● |
● |
| |
79 |
BRACKET; AIR DRYER
AIR DRYER<PS7>
(B)
|
1-53497-352-1 |
01 |
1 |
9302- |
● |
● |
| |
80 |
BOLT; BRKT
AIR DRYER<PS7>
|
1-48199-190-0 |
02 |
1 |
9002- |
● |
● |
| |
81 |
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
|
1-48199-177-0 |
02 |
1 |
9002- |
● |
● |
| |
84 |
SPRING; AIR DRYER
AIR DRYER<PS7>
|
1-48199-166-0 |
01 |
1 |
9002- |
● |
● |
| |
86 |
NUT; BRKT
AIR DRYER<PS7>
|
1-48199-320-0 |
02 |
1 |
9002- |
● |
● |
| |
88 |
PLATE; STOPPER
AIR DRYER<PS7>
(A)
|
1-48199-178-0 |
01 |
1 |
9002- |
● |
● |
| |
88 |
PLATE; STOPPER
AIR DRYER<PS7>
(B)
|
1-48199-179-0 |
01 |
1 |
9002- |
● |
● |
