◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#17468) — 22 parça

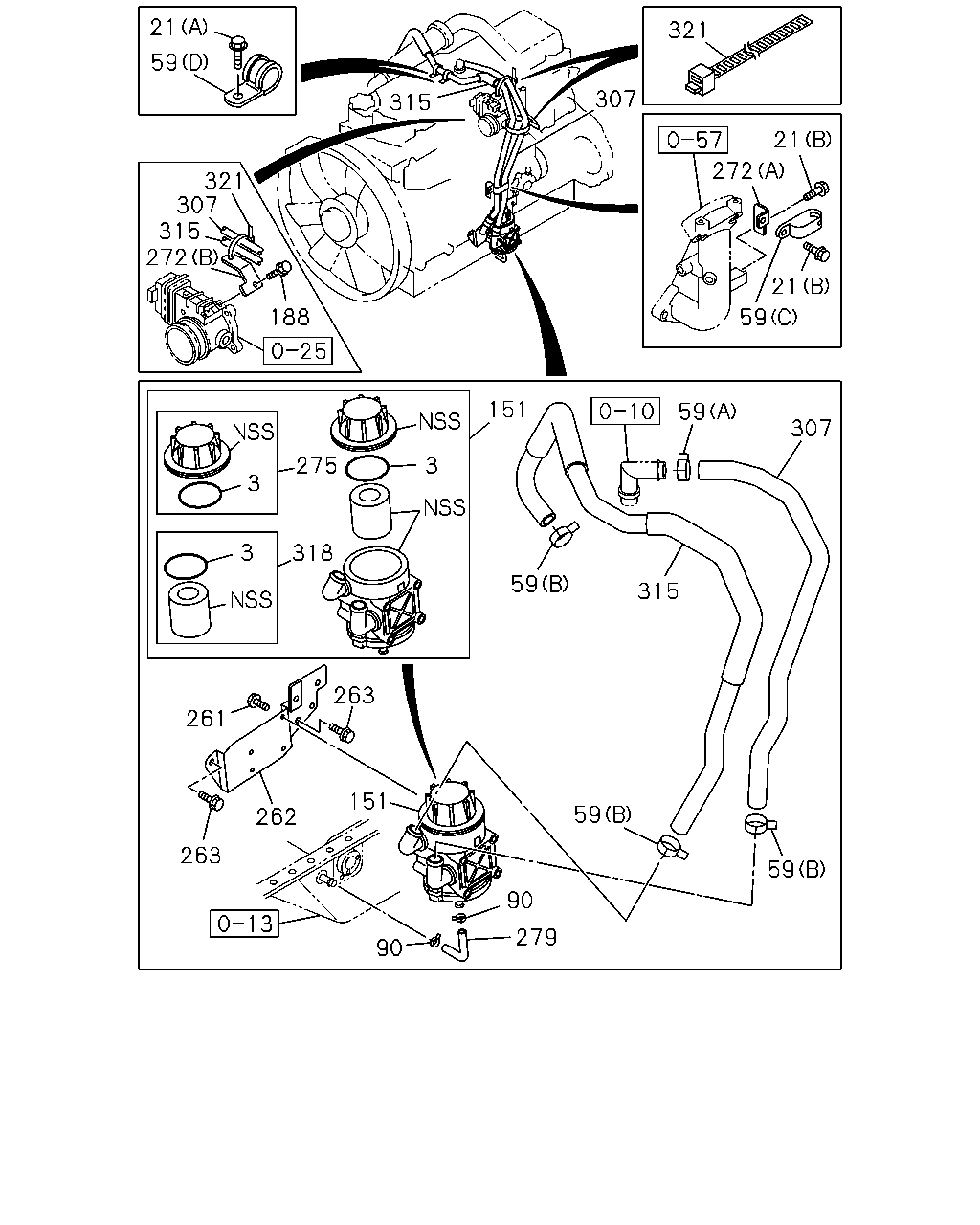

çizim 109954
21 59 321 315 21 272 21 59 321 307 315 272 188 151 275 3 318 3 3 59 307 59 315 263 261 262 151 263 90 90 279 59 59 307
BalonParca AdiParca NoAdetTipApplied Date A B
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1109- ● ●
21 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1109- ● ●
21 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1109- ● ●
59 CLIP; HOSE
(D) ID=35 L=33 		1-09700-945-0 02 1 1109- ● ●
59 CLIP; HOSE
(C) ID=30X2 L=28 		1-09701-266-0 01 1 1109- ● ●
59 CLIP; HOSE
(B) ID=28.5 		1-09707-150-0 03 1 1109- ● ●
59 CLIP; HOSE
(A) ID=31.2 		8-97237-146-0 01 1 1109- ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1109- ● ●
151 SEPARATOR; OIL,PCV 8-97602-262-2 01 1 1109- ● ●
188 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 01 1 1109- ● ●
188 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1109- ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1109- ● ●
262 BRACKET; OIL SEPARETOR 8-97610-919-1 01 1 1109- ● ●
263 BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE 		0-28751-025-0 02 1 1109- ● ●
272 BRACKET; PIPE
(A) 		8-97607-396-1 01 1 1109- ● ●
272 BRACKET; PIPE
(B) 		8-97607-397-0 01 1 1109- ● ●
275 CAP; PCV 8-97606-319-0 01 1 1109- ● ●
279 HOSE; RUBBER,OIL DRAIN
L=190 		0-02709-190-0 01 1 1109- ● ●
307 HOSE; RUBBER,HEAD COVER TO OIL SEPARAT 8-98054-285-2 01 1 1109- ● ●
315 HOSE; RUBBER 8-98054-286-2 01 1 1109- ● ●
318 ELEMENT KIT; PCV 8-97606-318-0 01 1 1109- ● ●
321 CLIP; HOSE,SEPARATOR
L=300 		1-09707-001-1 02 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
